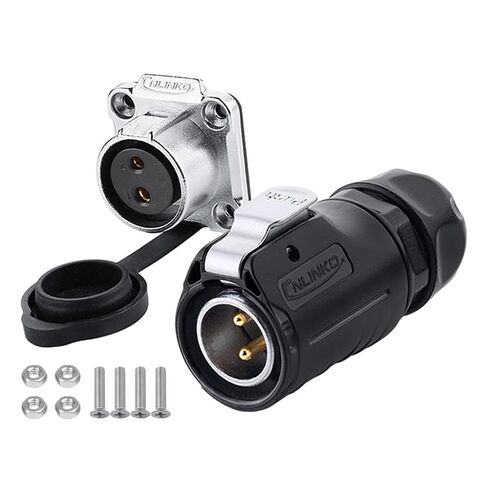

CNLINKO LP20 Series Waterproof Connector, IP68 Fast Locking Connect, 20A 500V 2pin m20 Male and Female LED Outdoor Power Connector (2 pin) in Kuwait

CNLINKO LP20 Series Waterproof Connector, IP68 Fast Locking Connect, 20A 500V 2pin m20 Male and Female LED Outdoor Power Connector (2 pin)

KWD 6

~~KWD 7~~

Brand
CNLINKO: Category
Outlets, Plugs & Switches: Weight
100 g

Size2 PIN

StyleBlack/4-Hole Socket

Special Features

LP-20-C04PE-01-022 + LP-20-J04SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;
【Standard】 Cable Specification(Power): 2.5-4.0mm2/14-12AWG ; Cable Diameter Range(Power): Ф9.0~Ф12.0mm ; Contact Diameter × Number: Φ2.7x4 ; Durability:≥500 Mating/Unmating Cycle ; Temperature Rating:-40°C ~ 80°C ; Assembly Style:Solder ;
【Specifications】 Rated Current: 20A ; Operating Voltage (AC.V.rms): 500V ; Withstanding Voltage (AC.V),1 Minute: 2000V ; Contact Resistance: <1.0mΩ ; Insulation Resistance: ＞500MΩ ; Prohibited To Charged Inserted ;
【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;
【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
