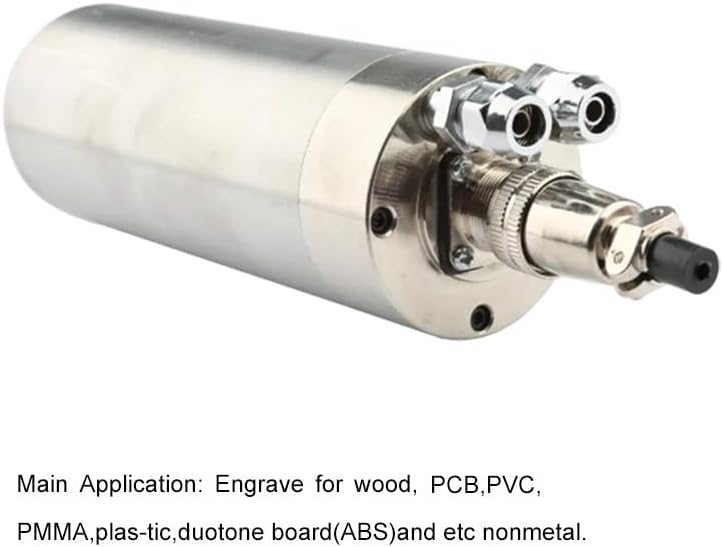

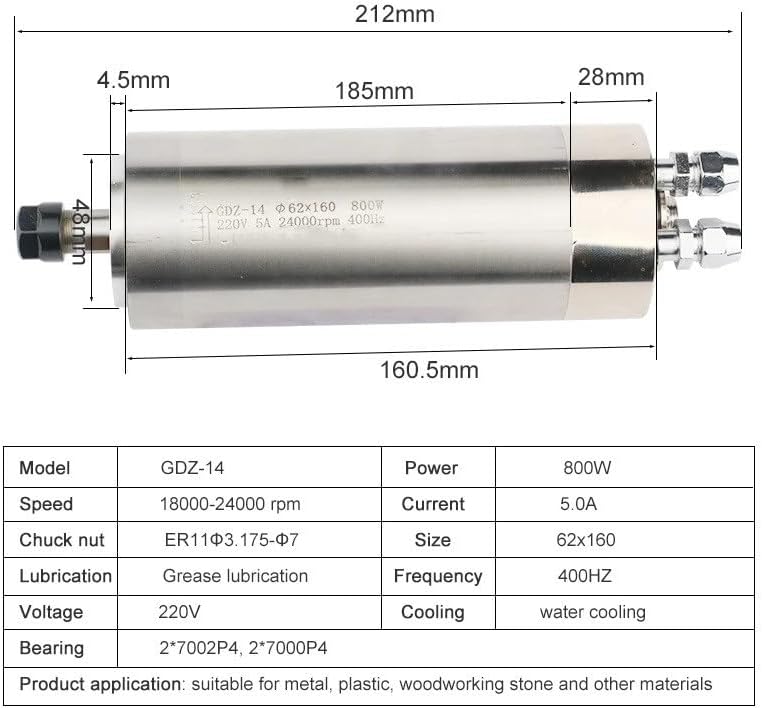

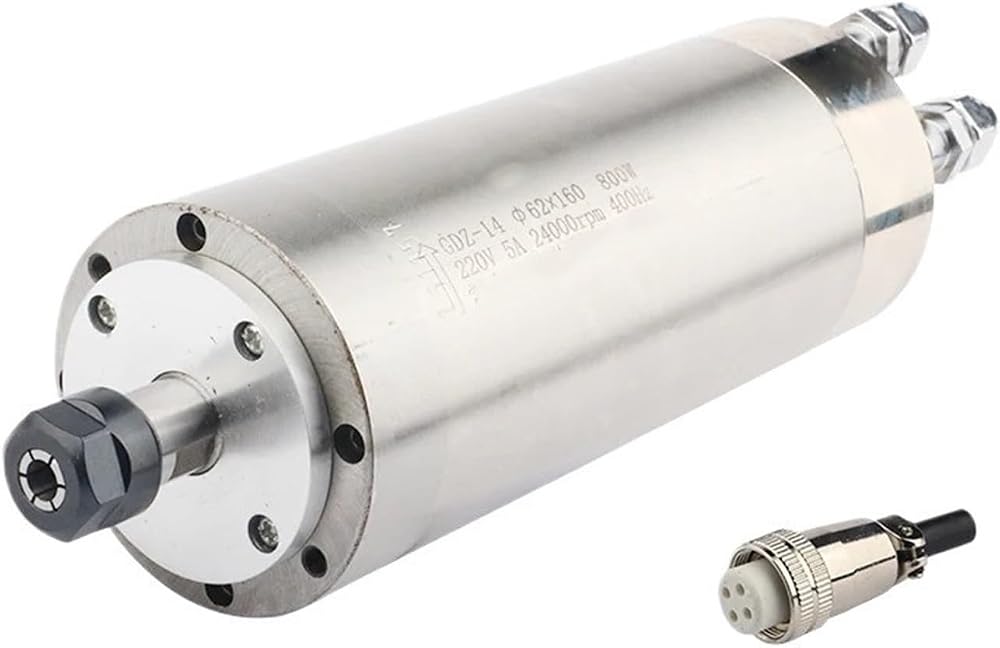

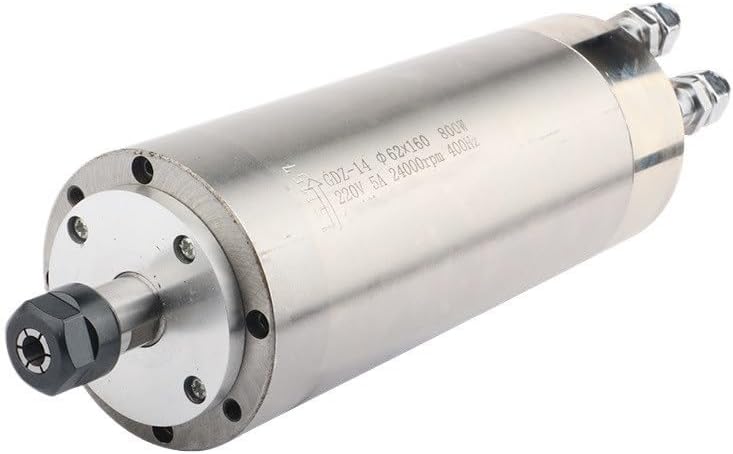

Model Number: GDZ-14 800W
Power: 0.8kw
Voltage: 220v
Current: 5A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7002C/P4*2,7000C/P4*2
4 ball bearings

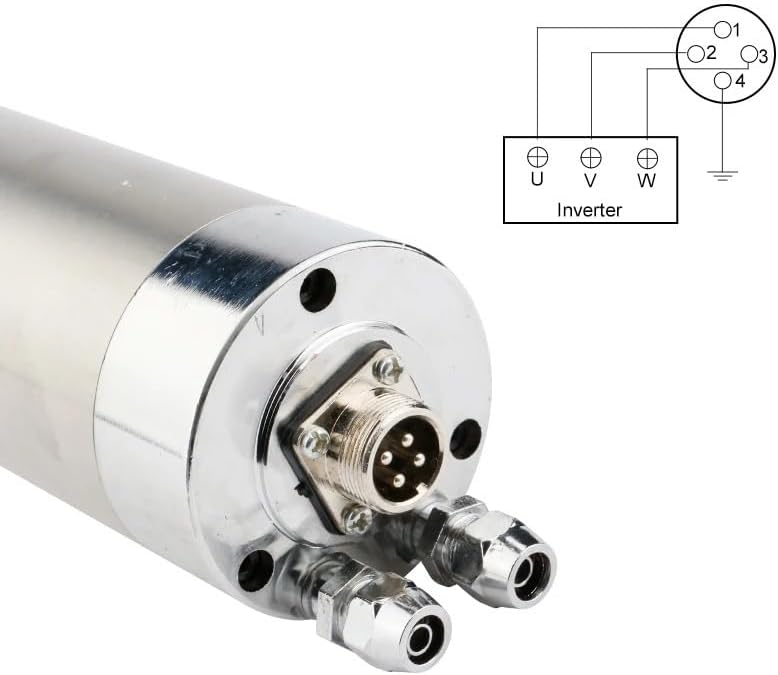

Number of phases: 3
Chuck: ER11
Water-cooled ER11 chuck
Grease lubrication

The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter sets of the inverter match the spindle parameters.
