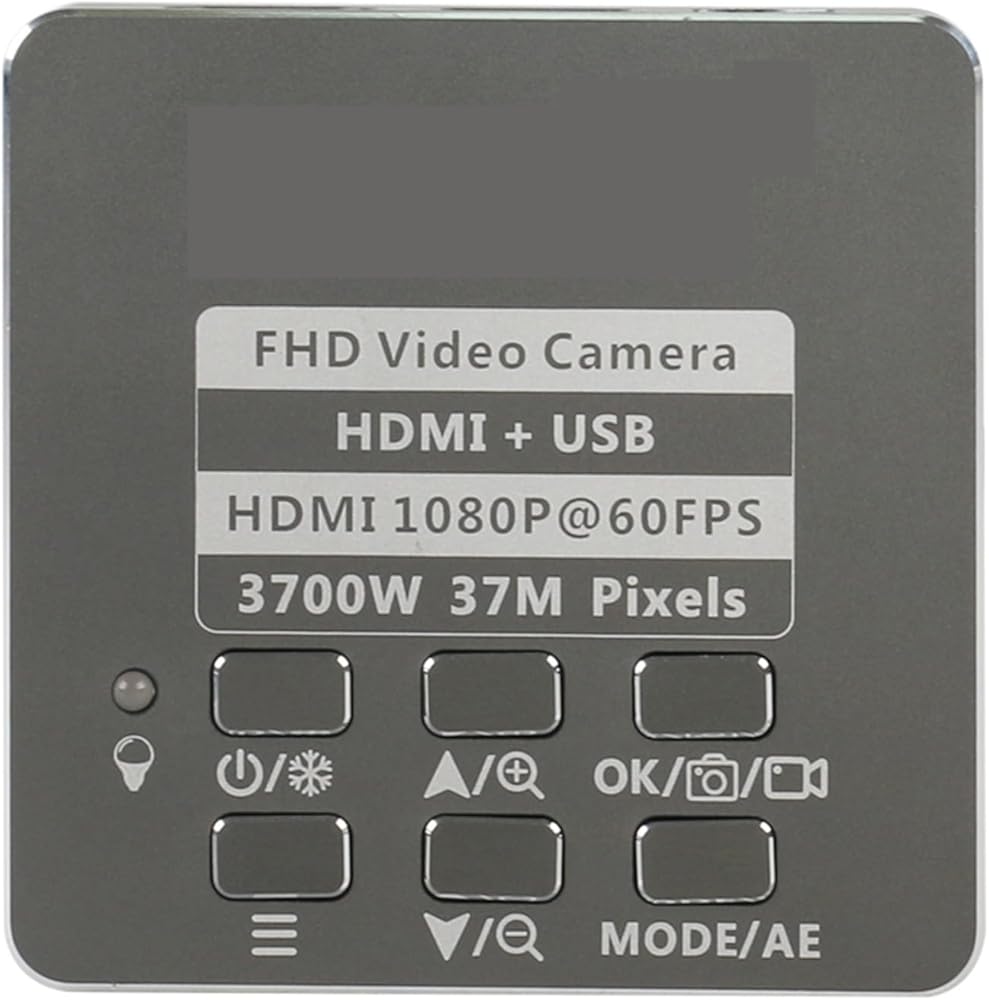

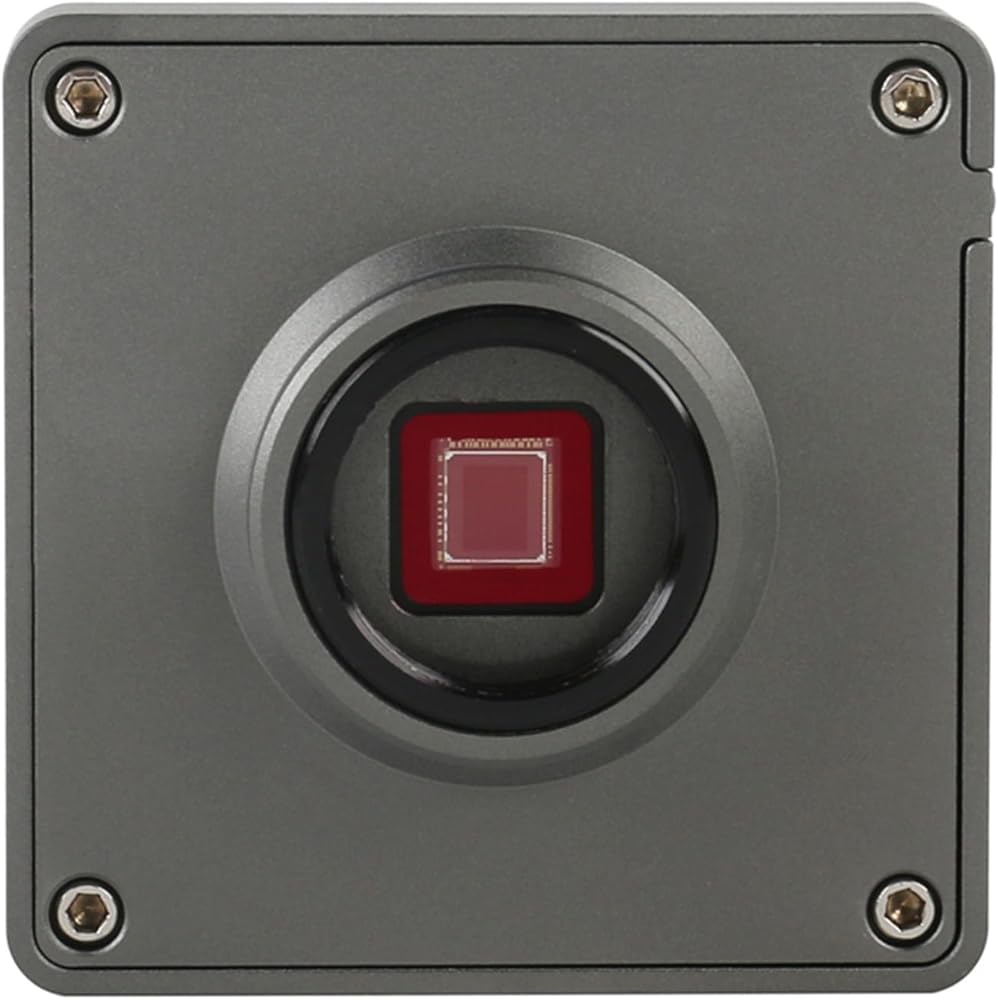

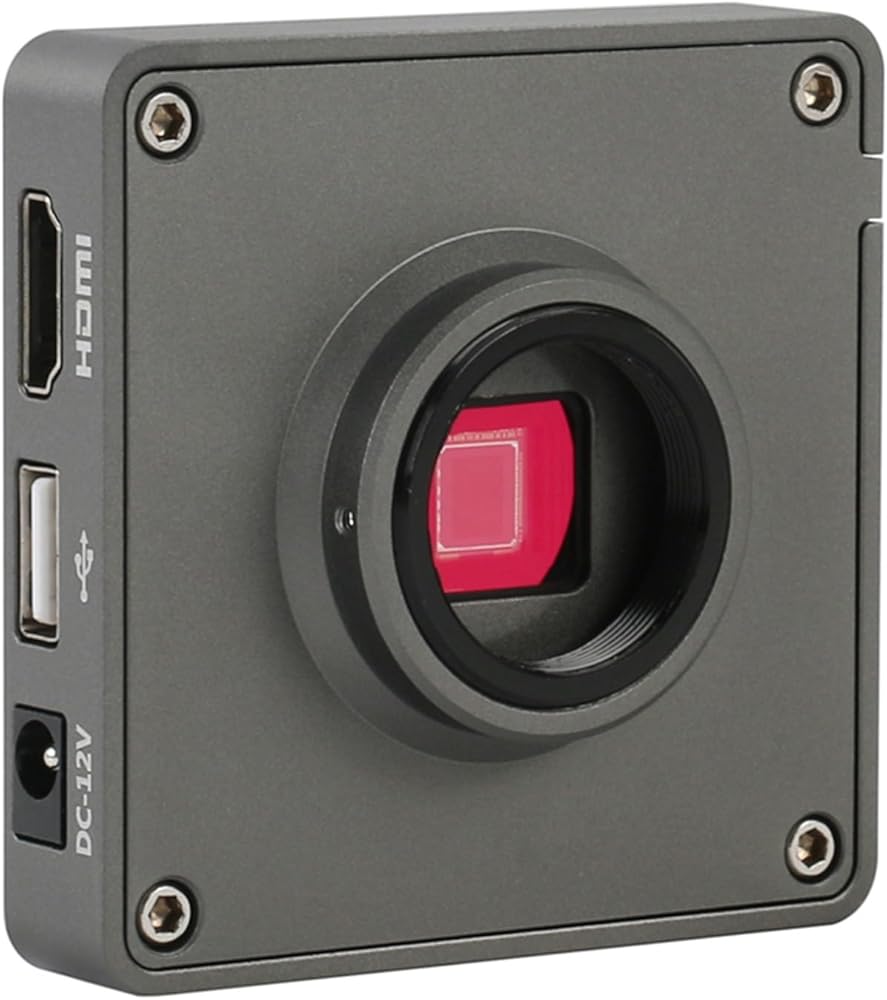

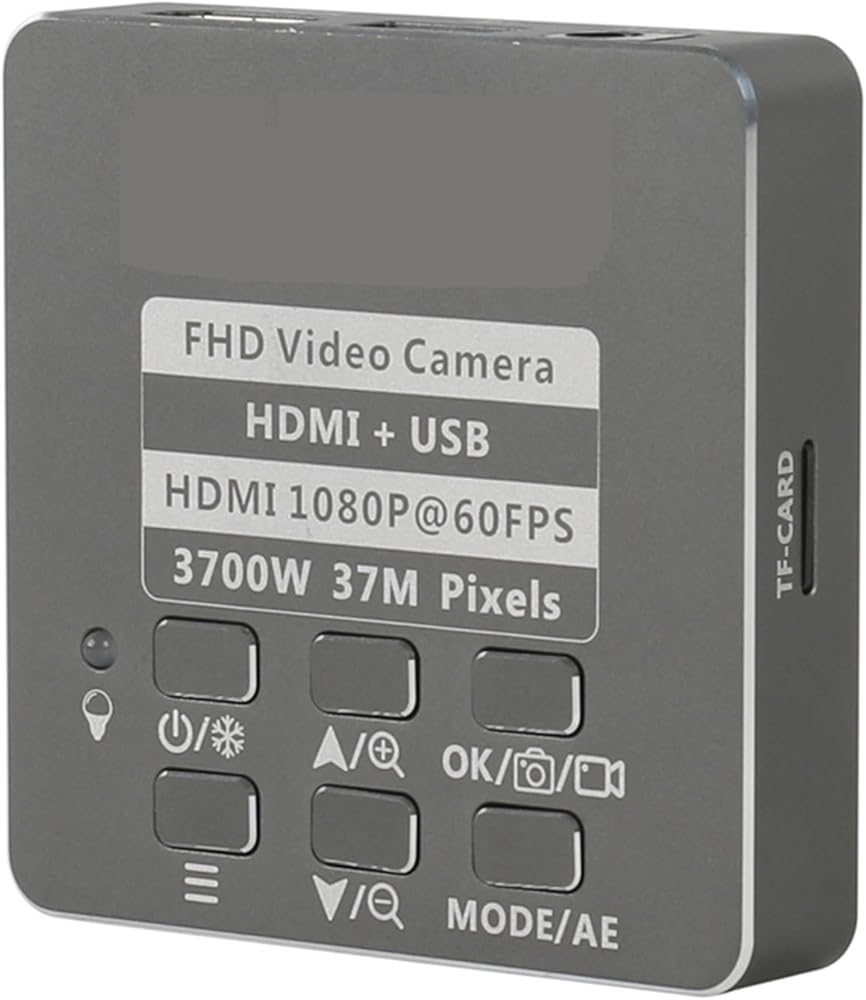

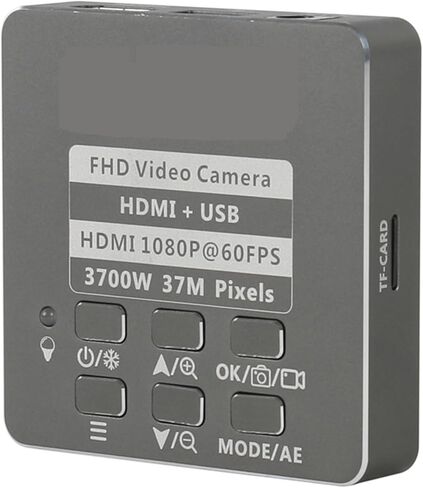

Features for 37MP Video Microscope Camera :
High resolution, clear images
37.0MP 1/2.3" Large CMOS Image Sensor
TF card video recorder
Photo Model / Video Model
Industrial CMOS camera. It can display the live image directly on any HDMI monitor, projector or TV.
It adopts digital cross hair and color control, add line to the photos, freezer, mirror, rotate, negative
Deliver USB2.0, HDMI HD video, two outputs
Specification:r
Frame Rate: 1920*1080@60FPS
Housing: aluminum alloy
Pixel size: 1.43μm × 1.43μm
Output: USB, HDMI, TF card, infrared remote control
Sensor Size:1/2.3"
Current: DC-12V/1A
Features
Basic function: Brightness, contrast, saturation, white balance,
black and white toggle, date adjustment
Image Adjustment: Exposure, Flicker Limit, Emergency,
Gamma, Cb/ Crgain Adjustment
Camera function: Digital zoom, Horizontal/
vertical mirror, image freeze
Storage: Image collection, video, image preview, TF card formatting
Reticle: 4 sets of guidance, can define
color, line, offset and hidden
Cross hair: Can adjust color, line size, hide or show
White Balance: Auto/Manual
TF Card Interface: Max 64G
HDMI interface: Standard HDMI output
HDMI Image resolution: 8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF card),
USB Image resolution: 1920*1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS 320*240 @ 30FPS for USB
Video format: MP4
Picture format: JPG
Color: Color / Black White
Freezer: Support
Exposure: Auto/Manual
Camera interface: C CS mount
EV:+/-
Remote Control:Yes
144 LED Ring Light Features:
Input Voltage:AC90V-240V
Output Voltage:DC12V
Maximum output power: 8.5W
Brightness adjustment range: 0-100% adjustable
Working Distance: 40-160MM
Maximum illumination power:30000-35000LUX
Color temperature: 6500K-7000K
Effective
