Feature:

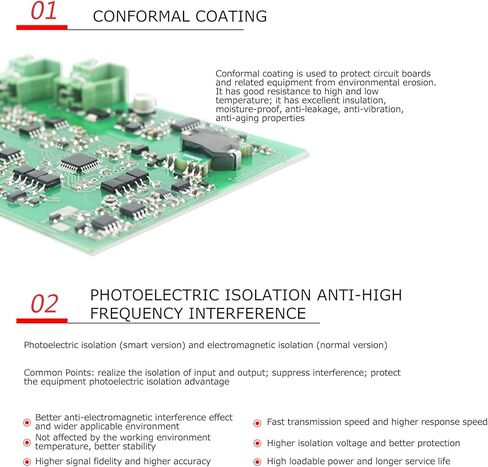

1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion.
2. High‑quality ABS material shell, high temperature and impact resistance, can be used for a long time.
3. 35mm standard guide rail installation, easy installation and disassembly, and does not occupy space.
4. Realize the isolation of input, output, power supply and shell, strong anti‑interference ability and high reliability.
5. Has excellent insulation, moisture-proof, anti-leakage, anti-vibration, anti-aging, anti-corona performance, etc.

How to Use:
Installation Method:
1. For 35mm rail installation, please pay attention to the stability and firmness of the bayonet during installation.
2. Please install it as vertically as possible to facilitate the heat dissipation inside the instrument.

Specification:

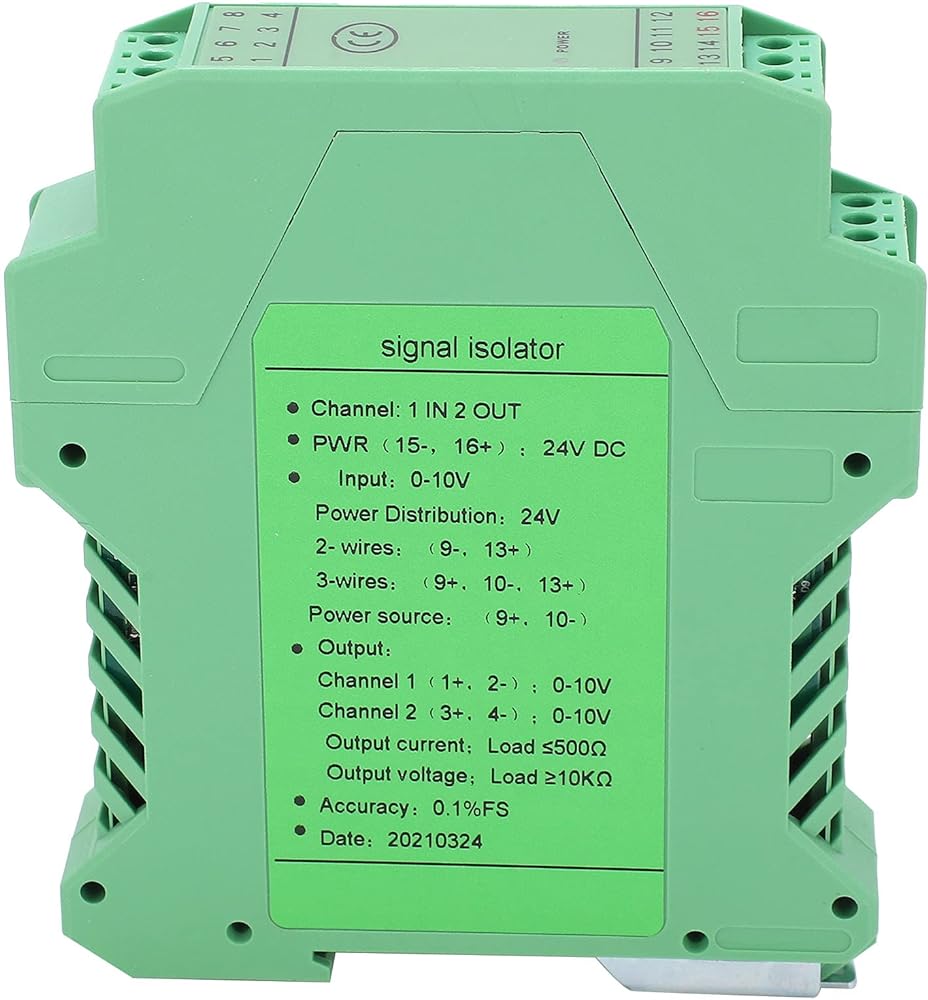

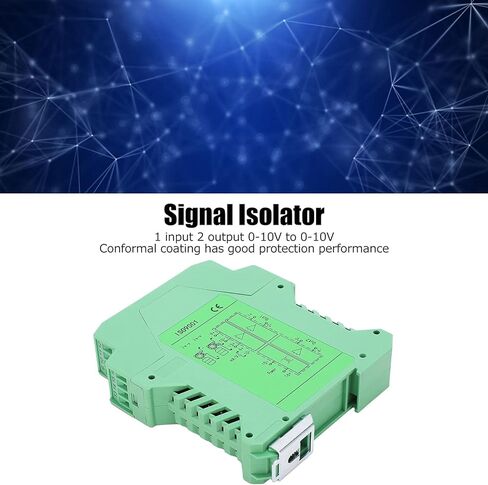

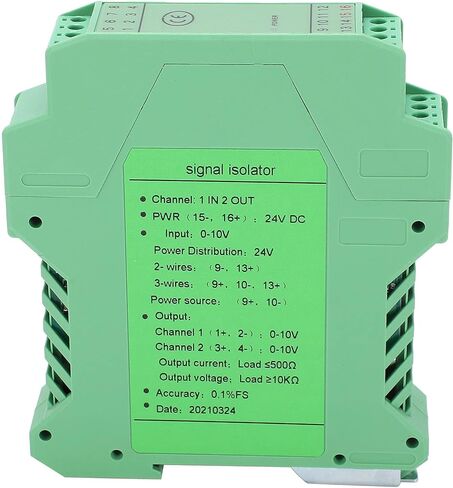

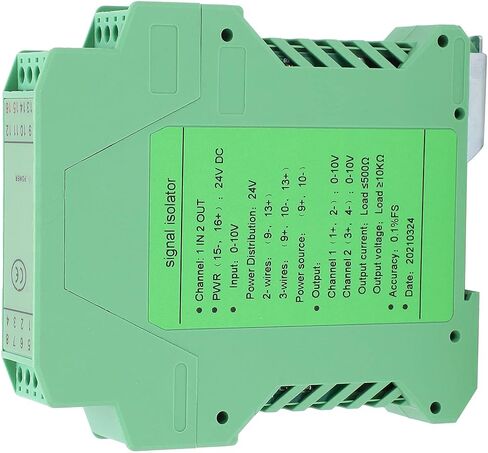

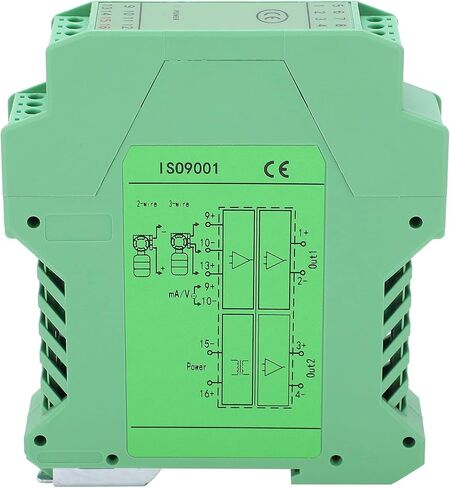

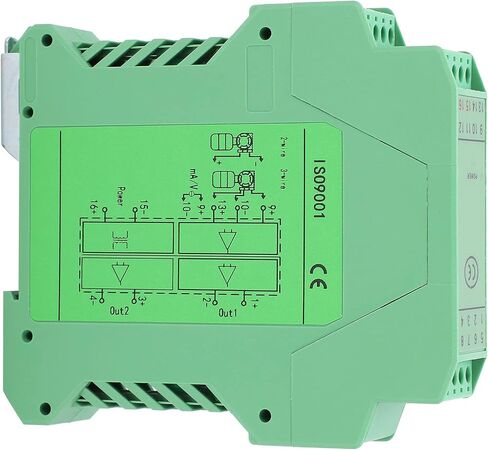

Item Type: Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC 24V

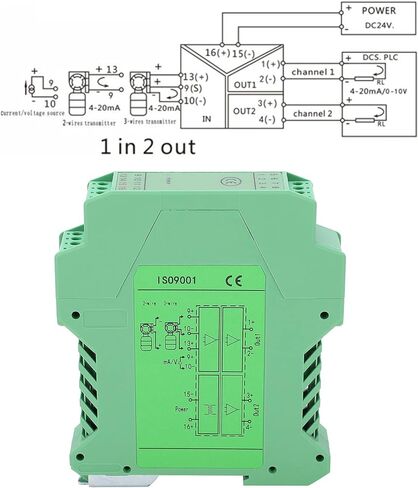

2-Wire System: (9-, 13+)
3-Wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55℃
Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, current source
Product Description:
DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter fro
