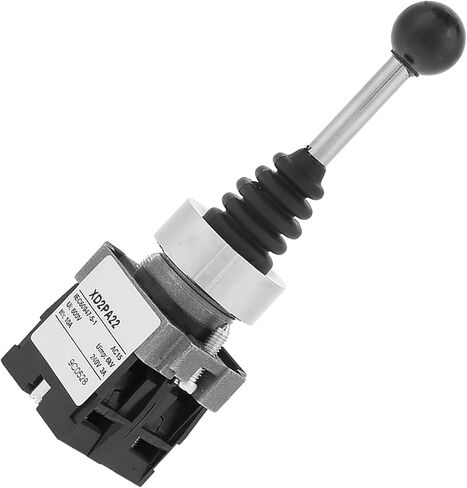

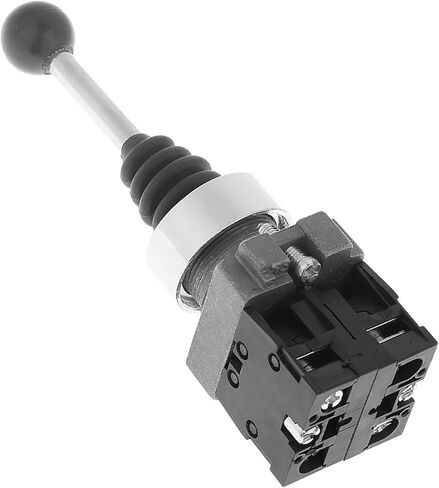

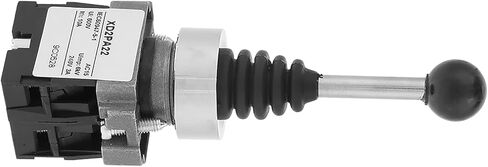

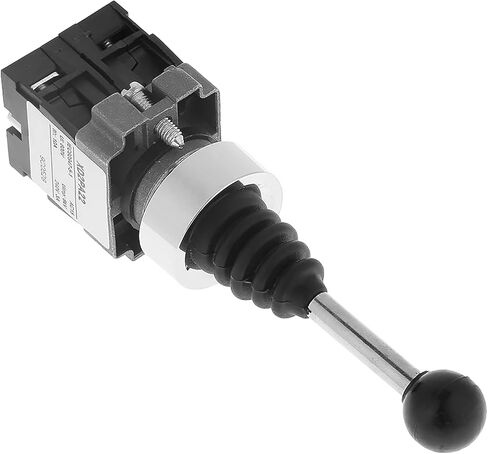

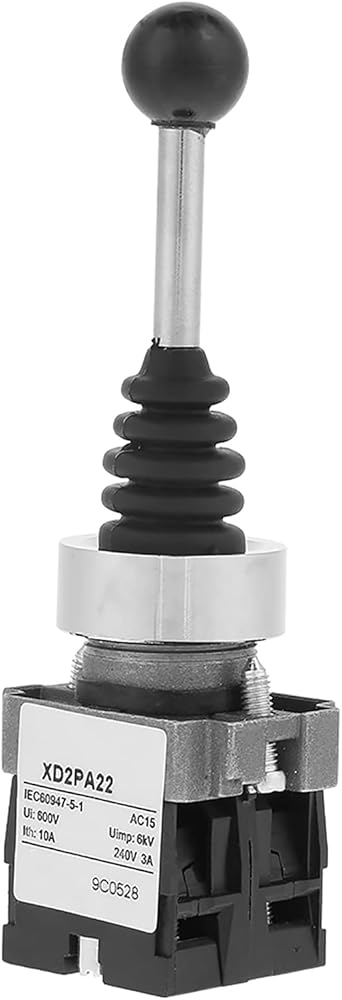

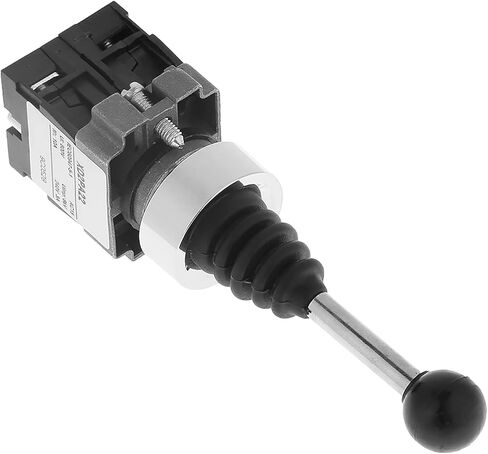

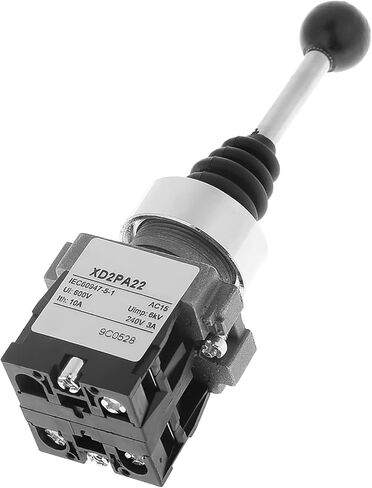

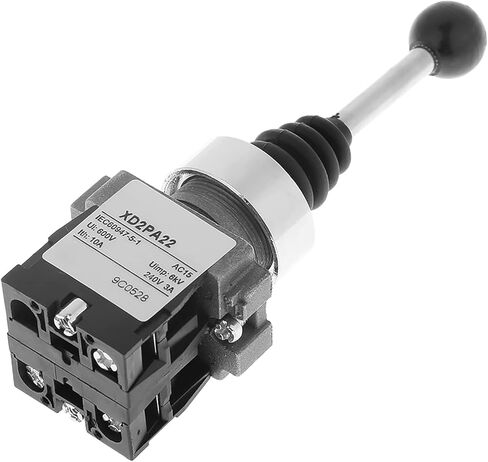

2NO Joystick Switch, Momentary Joystick Switch,XD2PA22CR 2NO 2 Position 2NO Momentary Type Monolever Locked Joystick Switch, DPST Toggle Switches

KWD 4.500
Brand
Walfront
Category
Controllers
Weight
179 g
– 1 +

Special Features

  • 【Waterproof, oil and dust resistant】The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance
  • It can control magnetic starter, contactor, relay and other electrical circuits
  • PHYSICAL ADVANTAGES---The rubber sleeve cover of the joystick momentary switch is resistant to water, oil and dust, the stick returning to its original position once released
  • The joystick switch is a momentary switch that has 2 normally open contacts
  • MORE THAN 500, 000 TIMES MECHANICAL LIFE---The joystick momentary switch is of more than 500, 000 times mechanical life, and more than 500,000 times electrical life

Description

Specifications:
Model: XD2-PA22CR
Type: 2-position momentary
Contact: 2NO
Rated Voltage: 0~380V AC (50Hz); 0~220V DC
Mounting Hole Diameter: 22mm
Electrical Life: >500,000times
Mechanical Life: >500, 000times

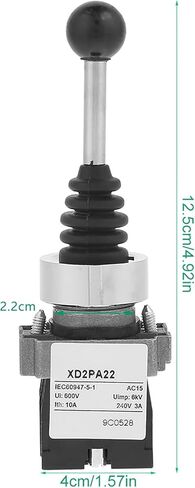

Size: 12.5*4cm/4.9*1.6in
Operating Temperature: -25~+55℃ (no ice)
Operating Humidity: 45~85% (nocondensation)
Contact Resistance: ≤50mΩ
Isolation Resistance: ≥100Ω
Max. Withstand Voltage: 3000V, AC 50Hz
Vibratility: 50Hz, amplitude is about 1mm
Shock Resistance: >10m/s² (about 10G)
IP Rating: IP55
Weight: 124g(approx.)
Package Includes:
1 x Switch
