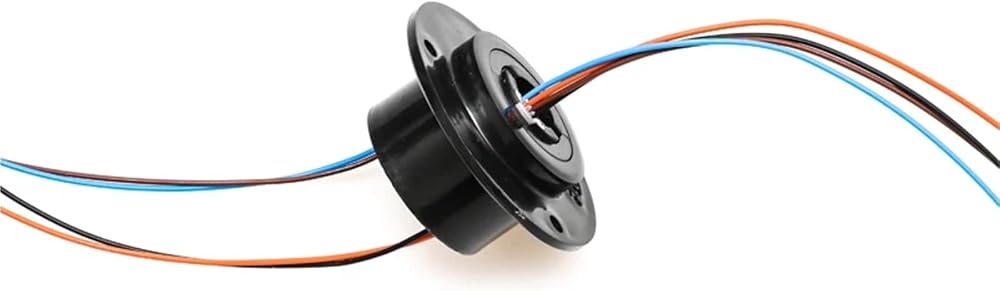

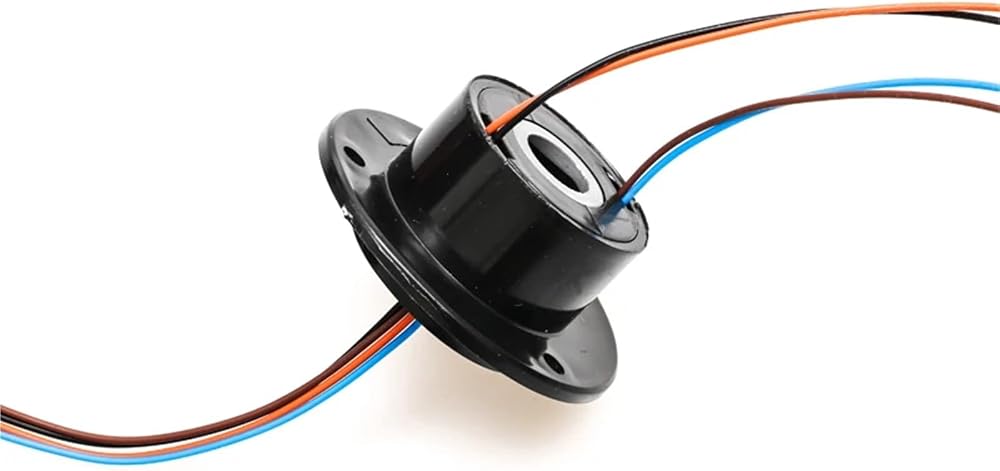

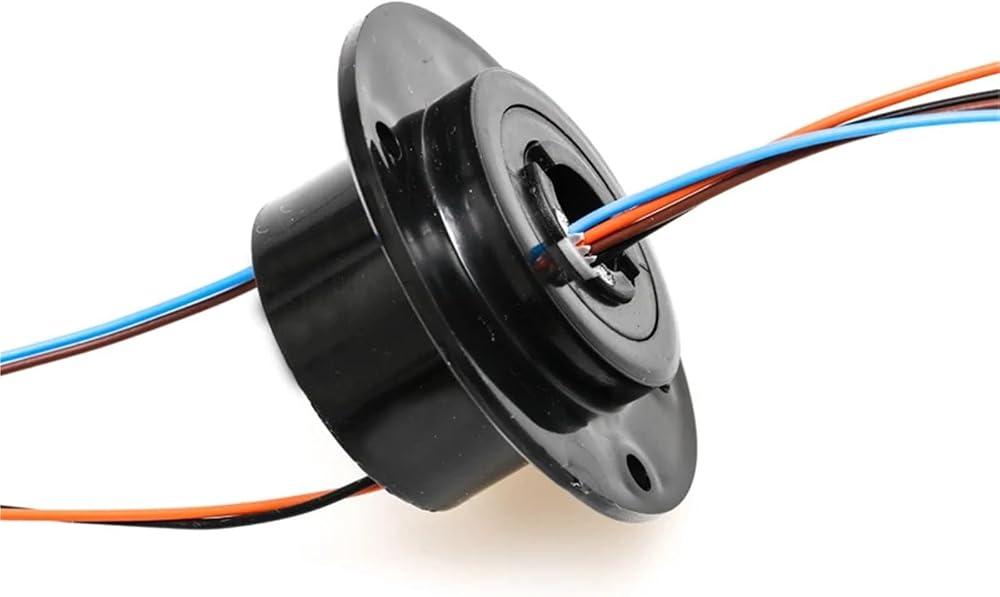

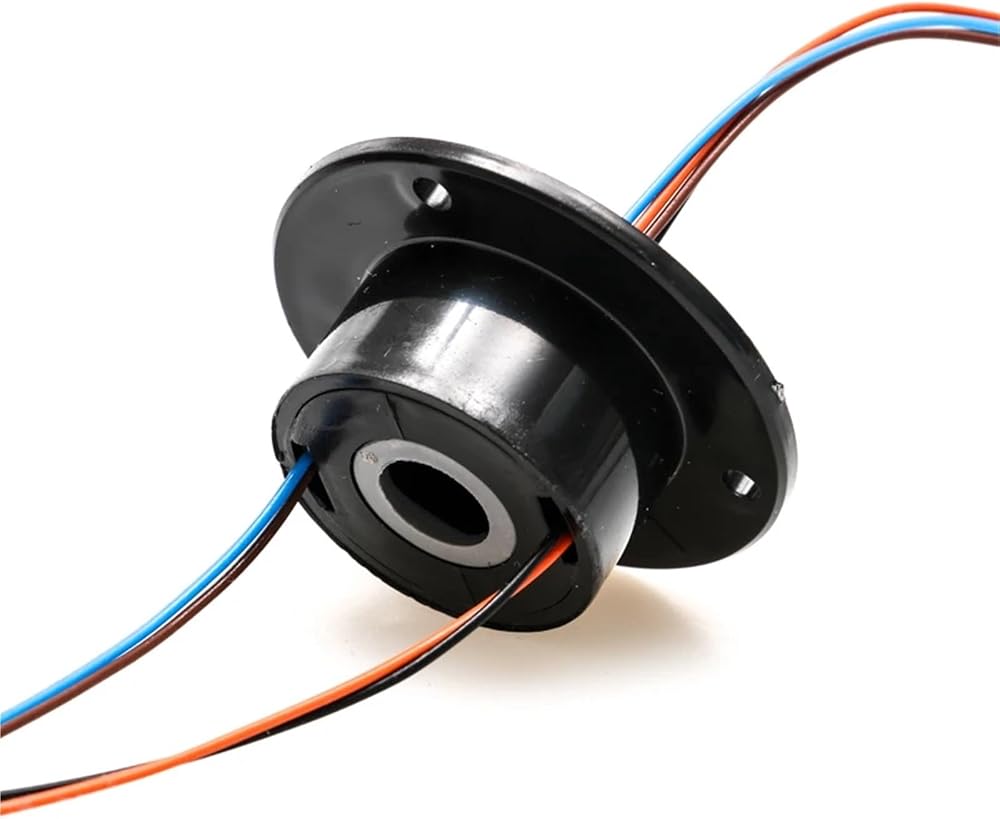

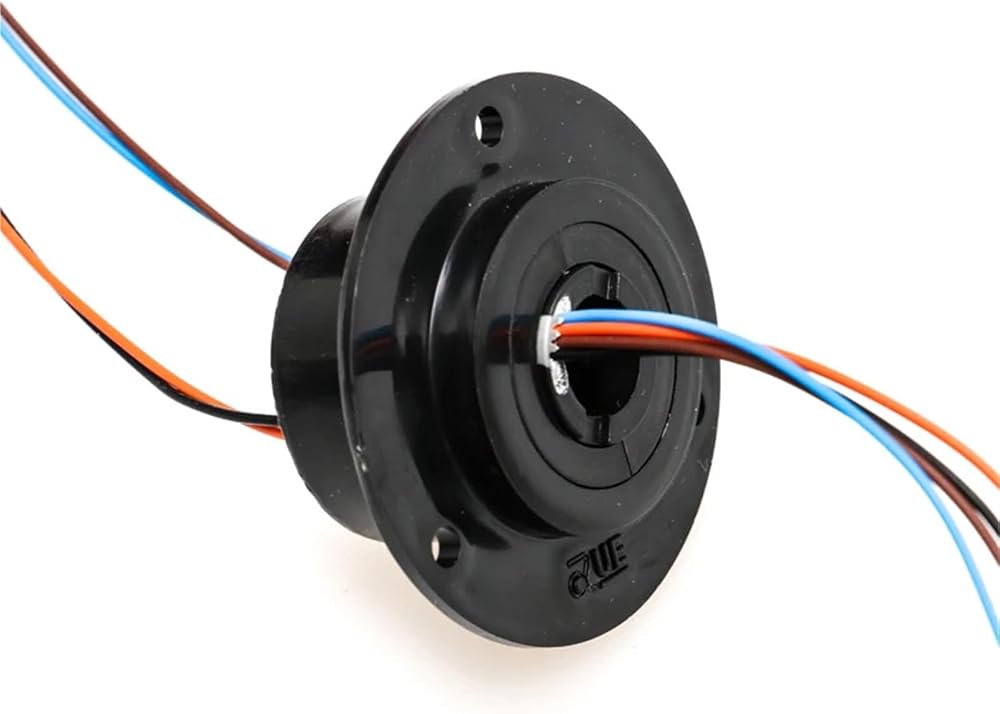

1PCS Through Hole Dia 10mm Hollow Slip Ring 4CH 2A Electric Collecting Slipring 360° Rotary Joint Connector for Monitor Gimbal
Specification:
- Hole diameter: 10mm
- Number of channels: 4ch
- Rated current: 2A
- Rated voltage: 240VAC/DC
- Speed: 0-200rpm
- Contact material: Precious metal
- Housing material: Engineering plastic
- Dynamic resistance: Minimum 1m Ohm
- Wire Specifications: AWG26
- Pressure resistance: 500VDC-50Hz, 10s
- Wire length: Standard 250 mm
- Insulation strength: 500mOhm-500VDC, 10s
- Protection level: IP54
- Operating temperature: -20 Celsius ~ +60 Celsius
- Working humidity: 10%-85% RH
- Shockproof level: MIL-STD-810E
- Certified: SGS UL
Package include:
1pcs x slip ring
==========
