Model 1 :1:1 Bevel Gear Reversing Angler 6mm Shaft
Model 2 :1:1 bevel gear commutator circlip fixed 6mm shaft
Model 3 : 1:1 Bevel Gear Reversing Angler 8mm Shaft
Model 4 : 1:1 bevel gear commutator circlip fixed 8mm shaft

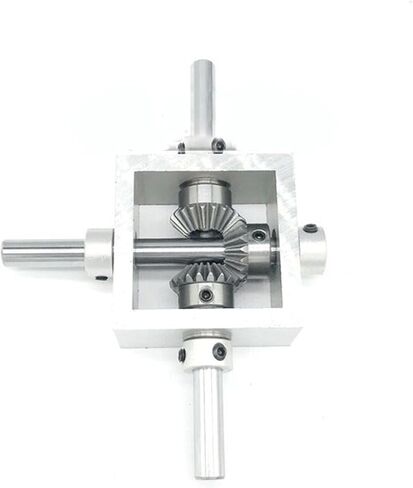

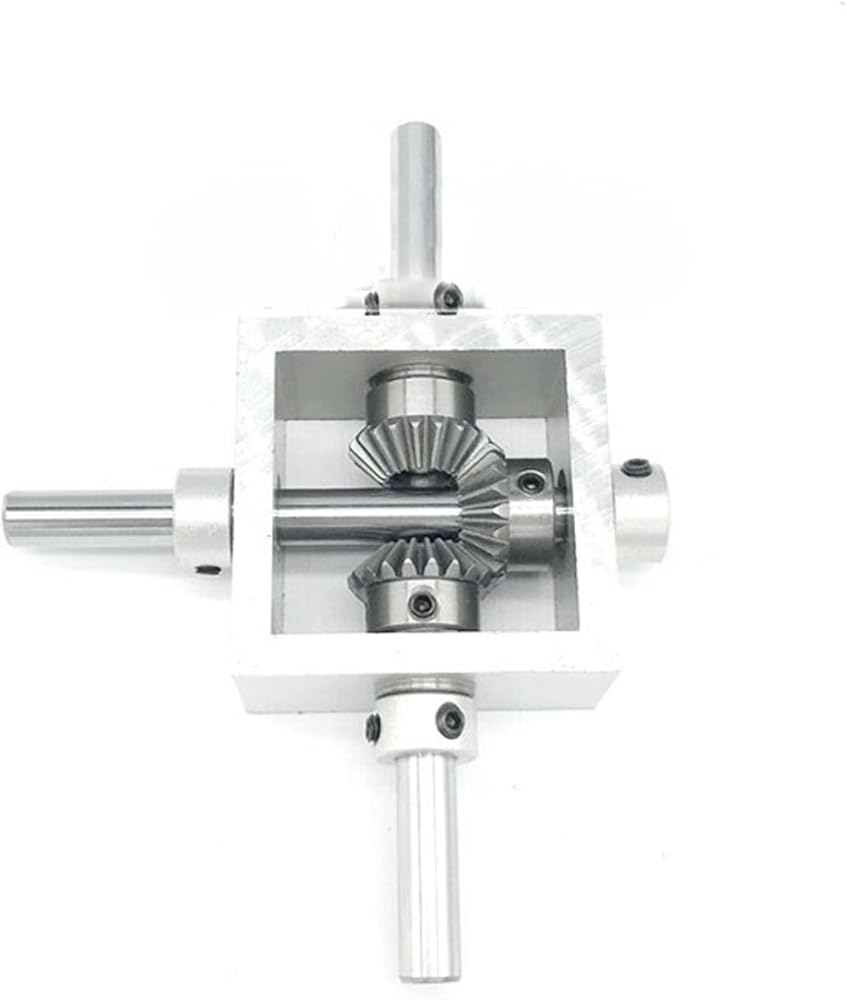

Model 5 : 1:1 commutator, one in, two out, forward and reverse, 6mm shaft
Model 6 :1:1 commutator, one in and two out, circlip fixed 6mm
Model 7 : 1:1 commutator, one in and two out, forward and reverse, 8mm shaft
Model 8 : 1:1 commutator, one in and two out, circlip fixed 8mm
Model 9 : 1:2 Bevel Gear Reversing Angler 8mm Shaft
Frame material:aluminium alloy
:Aluminum alloy processing, drilling and cutting process may produce scratches, does not affect the use
The product has no fixed mounting hole Need to be fixed by the buyer There are no covers up and down
The product is a simple model Not for high speed operation It can be used in the place where the precision is not required On accuracyHigh demand and careful purchase!
modulus: 1model
Number of teeth: 20 tooth
Internal foramen: 6 mm/8mm
external diameter: 21 mm
Step outer diameter: 16 mm
Tooth length: 7 mm
Total length: 13.2 mm
Fixing screw hole: M4*2Fixing screw hole
texture of material: S45C carbon steel
Installation center distance: 18mm
1 than 1Overall weight of bevel gear box: 0.16kg
Overall weight of one in two out positive and negative rotation gearbox: 0.17kg
1 than 2 Overall weight of bevel gear commutator: 0.55kg
