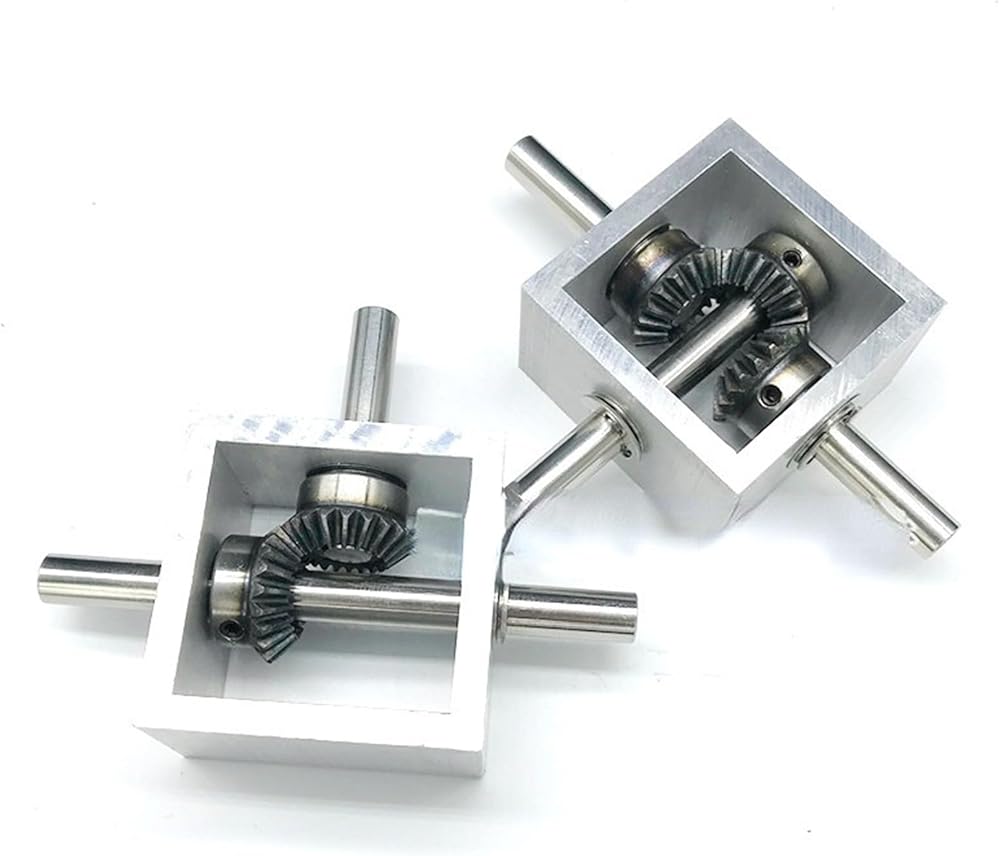

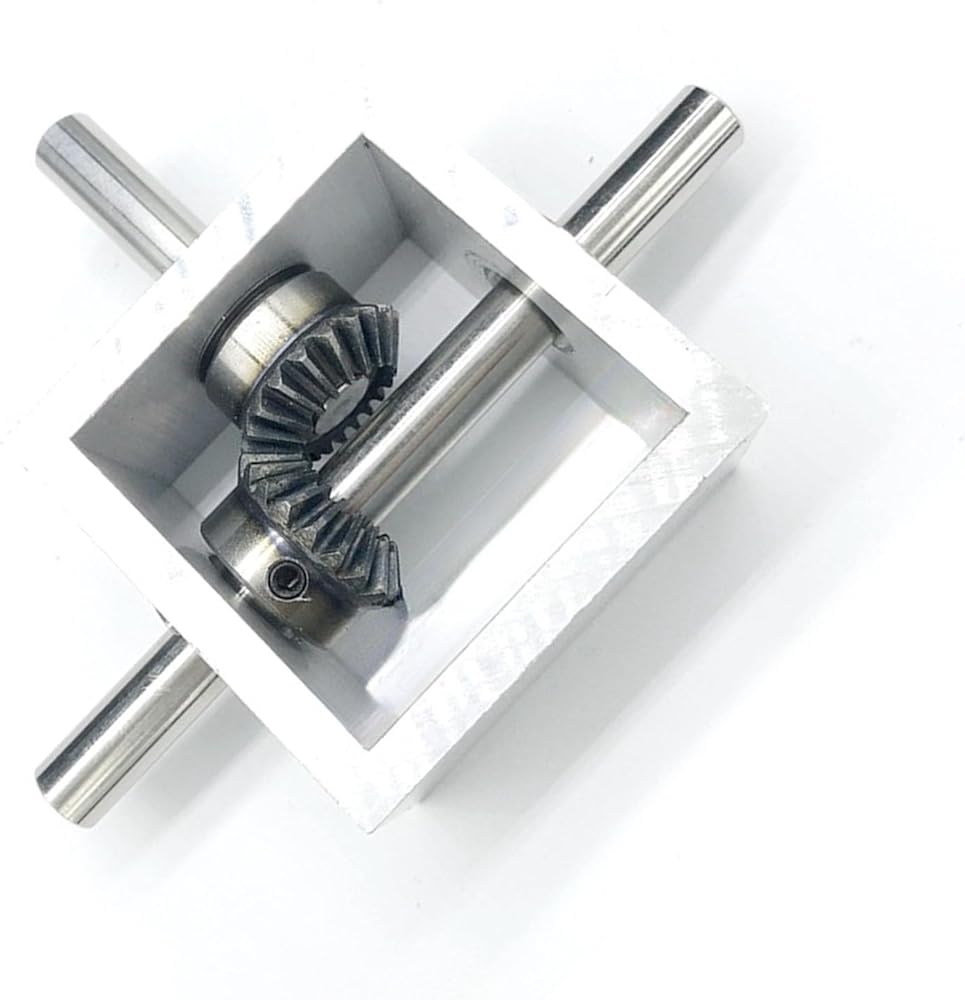

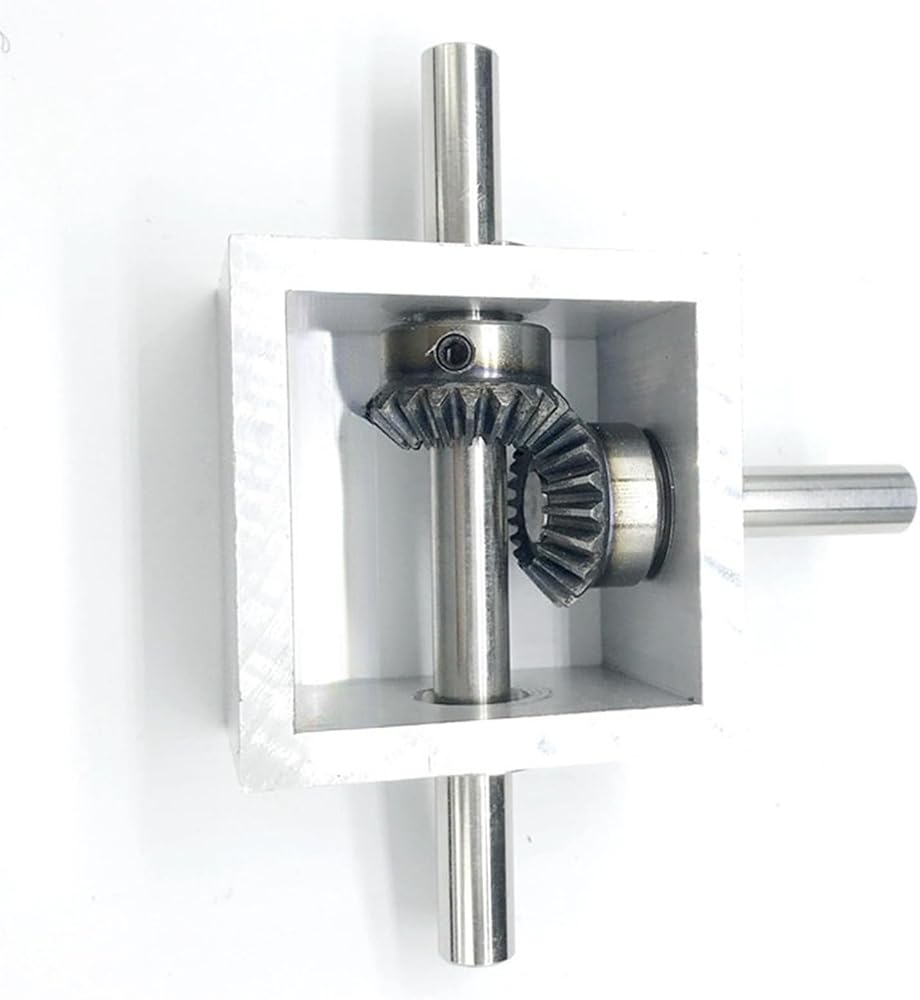

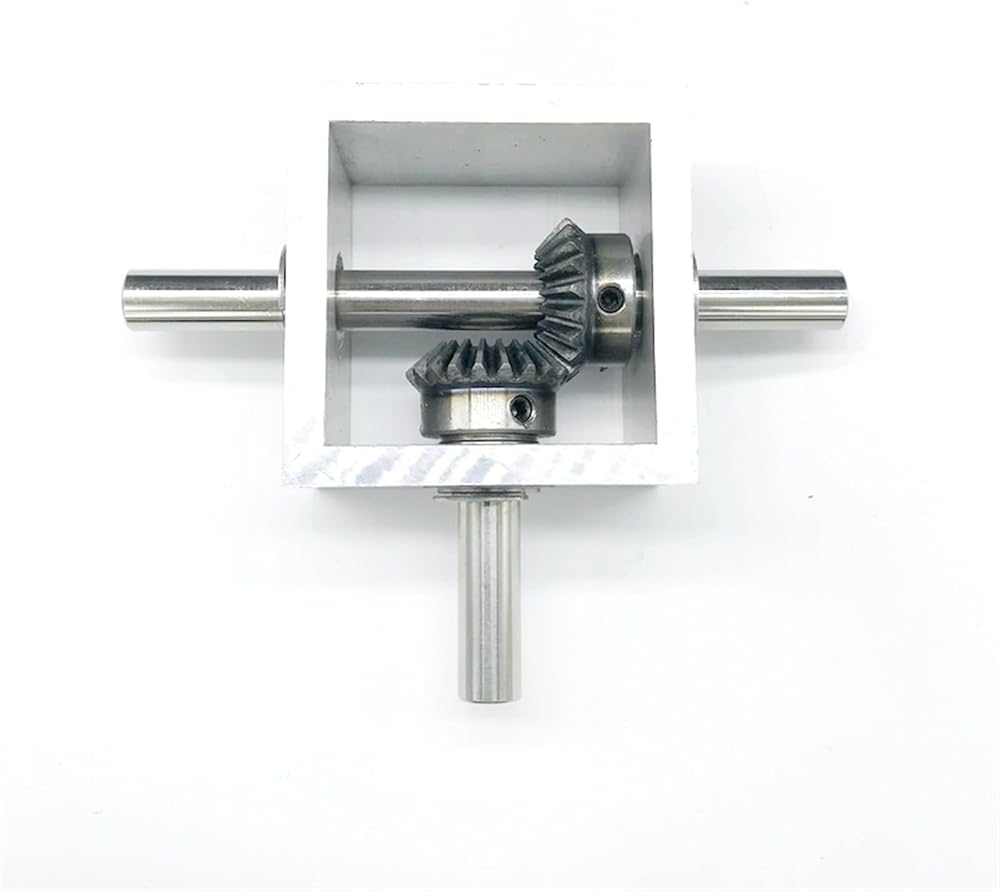

Type 1: 1:1 bevel gear commutator shaft 10mm
type 2: 1:1 reversing, one in and two out, forward and reverse shaft 10mm
Bevel gear parameters
Module: 1.25 modules
Number of teeth: 20 teeth
Inner hole: 10mm
Outer diameter: 27mm
Step outer diameter: 22mm
Tooth length: 7 .8mm
Total thickness: 15 mm
Fixing screw hole: M5*2 fixing screw hole
Material: No. 45 steel
The overall weight of 1:1 bevel gearbox is 0.31kg
The overall weight of one-in-two-out forward and reverse gearbox is 0.37kg

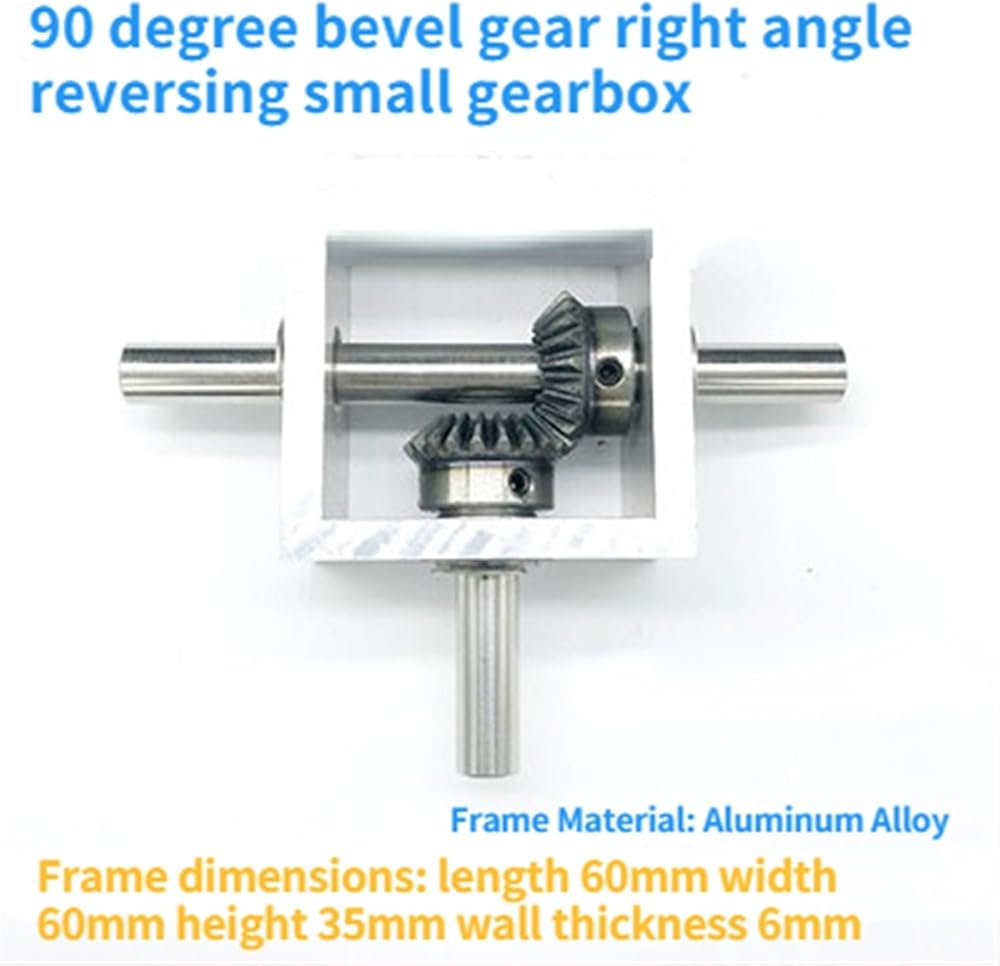

Frame material: aluminum alloy
: Aluminum alloy processing, punching and cutting may produce scratches, which will not affect the use
The product has no fixed mounting holes, and the buyer needs to drill and fix it. There is no cover on the top and bottom.
This product is a simple model and cannot be used for high-speed operation. It is used in places that do not require high accuracy.
Highly demanding and careful purchase! Gear 45 steel tooth surface is high-frequency hardened and hardened. There will be noise in operation, so be cautious with high requirements for sound!
