Microscope Accessories
Specifications
Optical Specifications
Optical Magnification 0.11X-0.79X
Depth of Field 0.8mm-6.5mm
Field of View 7.1mm x 4.1mm (min)
52mm x 29.4mm (max)
Working Distance 44mm-230mm
Sensor Specifications
Model IMX291 (color)
Sensor Type CMOS
Sensor Optical Format 1/2.8"
Active Pixels 2.07M (1920 x 1080)
Pixel Size 2.9µm x 2.9µm
Active Sensor Area 5.57mm x 3.13mm (6.39mm diag)
Shutter electronic rolling shutter
Sensitivity 1300mV @ 1/30s (f/5.6)
Spectral Response 380-650nm with IR-cut filter
Other Specifications
Video Preview Resolution (HDMI) 1920 x 1080
Video Capture Resolution 1920x1080p30
1280x720p60
Internal Video Capture Format MOV
Photo Capture Resolution 1920 x 1080
Internal Photo Capture Format JPG
Recording Media MicroSD card (card not included, max 128GB)
Connectivity Mini-HDMI, USB type C
Power DC 5V 900mA over USB
Dimensions 180mm (W) x 208mm (H) x 280mm (D) (7" x 8.2" x 11")

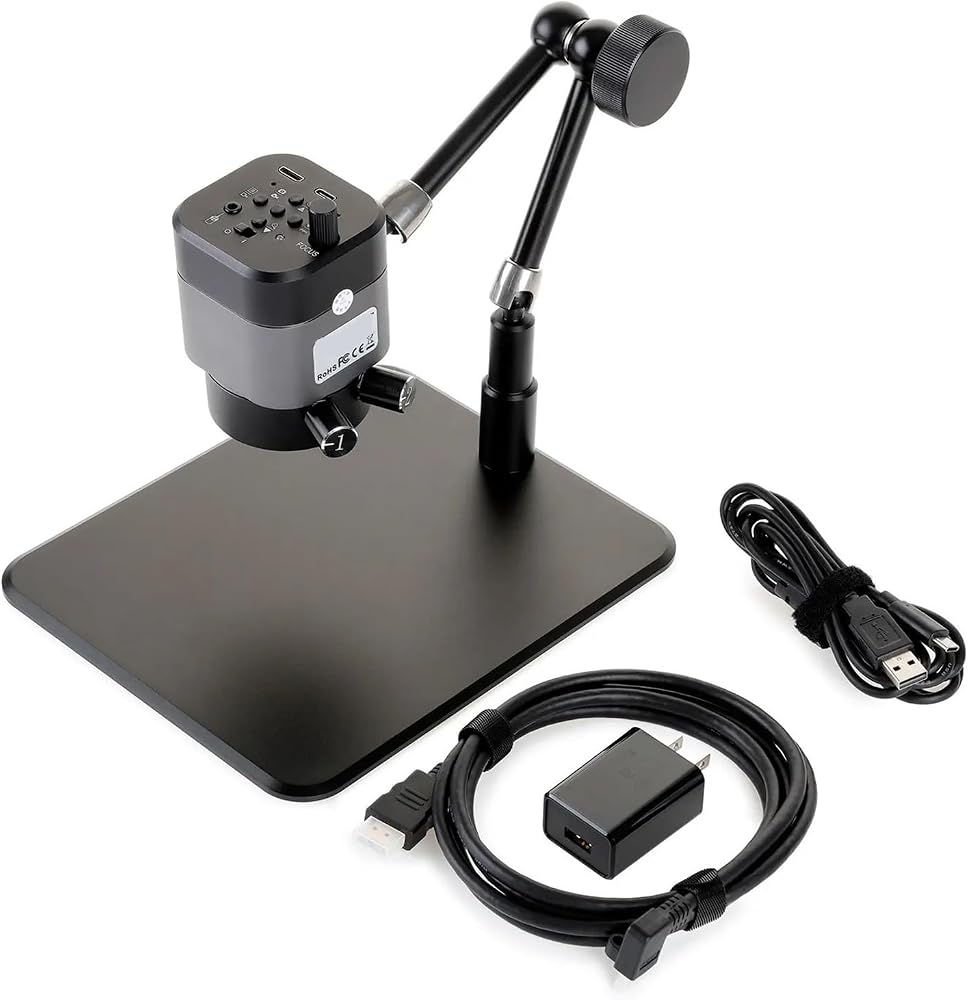

Contents

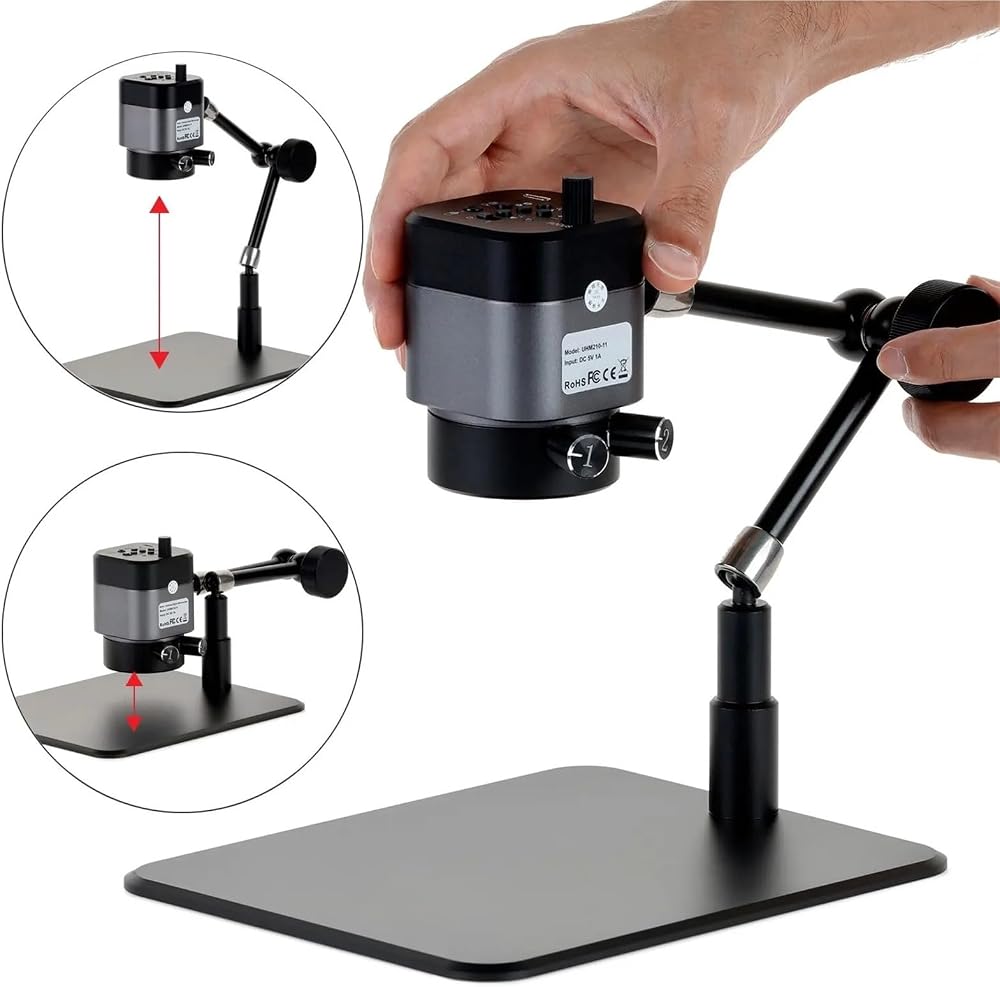

One digital microscope on articulating arm stand
One HDMI cable
One USB cable
One AC/DC USB power adapter
==========
Battery Included : No
Hign-concerned Chemical : None
Magnification Ratio : 500X & Under
Certification : CE
Origin : Mainland China
Model Number : UHM210-11
