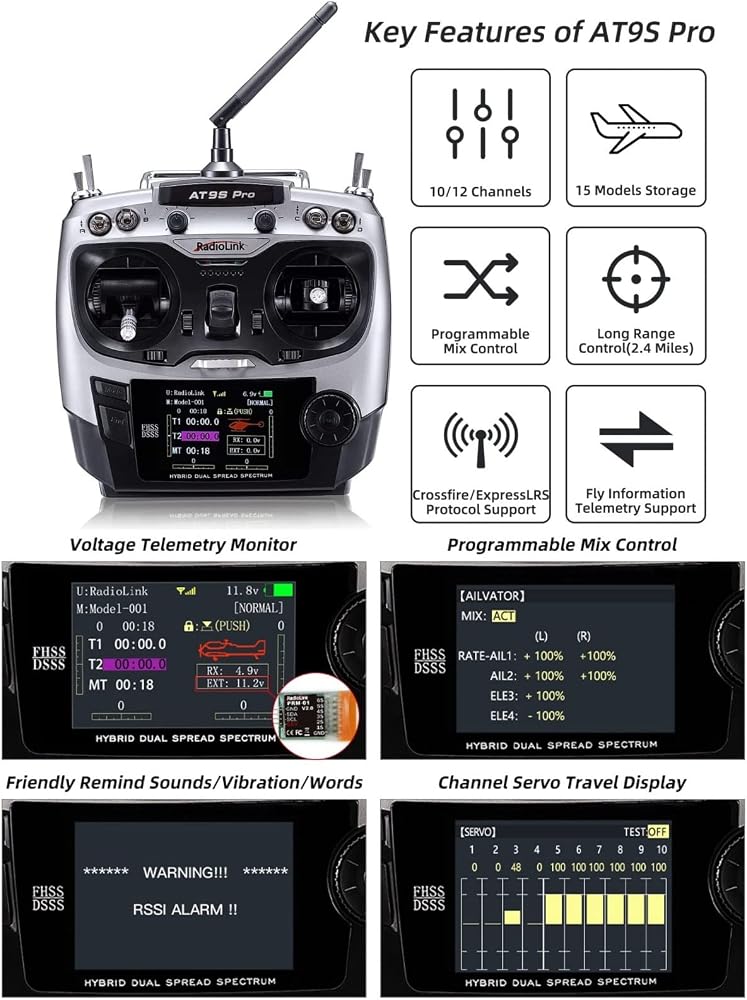

【Excellent Anti-interference】DSSS&FHSS communication technology makes AT9S Pro transmitter with stable transmission signal and long range control up to 2.1 miles(3.4km) in air.
【Powerful features 】10/12 channels, 3ms Fast Response, Real-time telemetry(work with PRM-03), Throttle Cut, Dual-Rate, Programmable Mix Control, Fail Safe, Reverse Polarity Protection, Multiple Model Options, etc. a good choice for beginner and expert.

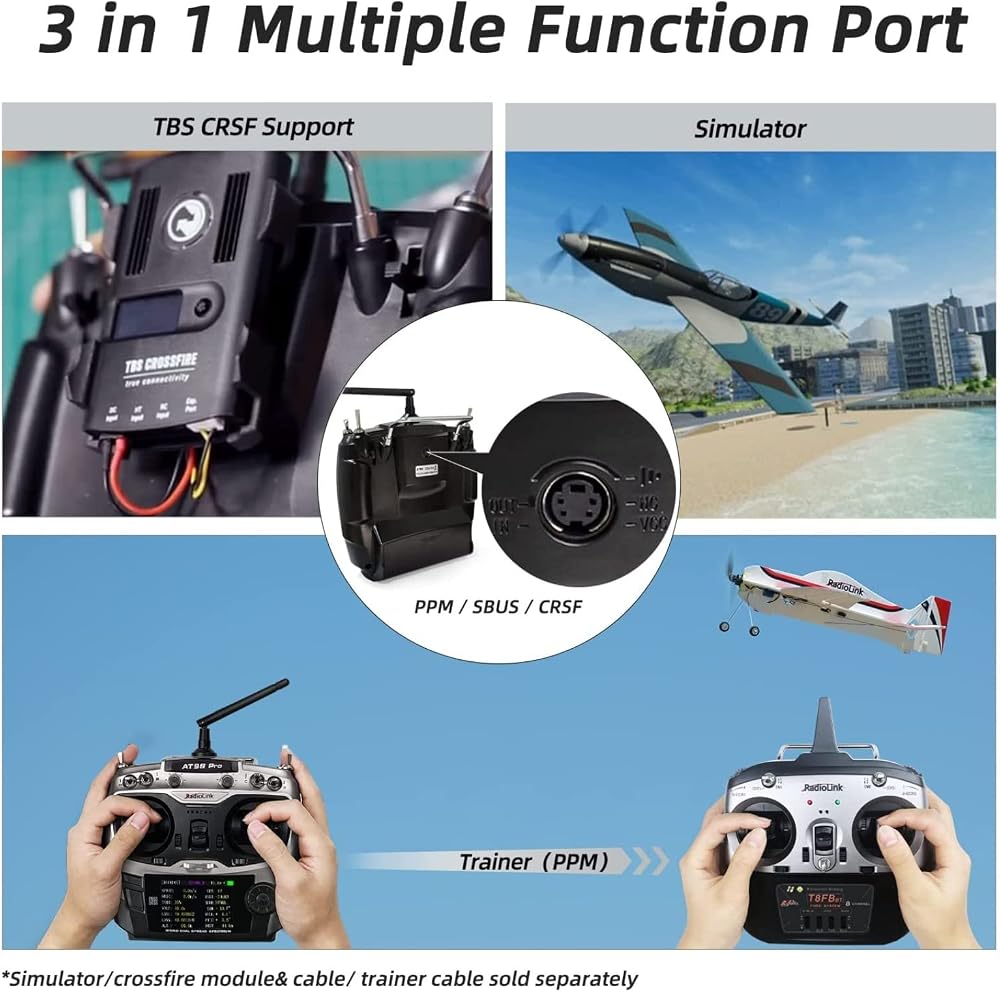

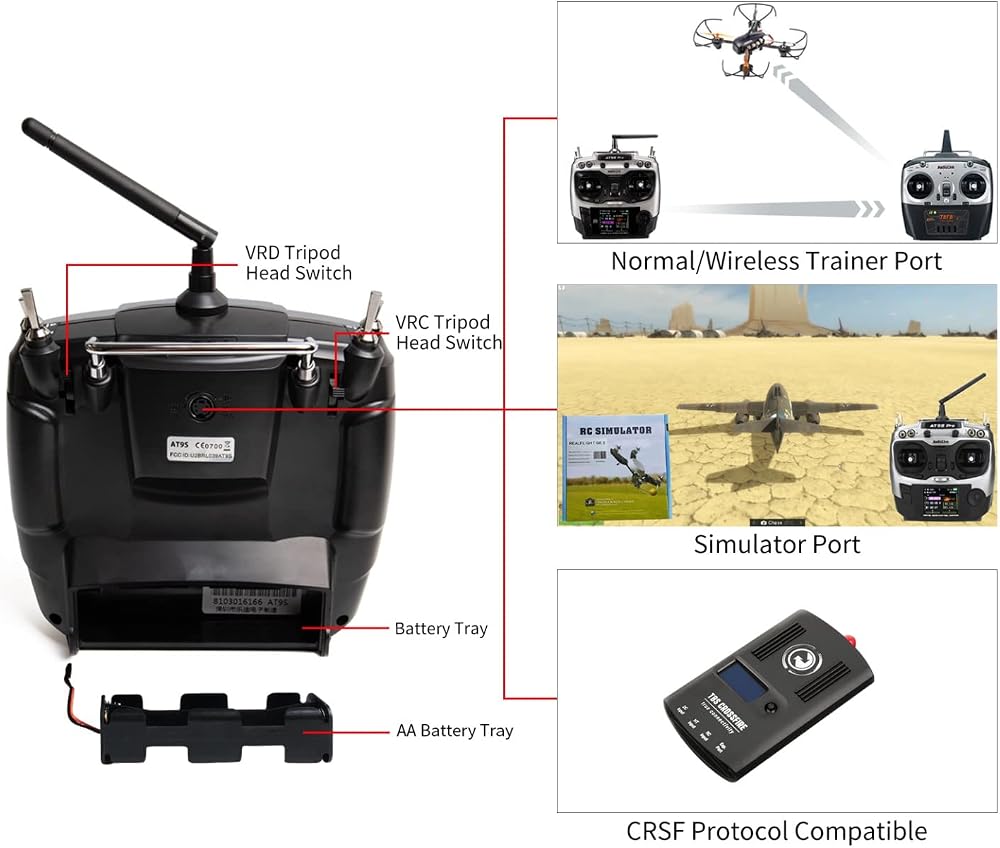

【Additional Function】3 in 1 multi-function port, support most of simulator, TBS Crossfire Protocol (915 Module), Trainer mode support.
【Safety Remind】RSSI alert, radio/receiver/model low voltage alarm. With DD sounds, vibration, and words alarming display on the LCD screen to remind when you are in noisy surroundings.

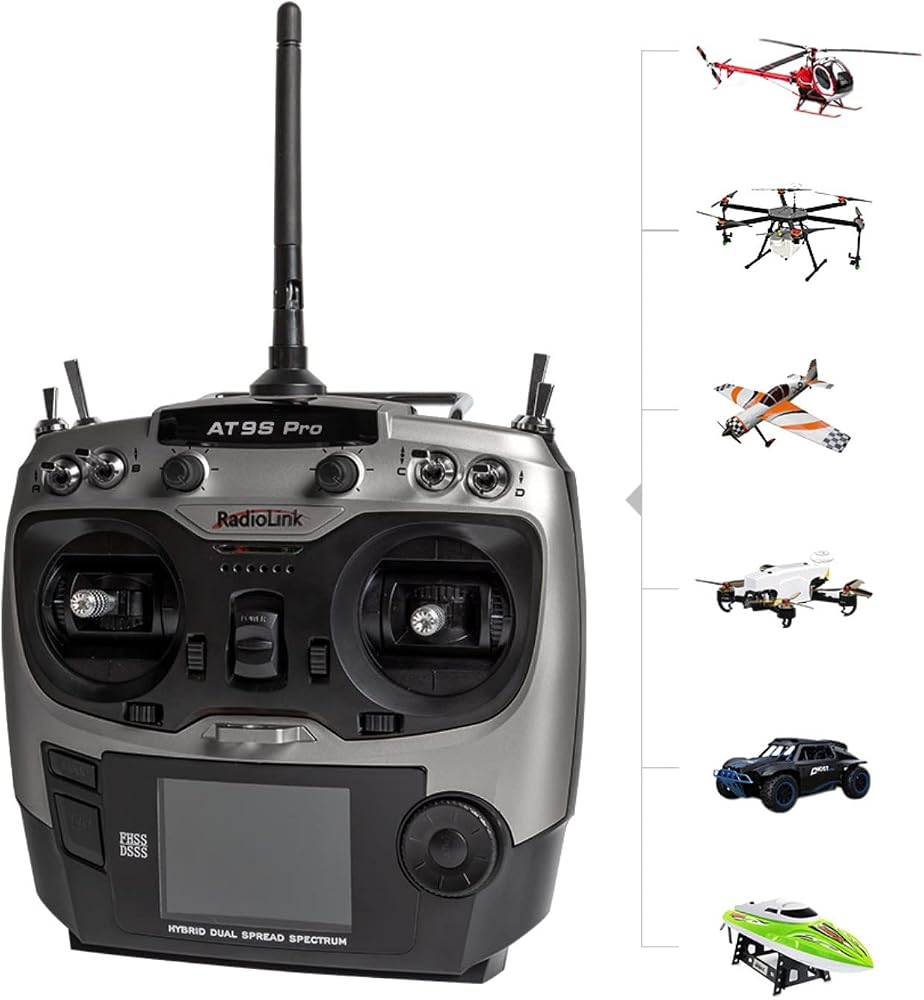

【Strong compatibility】Works with R12DS, R12DSM, R9DS, R6DS, R6DSM. 15 models data storage and quicks to switch models-helicopter, quad, airplane, glider, cars, boats.
وصف
Specifications:
Name:AT9SProTransmitter
Channels:10CH/12CH
Signal:SBUS/PWM/PPM/CRSF
Frequency:2.4GHzISMBands(2400MHzto2483.5MHz)
ChannelBandswidth:5.0MHz
SpreadSpectrum:DSSS&FHSS/CRSF
ModulationMode:QPSK
AdjacentChannelRejection:>38dbm
TransmissionPower:
DSSS&FHSSCRSF:10mW/25mW/100mW/500mW/1W/2W(Optional)
OperatingCurrent: DSSS&FHSS CRSF Depends on the Transmission Power Selecte
Operating Voltage: 7.4~18.0V
4096 Section Precision
Screen: 2.8inches 16 Colorful Screen, 240*320 Pixels
Channel:12 Channels , 5-12 Channels are Customized

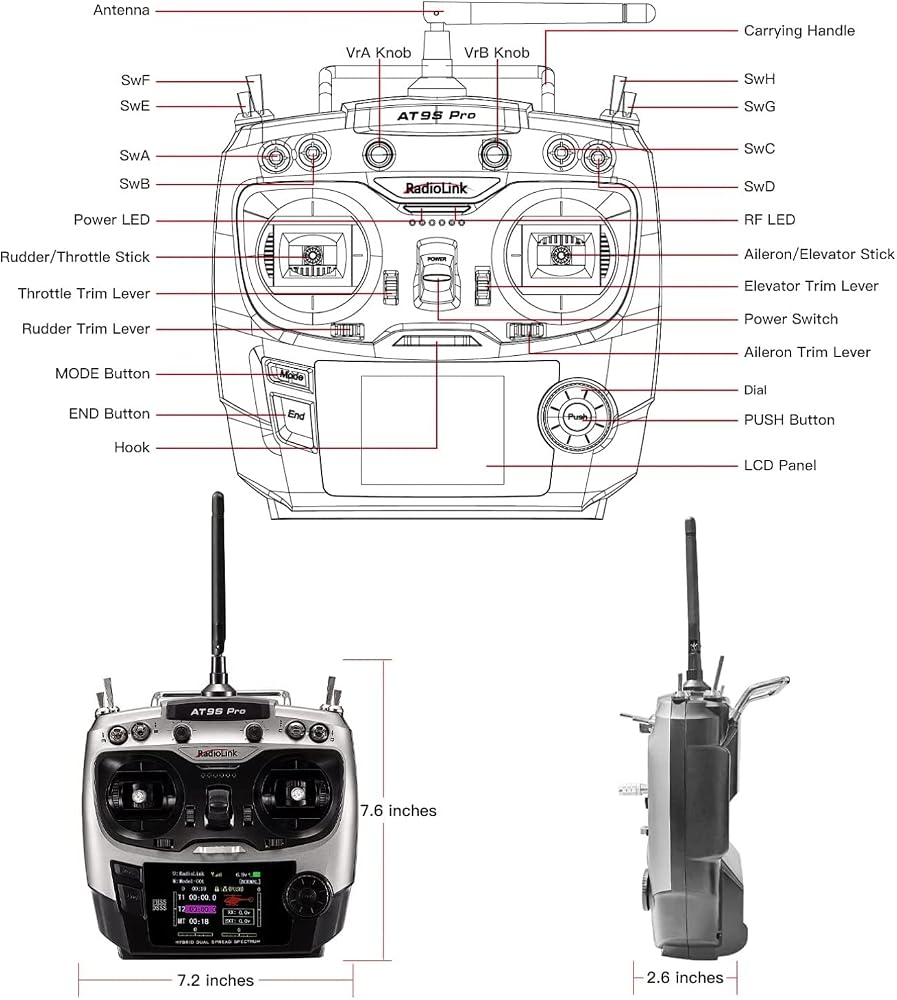

Size: AT9S Pro 183*100*193mm
Weight: 0.88kg
Control Range: 4 Kilometers in the Air (Maximum Range is Tested in an Unobstructed Area Free of Interference)
Compatible Receivers:
12CH - R12DSM, R12DS,
10CH-R9DS, R6DS,R6DSM
CRSF Protocol: Receiver from BLACKSHEEP

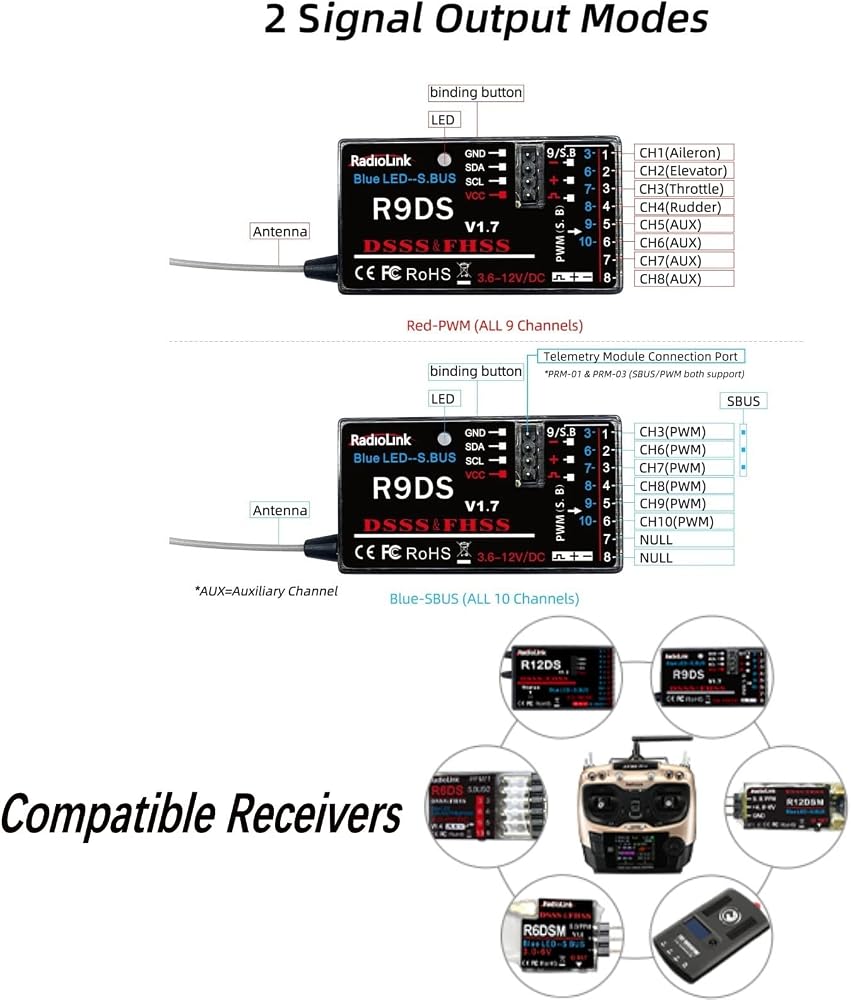

R9DS Receiver Specifications:
Signal: SBUS,PWM
Channel: PWM 9 Channels, SBUS 10 Channels
Control Distance: 900m on Ground,1500m Air
Working Voltage: 4.8-10V
Working Current: 38-45mA(Input Voltage: 5V)
Size:43*24*15mm
Weight:11g
PackageInformation:
PackageSize:18.5*10.5*19.5cm
PackageWeight:880g
GeneralBoxPackage

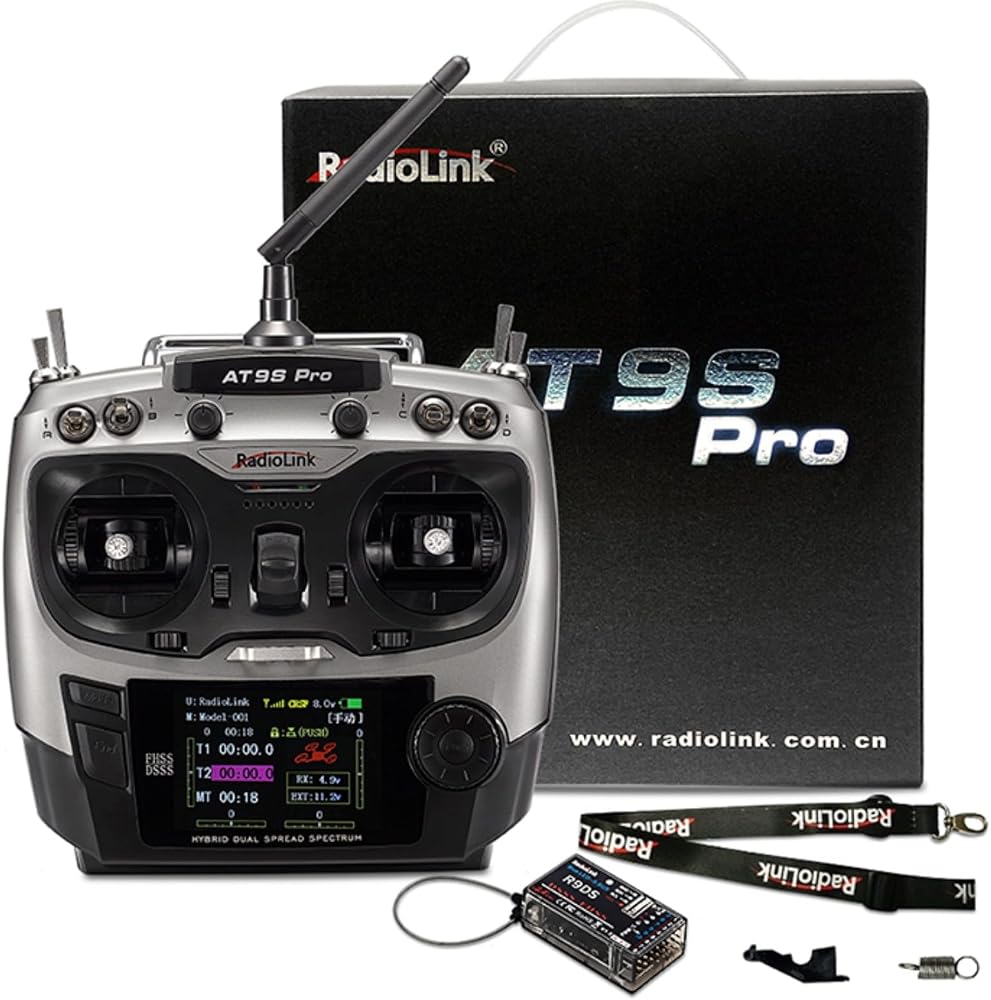

PackageIncluding:
1*AT9SProTransmitter(Mode2)
1*R9DSReceiver
1*Radiolink Lanyard
