SPECIFICATIONS
Main Controller : 32-bit MCU
Sensor : High-precision MEMS 6-axis sensor
Gyroscope Scale Range : ±2000 dps
Accelerometer Scale Range : ±4g
PWM Outpu t: 920uS to 2120uS with 1520uS center length, 50Hz to 333Hz
Input Voltage : 4.8V to 8.4V
Operating Temperature : -10 to 50
Size : 43x27x14mm
Weight : 10g (excluding wires)

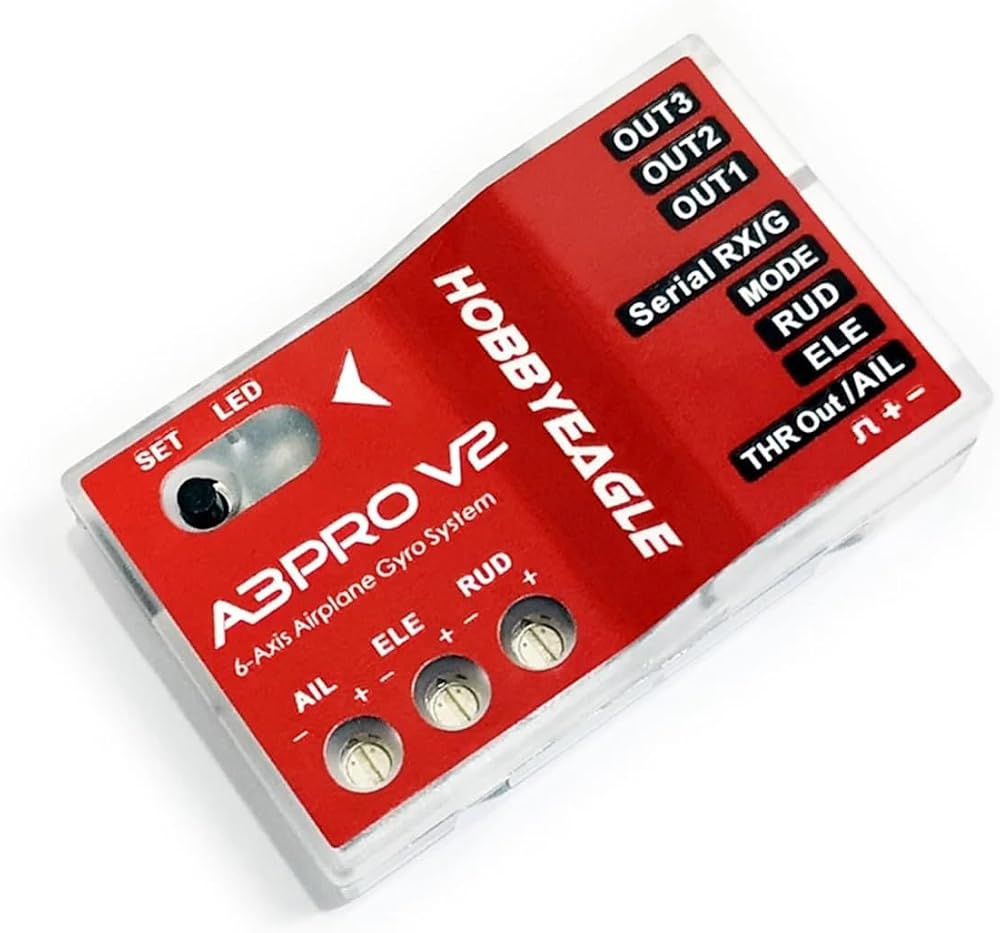

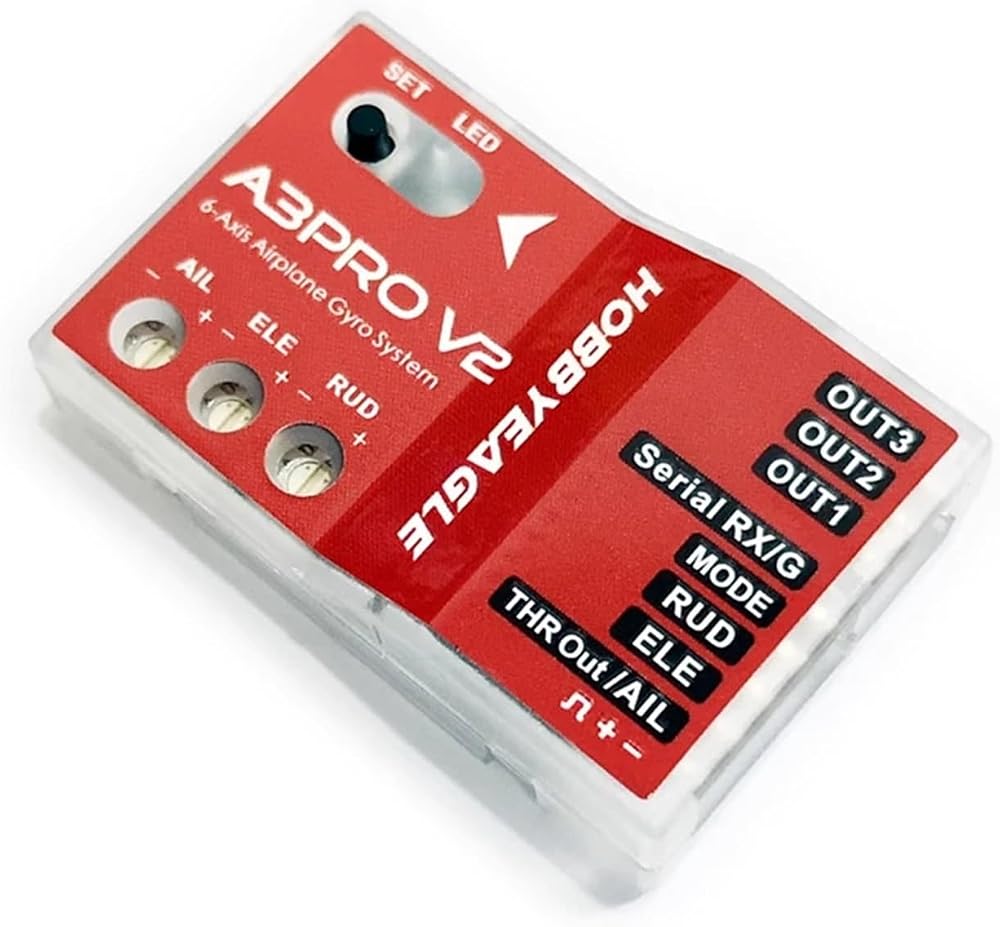

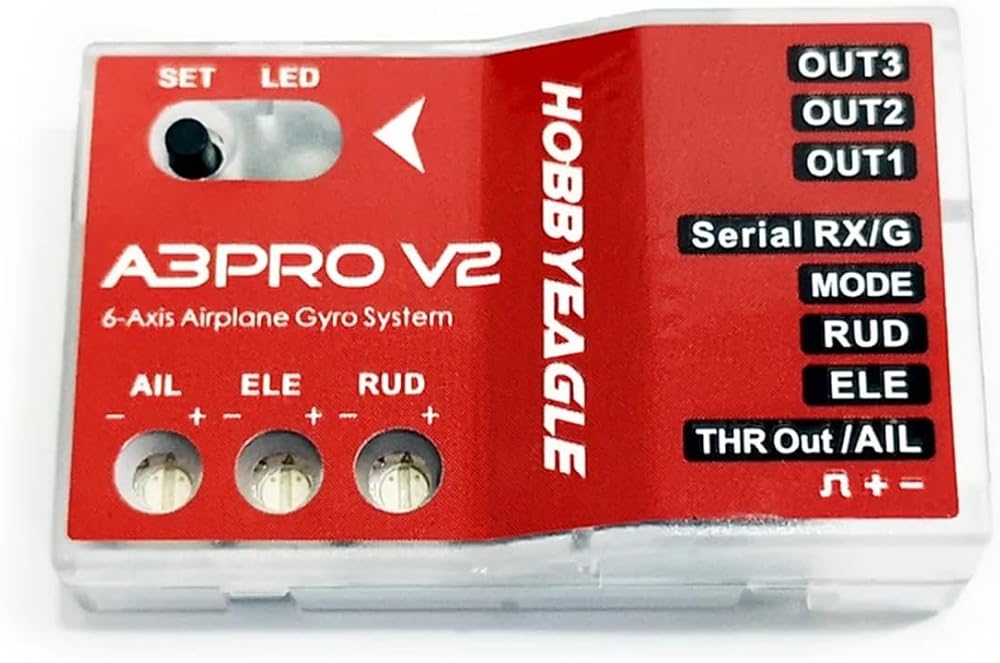

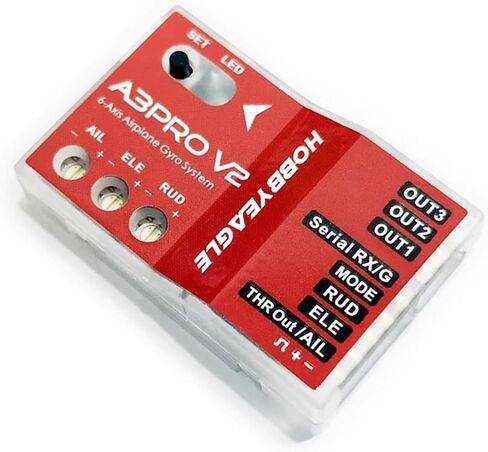

The new A3 Pro V2 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. With the advantage of multi-protocol serial receivers support, it allows you to simplify the connetcion of the receiver.
Compatible with most standard PWM receivers, PPM and multi-protocol digital serial receivers.
32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance.
6 flight modes, including GYRO OFF mode, NORMAL mode, LOCK mode, ANGLE mode, LEVEL mode and HOVER mode.
3 wing types: standard fixed-wing, delta-wing(flying-wing), v-tail.
Separated basic gain adjustment for Aileron, Elevator and Rudder.
Remote master gain supported.
Firmware upgradable (an optional data cable is required).

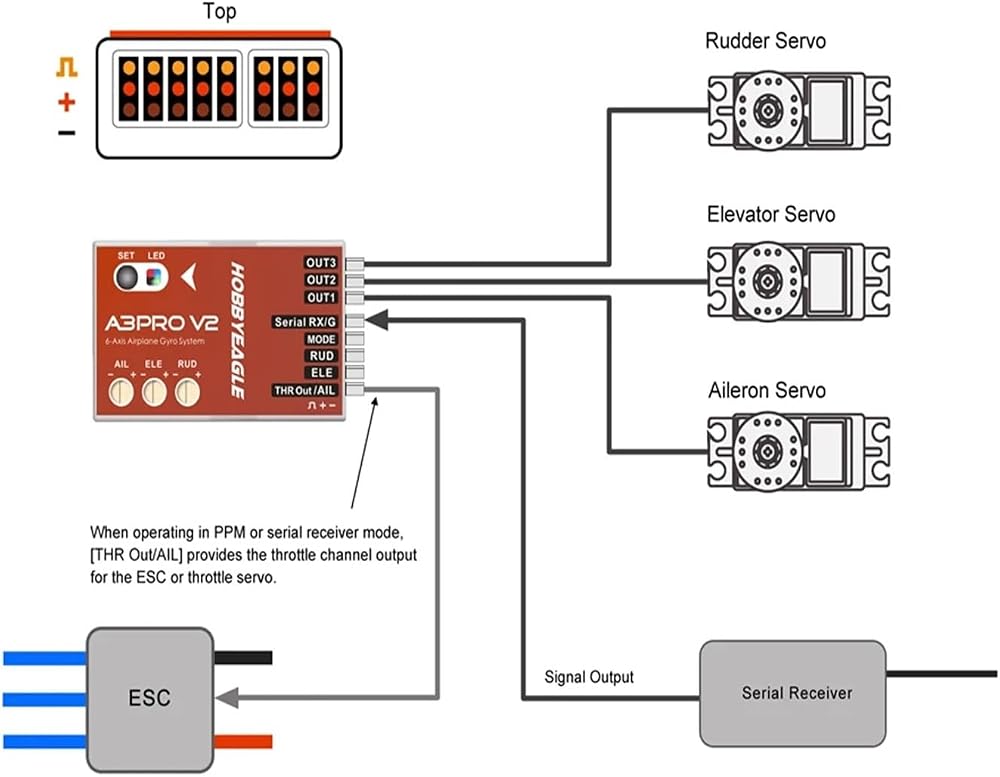

Serial Receiver Protocols Supported:
PPM Receiver
Futaba S.Bus (compatible with FrSky SBUS, RadioLink SBUS and WFLY WBUS)
Spektrum DSM/DSMX 1024 Satellite Receiver
Spektrum DSM/DSMX 2048 Satellite Receiver
Spektrum SRXL
Multiplex SRXL / JR XBUS Mode B
Graupner SUMD
FlySky iBus

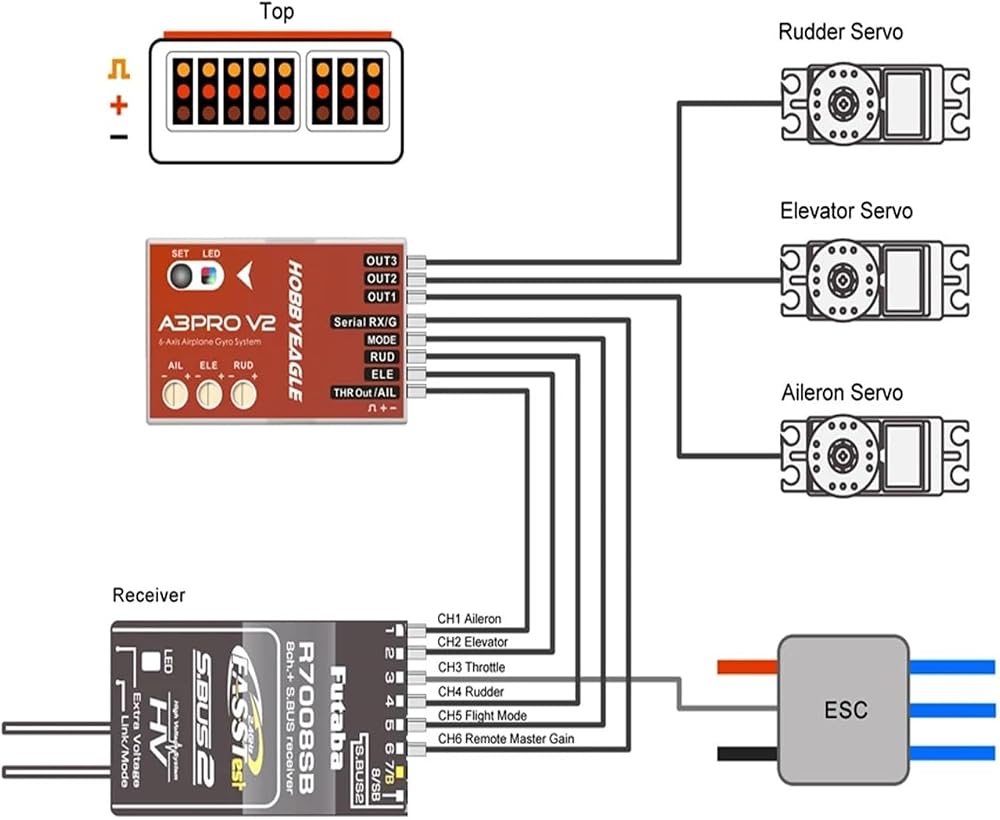

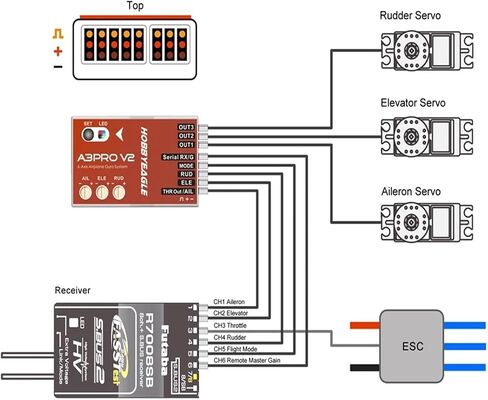

Standard PWM Receiver Connection
Notes:
[MODE] is used for flight mode switching of the gyro, connect it to a 3-way switch channel of the receiver to switch the flight mode in flight.
[Serial RX/G] is used for remote master gain adjusting, connect it to a proportional channel of a volume or slide lever of the transmitter to tune the master gain in flight.
The ESC or throttle servo is connected to the throttle channel of the receiver
