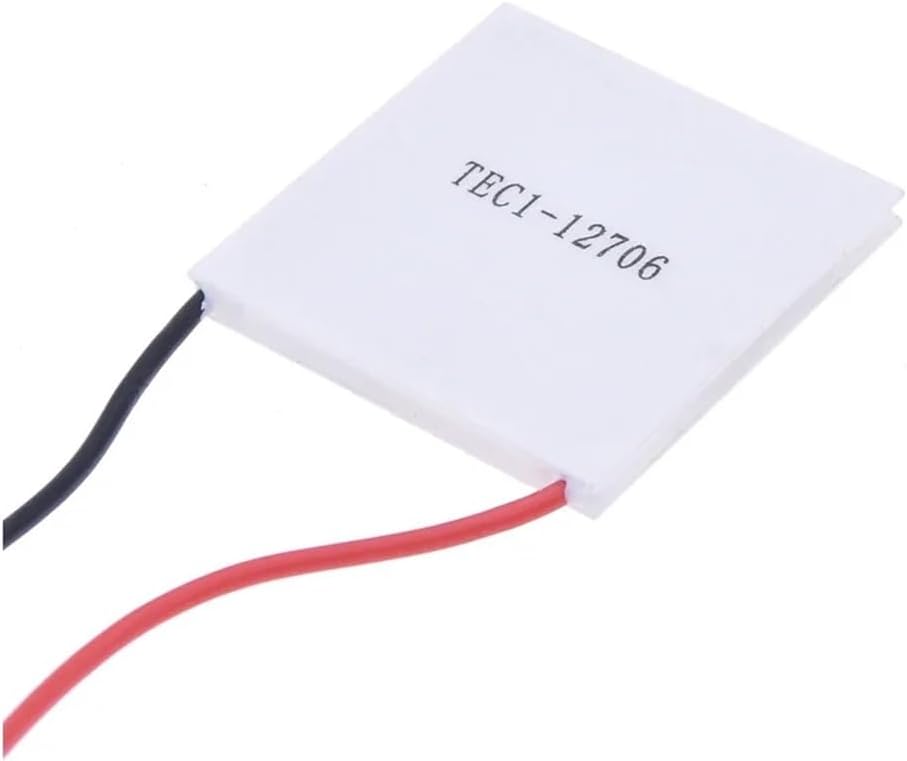

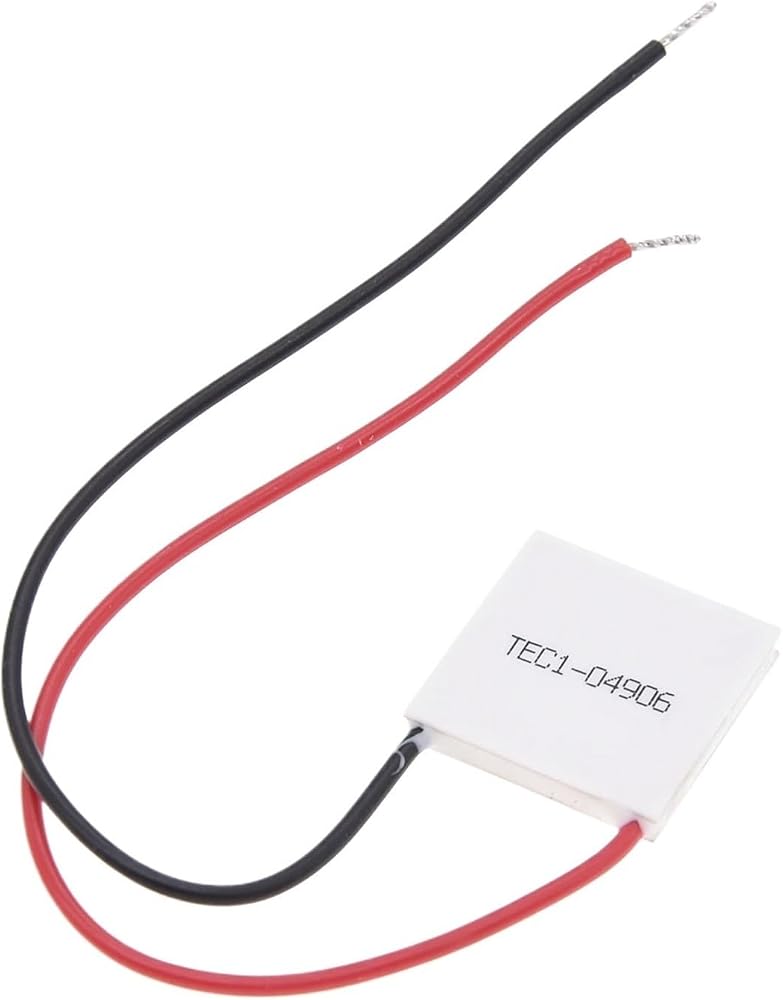

TEC1-12706 TEC1-04901 04902 04903 04905 04906 5V 12V Semiconductor Refrigerator Thermoelectric Cooler Peltier CPU heat dissipati
External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55'C~ 83'C(high ambient temperature drop directly affect the cooling efficiency)
Description :
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads
Chip model: TEC1-12705
Dimensions: 40*40*3.8mm Component logarithm 127
Wire specification: lead length 100±5mm RV standard single lead 5mm tin
Internal resistance: 2.4~2.7 (ambient temperature 23±1, 1kHz AC test)
Maximum temperature difference: Tmax(QC = 0) above 61.
Operating current: IMAX =5 (when rated voltage starts)
Rated voltage: DC12V (Vmax: 15.5V)
Refrigerating power: QCmax 45W
Assembly pressure: 85N/cm2
Working environment: temperature range -55 ~ 83 (too high ambient temperature will directly affect the refrigeration efficiency)
Packaging process: around standard 704 silicone rubber seal
Packing standard: foam box packing, storage condition ambient temperature -10 °C ~ 40 °C
Storage condition: -40~60
Chip model: TEC1-12710
Dimensions: 40*40*3.4mm Number of component pairs 127
Wire specification: lead length 300±5mm RV s
