XWST DCDC Power Supply Stabilizer Module Technical Specification:

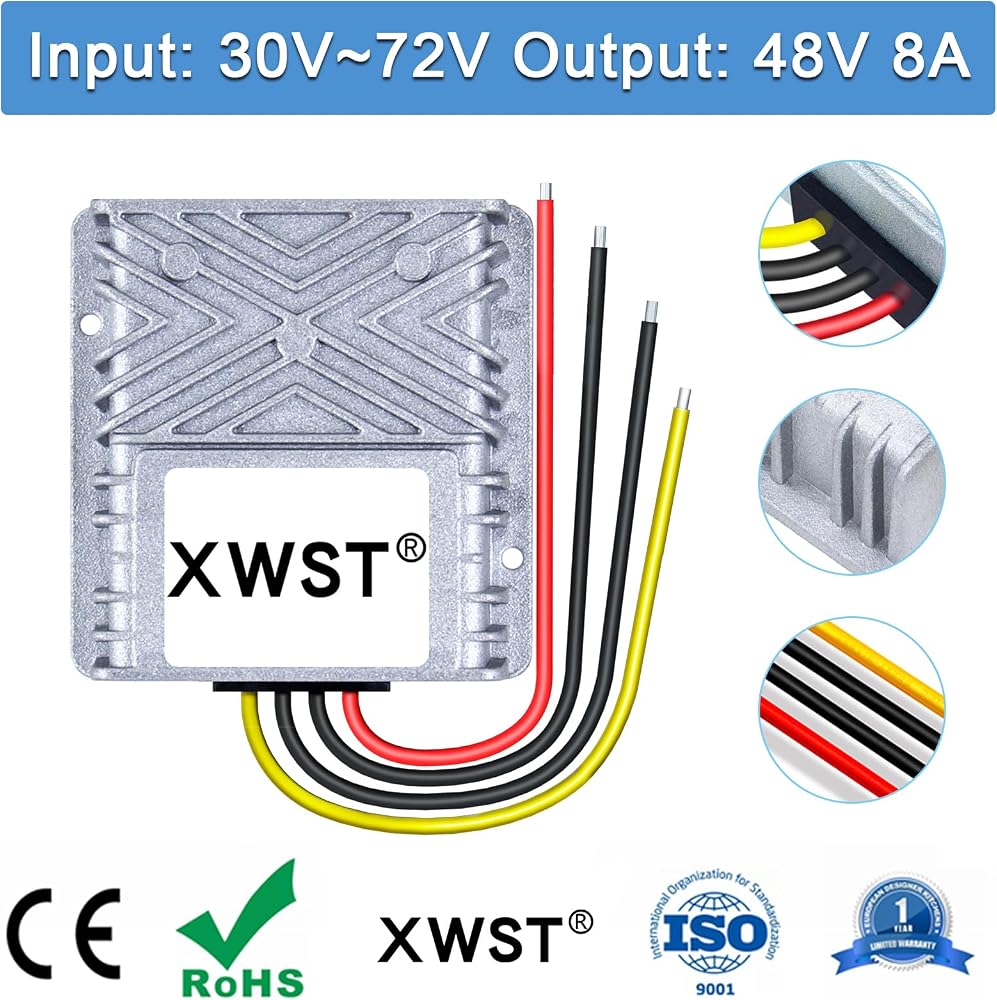

Input Voltage: DC 30V~72V (48V)
Output Voltage: DC 48V
Output Current: 8A
Output Power: 384W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: Operating Temperature: -25~65℃
Storage Temprature: -30~80℃
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

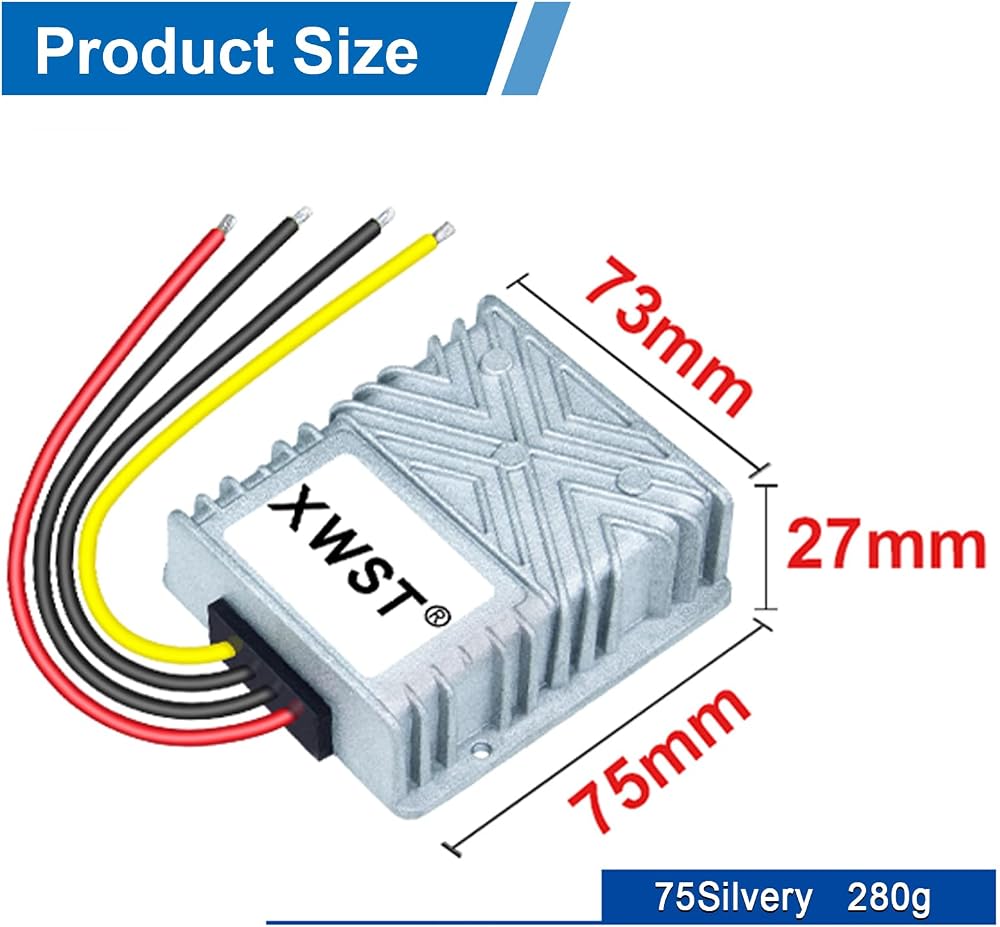

Size: 75mm x73mm x 27mm
Net Weight: 280g
Material:aluminium shell
Note:

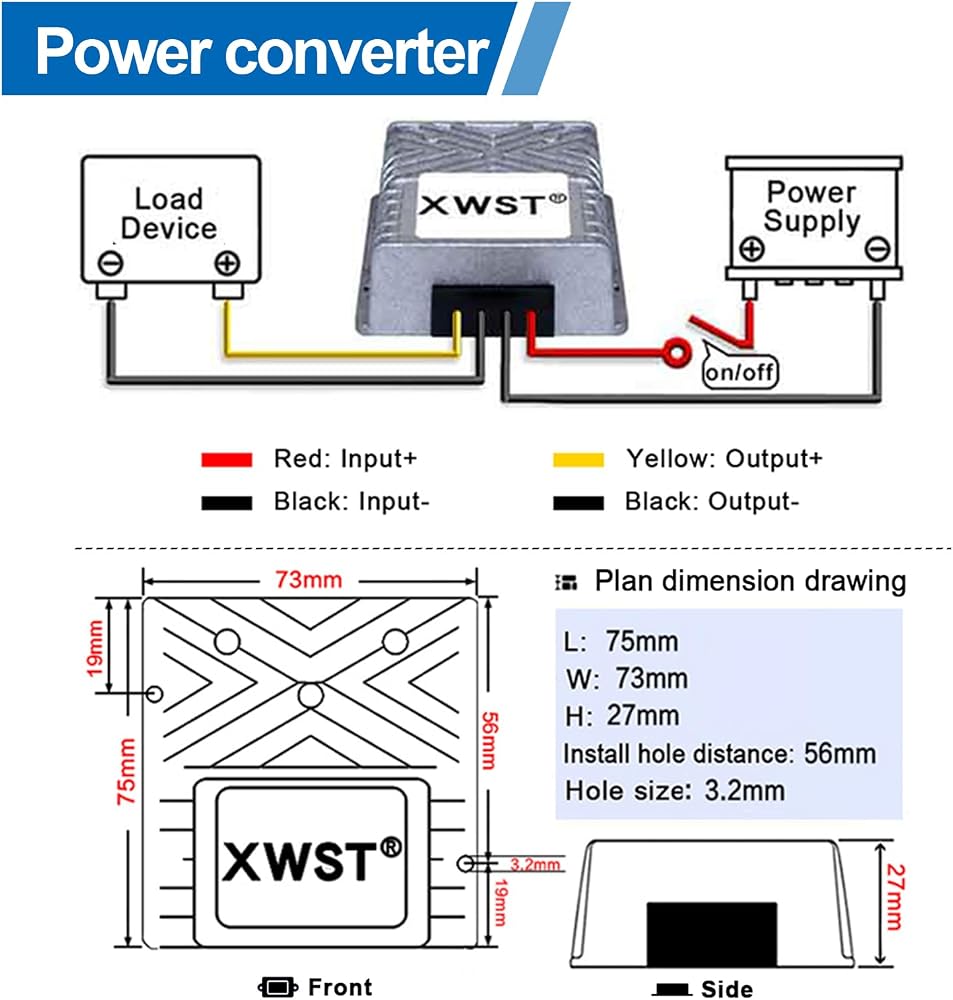

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC-DC Stabilizer
