INDUSTRIAL F&T>D*I FT232RL CHIP USB TO RS422 FULL DUPLEX 9 CORE 9PIN WE WIRE END SERIAL INTERFACE CABLE COMPATIBLE WITH USB-RS422-WE-1800-BT / USB-RS422-WE-5000-BT

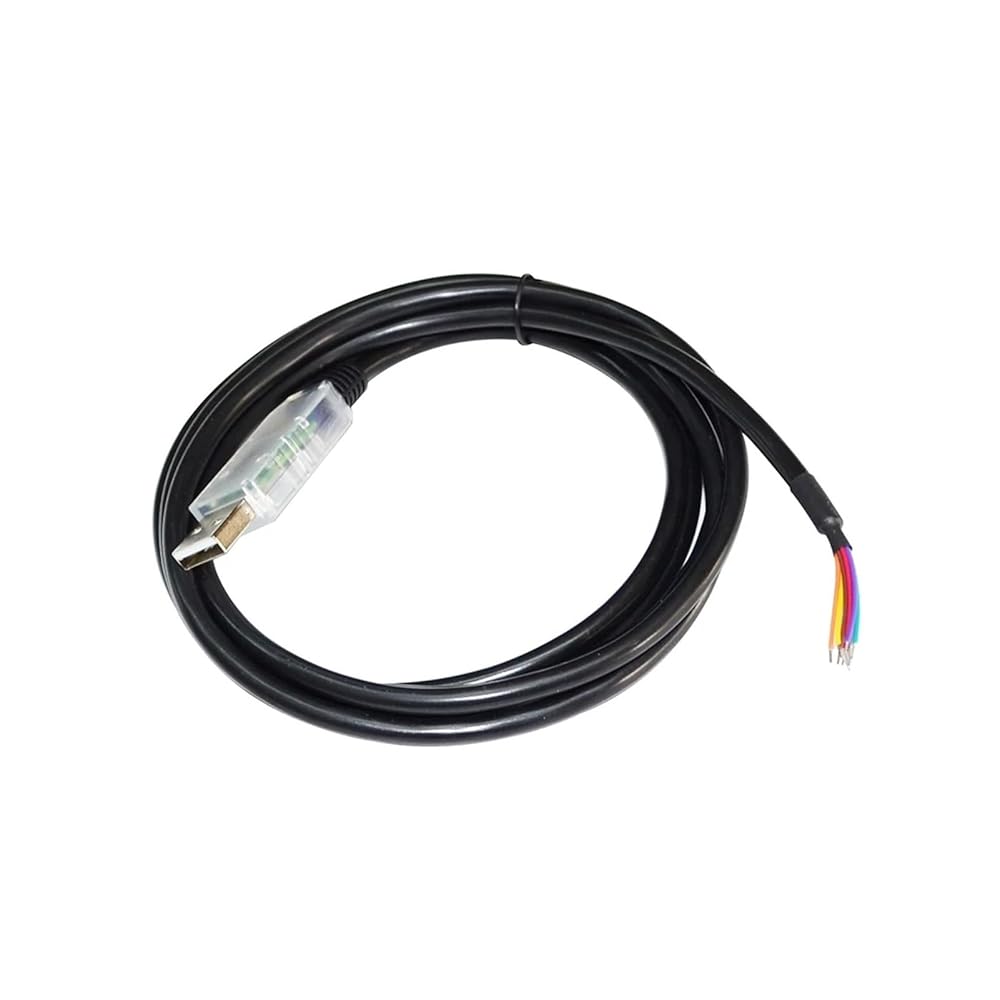

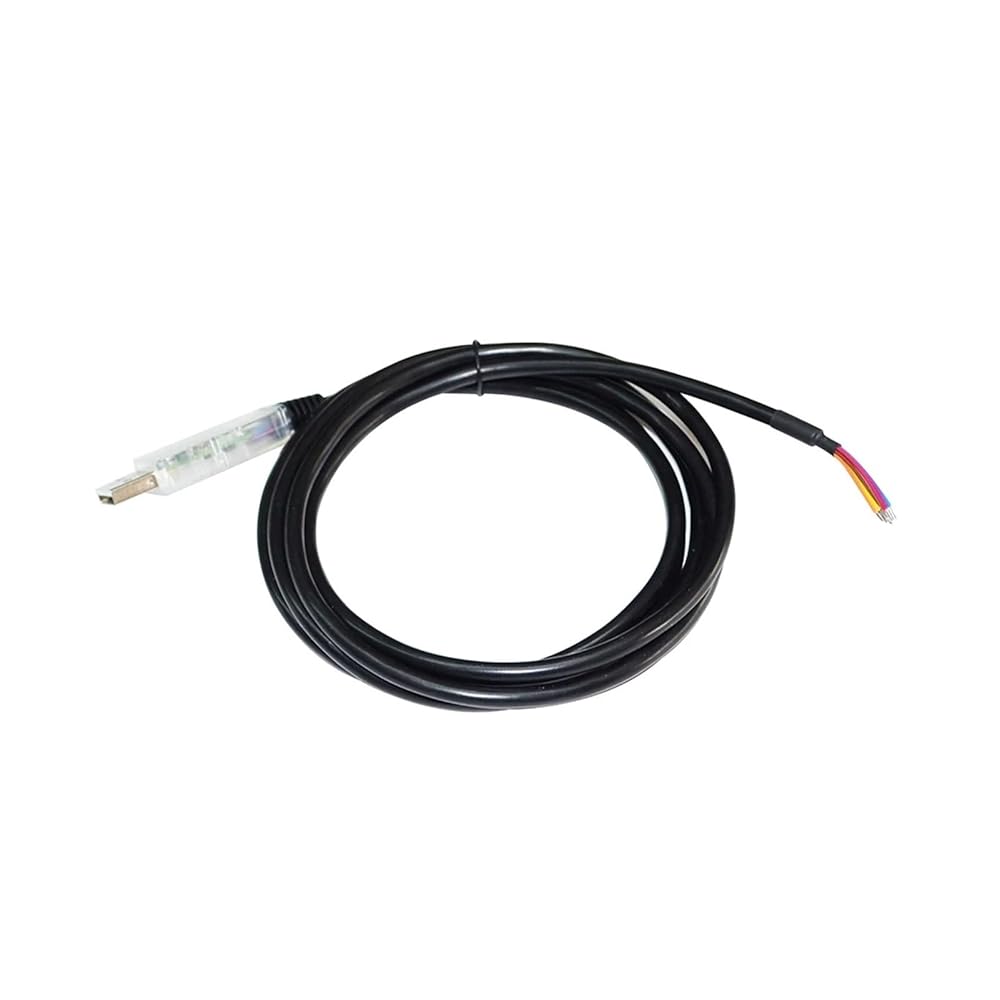

The USB-RS422-WE-1800-BT is a 1.8m long USB to RS422 converter cable.
Using the FT232R chip combined with an RS422 level converter, the cable is a CE and FCC approved product which is of the simplest USB RS422 solutions around.

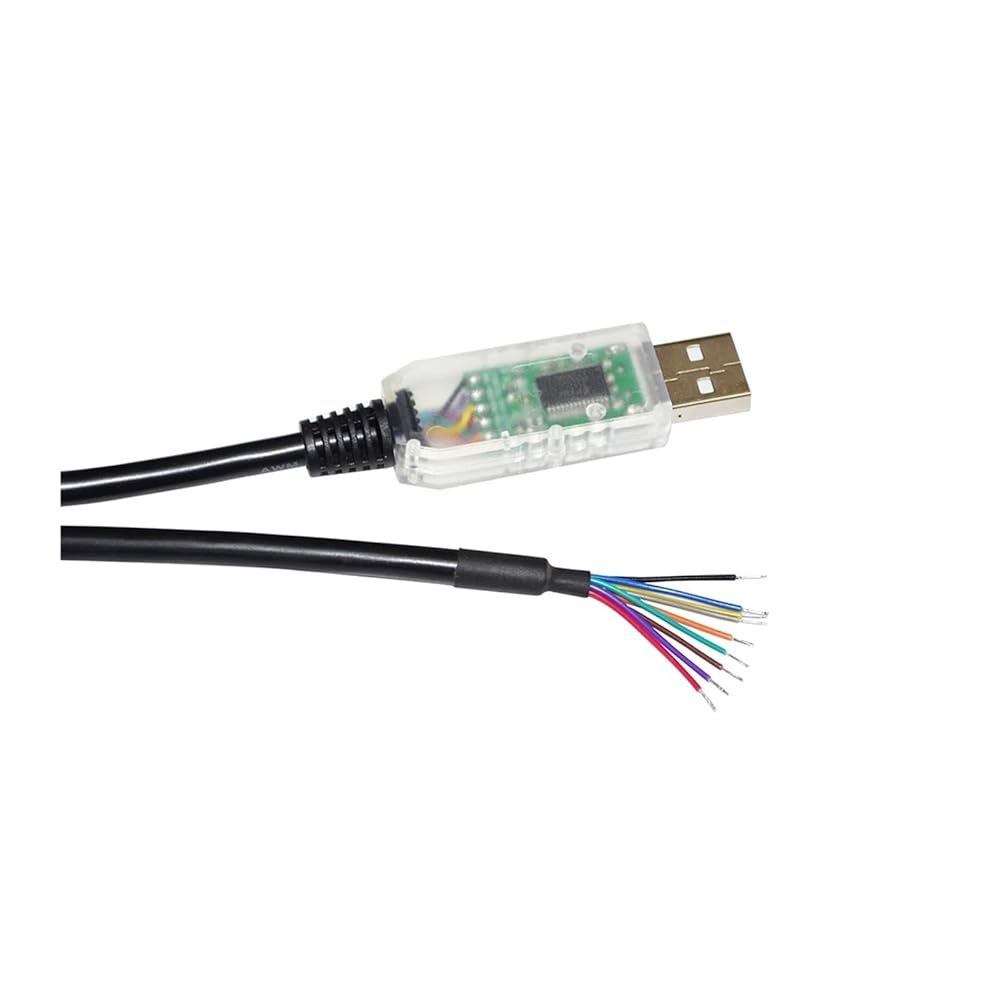

Powered from the USB port, the RS422 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.
The cable can be used with F&T>D*I's drivers to provide a virtual COM port on a PC which is capable of communication rates with RS422 units from 300 baud up to 3 MBaud.
For the option of 5 core, the signal is: TXD+, TXD-, RXD+, RXD-, GND;
For the option of 9 core, the signal is: TXD+, TXD-, RXD+, RXD-, GND; CTS+, CTS-, RTS+, RTS-, GND
Operating Systems:

10/8/8.1/7/Windows Server 2008/2003/Vista/XP/98
Linux

OS X/9/8

CE.NET (Version 4.2 and greater)
32 and 64 bit operating systems are both supported.
F&T>D*I DRIVER DOWNLOADING:https://ftdichip.com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:https://ftdichip.com/document/installation-guides/
Package Contents:
1 X F&T>D*I USB to5 core / 9 core WECable
Length: 1.8M/6FT, 3.0M/10FT, 5.0M/16.4FT, 8.0M/26.4FT(Approx.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you receive the goods, and have any dissatisfaction or need assistance, please feel to contact me or leave me a message.
usb to rs485 cable,usb-rs485 cable ft232rl,232 rl usb to rs485 board,USB TO RS485 SERIAL CONVERTER CABLE ,ft232r usb to rs485 6P WE cable, usb to rs485 vcc gnd a+ b-, usb to rs485 commnunicate cable,ft232tl usb to rs485 6 way connector,rs485 cable,rs 485 cable,6 core data cable,6 core usb cable,usb cable open,usb rs485 to 6p bare end cable,RS485 USB CABLE ,RS485 WE CABLE,TO RS485 6 CORE USB ,USB RS485 WE CABLE ,FT232RL USB TO RS485 GND ,F&T>D*I FT232RL USB TO 120 ,FT232RL USB TO RS485 CORE
==========
Package : Yes
Model Number : RX-422-USB-WE-003
TY>pe : Serial Cable
Certification : CE,FCC,UL
