Description:

- The SN74HC165N is a neat little IC that will take an input of up to 8 parallel lines and produce a single, serial output. It is a great way to increase the number of inputs on a .
- This makes it easy to prototype using the 74HC165 by breaking out all of the pins you need to standard 0.1" headers.
- We also lined up the data that you can easily make chains of them and expand the number of outputs under your control!
- This with a supply anywhere in the range of 2-6VDC, and at clock frequencies of up to 29MHz (@6VDC).
- Wide Operating Range of 2 V to
- Parallel-Serial
- Outputs Can To 10 LSTTL Loads
- Low Power Consumption, ICC
- 4mA Output at 5 V
- Low Input Current, 1
- Complementary Outputs
- Direct Overriding Load (Data) Inputs
- Gated Clock Inputs
- 0.1" Headers

Package Includes:

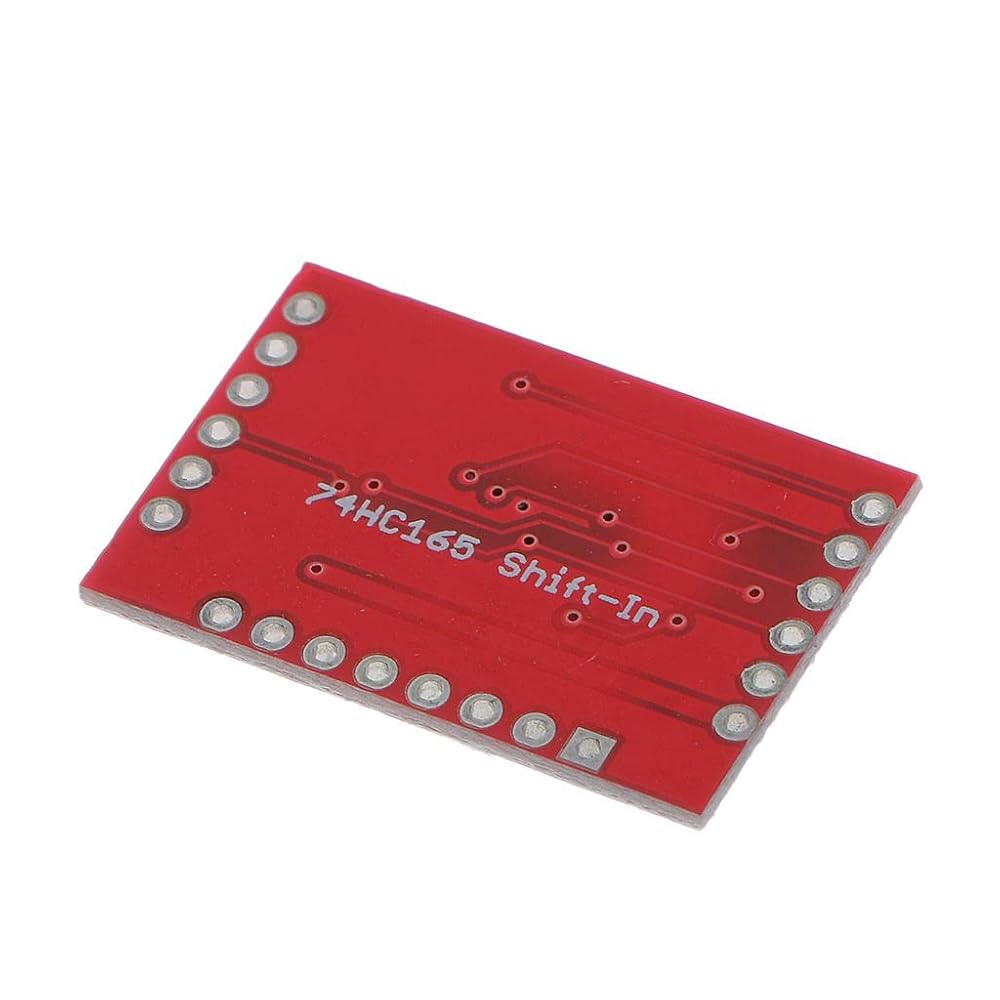

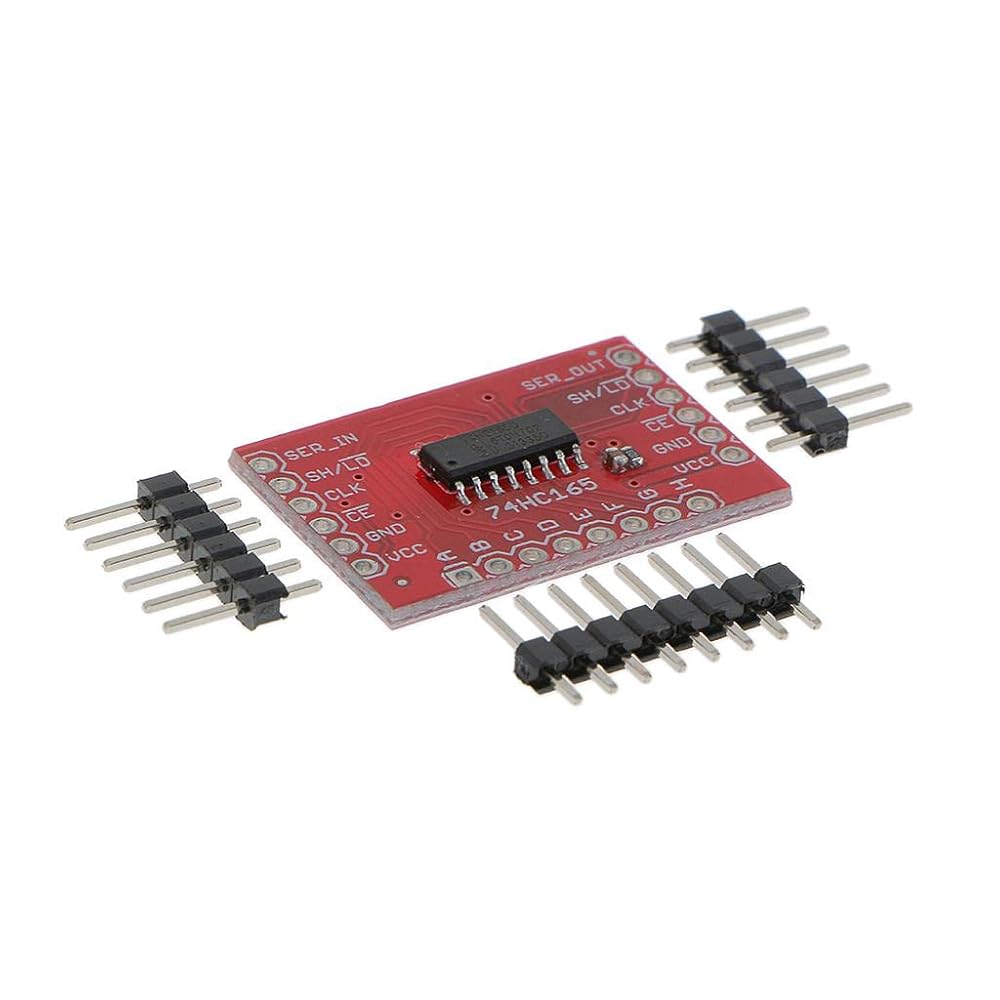

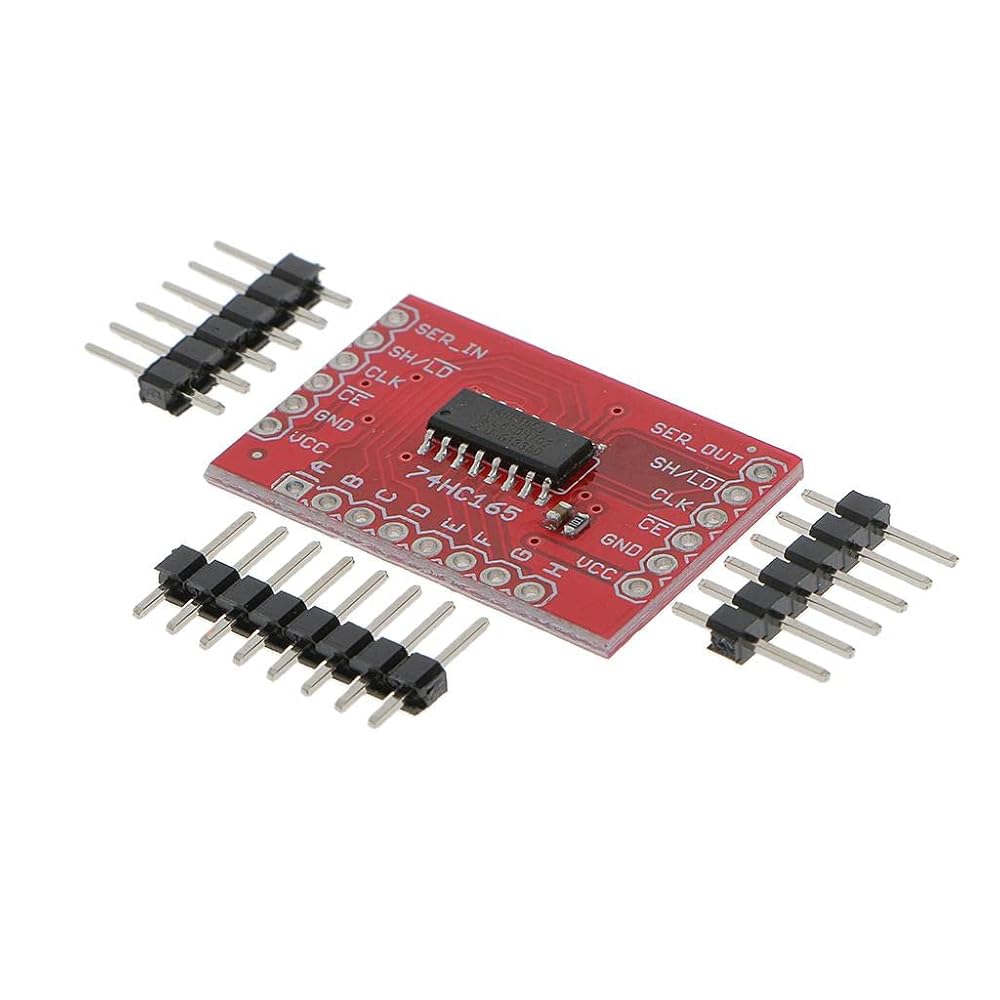

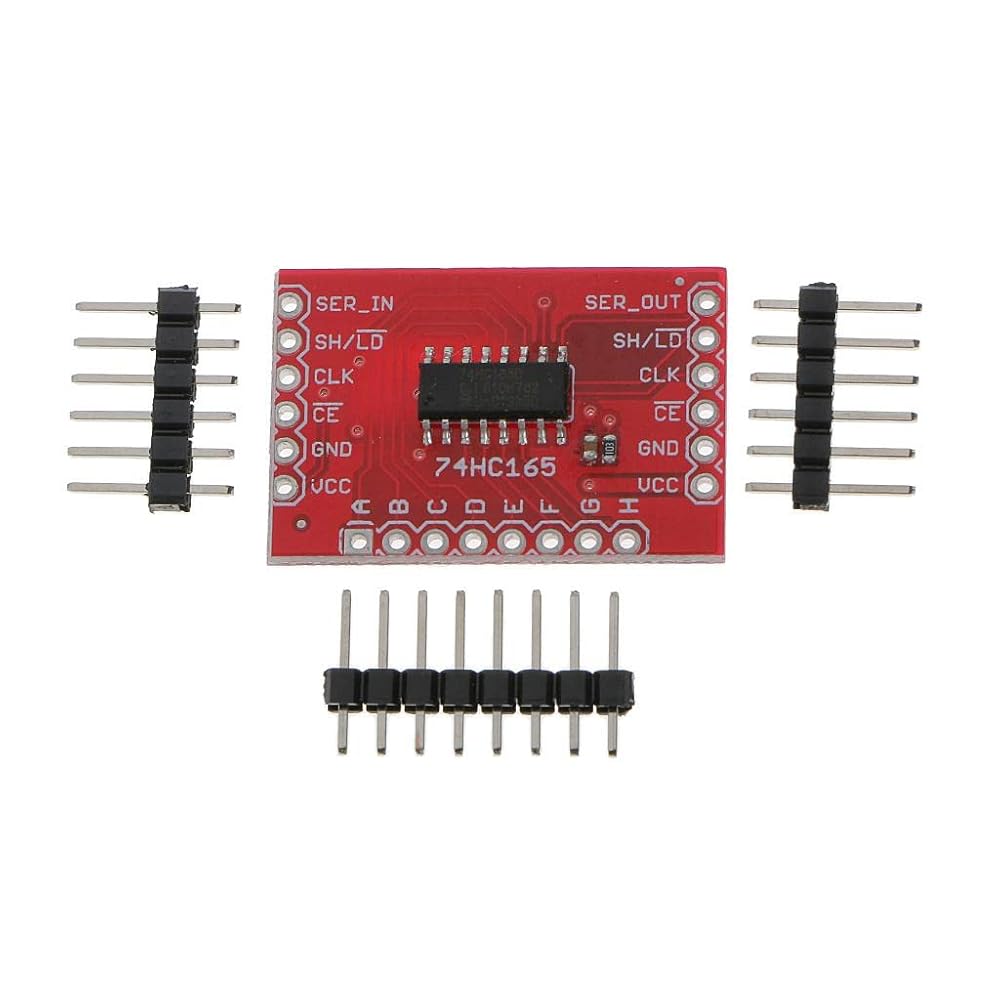

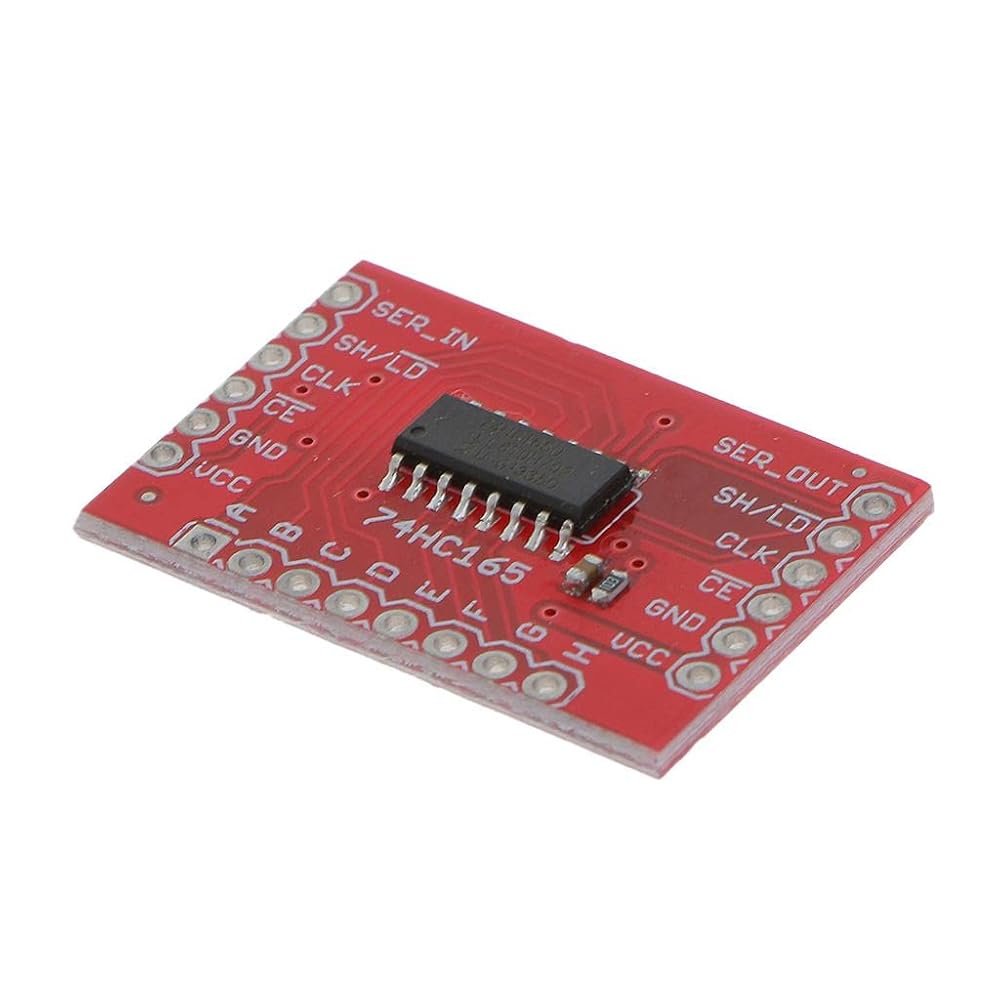

1x SN74HC165 -In Module
