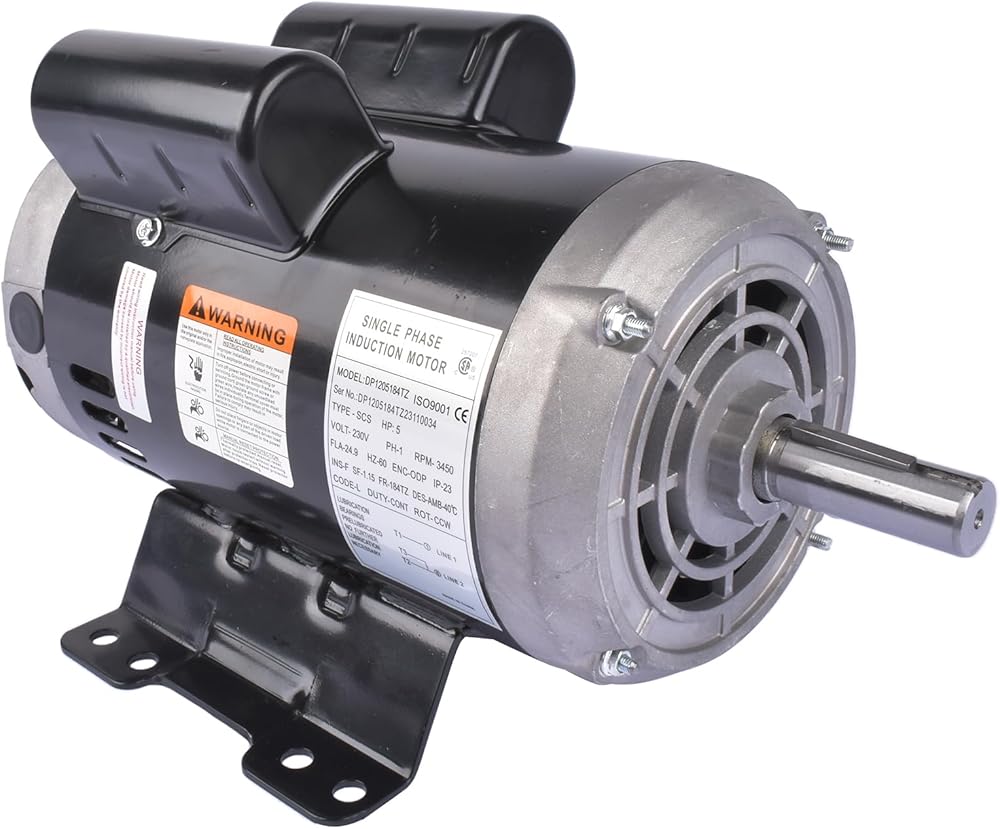

54421193 5 حصان استبدال محرك ضاغط الهواء لـ Ingersoll Rand ، المرحلة الفردية ، إطار 184T ، حاوية إثبات بالتنقيط المفتوح ، إخراج 5hp ، 3450 دورة في الدقيقة ، 60 هرتز ، 208-230 فولت ، 23378805 Mixizap in Kuwait

54421193 5 حصان استبدال محرك ضاغط الهواء لـ Ingersoll Rand ، المرحلة الفردية ، إطار 184T ، حاوية إثبات بالتنقيط المفتوح ، إخراج 5hp ، 3450 دورة في الدقيقة ، 60 هرتز ، 208-230 فولت ، 23378805 Mixizap

KWD 159

ماركة
Mixizap: فئات
قطع غيار وملحقات أدوات الهواء قطع غيار الأدوات الكهربائية

الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء

مميزات خاصة

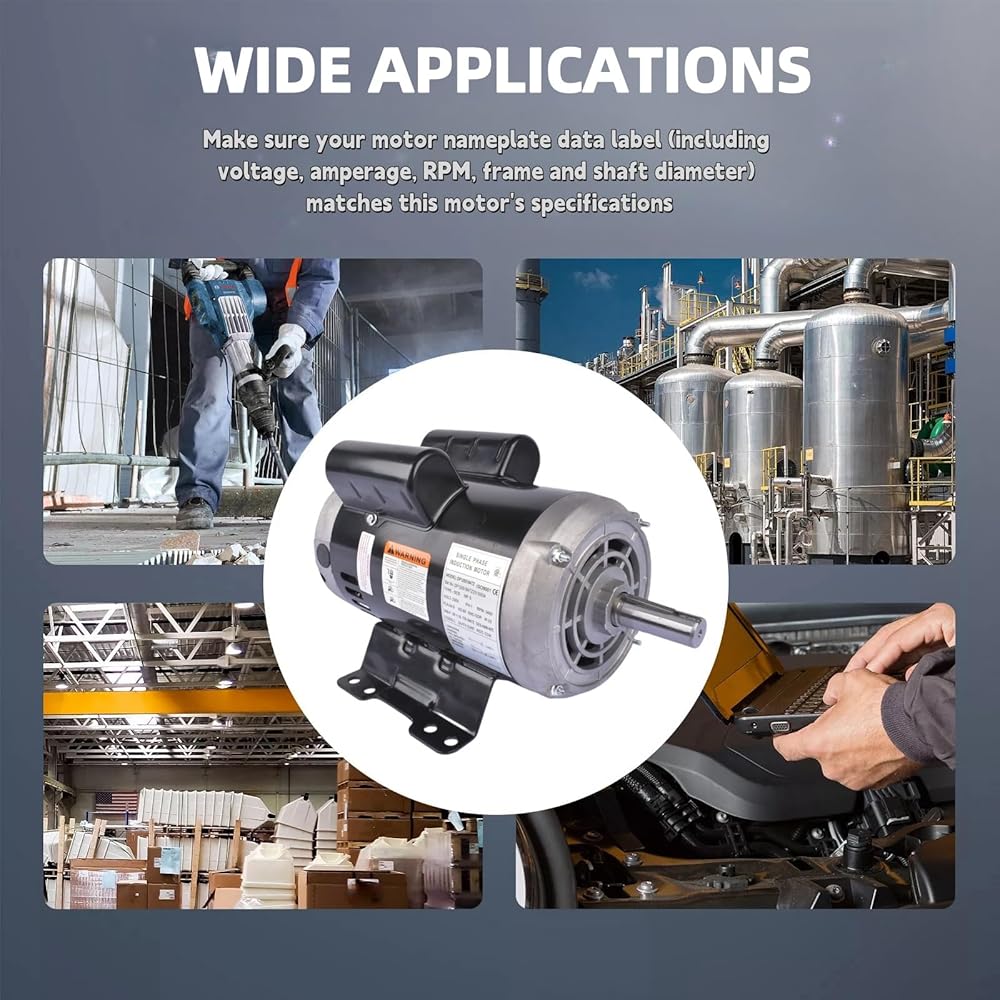

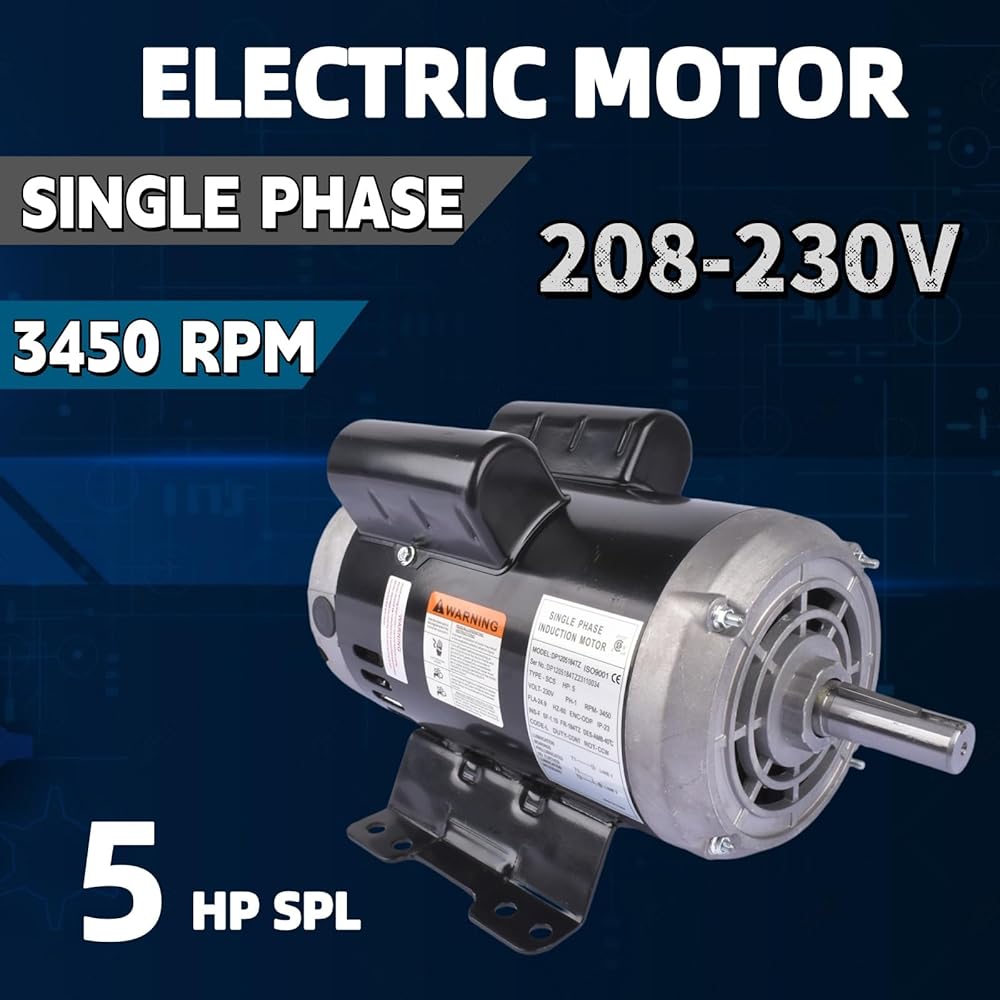

【Powerful 5HP Electric Motor】: This 5HP motor delivers strong performance with 3450 RPM high-speed operation, ensuring quick starts and maximum efficiency for heavy-duty equipment. Ideal for air compressors and industrial applications requiring reliable power
【Specifications】: Power 5 HP; FLA 24.9; SFA 27.3; RPM: 3450; Frame: 184T; Shaft Size: 7/8" x 2 1/4" with Keyway; Shaft height: 4.5" (Measured to Shaft Center); Base: Flat Rigid Mounting Base; Voltage: 208-230V 60hz, 24.9 AMPS; Phase: Single Phase Service Factor: 1.15
【Part Number】: 56283138, 23378805, 23220064, 54421193. Note: The air compressor motor is specially used for air compressors. Please purchase the motor according to the specific parameters you need, and professional installation is recommended
【Specificities】: Insulation class B; ball bearings; open drip-proof housing; manual overload protection for relatively clean and dry environments

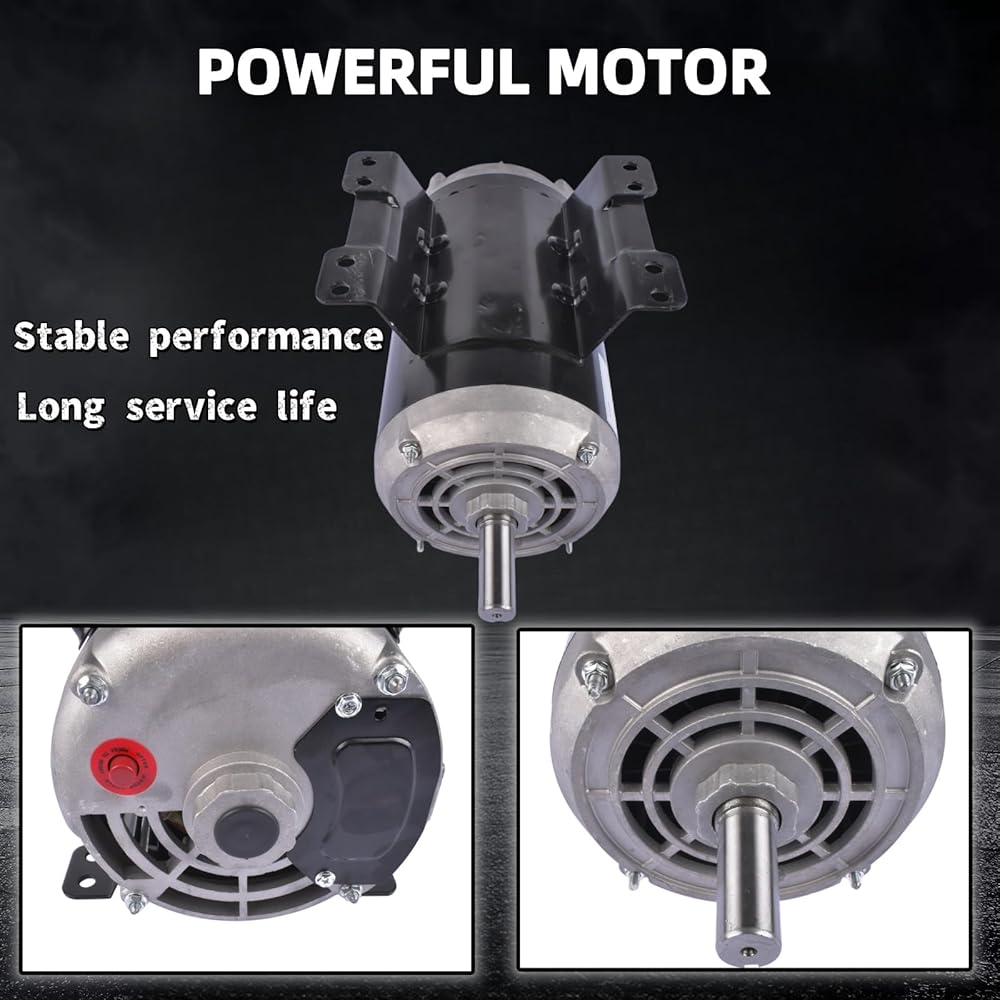

【Outstanding Durability】: As a general-purpose heavy-duty motor made of iron, this motor is carefully designed to withstand long-term use and harsh environments, ensuring long-lasting durability

وصف

Part Numbers
56283138
23378805
23220064
54421193
Specifications
Power 5 HP SPL
FLA 24.9
SFA 27.3
RPM: 3450
Frame: 184T
Shaft Size: 7/8" x 2 1/4" with Keyway
Shaft height: 4.5" (Measured to Shaft Center)
Base: Flat Rigid Mounting Base
Voltage: 208-230V 60hz, 24.9 AMPS
Phase: Single Phase
Service Factor: 1.15
Insulation Class B
Ball Bearings

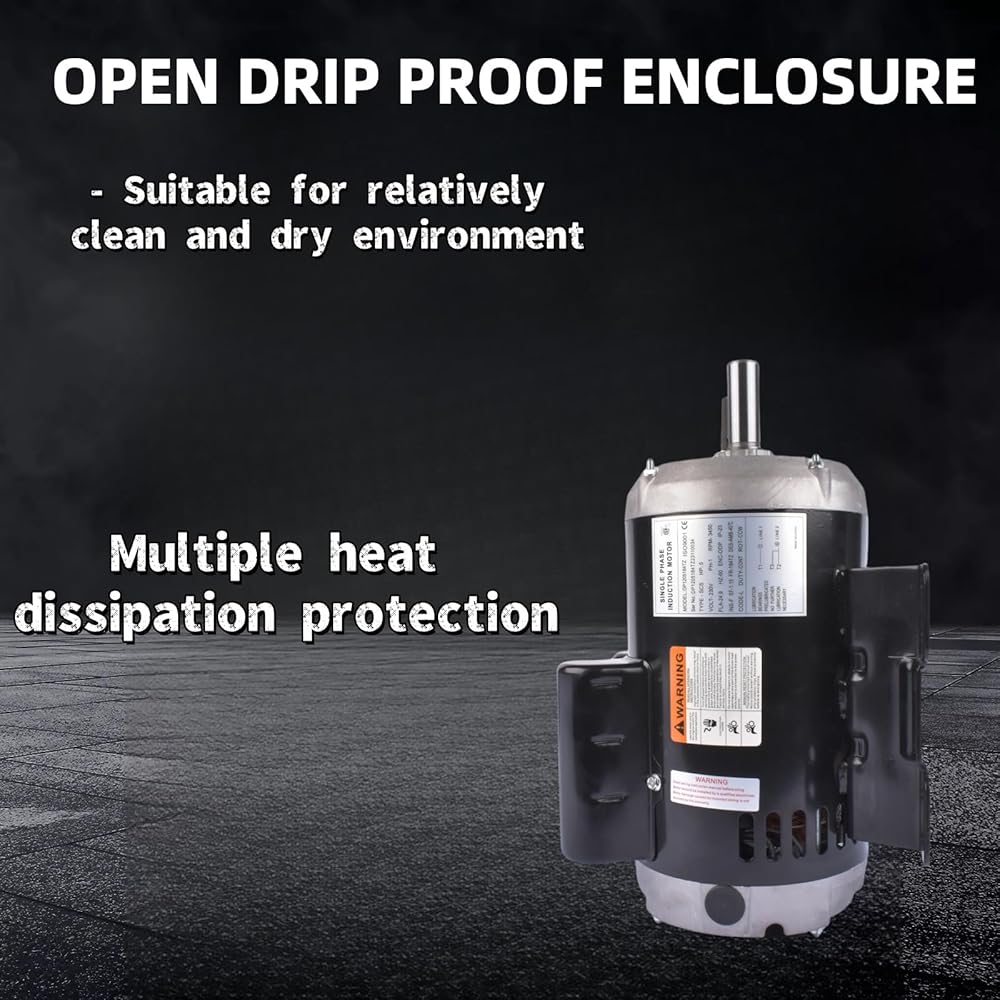

Open Drip Proof Enclosure
Manual Overload Protection
Features

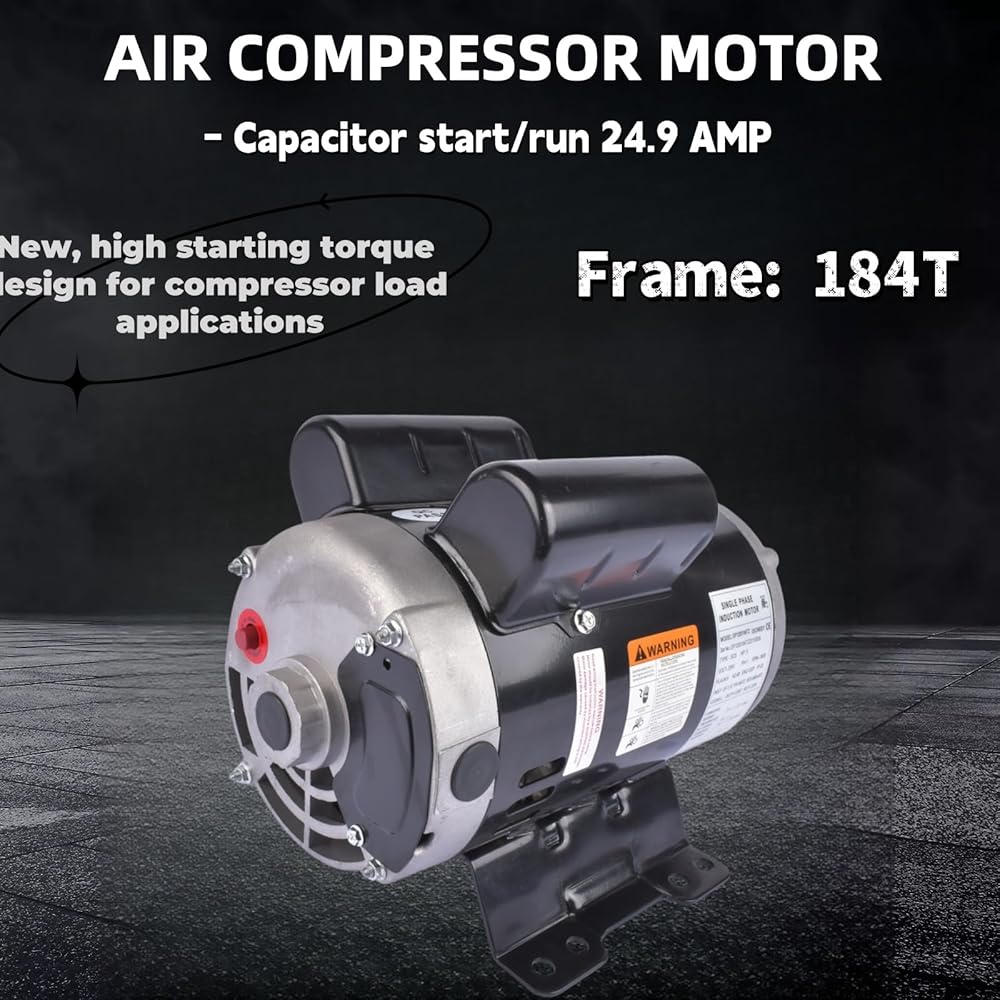

High starting torque design for compressor duty applications.

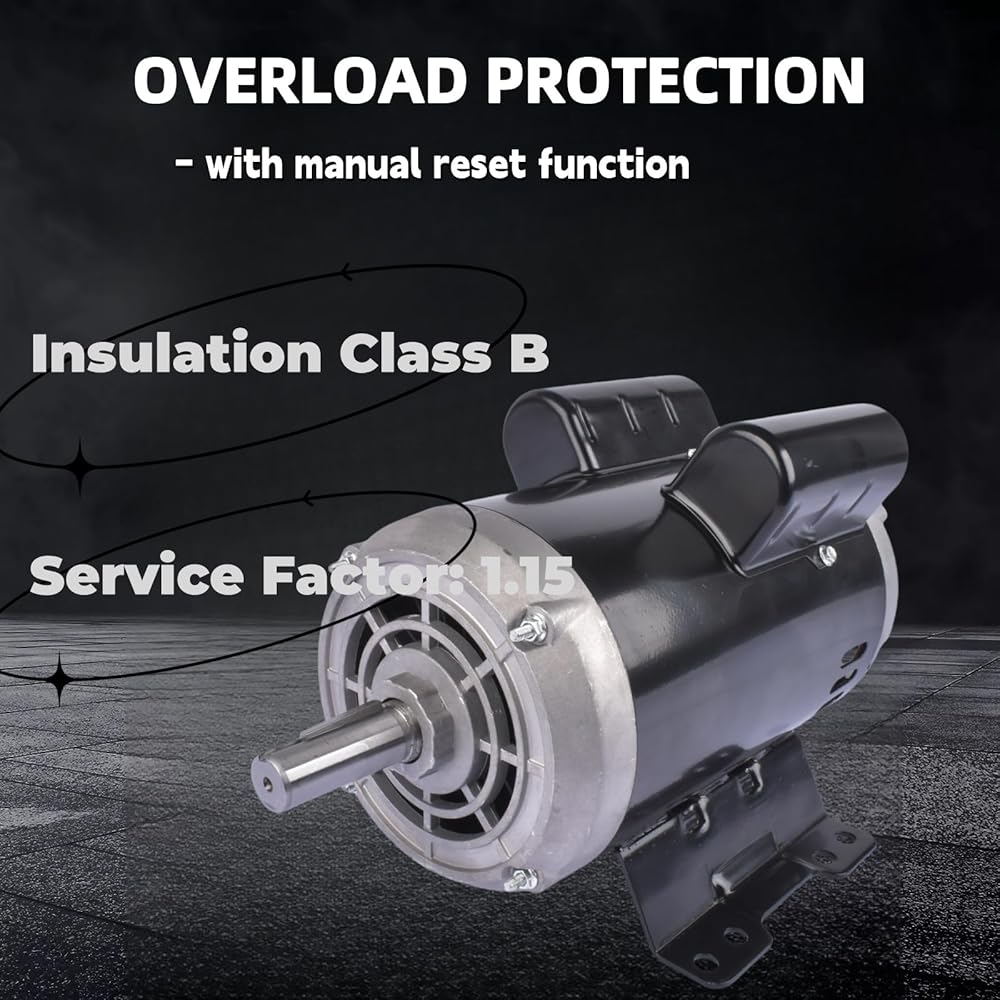

Overload protection with manual reset.
Steel frame and base.
Welded base. Capacitor start/capacitor run.
Note
Professional installation is highly recommended.
Suggestions for use.
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Don't run with load first, run the machine for a few minutes, everything is normal and then take the load.
3. When running with a load, it is best to use an ammeter to measure the actual running current, to see if there is more than the rated value marked on the nameplate.
