Versatile 0.7X to 4.5X magnification range for detailed inspections and analysis.
Compatible with HDMI, VGA, and USB video microscope cameras for flexible connectivity.
optics provide clear images at magnifications of 130X, 180X, and 150X.
Easy to adjust zoom allows for quick transitions between different magnification levels.
Ideal for industrial applications, educational purposes, and hobbyist use.
وصف
C Mount Lens is mainly used in the following fields:
Machine vision microscopic inspection
Industrial testing, especially electronic component testing
Medical industry and scientific research
Education industry.
New 180X:
Bulk ratio: 0.7X-4.5X
System multiplier: 0.26X-1.69X
NA: 0.012-0.053
Working distance: 300mm
Diagonal visual field: 22.86-3.56
Matching camera size: 1/3in
Weight: 250g
1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

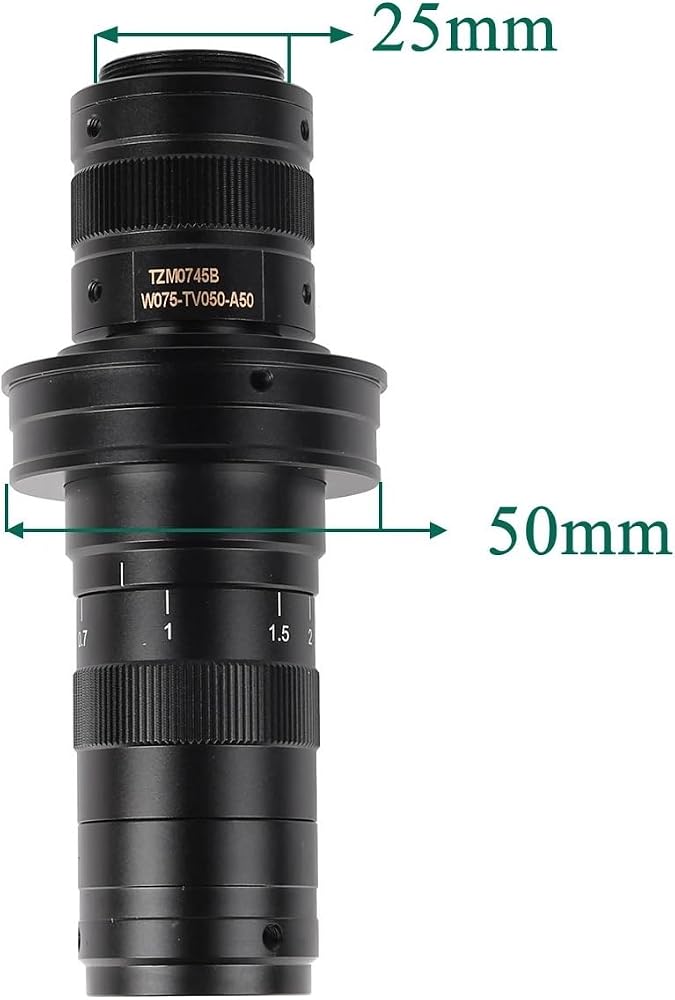

1X-180X C-MOUNT Lens:
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 1 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm

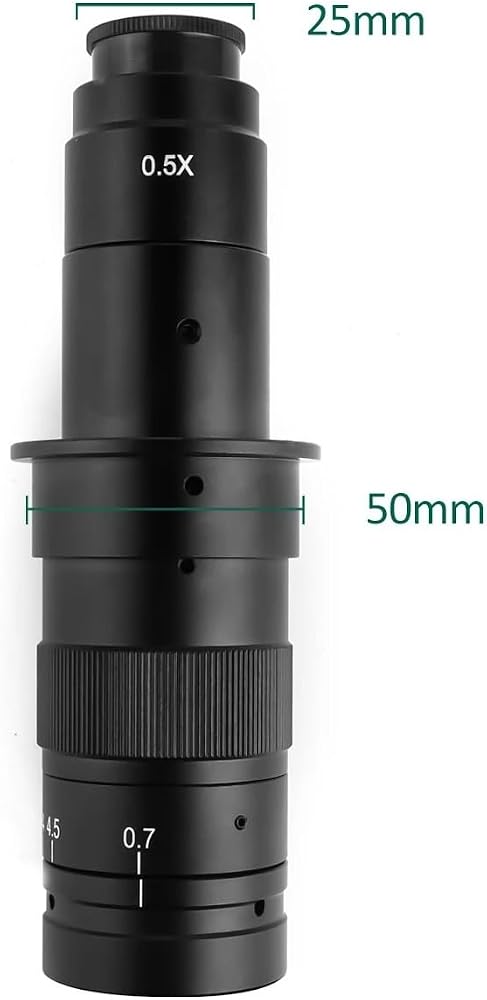

Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g
==========
Magnification Ratio : 500X & Under
Drawtube : BINOCULAR
Material : Metal
Origin : Mainland China
Theory : Video Microscope
