Phase Monitoring Relays
Model
I-50
Single Phase SSR, 1 piece, 10-25A
Press
W-70
Single Phase SSR, 1 piece, 10-40A
Press
D-74
Single Phase SSR, 1 piece, 10-40A
Press
H-50
Single Phase SSR, 1 piece, 10-60A
Press
W-100
Single Phase SSR, 1 piece, 10-80A
Press
I-96
Single Phase SSR, 1 piece, 10-120A
Press
Y-80
Industrial SSR, 1 piece, 60-100A
Press
Y-110
Industrial SSR, 1 piece, 60-200A
Press
Y-150
Industrial SSR, 1 piece, 60-400A
Press
Three phase SSR, 1 piece, 10-120A
Y-200
Industrial SSR, 1 piece, 60-500A
Press
F-100
Three phase SSR, 1 piece, 10-25A
Press
H-110
Three phase SSR, 1 piece, 10-60A
Press
H-150
Three phase SSR, 1 piece, 10-80A
Press
==========
Theory : Solid State Relay
Protect Feature : Sealed
is_customized : Yes
Usage : General Purpose
Contact Load : Low Power

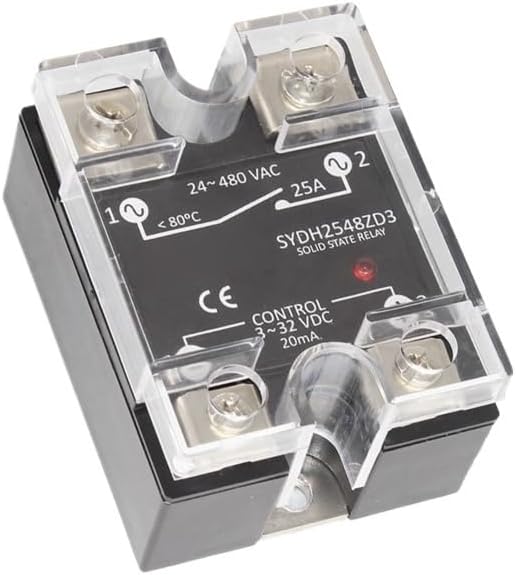

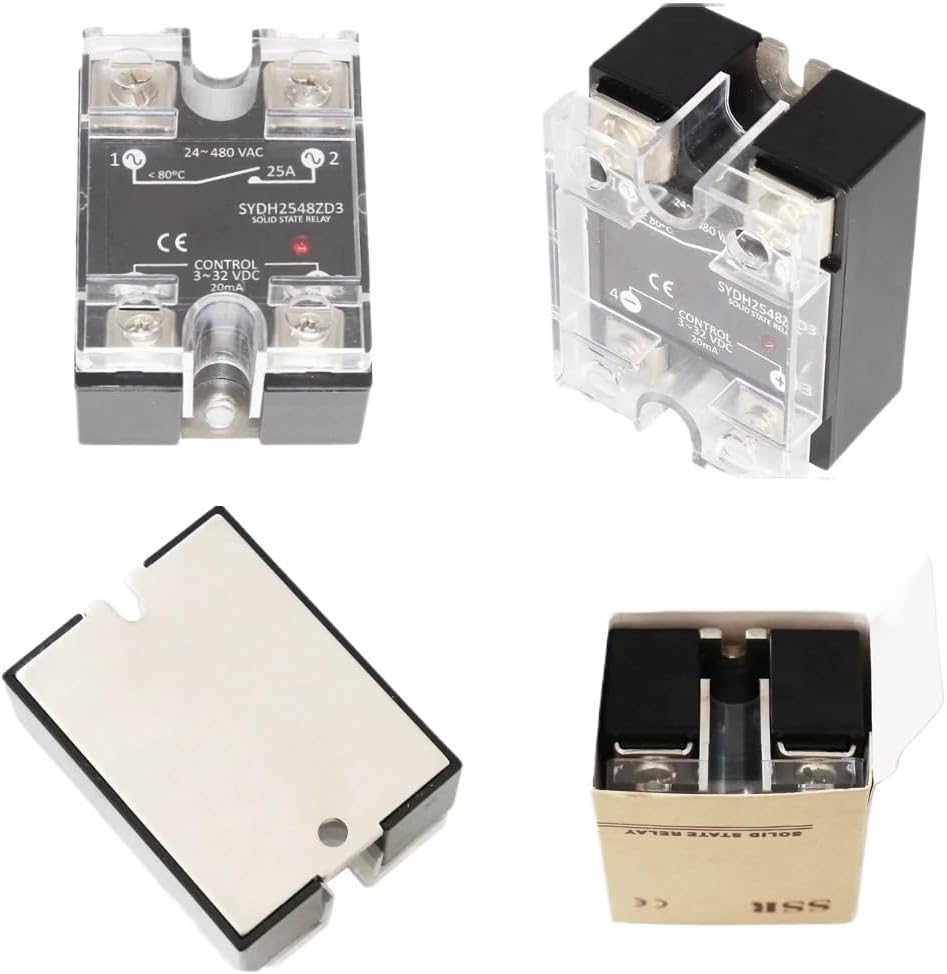

Model Number : SYDHxxxxxZD3
Load Current : 10A,25A,40A,50A,60A,80A,100A,120A
Control Voltage : 3-32VDC
Load Voltage : 24-480VAC
Current consumption in control circuit : 3-25mA
Voltage ON/OFF : 3V DC/1V DC
Peak voltage : 1000V AC
Voltage drop in load circuit : less than 1.6V AC
Leakage current(off-state) : less than 10mA
Switching time : less than 10ms
LED indication : yes
Dielectric strength : 2500V AC (1min)
Insulation resistance : 500MOm with 500VDC
Operating temperature : -30C to +75C
Relative humidity : less than 95%, (non-condensing)
Dimensions : 57.4*44.8*32mm(with shell)
Mounting method : Screws on
