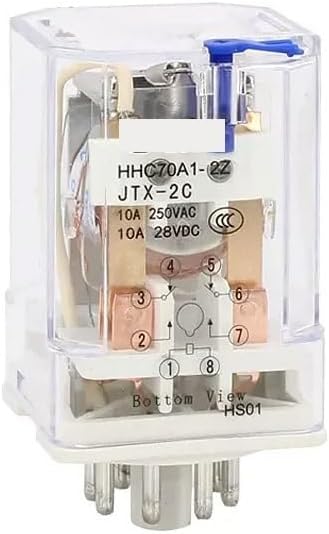

JTX-2C electromagnetic relay
Type
Related product
JTX-2C
Standard
Visiting...
General
Model number
JTX-2C
Contact material
Silver alloy
Contact form
DPST-NO, DPST-NC, DPDT
Contact rating
10A@28Vdc/240Vac
Rated coil power
2.5Wac, 1.5Wdc
Rated coil voltage
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V
Dielectric strength
1,500Vac, 50/60 Hz for 1 min between coil and contacts
1,200Vac, 50/60 Hz for 1 min between opening contacts
Pick-up voltage
DC types: 75% max; AC types: 80% max
Drop-out voltage
DC types: 10% min; AC types: 30% min
voltage
110% max
Contact resistance
50m max
Termination
8 pins
Mounting
Quick connect
Matched socket
PF083A
Mechanical life
1x106 operations min
Electrical life
1x105 operations min
Insulation resistance
100M min. at 500 VDC
Operating temperature
-30 to 55 °C (-22 to 131 °F)
Operating humidity
35 to 85% RH, no condensation
External dimensions
34.5x34.5x53 mm
Alias name
JTX-2C/JQX-10F-2Z/JTX-2Z power relay, electric relay, electrical relay
==========
Power Source : AC
Theory : Electromagnetic Relay
Protect Feature : Dust cover
is_customized : Yes
Usage : General Purpose
Contact Load : Low Power
Model Number : JTX-2C-220VAC
Voltage : 220V
