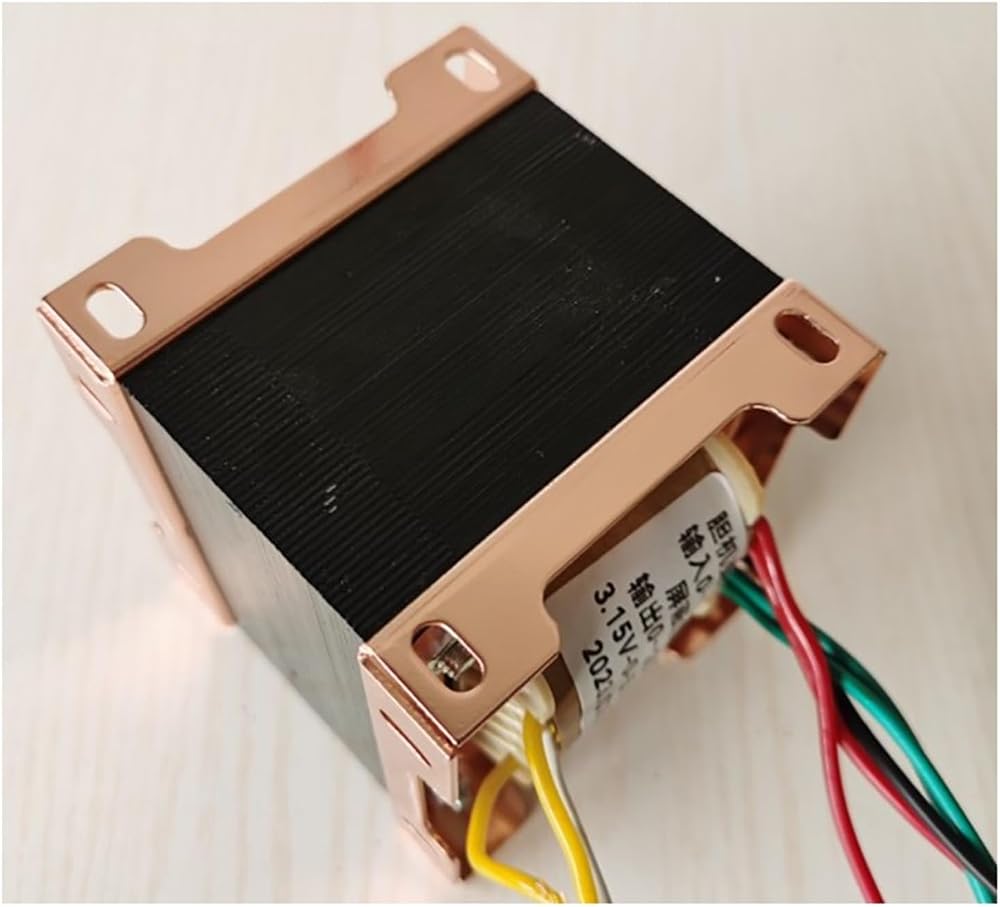

Audio Transformers
60w Power for Vacuum Tube Amplifier Diy Amplifier Audio Accessories
Parameters:Core: EI76 0.5mm
Frame: 26*40mm Core thickness 40mm
Primary input voltage: 0-220V
Output voltage:
0-250V 150mA
3.15V-0-3.15V 3.5A
Weight: 1.5 kg
Horizontal top cover size: 76mm long, 64mm wide, 74mm high
Square hole opening size: 50mm*43mm, screw mounting hole 64mm*50mm
British bracket size: 79mm long, 69mm wide, 65mm high
Screw mounting hole: 55mm*55mm Can also be installed vertically
==========
Hign-concerned Chemical : None
Model Number : 60w
Maximum Power Per Channel : NO POWER
