0.005mm KA-300 Sensor Sensor Sensor Optical Protical Sensor لآلة الطحن TTL 70mm ~ 470 مم (KA300-170MM-5U) in Kuwait 0.005mm KA-300 Sensor Sensor Sensor Optical Protical Sensor لآلة الطحن TTL 70mm ~ 470 مم (KA300-170MM-5U) in Kuwait 0.005mm KA-300 Sensor Sensor Sensor Optical Protical Sensor لآلة الطحن TTL 70mm ~ 470 مم (KA300-170MM-5U) in Kuwait

KA300-220MM-5U

KWD 60.500
ماركة
PORRZAJD
وزن
349 g
مقاسKA300-220MM-5U
– 1 +

مميزات خاصة

  • Transducers
  • Widely used and it has stable performance
  • Vertical five bearings sliding system smooth and accurate movement
  • High integration makes the performance be stable
  • The product has a large detection range
  • Industrial Standard Output Signal Interface

وصف

Transducers
Product name: KA-300 Linear
Available Measrus Length: 70 120 170 220 270 320 370 420 470mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3 5 10 (20 degree 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um(0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5% 80mA
Operating temperature:0-45 degree
Connetor: 9 Pins
==========
Model Number : KA-300 5m 5V
SINO Model : KA-300
Certification : CE
Accuracy : 5um/0.005mm
Output mode : TTL
Input voltage : DC 5V
Interface Typ : DB9
Max of Measuring speed : 60m/min

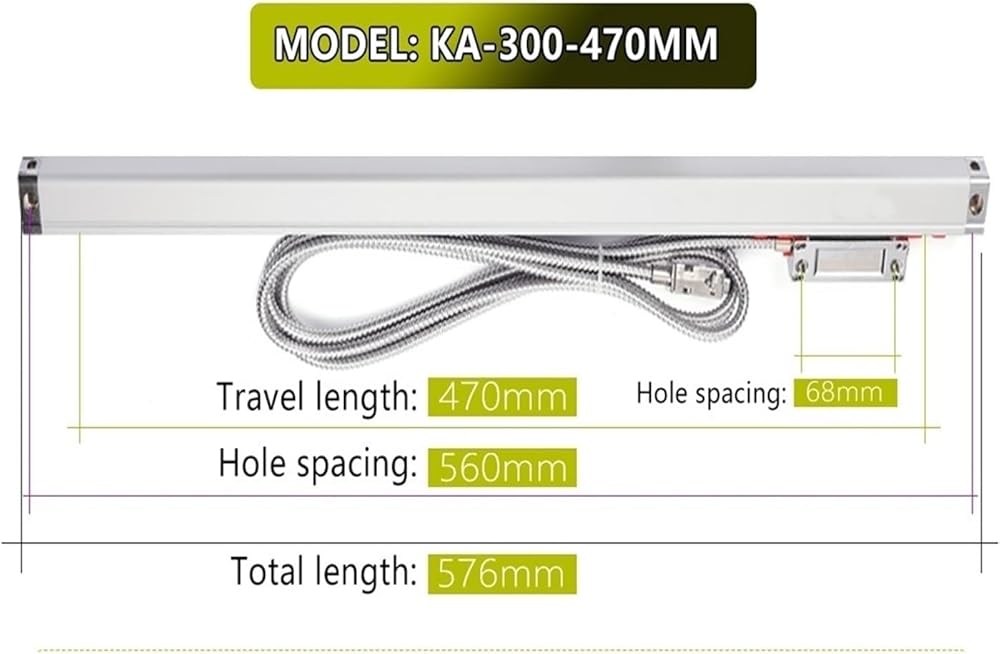

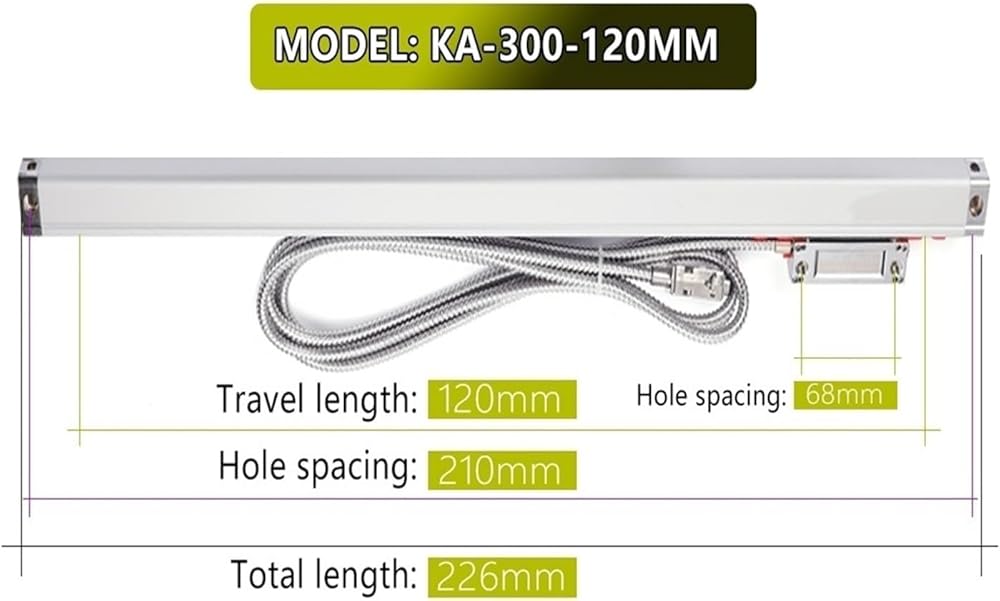

Installation holes distance : Travel+90mm
overall length : Travel+106mm
Cable length : 3 meters
