Types
NPN
PNP
Light Source
Four element red LED diode body
Reaction Time
P-1:100u s,P-2:200us
Output Selection
LIGHT-ON/DARK-ON(Switch selection)
Detection
Light intensity (area detection,
automatic sensitivity tracking function)
Delay Function
Turn off delay timer/turn on delay timer/single timer/turn on delay single timer, with selectable timer duration; 0.1ms9.999ms, with an accuracy range of ± 10% of the set value
Control Output
NPN open collector 24V, maximum 100mA, residual voltage: maximum 1V
PNP open collector 24V, maximum 100mA,
residual voltage: maximum 1V
Power Supply
Between 12 and 24VDC ± 10%, ripple voltage (P-P): maximum 10%
Current Consumption
Maximum 750mW (maximum current 24V: 31mA; maximum current 12V: 40mA) Power saving mode: maximum 580mW (maximum current 24V: 24mA; maximum current 12V: 28mA)
Note: When using high-speed mode, power consumption will increase by 160mW (7mA)
Environmental
Luminosity
Incandescent lamp: maximum: 20000lux, daylight: 30000lux
Ambient
Temperature
-10 to+55 , no condensation
Relative Humidity
35 to+85%, no condensation
Vibration Resistance
10 to 55Hz, 1.5mm dual amplitude, in X, Y, and Z directions, for 2 hours each
Impact Resistance
X. 500m/s in Y and Z directions ², 3 times each

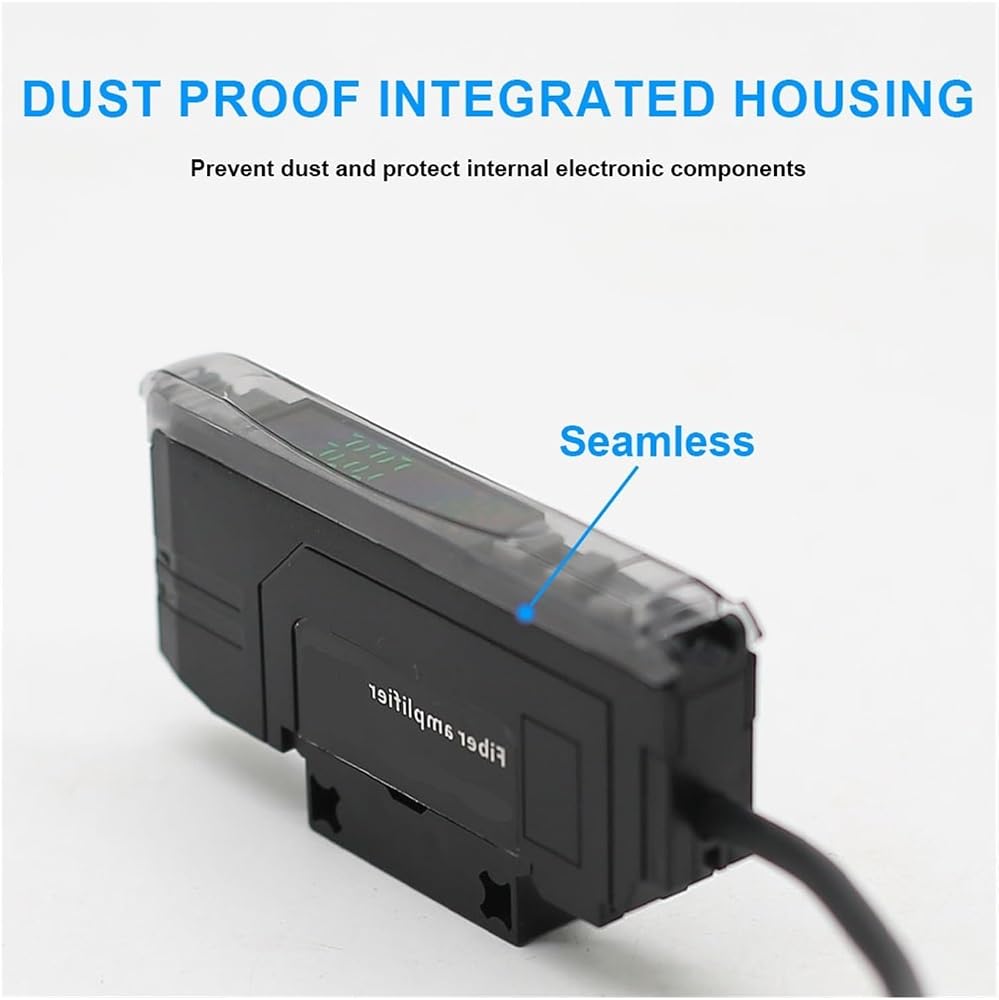

Housing Material
PC
Size
30.5mm(Tall)x10mm(Wide)x75.2mm(Deep)

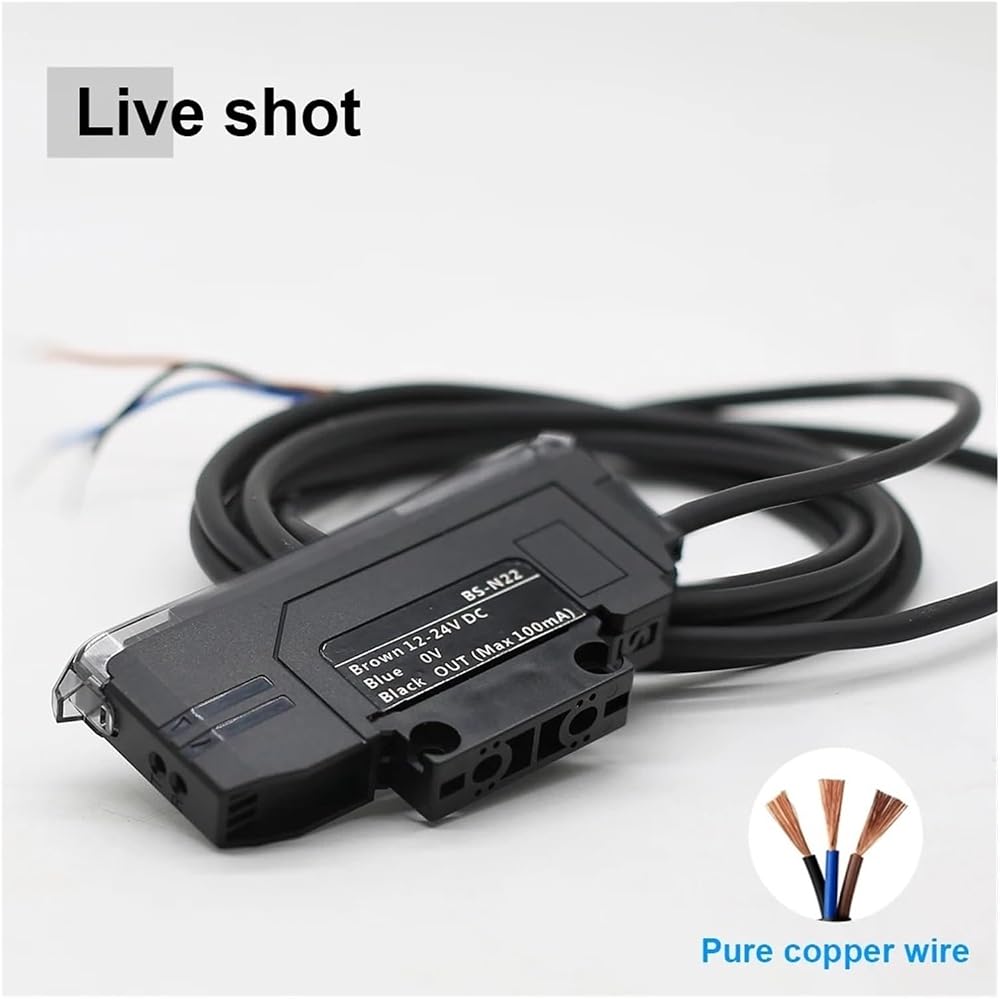

Wiring Method
2M Cable
2M Cable

Material : Plastic
Switch Type : Photoelectric Switch

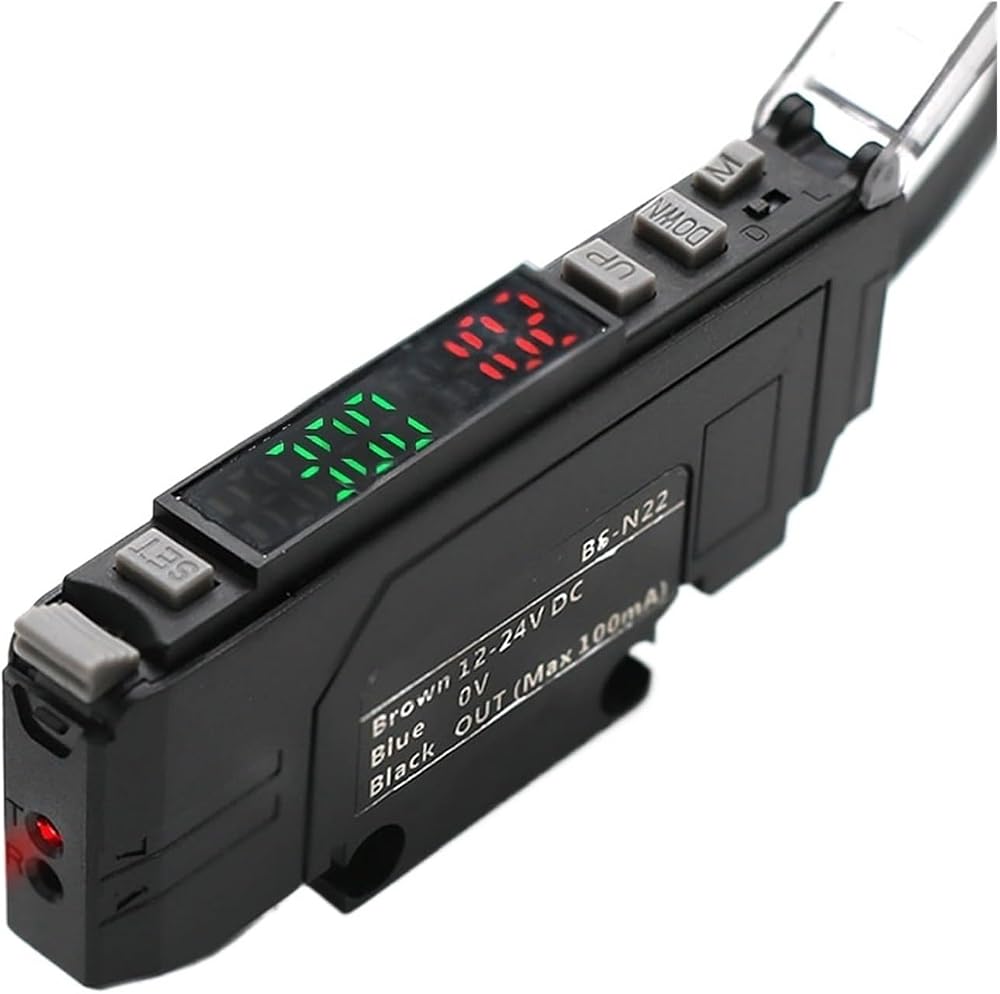

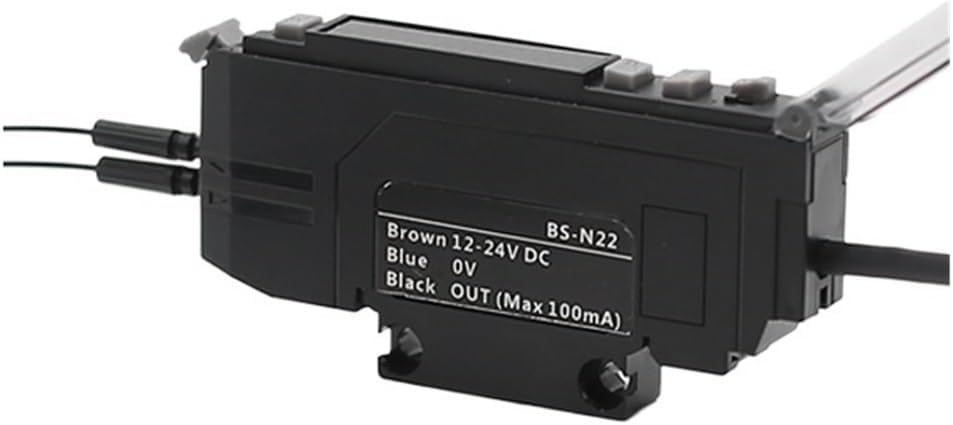

Model Number : BS-N22
Item Type : SWITCHES
Features : simple fiber optic photoelectric sensor amplifier
Is Smart Device : No
Origin : Mainland China

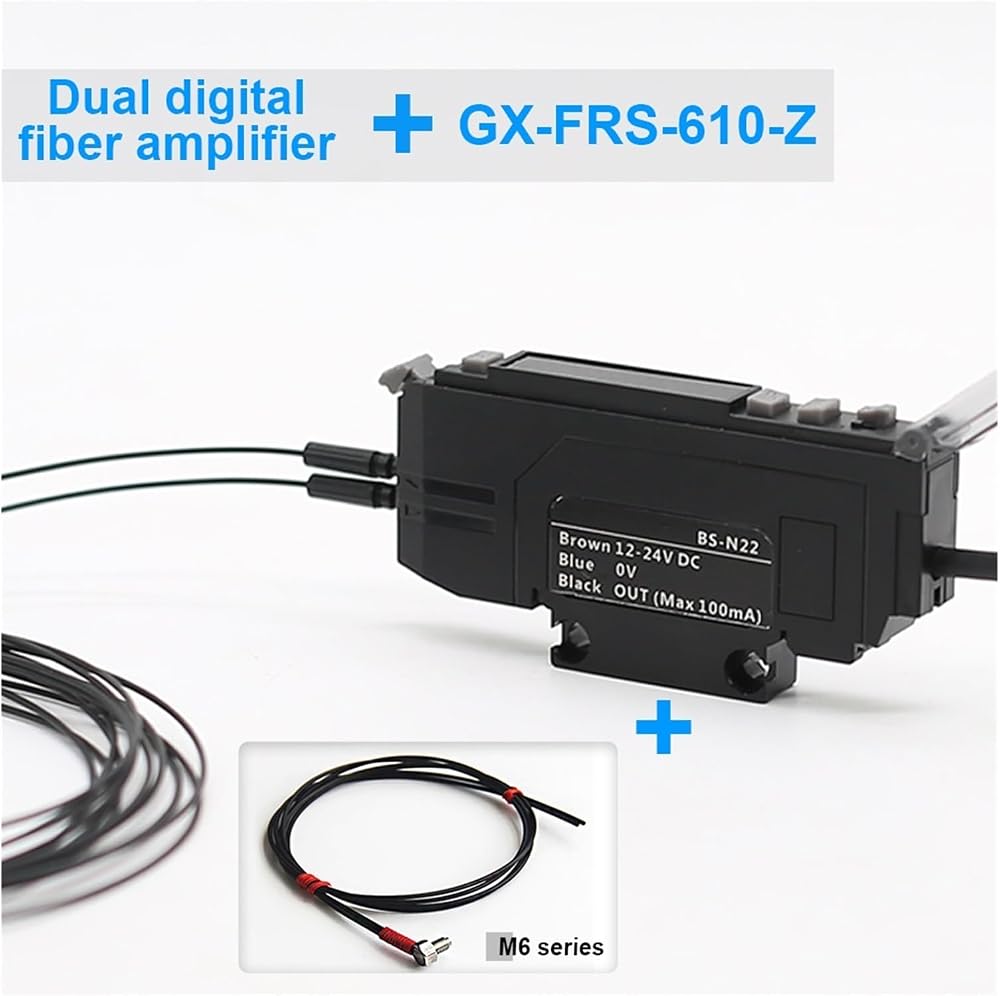

Feature 1 : work with M3, M4 diffuse or through beamfiber optics
Operating voltage(vdc) : 12-24VDC

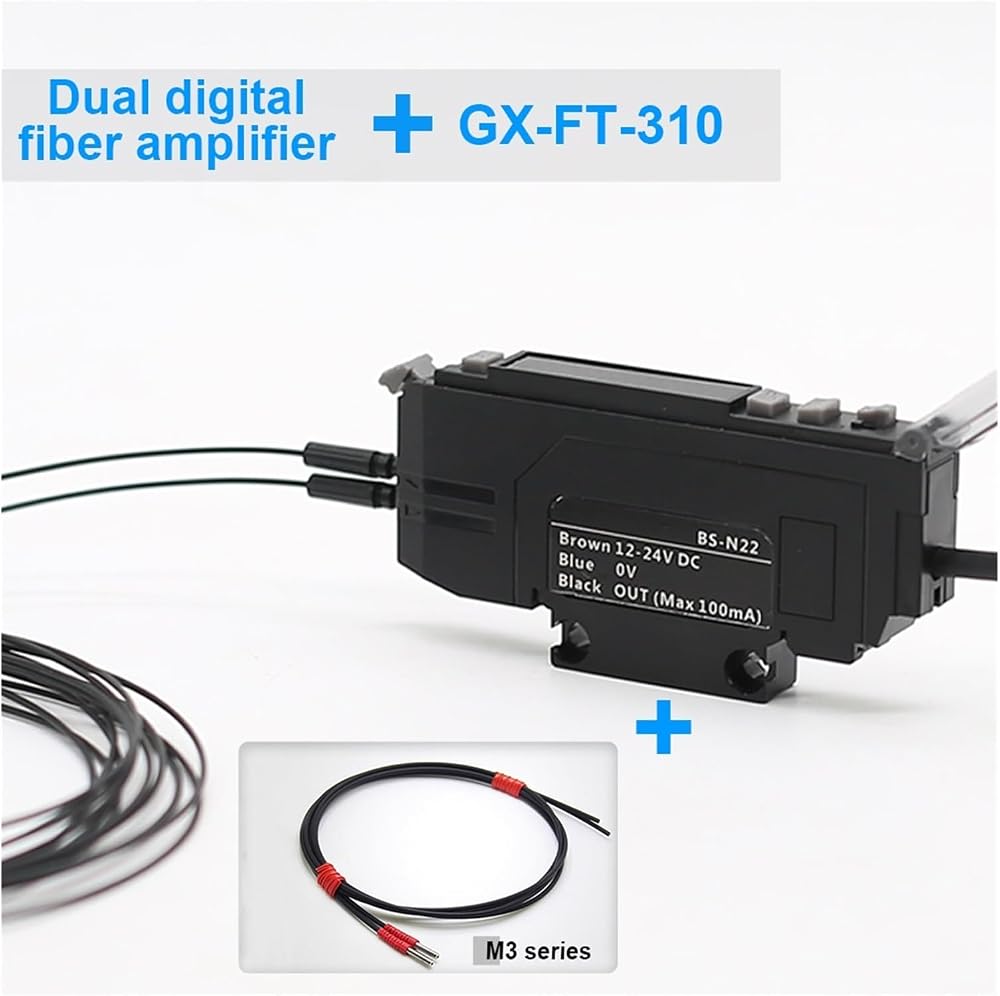

Product name : Dual digital fiber amplifier
