Description:

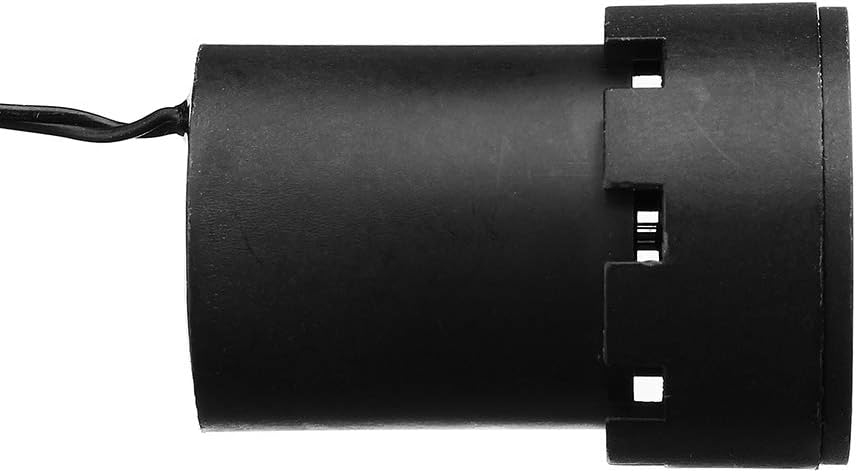

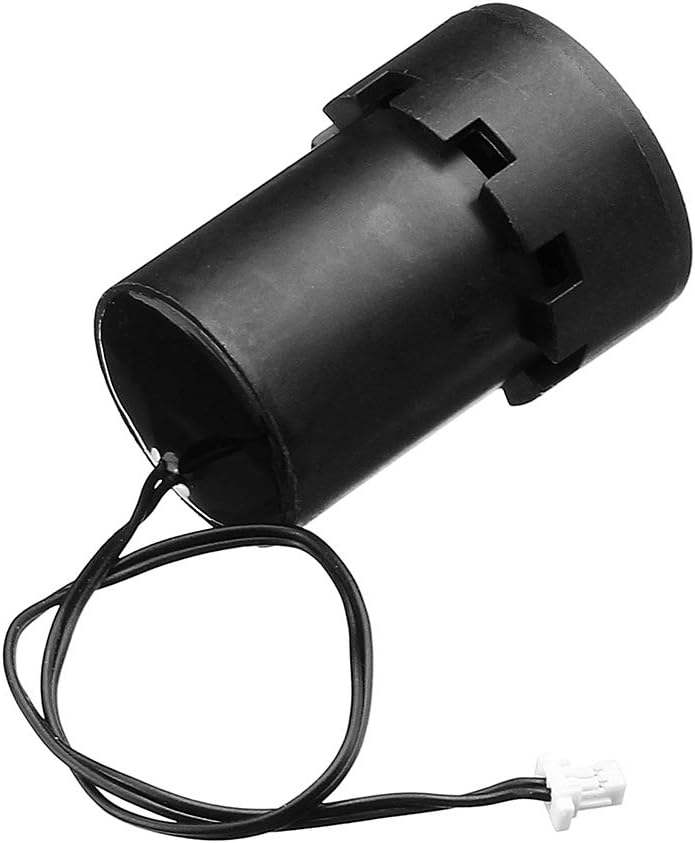

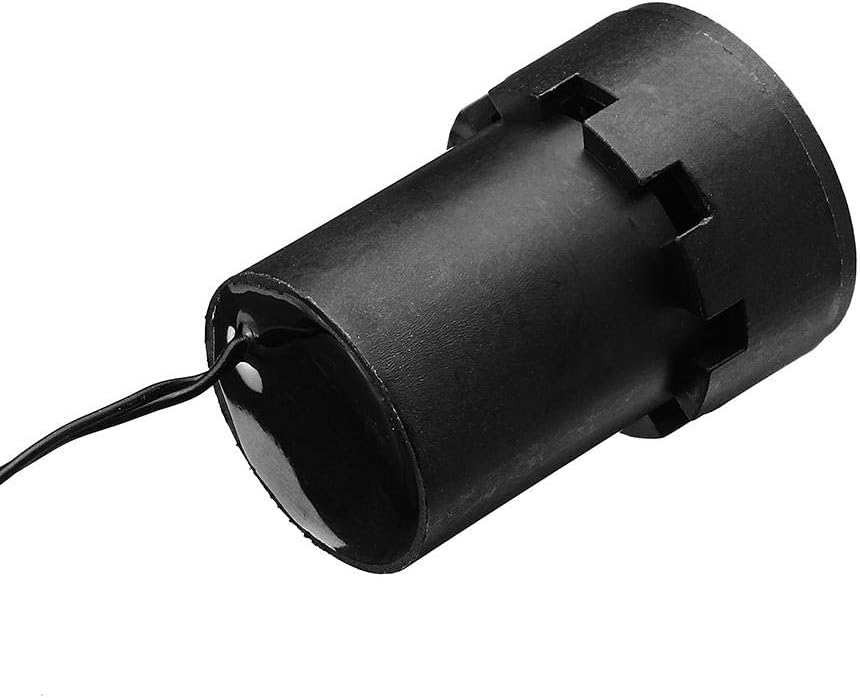

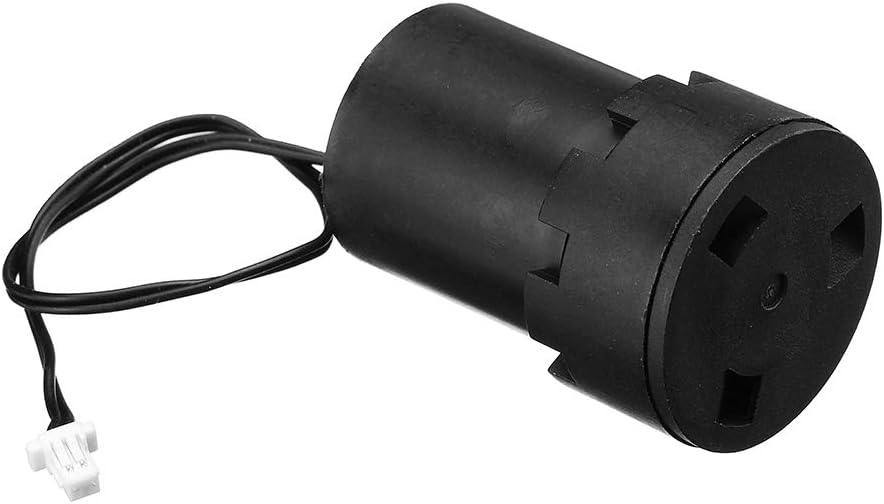

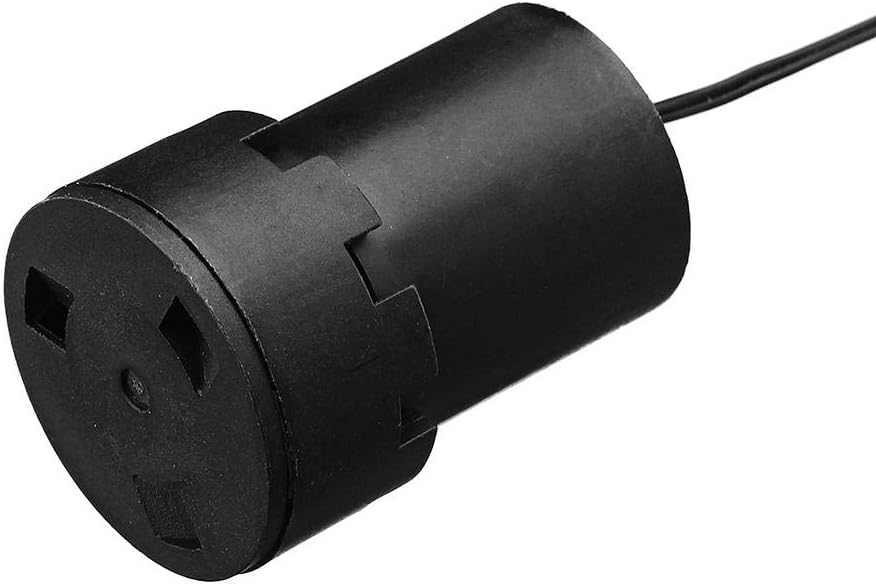

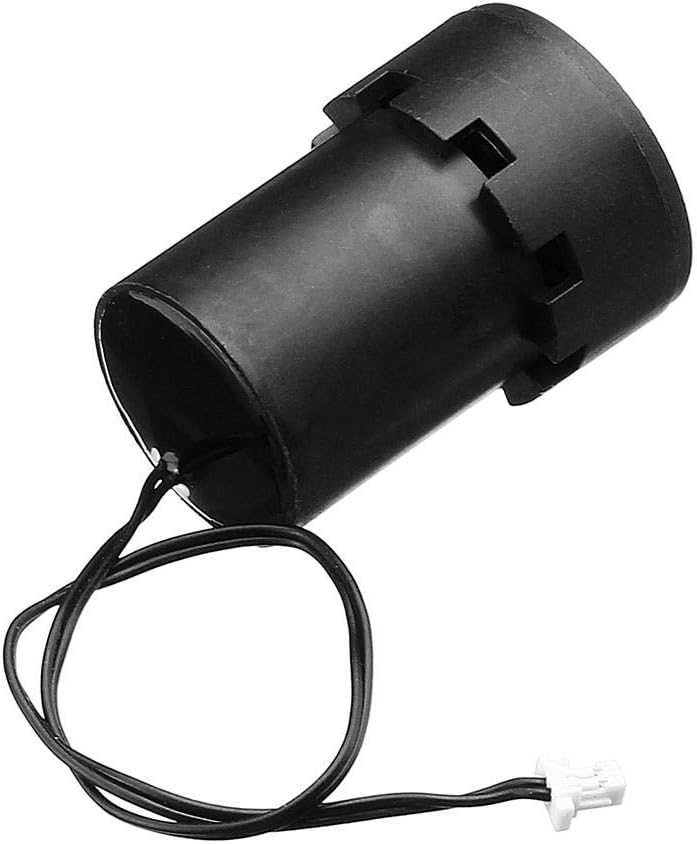

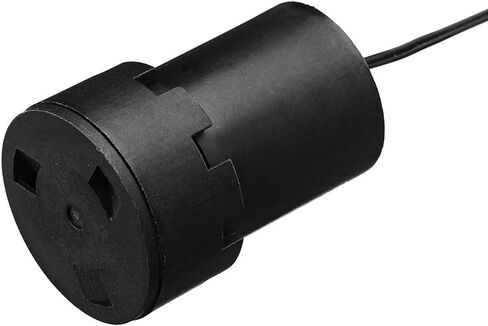

CHFD-270 Permanent magnet single-phase alternator, miniature electric motor 1.5V 2850RPM 7.5W.
Specification:
Type: CHFD-270 Permanent magnet single-phase alternator
Intake port spiral water intake
Rated voltage: 1.5VAC
Rated power: 75mW
No load input speed:≤2850rpm
Rated input speed :3600±5%rpm
Effective hydraulic pressure range: 0.1-1MPa
Test air pressure :0.2MPa
Lower output voltage :≥10VAC
Flow range (0.3mpa water pressure down):5-21L/min 0.3MPa(≥12L/min)
Output no-load voltage range: 0-55VAC
End resistance: 160±12Ω
Rotation direction of generator impeller CCW
Operating temperature range: 5-95°
Category waterproofing construction can be directly put into the water pipe.
Power generation mode hydraulic power generation or wind pressure wind power generation
Features:
1. The screw inlet increases the concentrated force.
2. Tornado fan blade, extended input power.
3. Waterproof glue filling, stable protection of generator core.
4. Good controllability, wide pressure regulating range, reliable and stable, stable operation, long life and small noise.
5. Application cases:Intelligent bathroom, display of scientific power generation, LED light emitting faucets, self-powered
6.LED sprinkler, shower light emitting top spray, air power flashlight car wind lamp, garden pool lamp, luminous small windmilland other DIY products educational toys, household appliances and other fields!
Package Included:
1 X Permanent magnet motor
