Relays / Phase Monitoring Relays
Specifications
Operating Voltage(Un)....: 12VAC/DC, 24VAC/DC,
110VAC, 150-260VAC,
380VAC
Operating Frequency.......: 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Time(t).................: Max 99.99H(1Z and 2Z type)
0.1sec.-99hours(S type)
Connection Type..............: 8 pin socket
Weight................................: Max.190gr.
Contact....................:5A/250V AC (Resistive Load)
Mounting...........................: Vertical assembled in
Cable Diameter.................: 2,5mm²
Working Mechanism
Dimensions

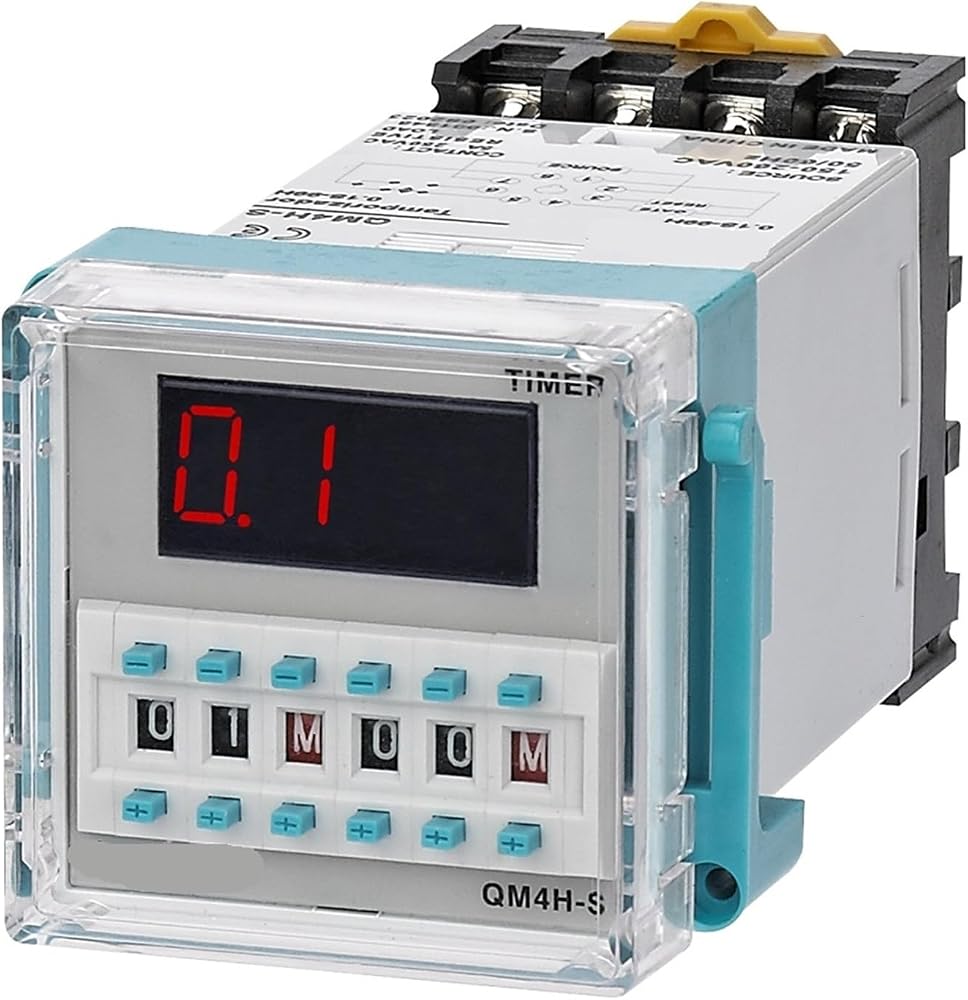

Connection diagram QM4H-S, QM4H-1Z

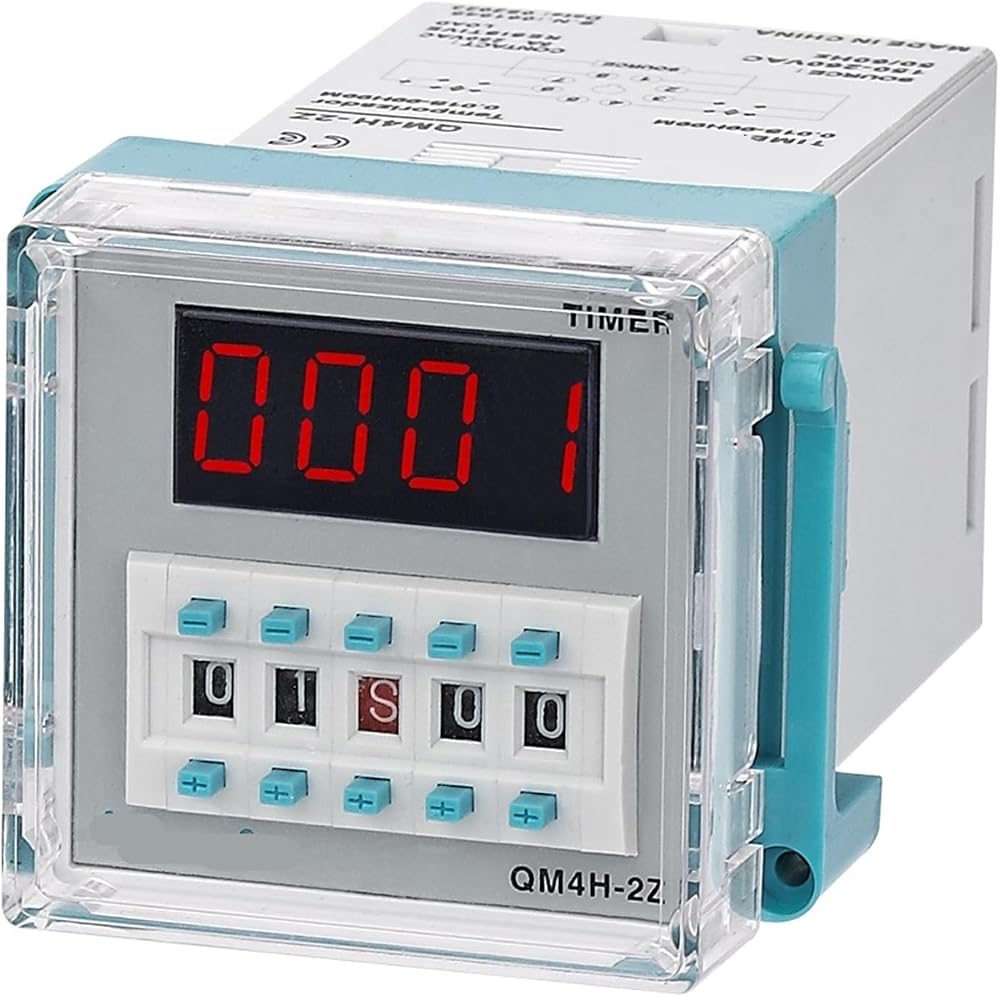

Connection diagram QM4H-2Z
