Motor Motor Deve Gear 1.5m 40t Spur Gear Model 1.5 مع ترس المحرك مع Step Keyway OD 33-93mm Carbon Steel Bore 12/14/15/16/18/20mm (16mm (Keyway 5)) in Kuwait Motor Motor Deve Gear 1.5m 40t Spur Gear Model 1.5 مع ترس المحرك مع Step Keyway OD 33-93mm Carbon Steel Bore 12/14/15/16/18/20mm (16mm (Keyway 5)) in Kuwait Motor Motor Deve Gear 1.5m 40t Spur Gear Model 1.5 مع ترس المحرك مع Step Keyway OD 33-93mm Carbon Steel Bore 12/14/15/16/18/20mm (16mm (Keyway 5)) in Kuwait Motor Motor Deve Gear 1.5m 40t Spur Gear Model 1.5 مع ترس المحرك مع Step Keyway OD 33-93mm Carbon Steel Bore 12/14/15/16/18/20mm (16mm (Keyway 5)) in Kuwait Motor Motor Deve Gear 1.5m 40t Spur Gear Model 1.5 مع ترس المحرك مع Step Keyway OD 33-93mm Carbon Steel Bore 12/14/15/16/18/20mm (16mm (Keyway 5)) in Kuwait

18mm (Keyway 6)

KWD 18
ماركة
HLYTFV
وزن
50 g
مقاس18mm (Keyway 6)
– 1 +

مميزات خاصة

  • 1. Good machining makes it less rough and noisy than other gears, making it roll smoothly.
  • 2. Small size, light weight, easy to carry, easy to install, with good performance.
  • 3. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that need to be driven by steering.

وصف

1. Good machining makes it less rough and noisy than other gears, making it roll smoothly.
2. Small size, light weight, easy to carry, easy to install, with good performance.
3. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that need to be driven by steering.

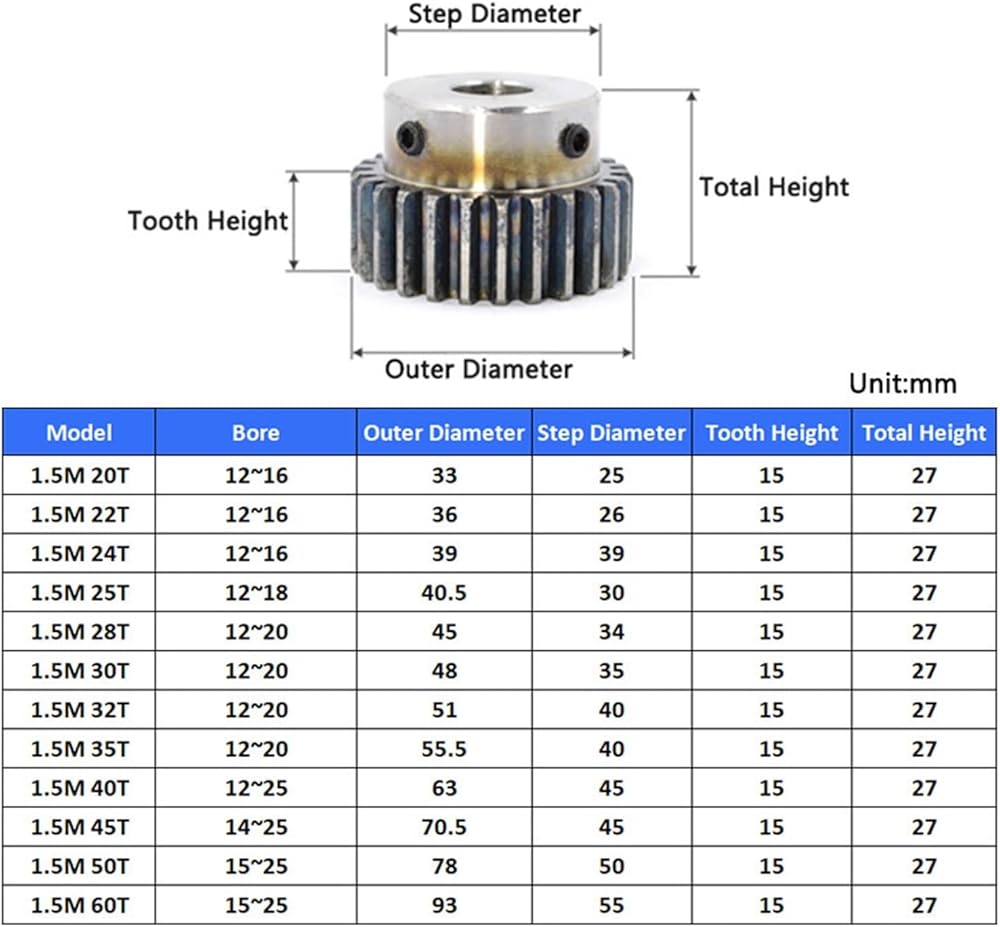

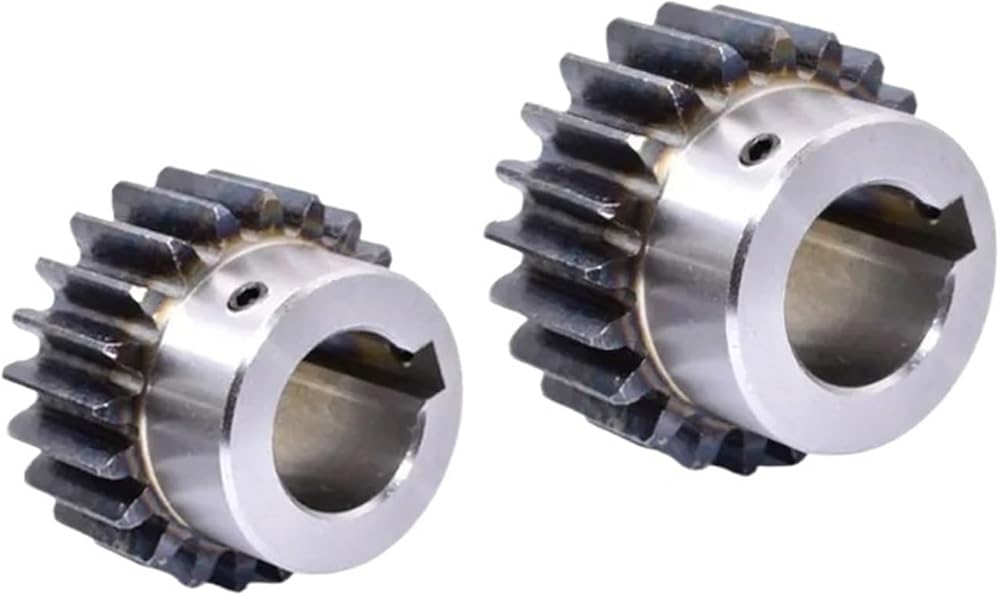

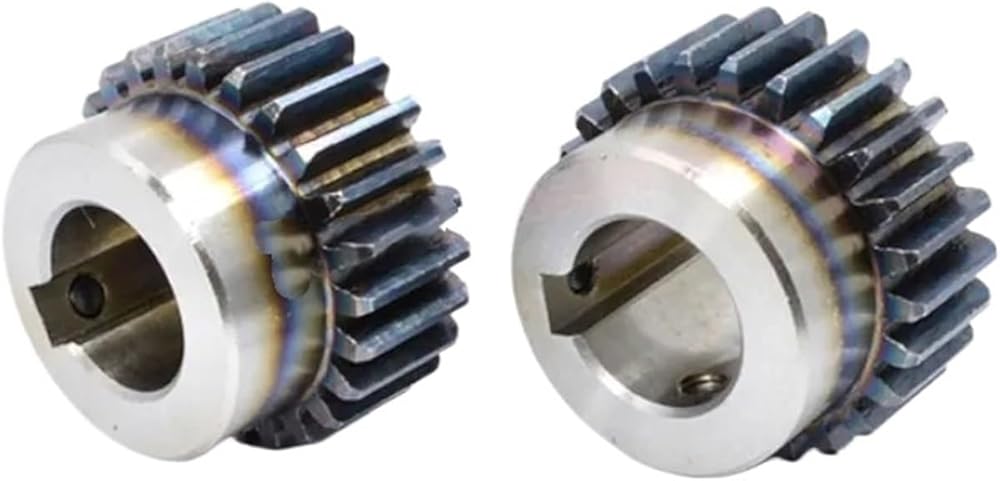

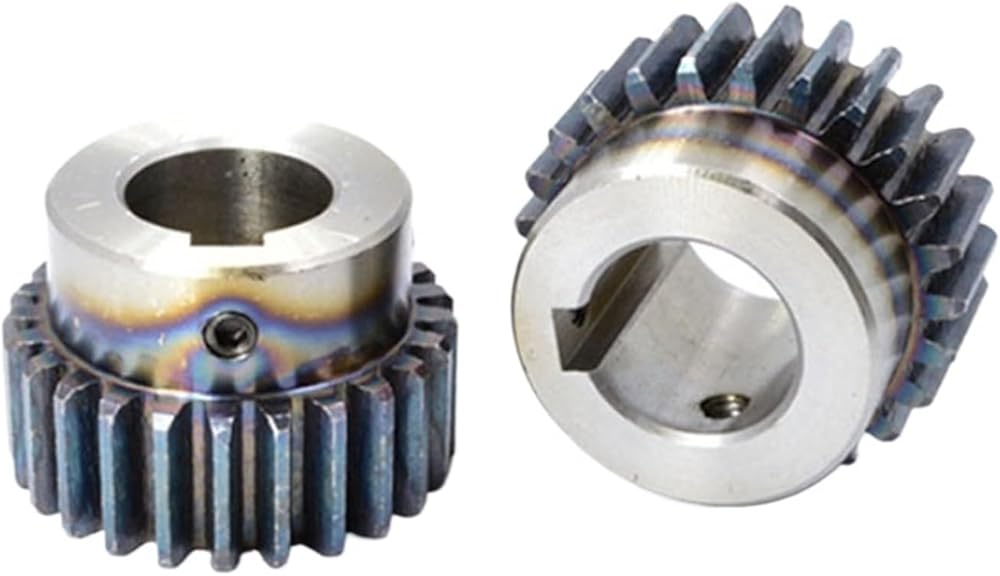

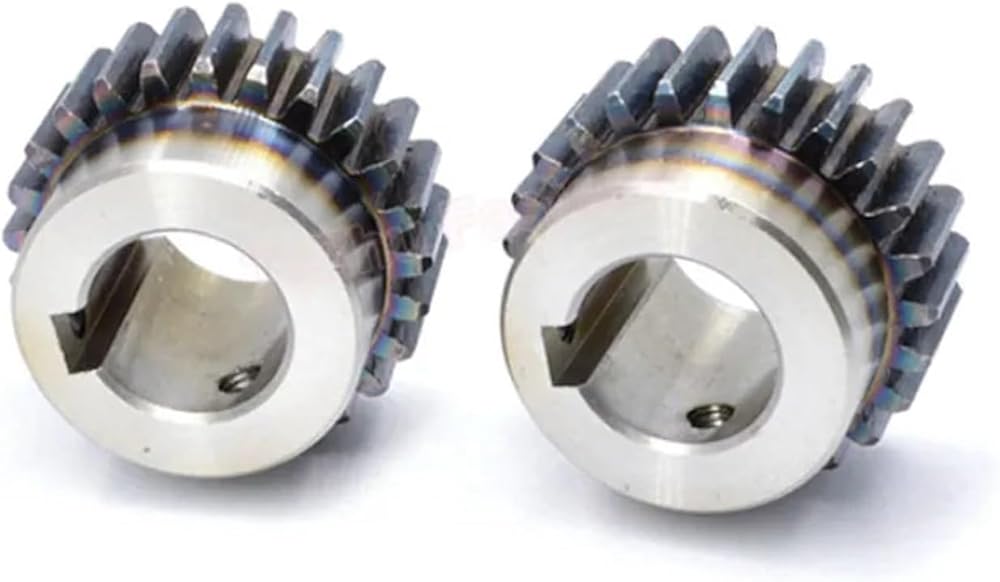

Name: 1.5M Spur Gear With Step
Material: 45# steel
Teeth: 40 Teeth
Bore:12/14/15/16/18/20mm (with keyway)
Teeth Pitch: 4.71mm
Surface Treatment: High frequency quenching of teeth
Teeth Height: 15mm
Total Height: 27mm
Shaft Hole: Machining completed
Tooth Surface Hardness: Hardened tooth surface
Screw: M5*2
