مميزات خاصة

Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.
Self-powered, no external power supply required.
Easy to install and use, no need to connect DC into the circuit when measuring.
Measured current AC 0-10/20/50A, output signal DC 0-5V.
Straight-through structure design, isolation withstand voltage up to 2000V.

وصف

Specification:

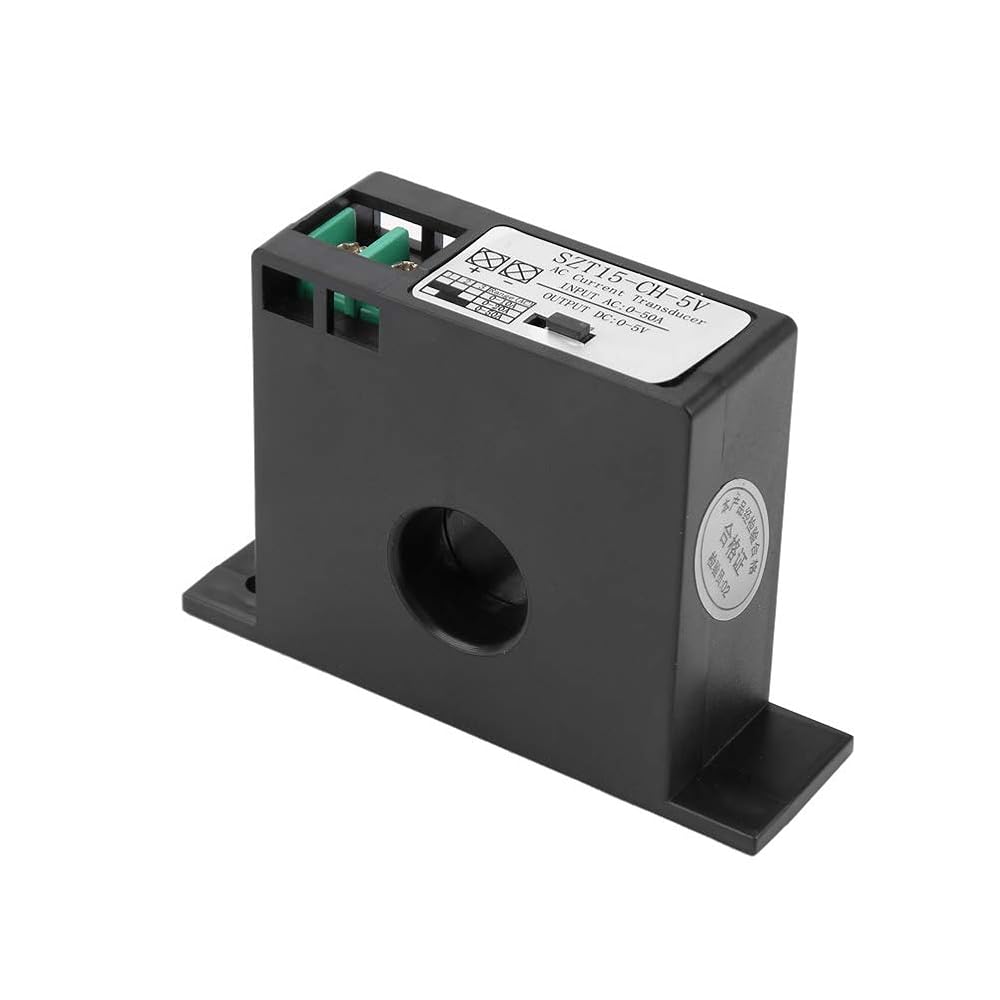

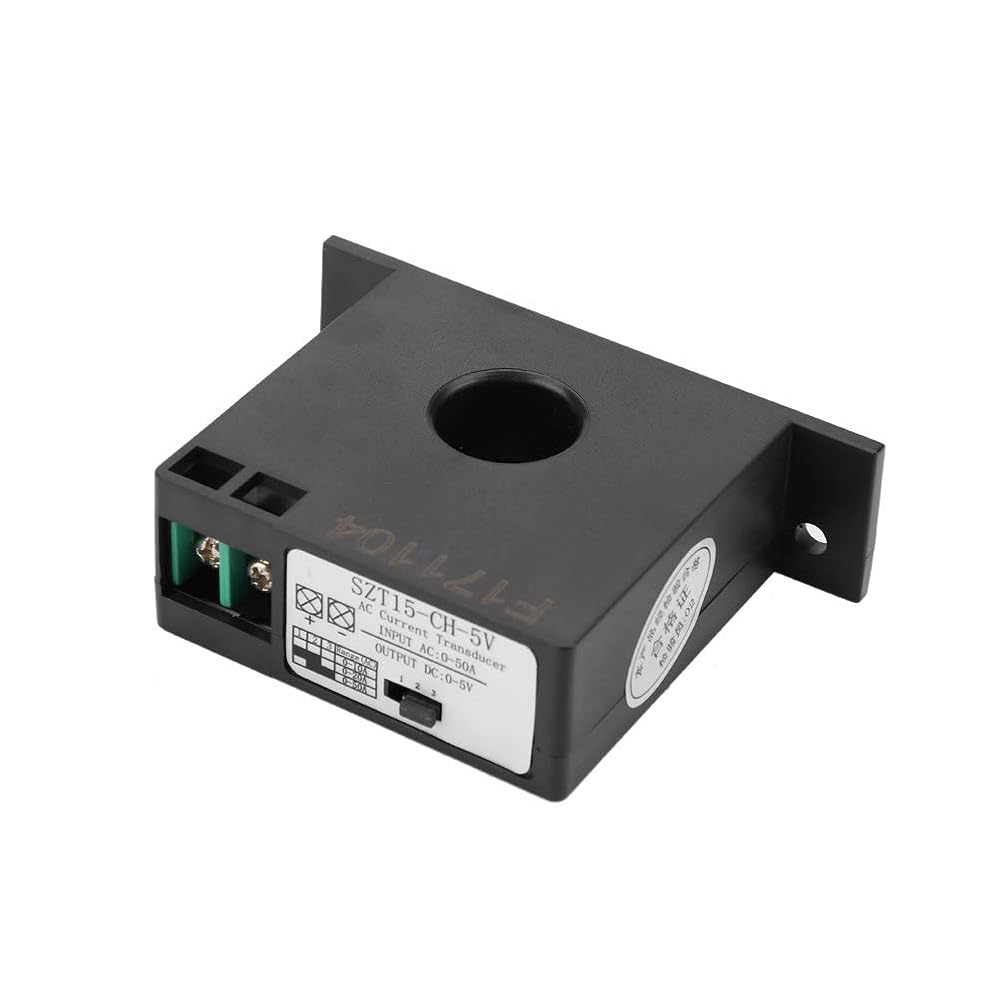

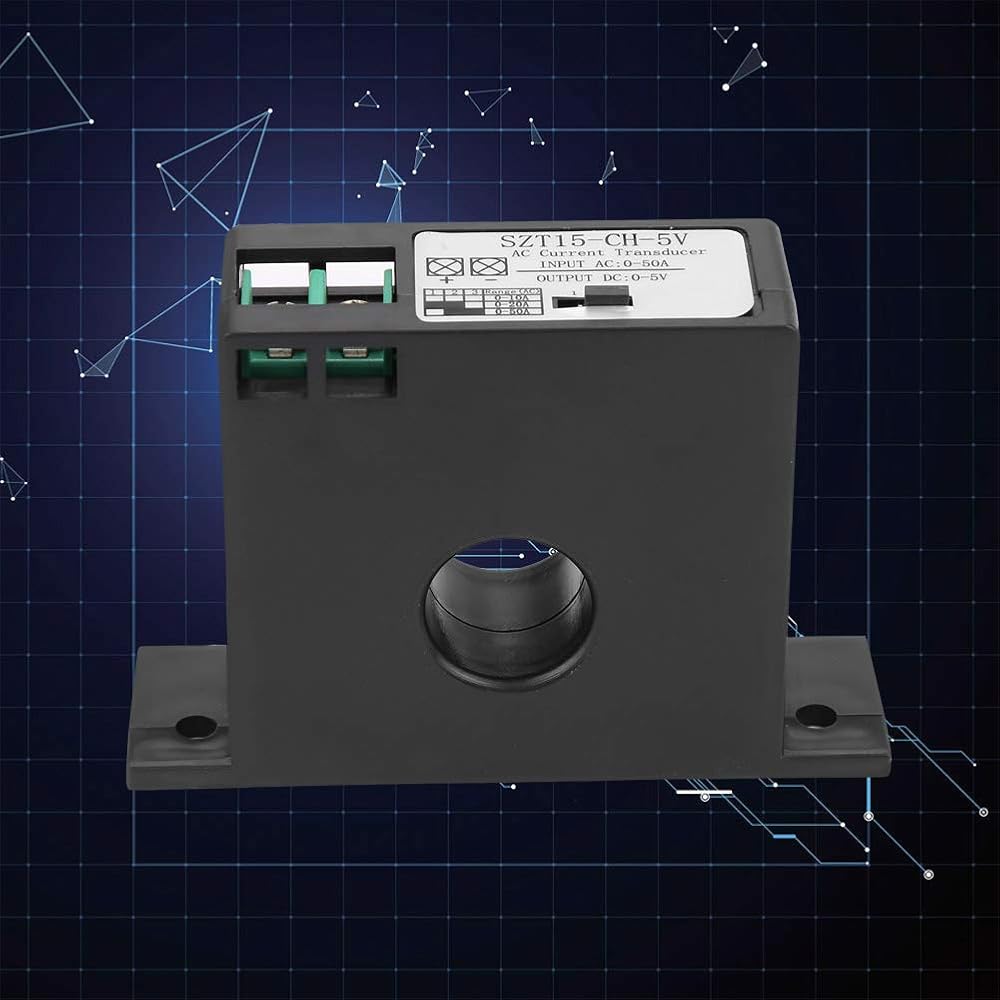

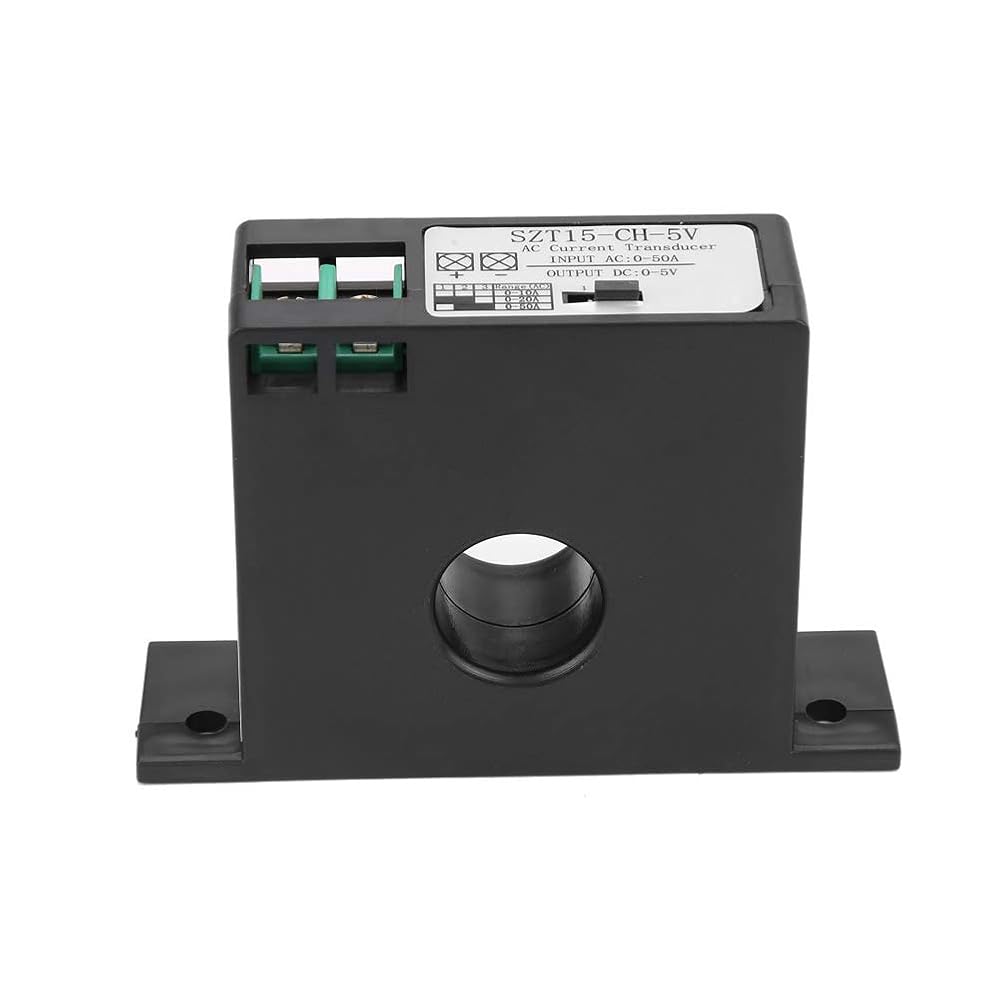

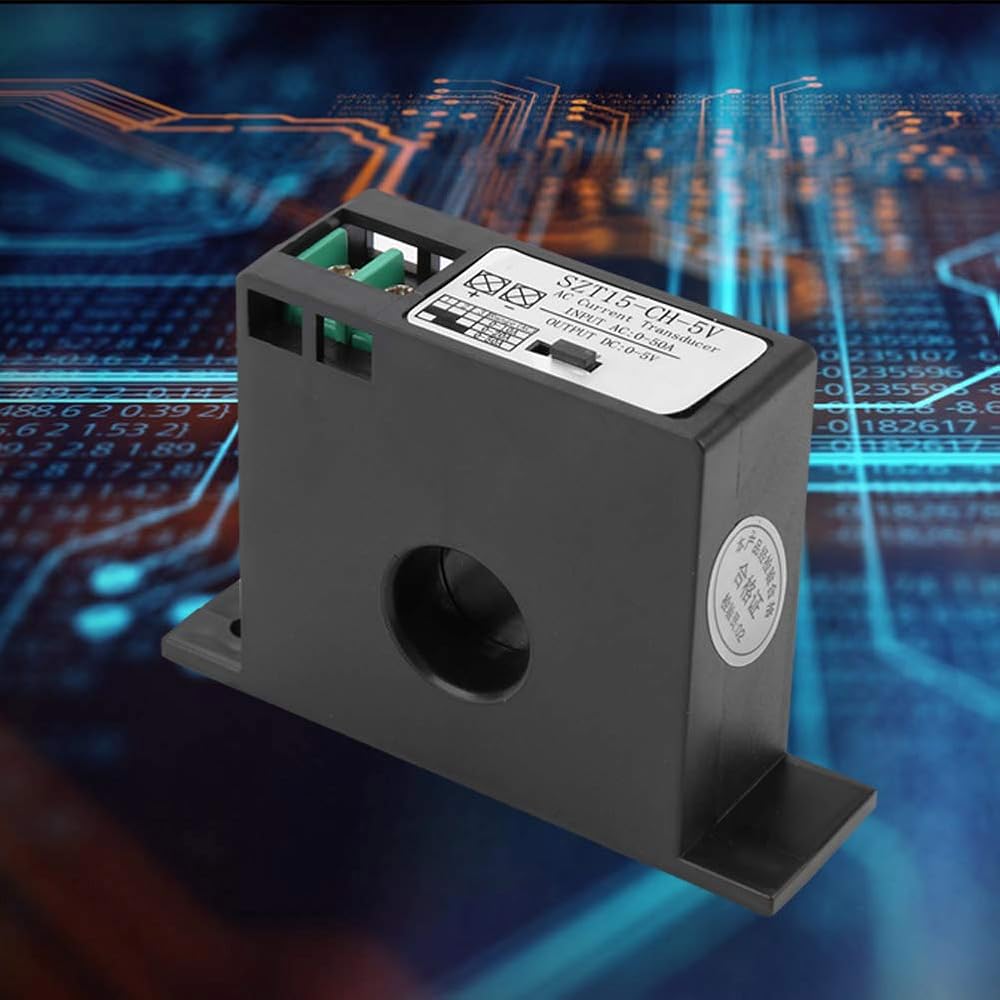

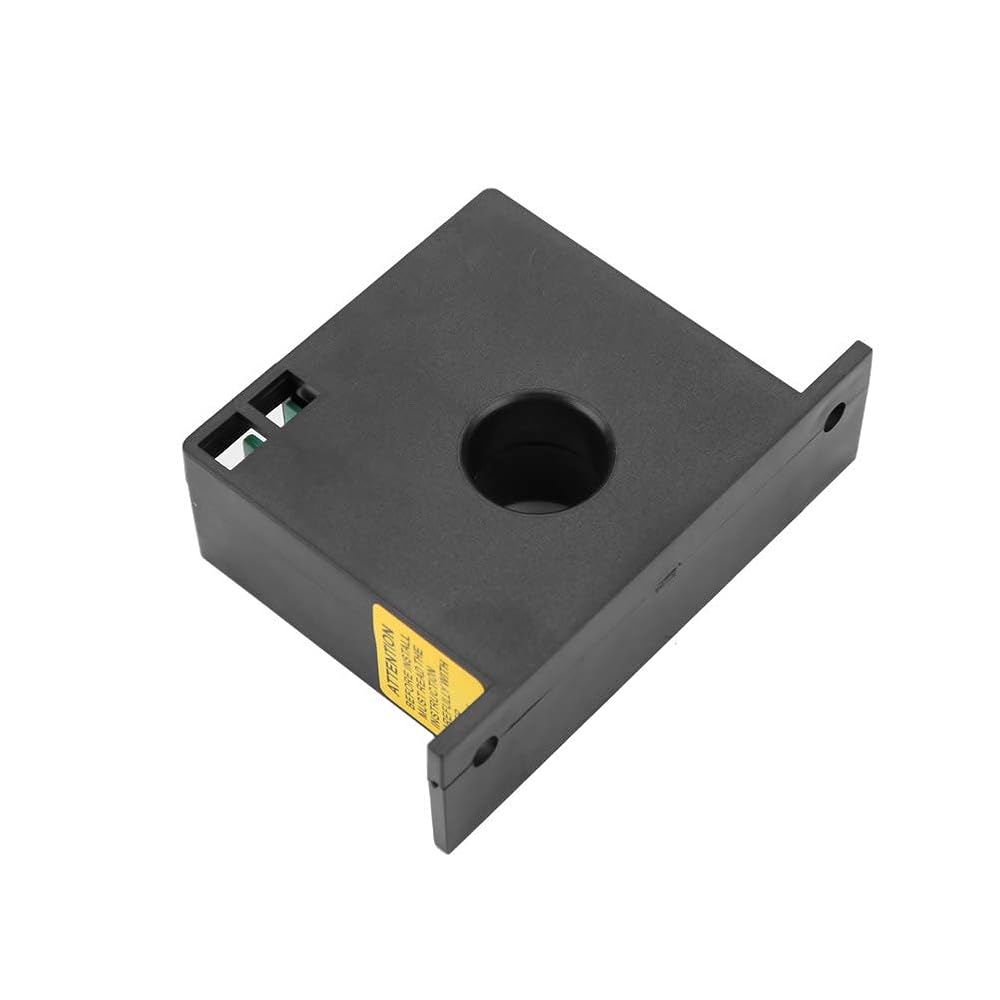

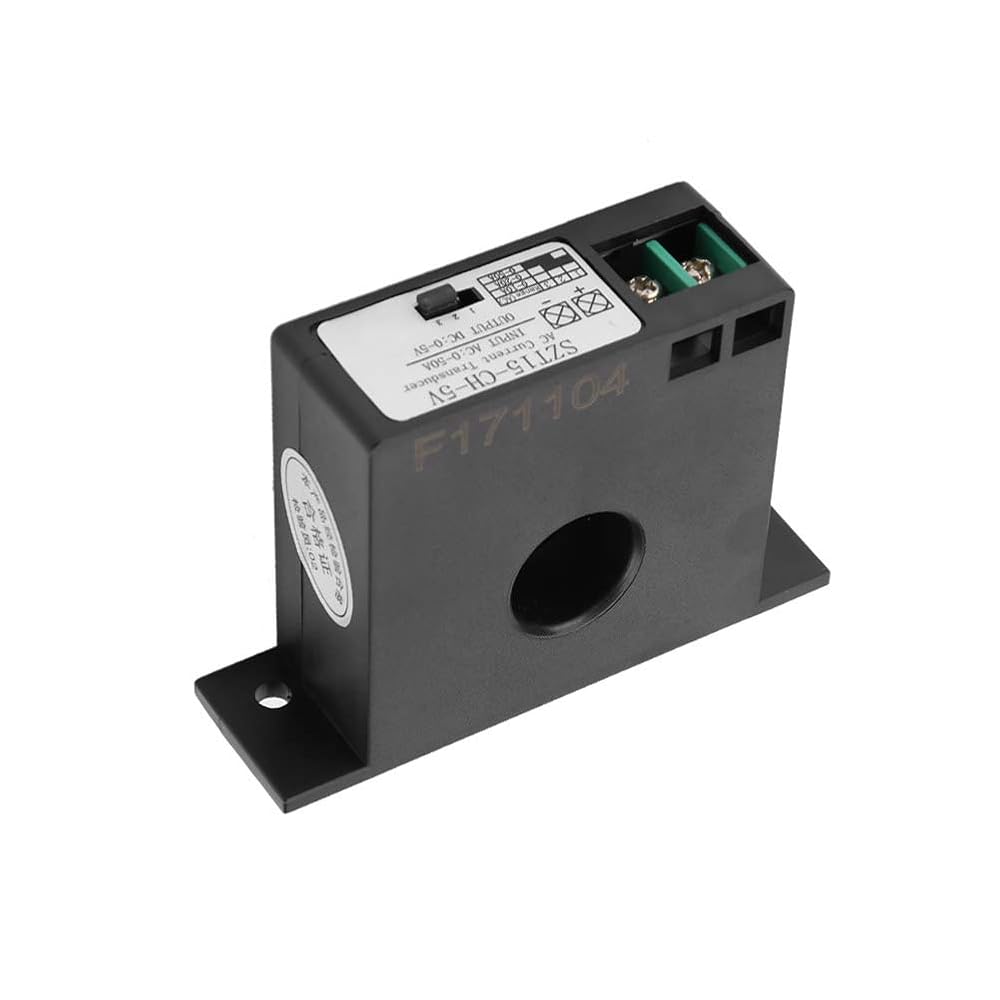

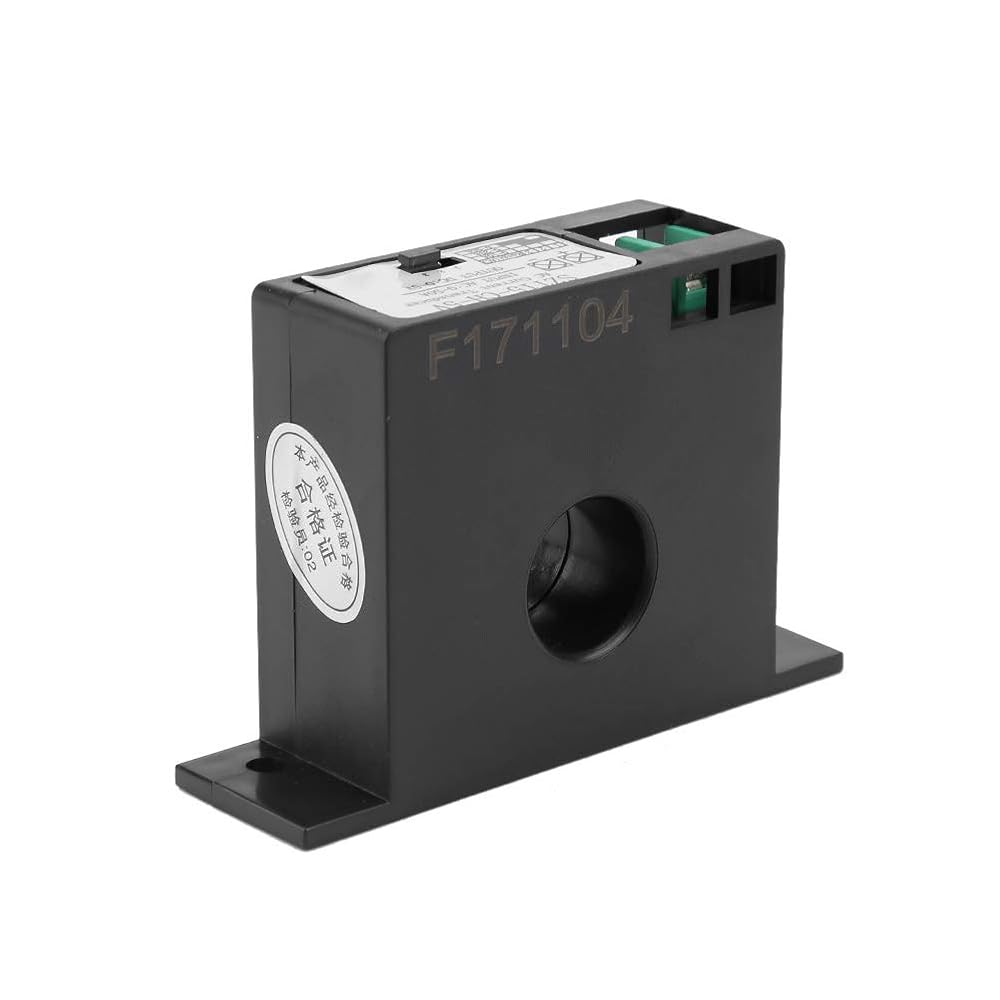

Model: SZT15-CH-5V
Supply power: Not required
Output type: 0-5V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60℃, 5-95%RH

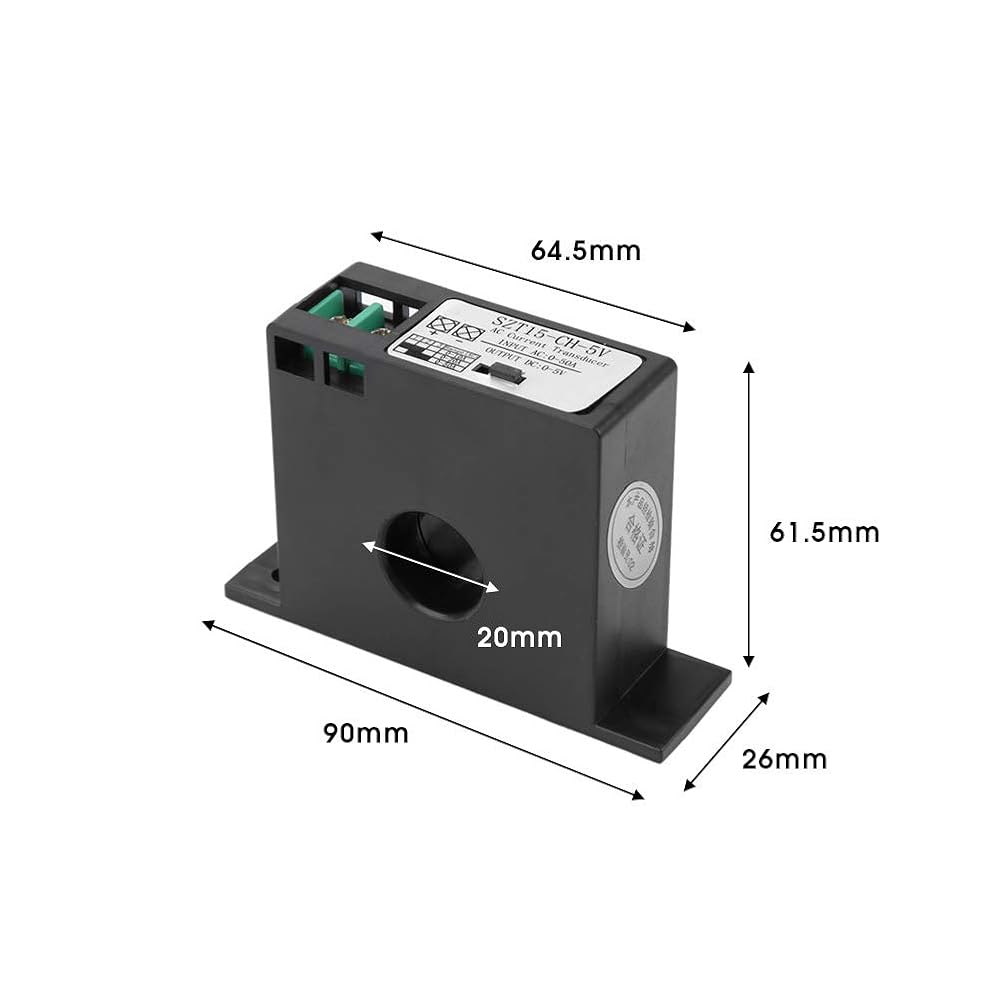

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 98g/3.4oz

Package list:
1 * AC Current Transmitter

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
