Output Power : 400W
is_customized : No
Output Current : 33A
Model Number : S-400-12
Output Frequency : 47-63HZ
Output Type : SINGLE

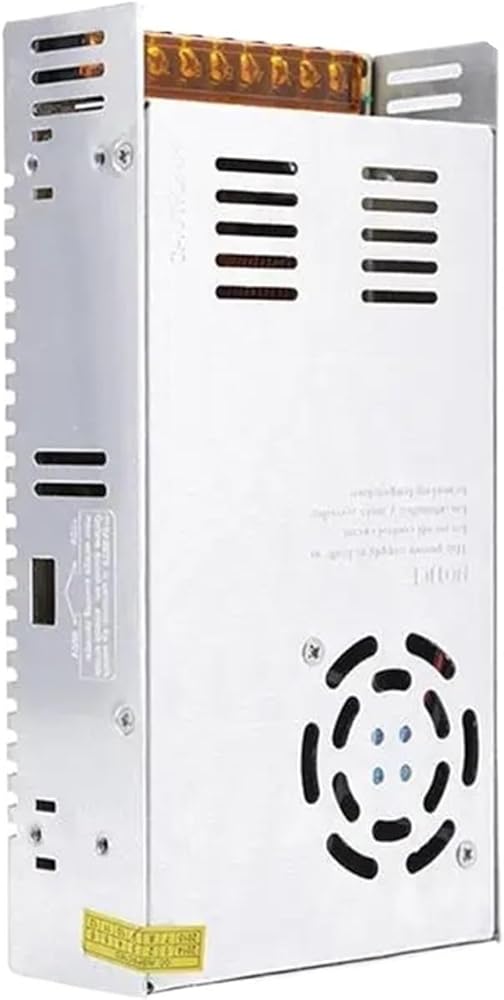

Product Type : Switch Mode Power Supply
Function : AC/DC Converter
Modulation method : Pulse width modulation (PWM) type
Transistor connection : half bridge
Input voltage : AC110/220V ±15%
Output power : 400W
Output voltage : 12VDC
Output current : 33A
Size (mm) : L215*W113*H50
Weight : 0.795KG
Work efficiency : 87%
Output ripple noise : 120mVp-p
Output voltage accuracy : ±1.0 (%)
Voltage adjustment range : 10 (%)
Product certification :
Protection class : IP20
Working frequency : 47-63HZ
Shell material : metal
Scope of application : LED, security, industrial control, motor
Working environment temperature : -40 to 65
Installation method : screw installation
Reset method : self-recovery
Cooling Type : Free Cooling
Output Protection : SCP , OLP, OVP
