Valve
Type : Valves

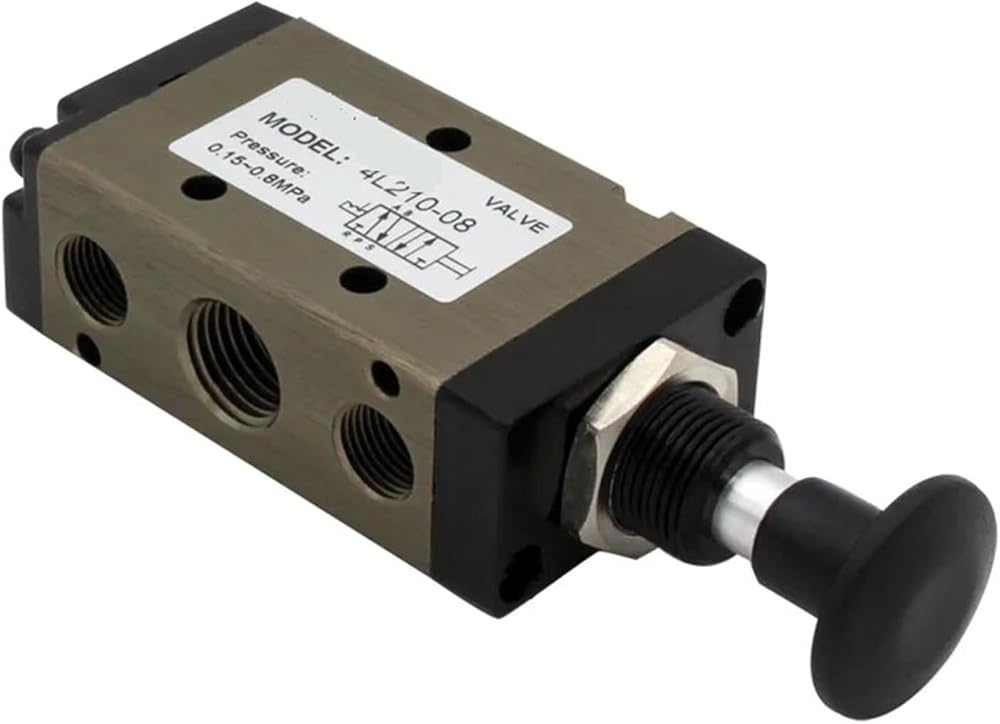

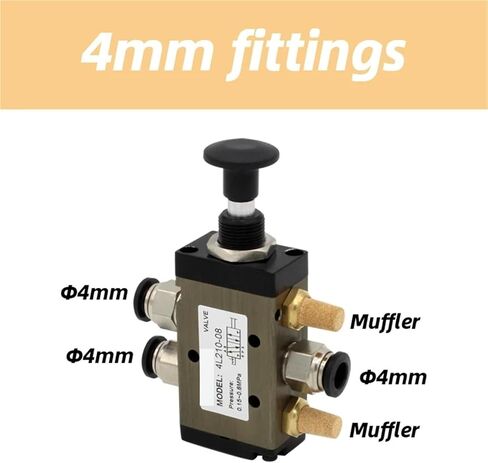

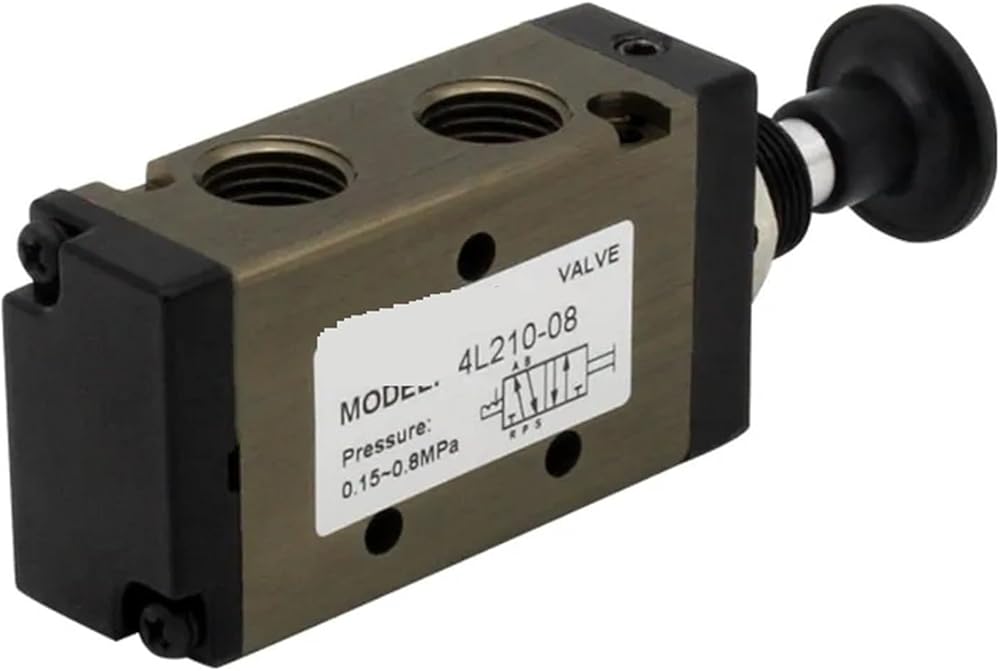

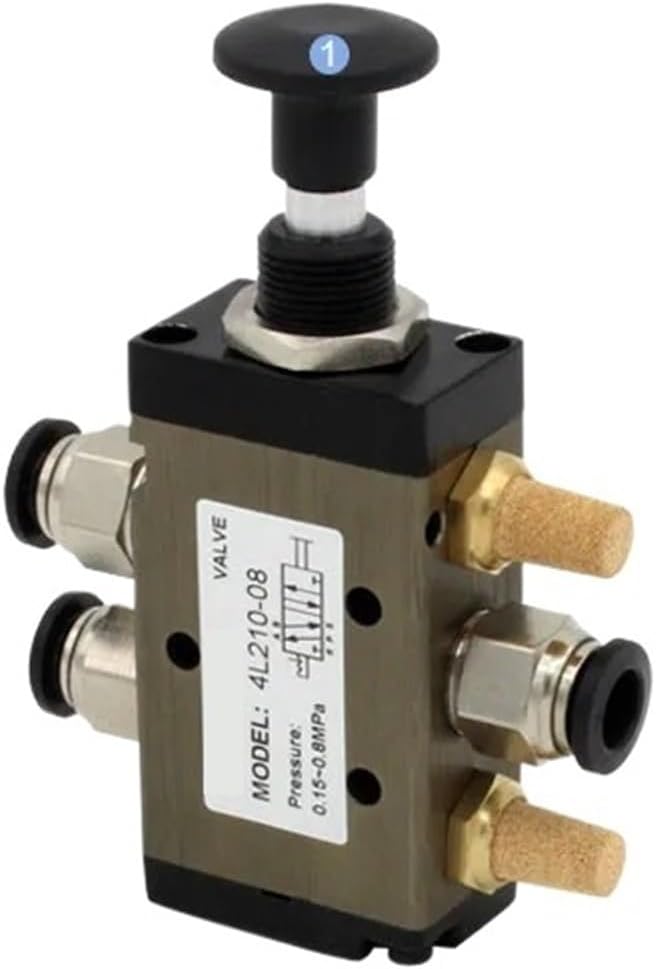

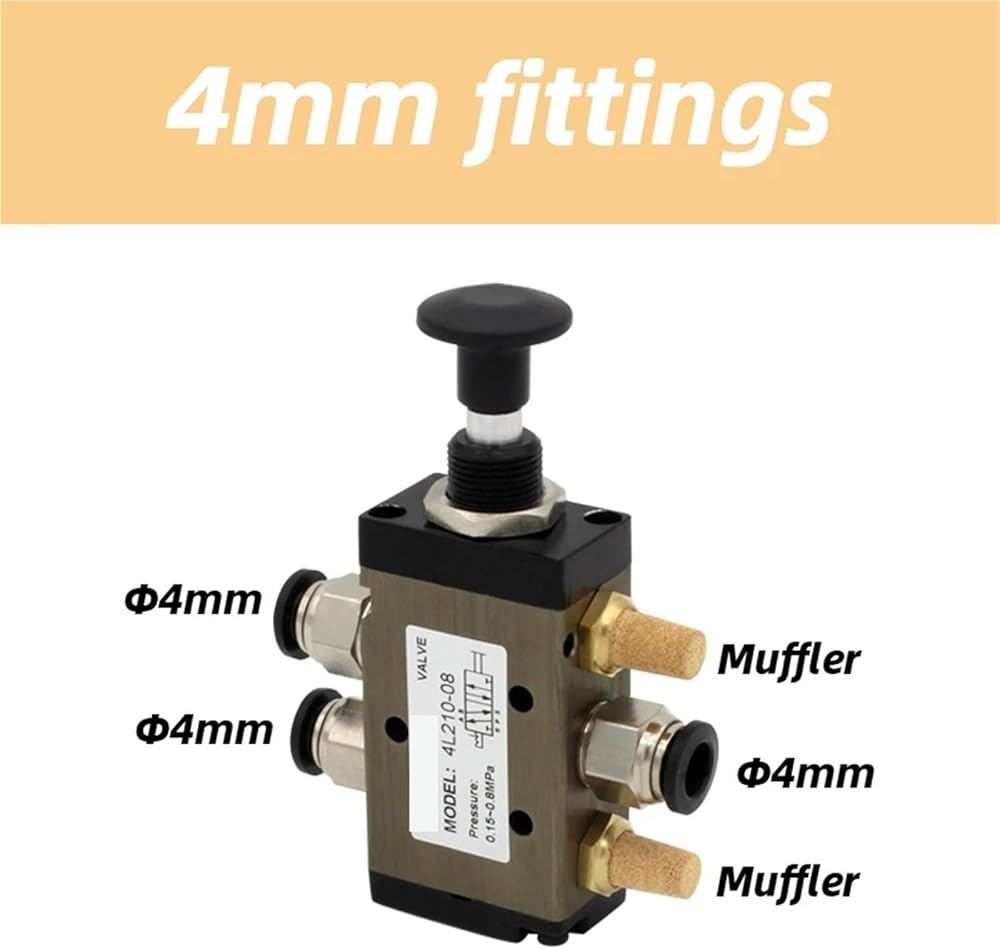

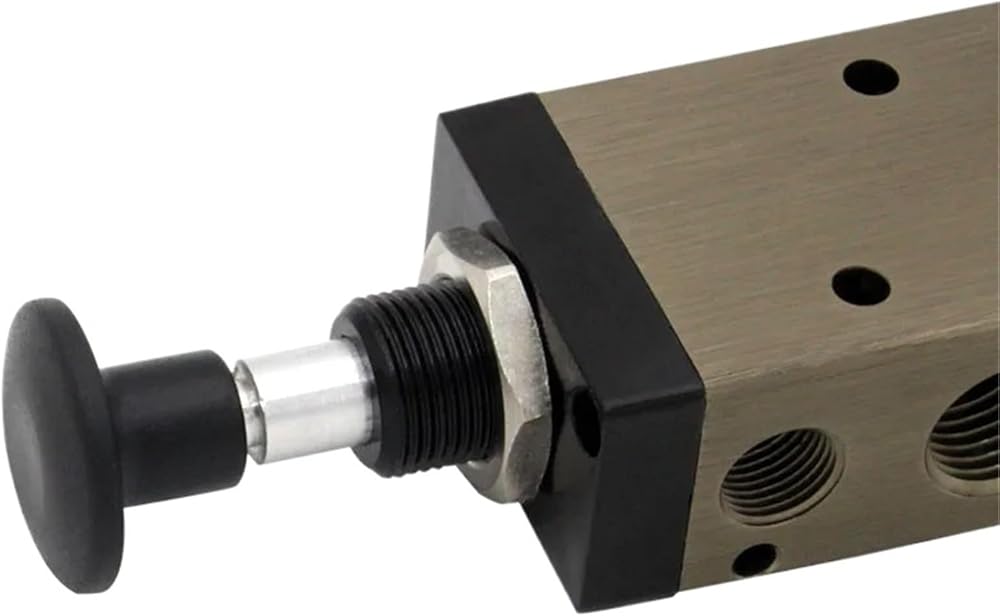

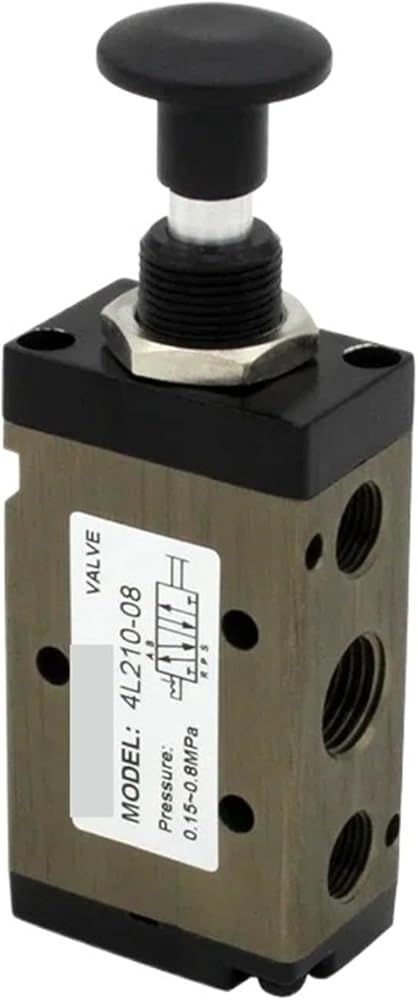

Model Number : 4L Series Push-pull Valve
Fluid: : Air (to be filtered through 40m filte
Temperature: : -20~70 Celsius
Operating: : Manual control direct acting type
Valve type: : 5 port 2 position
4L110-06 Port size: : In=Exhaust=Out=1/8"
4L210-08 Port size: : In=Out=1/4" Exhaust=1/8"
4L310-10 Port size: : In=Out=3/8" Exhaust=1/4"
4L410-15 Port size: : In=Exhaust=Out=1/2"
Orifice size: : 4L110-06:12.0mm² ,4L210-08: 16.0mm²,4L310-10: 30.0mm²
Operating pressure: : 0.15-0.8MPa(21~114psi)
Proof pressure: : 1.5Mpa (215Psi)
Material of body: : Aluminum alloy
Lubrication: : Not required
