مميزات خاصة

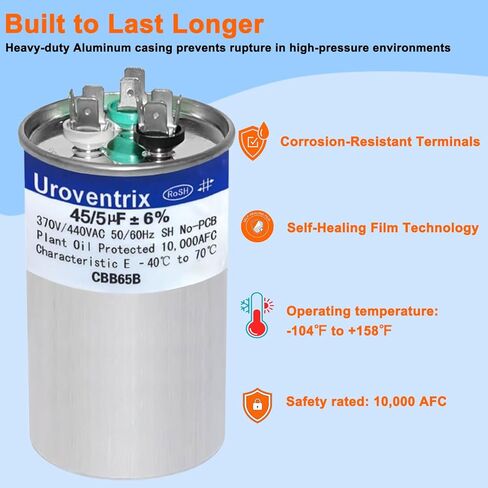

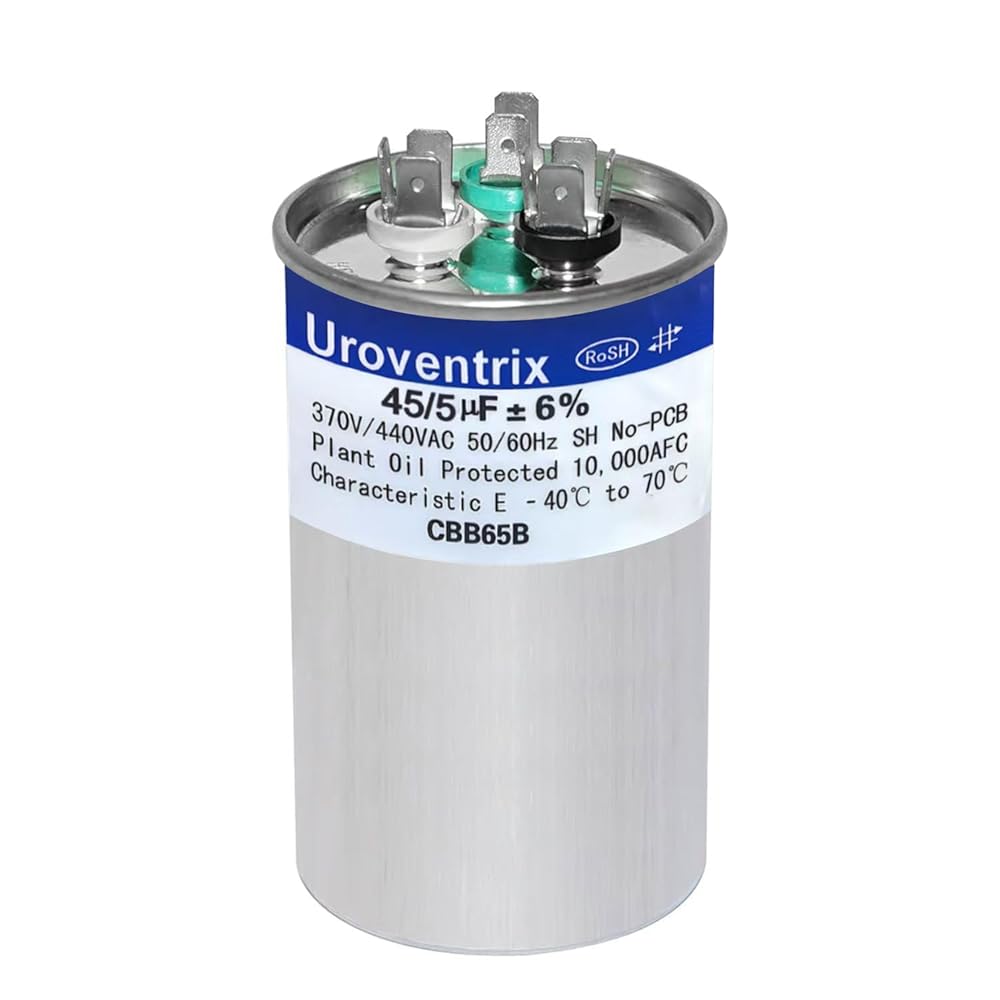

45+5 μF ±5% 370V/440VAC CBB65 dual run start capacitor, operates at 50/60Hz, compatible with 370V & 440V systems for AC motors, heat pumps, and condenser fans.

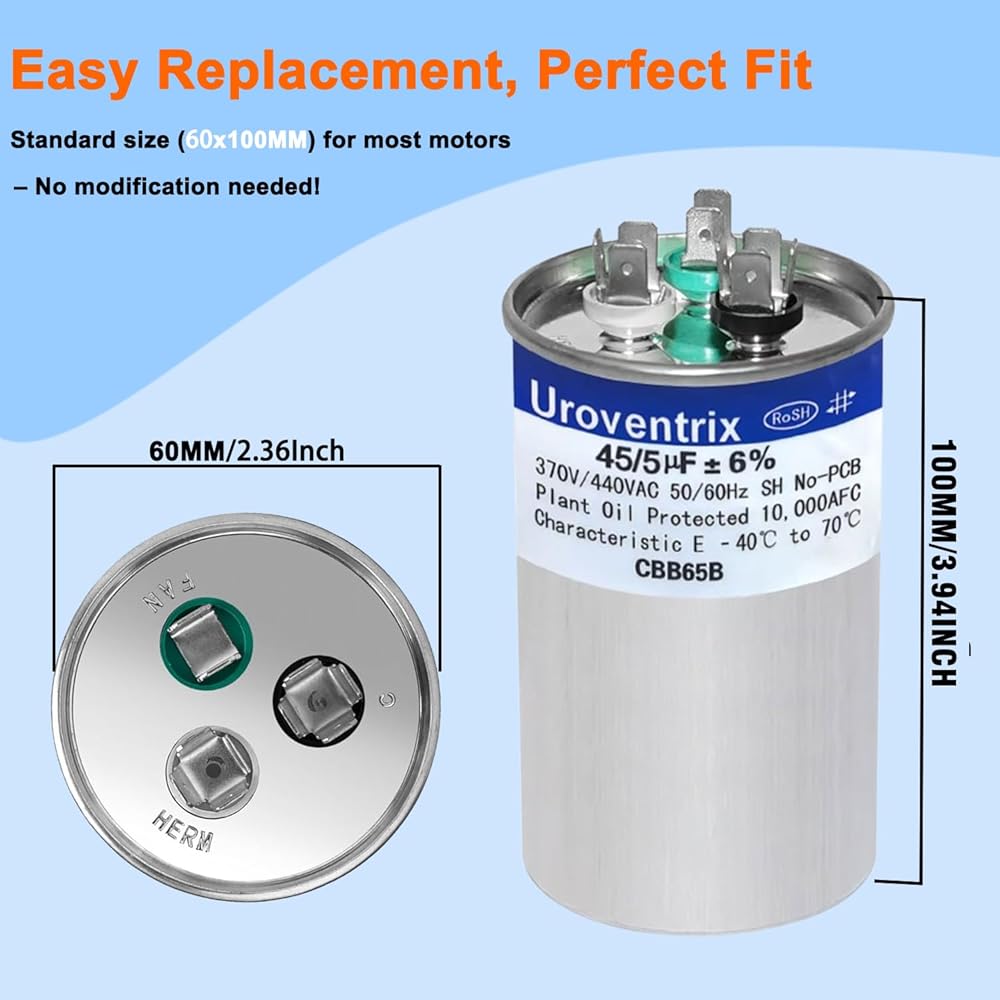

Capacitor dimension: Diameter(60 mm/2.36 inch) Height(100 mm/3.94 inch)

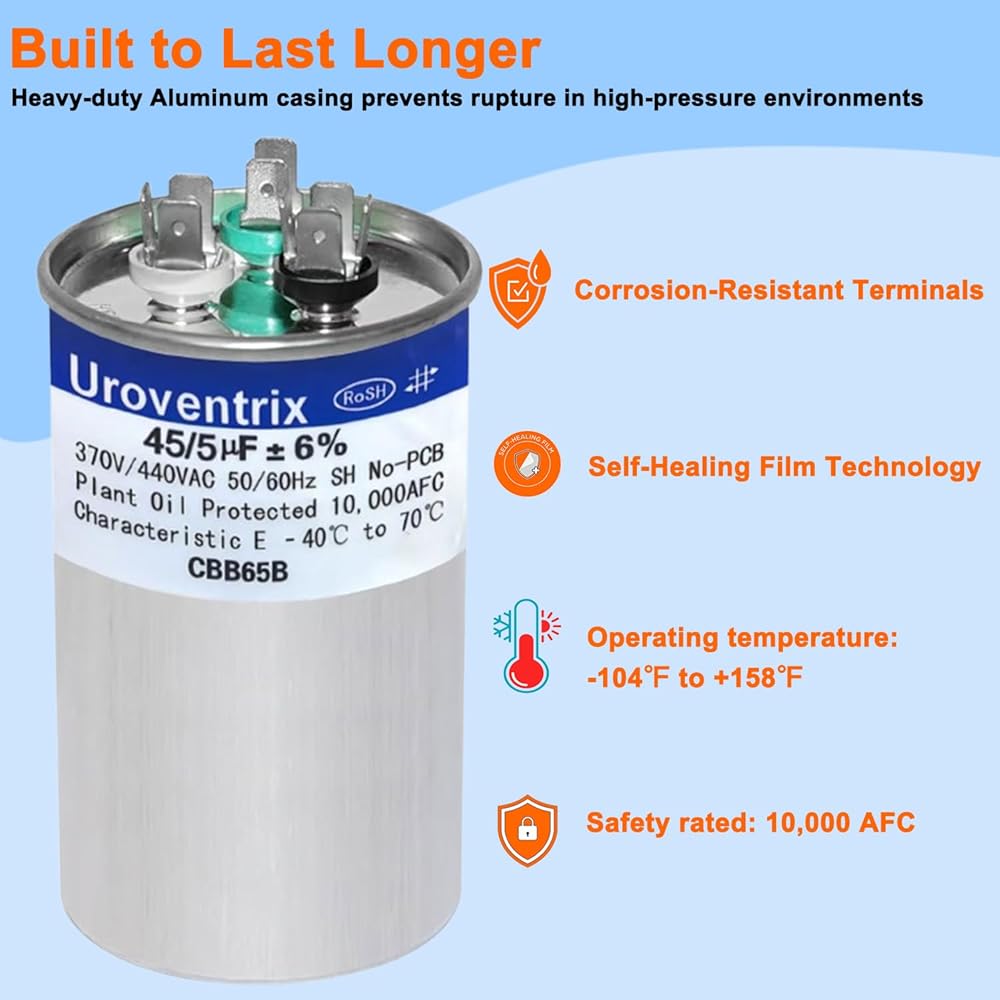

Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ ，Safety rated: 10,000 AFC

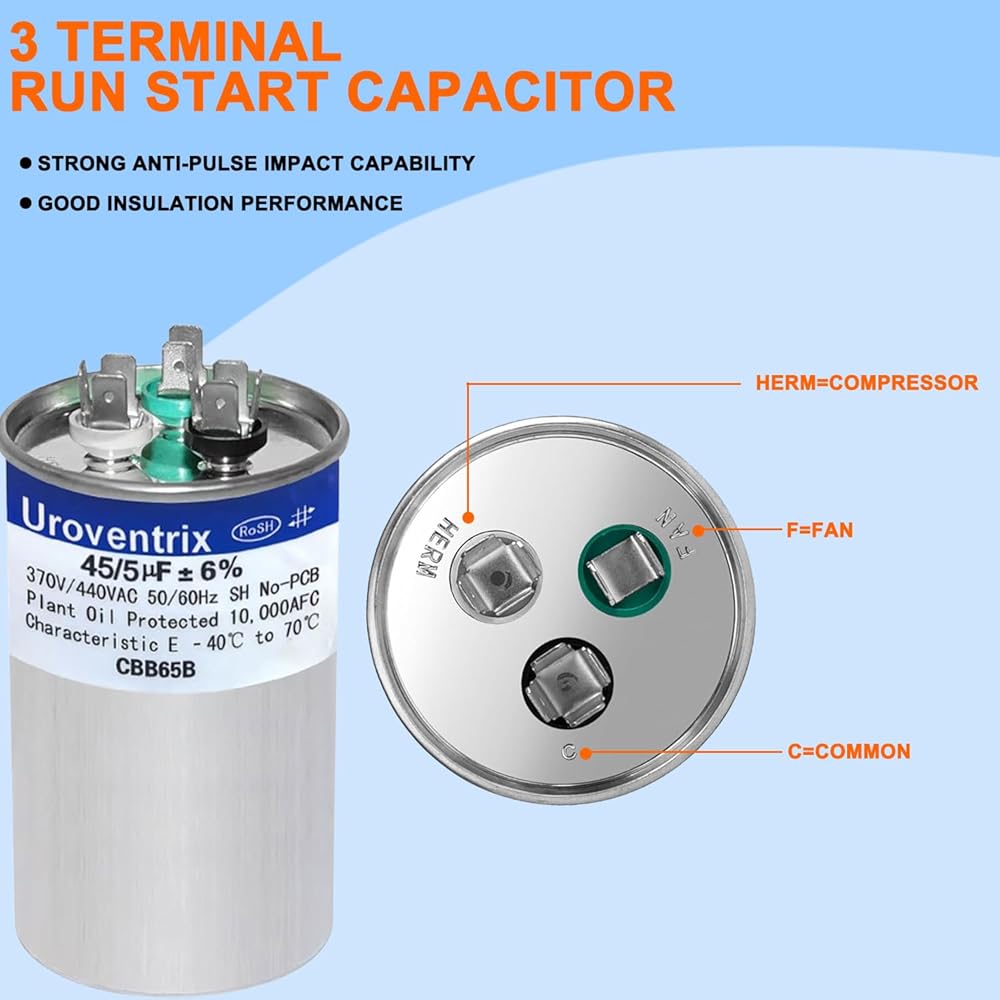

Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262

وصف

The CBB65 Dual Run Start Capacitor delivers high starting torque and stable current for AC motor systems. Engineered with metallized polypropylene film and vacuum-sealed castor oil, it's ideal for air conditioner compressors, condenser fans, heat pumps, and commercial refrigeration motors.
⚙️ Technical Specifications
Capacitance ： 45μF±5% + 5μF±5%
Rated Voltage： 370V/440VAC (50/60Hz)
Climate Category： 40/85/21 (Humidity-Resistant)
Insulation Resistance ： ≥3000 MΩ·μF (100Hz, 20°C)
Dissipation Factor ： ≤0.002
Safety Design | Mechanical Explosion-Proof Structure |
✅ Installation Guide
1. **Power Off**: Disconnect equipment power and discharge old capacitor before replacement.
2. **Terminal Identification**:
- **H/Herm** → Connect to compressor motor
- **F/Fan** → Connect to fan motor
- **C** → Connect to common power line.
3. **Size Check**: Ensure dimensional compatibility with original part (Reference actual photos).
⚠️ Important Notes
- **Compliance Statement**: This is a universal replacement part compatible with major HVAC brands (e.g., Carrier, Goodman, Trane).
- **Safety Warning**: Consult an engineer if operating above 2000m altitude or with voltage fluctuations >±10%.
