<b>Price For:</b> Each <b>Length of Cut</b>: 1-1/4" <b>Non Ferrous (N) Compatibility</b>: No <b>Number of Flutes</b>: 4 <b>Overall Length</b>: 3-1/2" <b>Finish</b>: TiAlN <b>Neck Length</b>: Not Applicable <b>Super Alloy (S) Compatibility</b>: Yes <b>Single End/Double End</b>: Single End <b>End Mill Style</b>: Corner Chamfer <b>Hardened (H) Compatibility</b>: Yes <b>Shank Type</b>: Weldon <b>Grade</b>: TIALN-LW <b>Steel (P) Compatibility</b>: Yes
<b>Milling Diameter</b>: 5/8" <b>Item</b>: Corner Chamfer End Mill <b>End Mill Material</b>: Carbide <b>Shank Dia.</b>: 5/8" <b>Cast Iron (K) Compatibility</b>: Yes <b>Pitch</b>: Unequal Flute Spacing <b>Cutting Direction</b>: Right Hand <b>Milling Dia.</b>: 5/8" <b>List Number</b>: 4V05 <b>Helix Angle</b>: 38 Degrees <b>Stainless (M) Compatibility</b>: Yes <b>End Mill Application</b>: Roughing/Finishing <b>Dimension Type</b>: Decimal inch <b>End Mill Cutting Type</b>: Center Cutting
<b>Chamfer Width</b>: 0.0200" <b>Material - Machining</b>: Carbide <b>Finish - Machining</b>: TiAlN <b>Measurement System</b>: Fractional Inch <b>Shank Type - Machining</b>: Weldon Flat <b>Material Grade - Machining</b>: TiAlN-LW <b>Drilling Tool Configuration</b>: Individual <b>Secondary Material Application ISO Code</b>: S <b>Primary Material Application</b>: Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium <b>Primary Material Application ISO Code</b>: H, K, M, P, S
<b>Secondary Material Application</b>: Super Alloy <b>Country of Origin (subject to change)</b>: Multiple
وصف

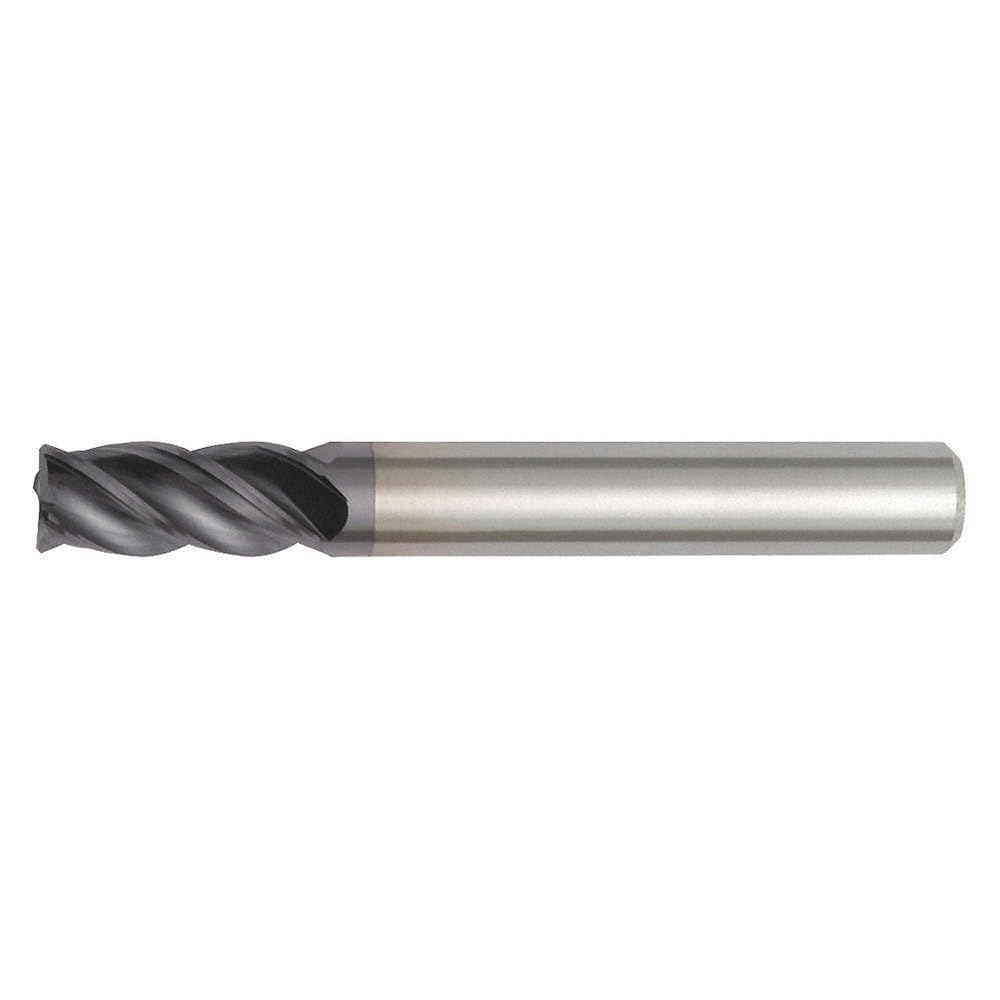

'Corner Chamfer End Mill, Grade TIALN-LW, List Number 4V05, End Mill Style Corner Chamfer, End Mill Material Carbide, Dimension Type Decimal Inch, Milling Diameter 5/8 In., Single End'
