Couplings
Common Couplings
DIFFERENT 8-FONT COUPLINGS
Outer Size
Optional Inner Hole
D23 L24
3/4//5/6/6.35/7/8mm
D23 L32
3/4/5/6/6.35/7/8mm
D27 L30
4/5/6/6.35/7/8/9/10/11mm
D27 L40
4/5/6/6.35/7/8/9/10/11mm
D40 L50
5/6/6.35/7/8/9/10/11/12/12.7/13/14mm
D40 L60
5/6/6.35/7/8/9/10/11/12/12.7/13/14mm

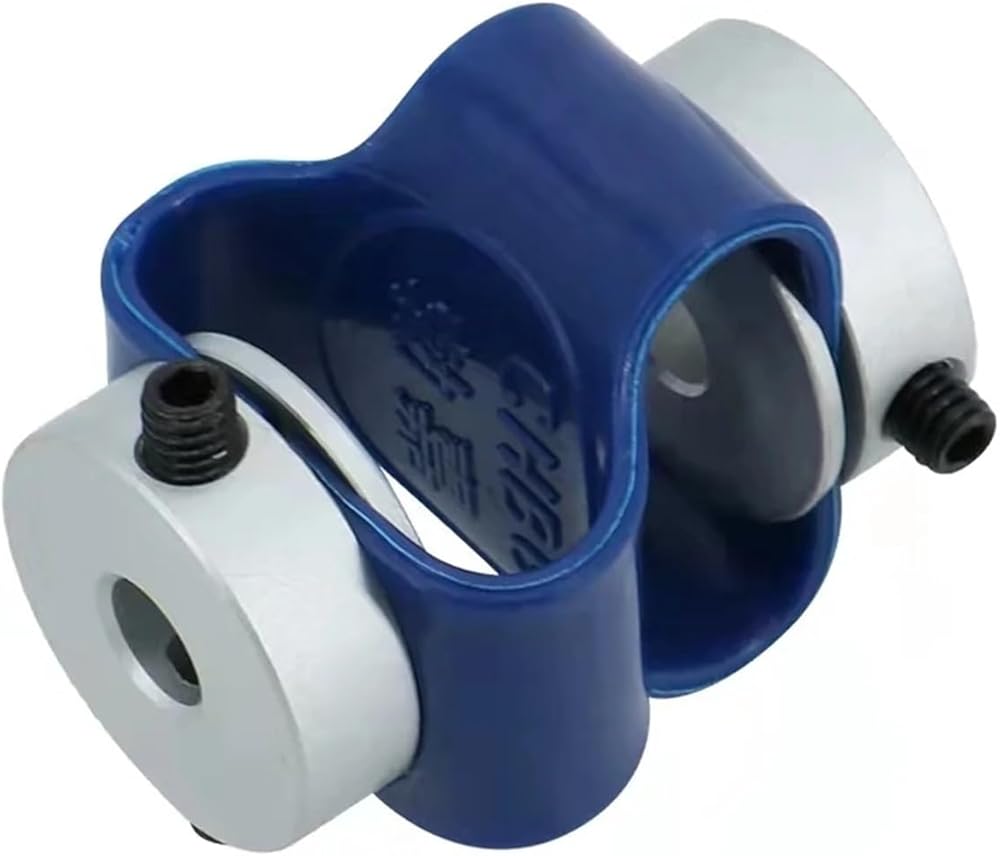

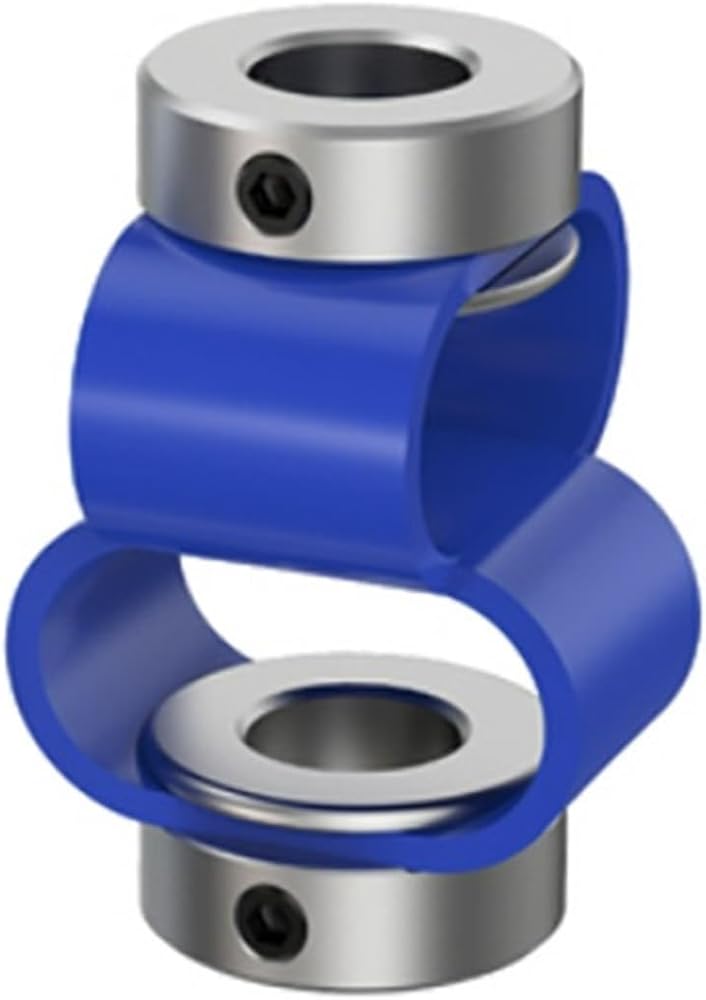

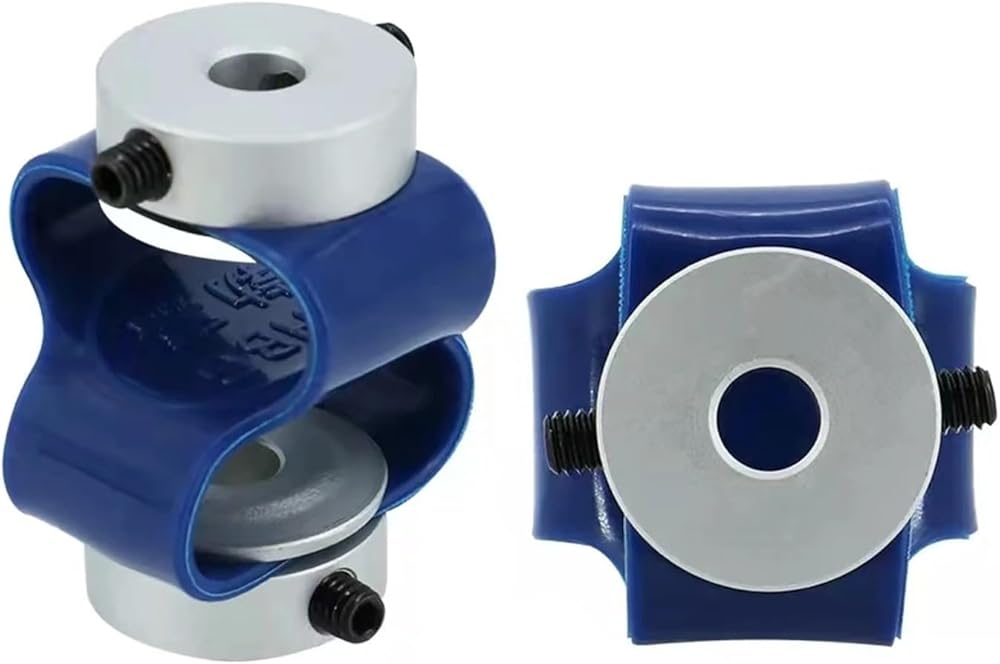

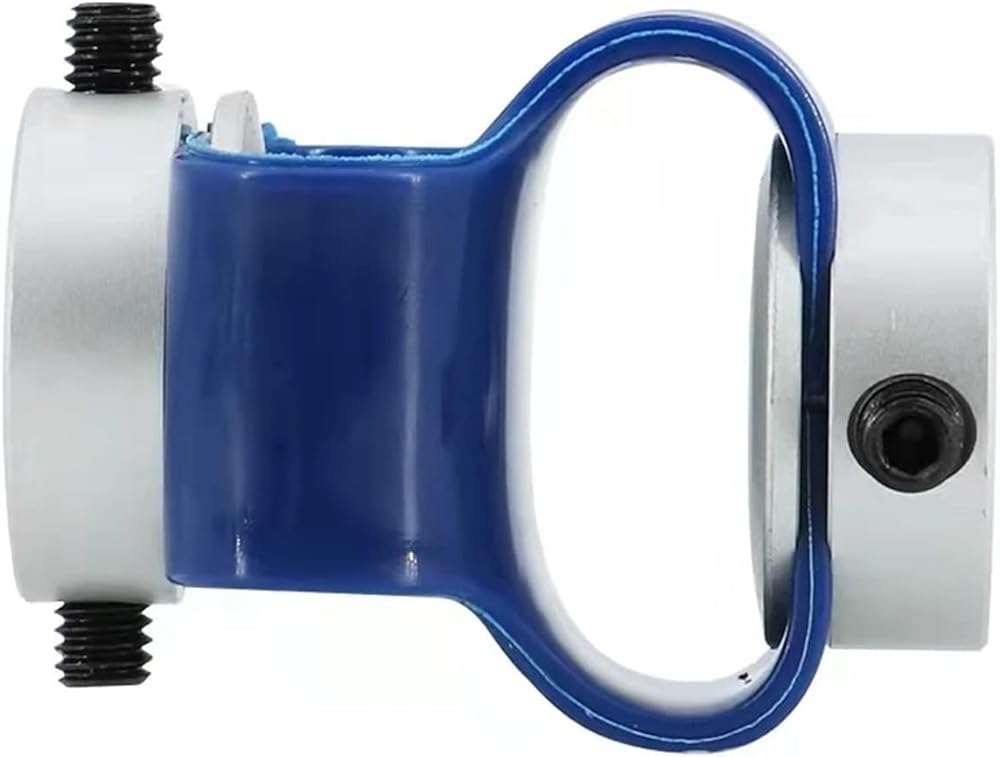

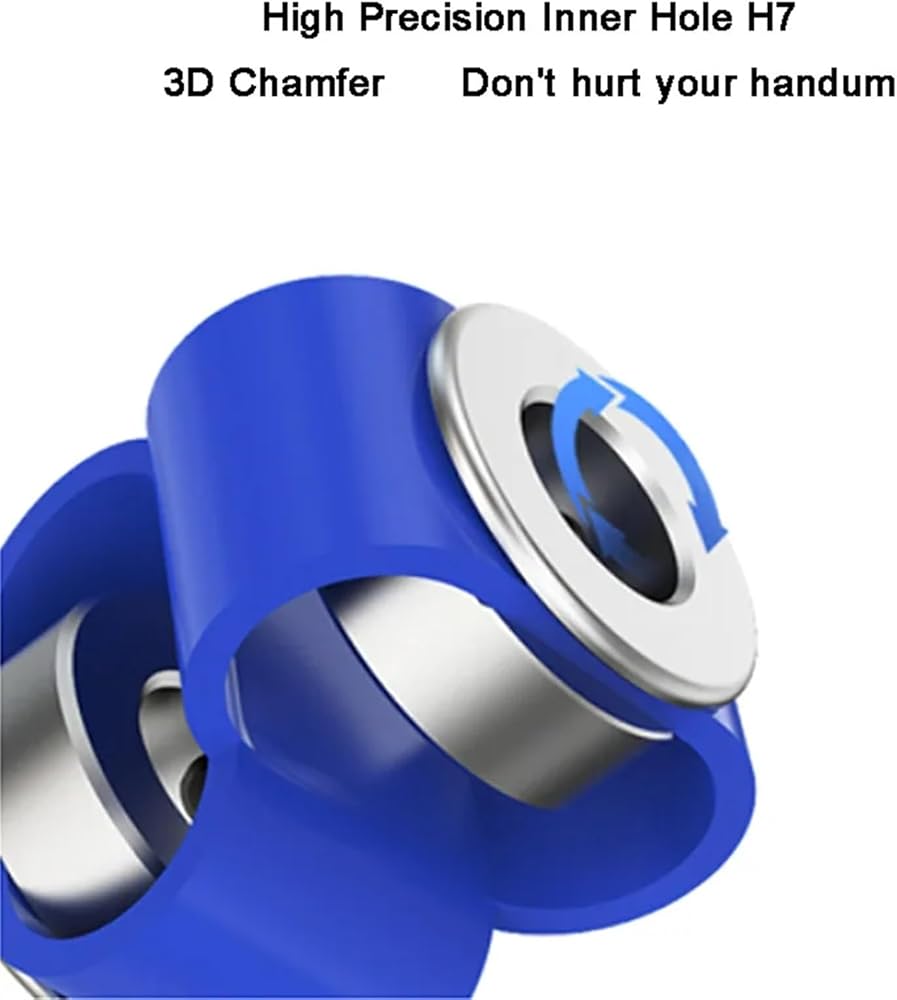

1PCS 8-font Coupler
1. , Concave convex structure
2. High precision
3. High strength
4. Buffer resistance and corrosion resistance
5. Long Service Life
Aluminum alloy surface oxidation treatment
Imported polyoxymethylene resin rubber pad
Grade 12.9 high strength screw
Screw
Hexagon socket set screw with concave end
Rubber Elastomer
Good softness, not easy to twist
The user is allowed to have a large range of
eccentricity and deflection angle of the two axes.
Aluminum Alloy Shaft Sleeve
Selected aviation aluminum
Higher strength
Product Parameters
Model: LS 8-font Coupling
Screw: Grade 12.9 High Strength Screw
Material: Aviation Aluminum
Product Features:
It can absorb large deflection angle, eccentricity and axial movement at the same time;
Fully absorb impact and vibration;
No lubrication;
Low inertia moment;
Electrical insulation;
Product application: Encoder
Size Comparison Table
Model
D(mm)
L(mm)
D1-D2
(mm)
M(mm)
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
Screw Tightening
(N.m)
LS-D-D23L24
(back pressure)
16
24
3-8
M3.0
8 5 23
27
1.2
LS-D-D23L32
16
32
3-8
M3.0
8 3 23
27
1.2
LS-D-D27L30
(back pressure)
20
30
4-11
M4.0
10
6 28
32
2.5
LS-D-D27L40
20
40
4-11
M4.0
10
4 28
32
2.5
LS-D-D40L50
(back pressure)
26
50
5-14
M5.0
14
9 45
50
10
LS-D-D40L60
26
