Features:
1. It uses cross roller can achieve , smooth movement.
2. Made of aluminium alloy material with black anodized surface,it is durable to use.

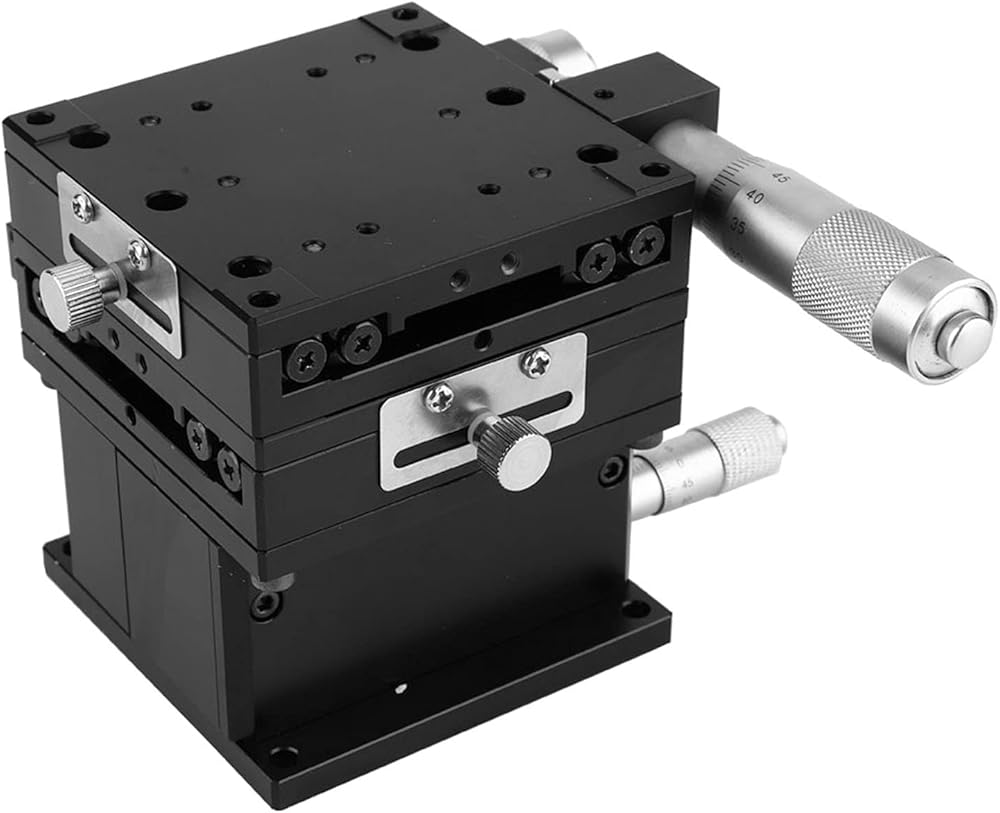

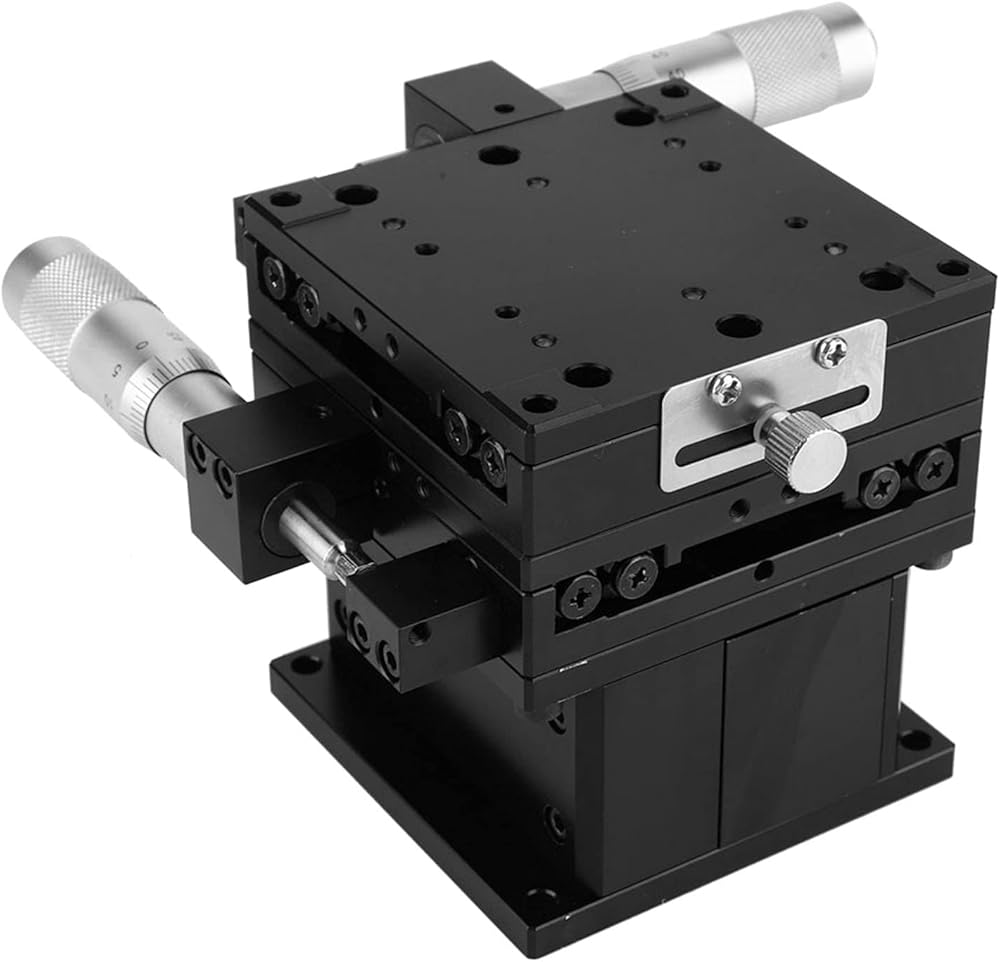

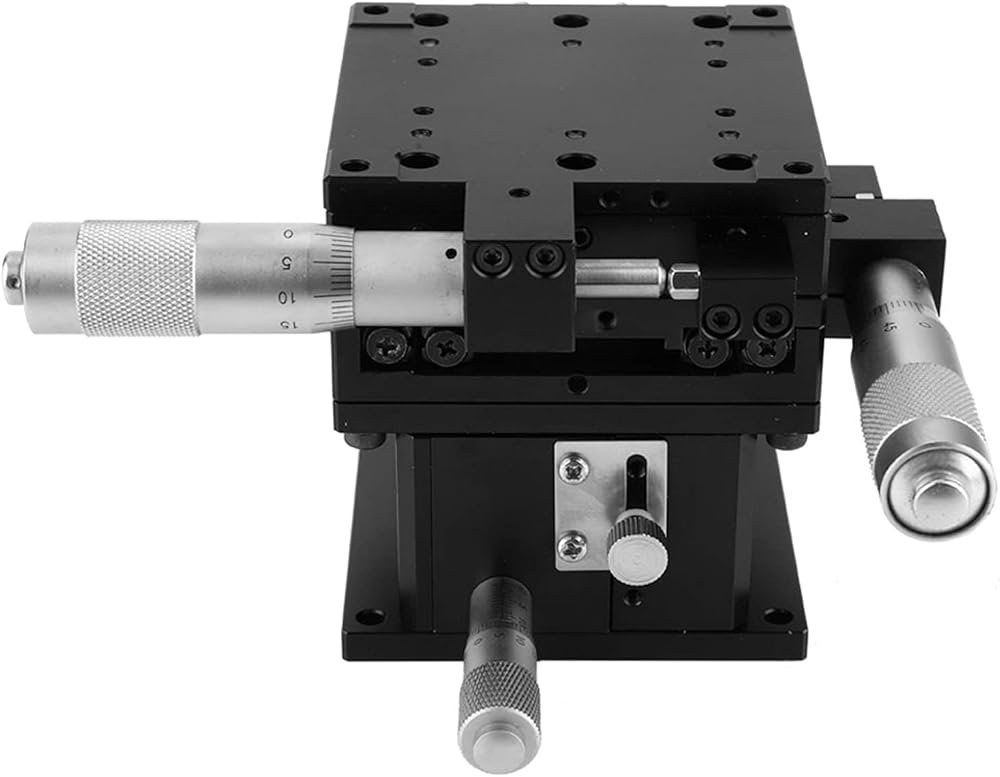

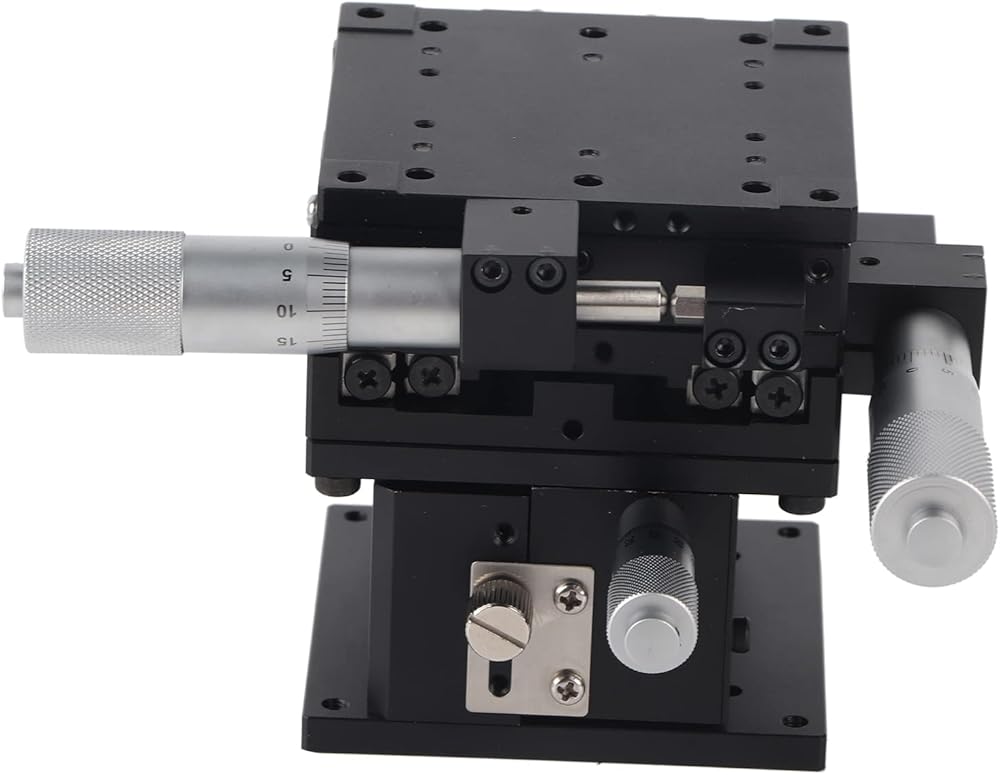

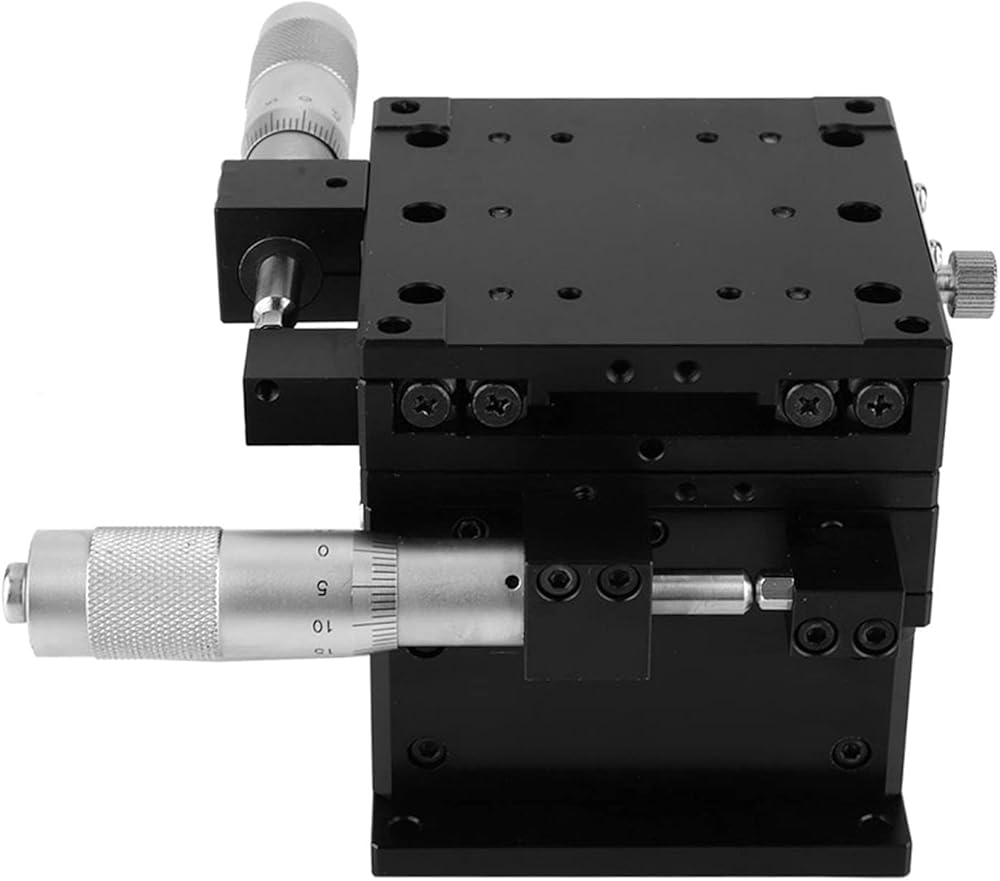

3. This is a XYZ linear sliding track, used for capacitive touch screen production equipment, fixtures, optical instruments, etc.
4. Precision machining and , good using effect.
5. Suitable for laboratory accuracy inspection, mechanical equipment positioning and movement, various fiber coupling, core adjustment, packaging system, etc.
Specification:
Condition:Brand New
Item Type: Trimming Platform
Model: SEMXYZ-80
Table Size (Length * Width): Approx. 80 * 80mm / 3.1 * 3.1in
Product Height: Approx. 90mm / 3.5in
Load: 91.5N(9.0kgf)
Stroke: Horizontal Lifting: 13mm
Xy Transmission: ±12.5mm
Accuracy: 0.01mm (the differential head rotates one turn and moves 0.5mm)
Parallelism: 80μm
Moving parallelism: 10μm
True straightness: 3μm
Moving Distance Adjustment: Micrometer Differential Head
Material: Aluminum Alloy (Black Anodized)
Sliding Track: Linear
Rail Type: Cross Roller Type
Scope of Application: various fiber coupling, optical waveguide alignment, alignment, packaging system, capacitive touch screen production equipment, fixtures, optical instruments, non-standard equipment
Package List:
1 * Platform
Note:
1. Please allow slight error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3.Please note that the new type and old type of this product will be sent
randomly, and make sure you will not mind before ordering.
