Support motor voltage ranges from 7V to 30V (Rev2.0).
Maximum current up to 10A continuous and 15A peak (10 seconds).
3.3V and 5V logic level input.
Fully NMOS H-Bridge for better efficiency and no heat sink is required.
وصف

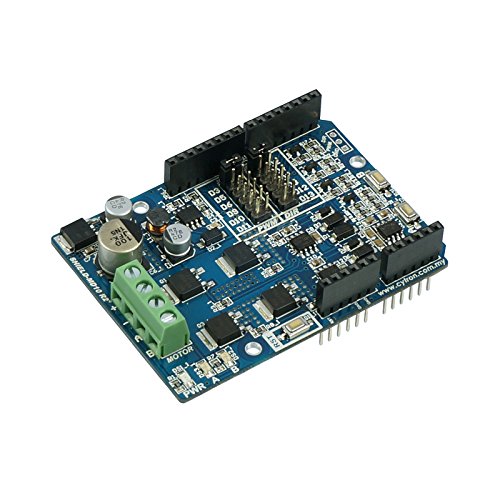

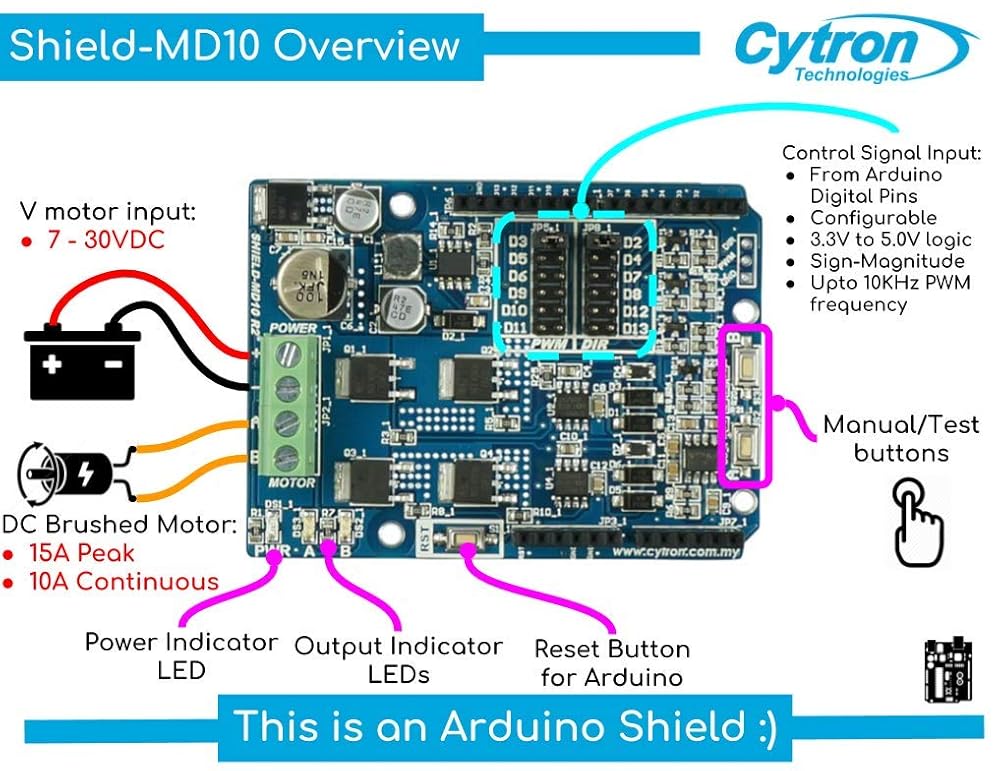

This controller is able to regulate the speed of one DC motor with Arduino. Cytron 10A Motor Driver Shield (Arduino)"SHIELD-MD10" is a compatible Arduino motor shield for controlling high current brushed DC motor up to 10A continuously. It should be stacked on to an Arduino main controller board such as Arduino UNO R3.
Features: Shield for Arduino
Speed controller to control one motor.
Bi-directional control for 1 brushed DC motor.
Support motor voltage ranges from 7V to 30V (Rev2.0).
Maximum current up to 10A continuous and 15A peak (10 seconds).
3.3V and 5V logic level input.
Solid state components provide faster response time and eliminate the wear and tear of mechanical relay.
Fully NMOS H-Bridge for better efficiency and no heat sink is required.
Speed control PWM frequency up to 10KHz.
Stackable I/O header pin.
Selectable digital pins for PWM and DIR.
Made In Malaysia.
Provide tutorial and sample code.
