مميزات خاصة

1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
2. Stability enhancement, especially suitable for CNC machining centers.
3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
1. Stable performance, strong performance, smooth rotation.
2. Not easy to deform and wear, high precision and low noise.
3. Effective dust prevention, lubrication, precise processing size.
4. Can easily preload the rotational change and linear motion.

وصف

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life
Specifications:
Model: SFU1204
Guide rail width or diameter: 12mm

Description:
High transmission efficiency, high positioning accuracy, good repeatability of positioning accuracy, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light movement of the slider. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble Aluminum support rails with pre-drilled holes for easy installation.

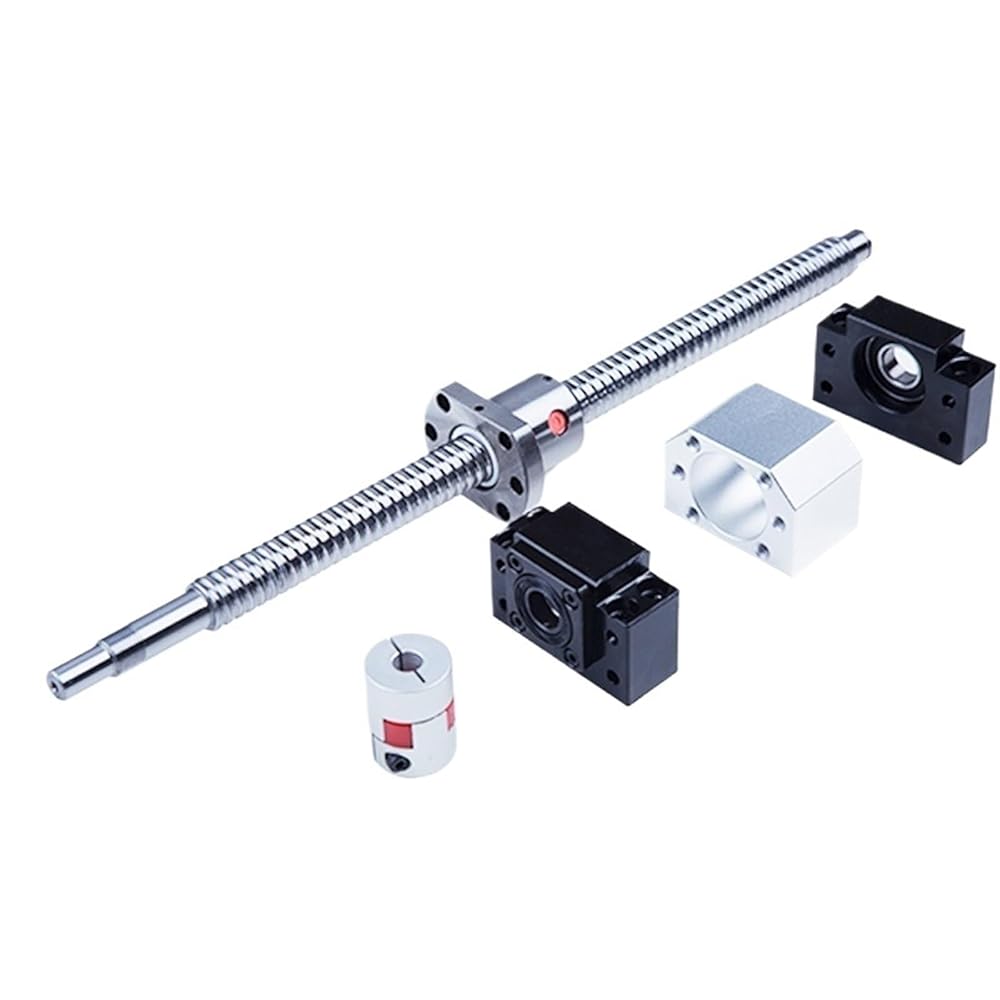

Packing list:

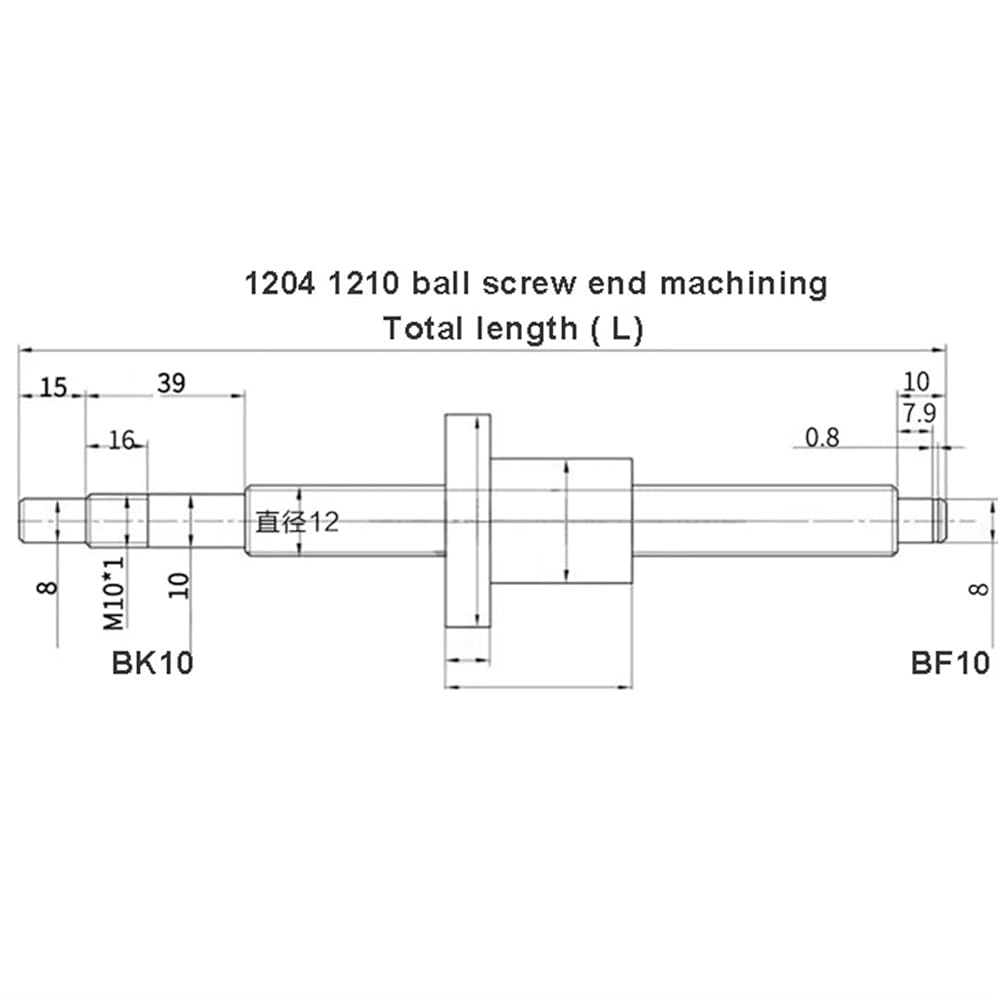

1pcs ball screw 1204 with BKBF end processing
1pcs ball screw nut SFU1204

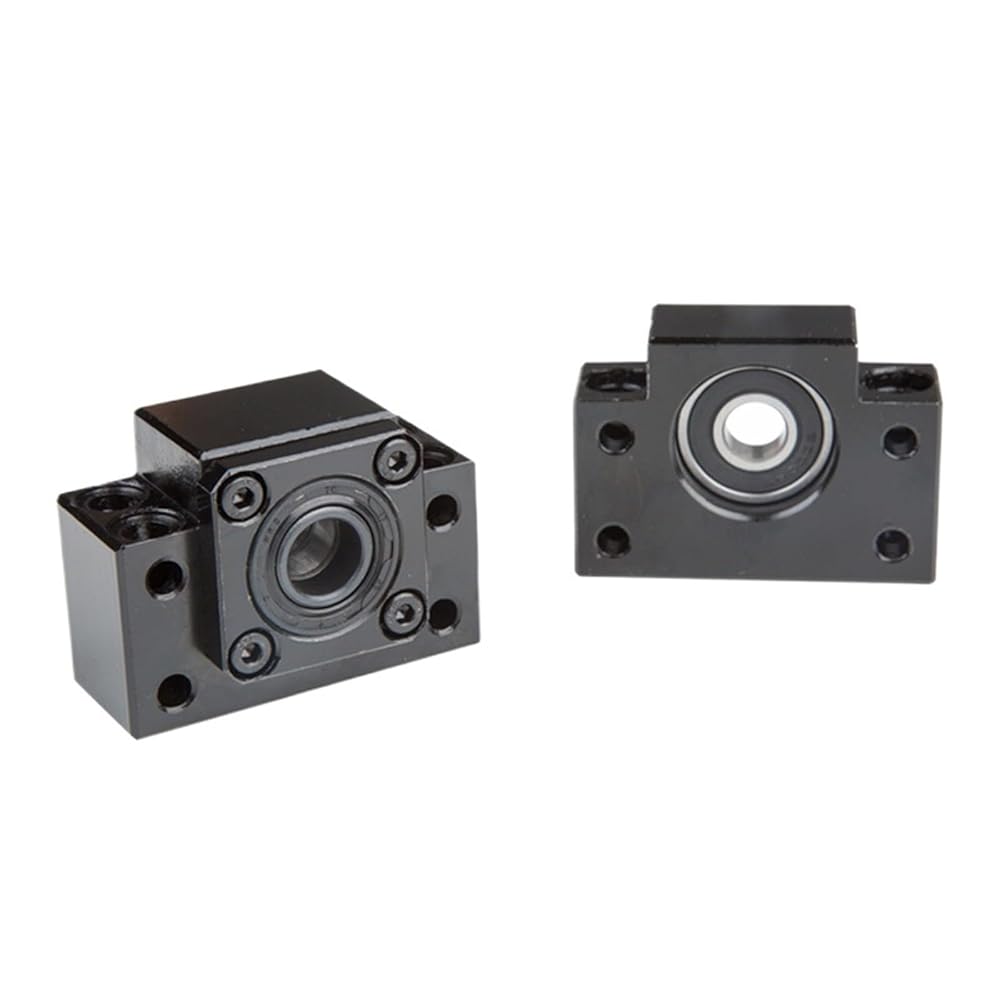

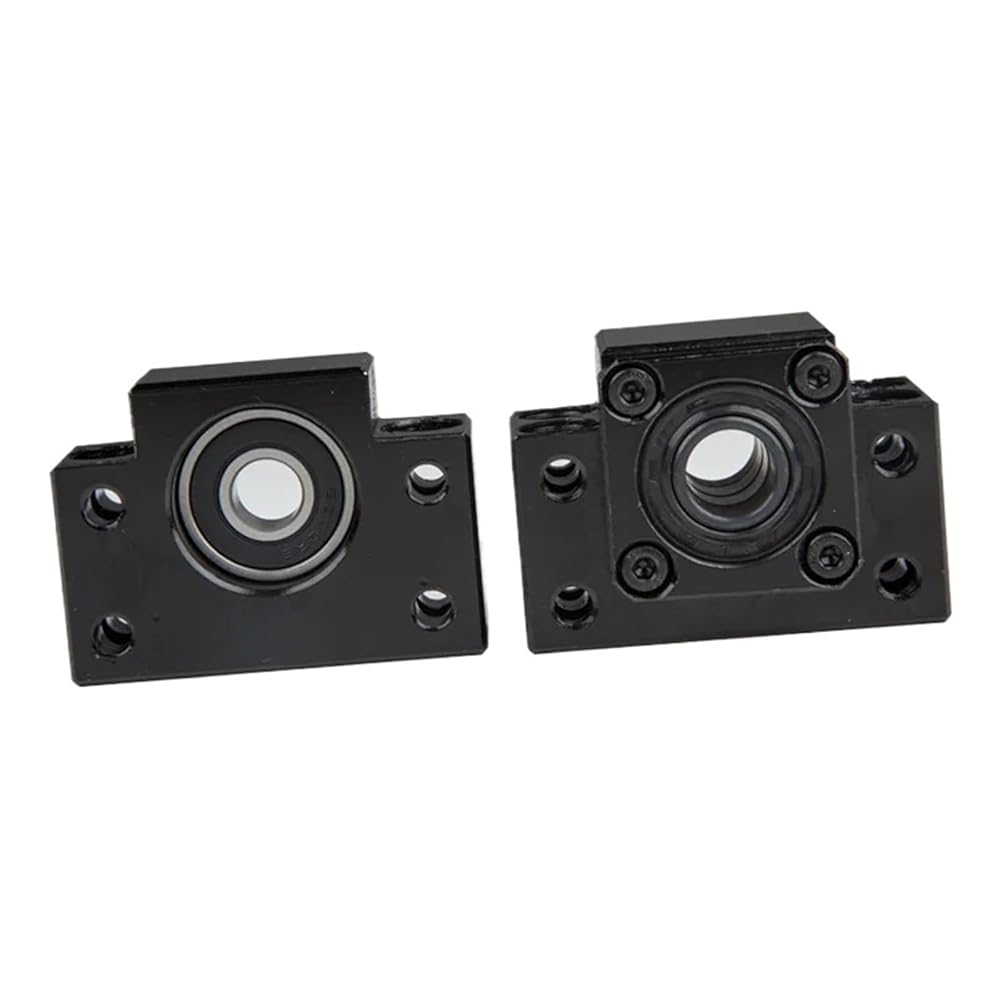

1set ball screw bracket BKBF10

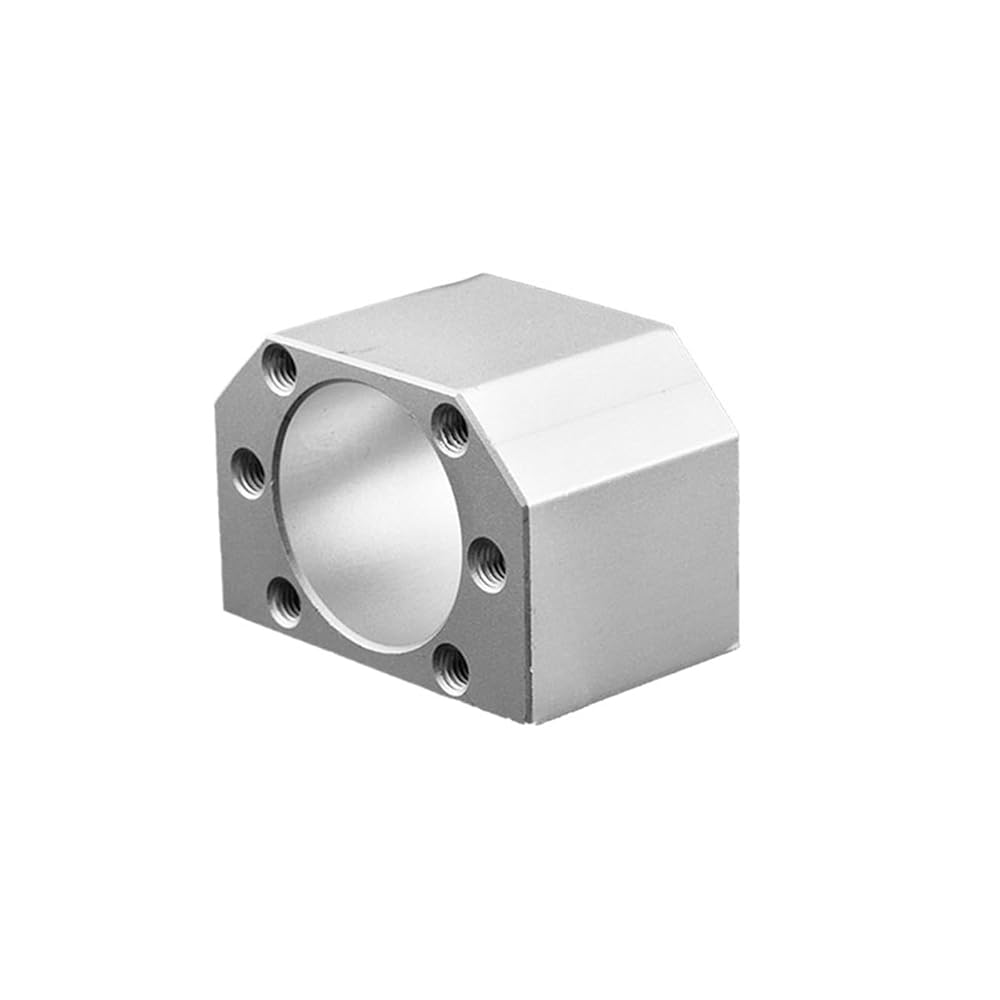

1pcs ball nut housing DSG12H

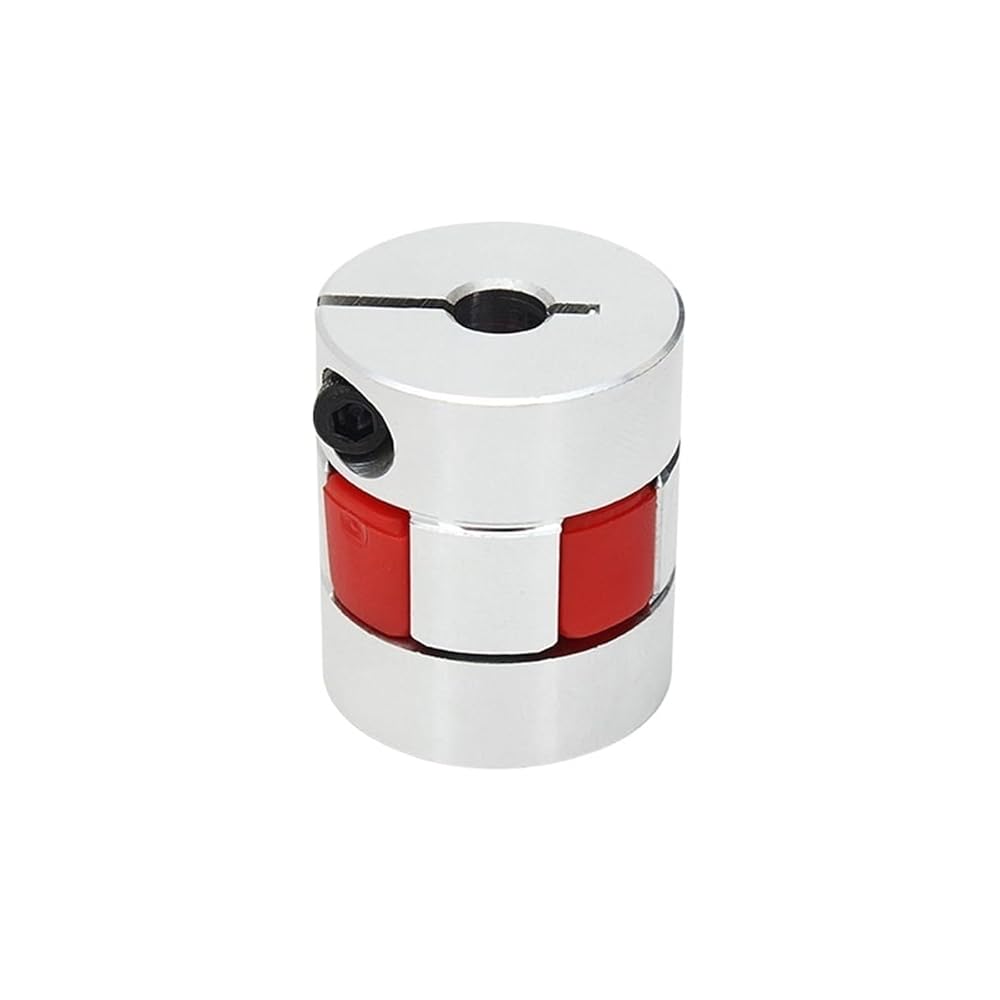

1pcs coupling XB25-30-8*10
