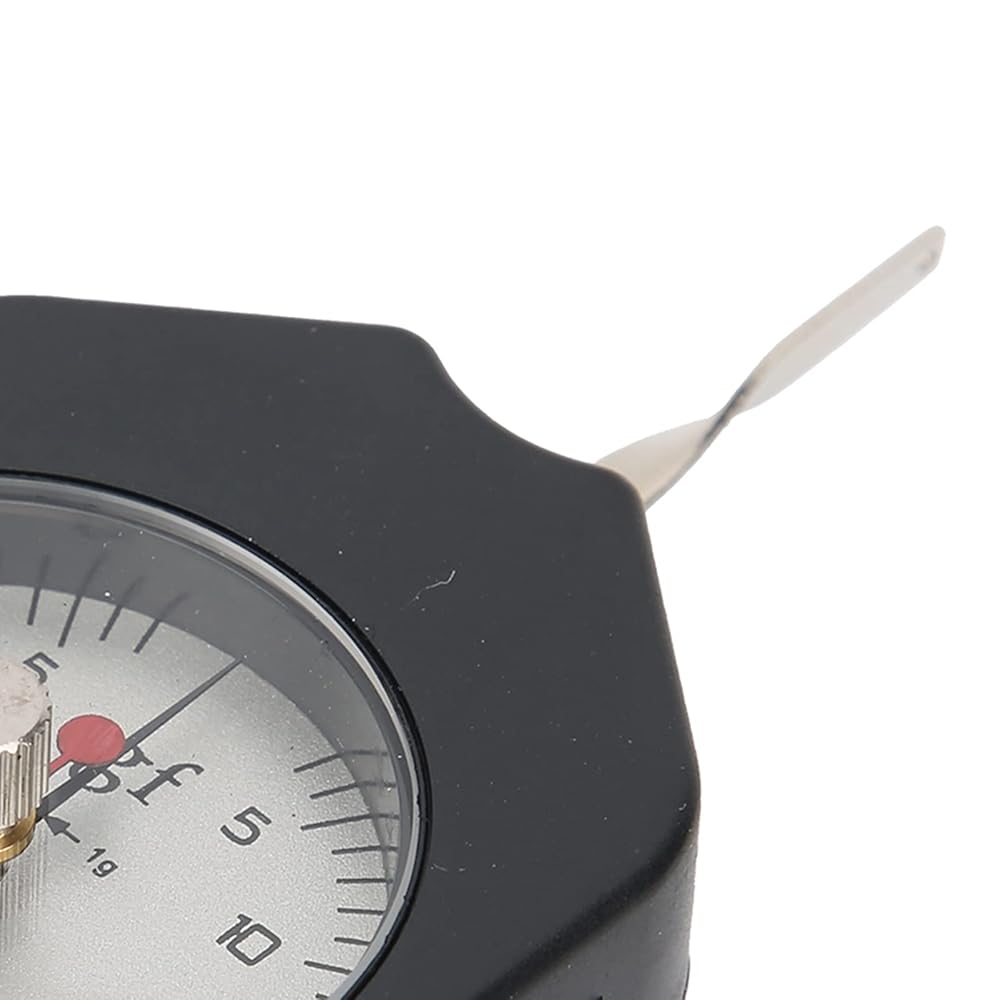

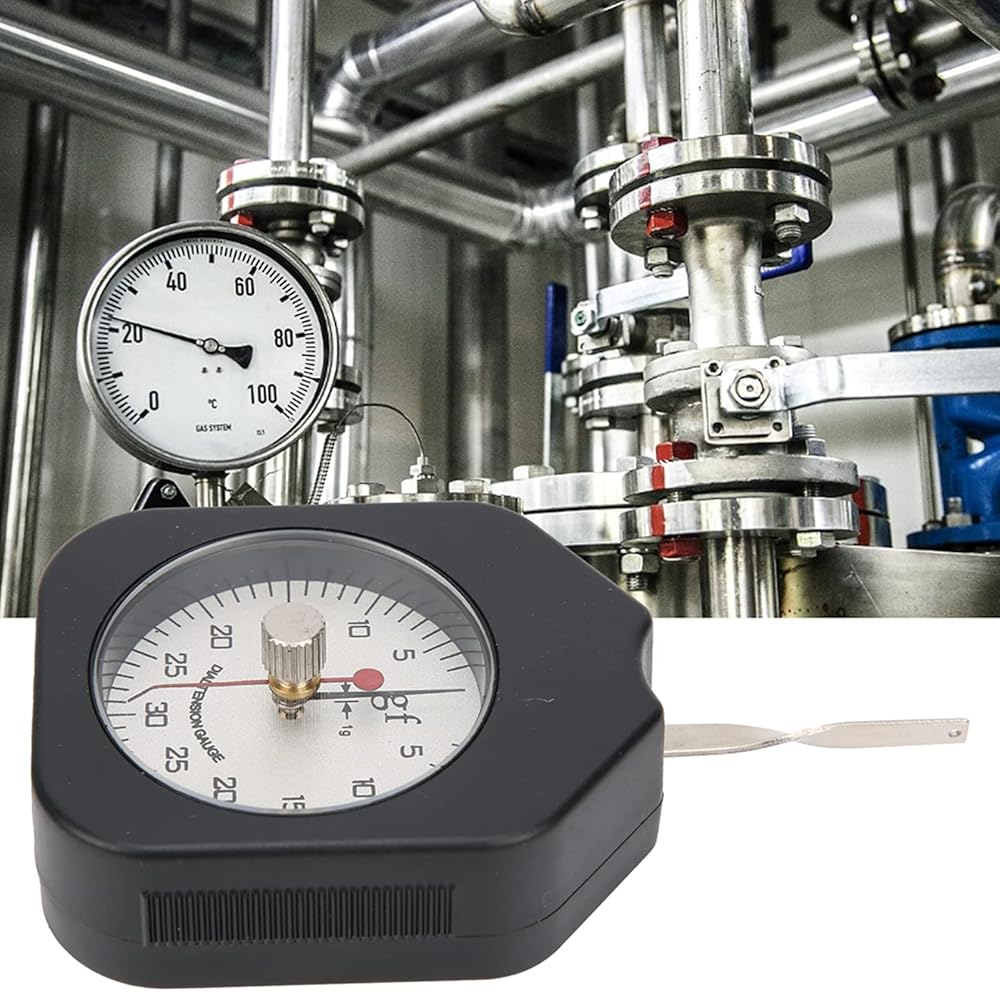

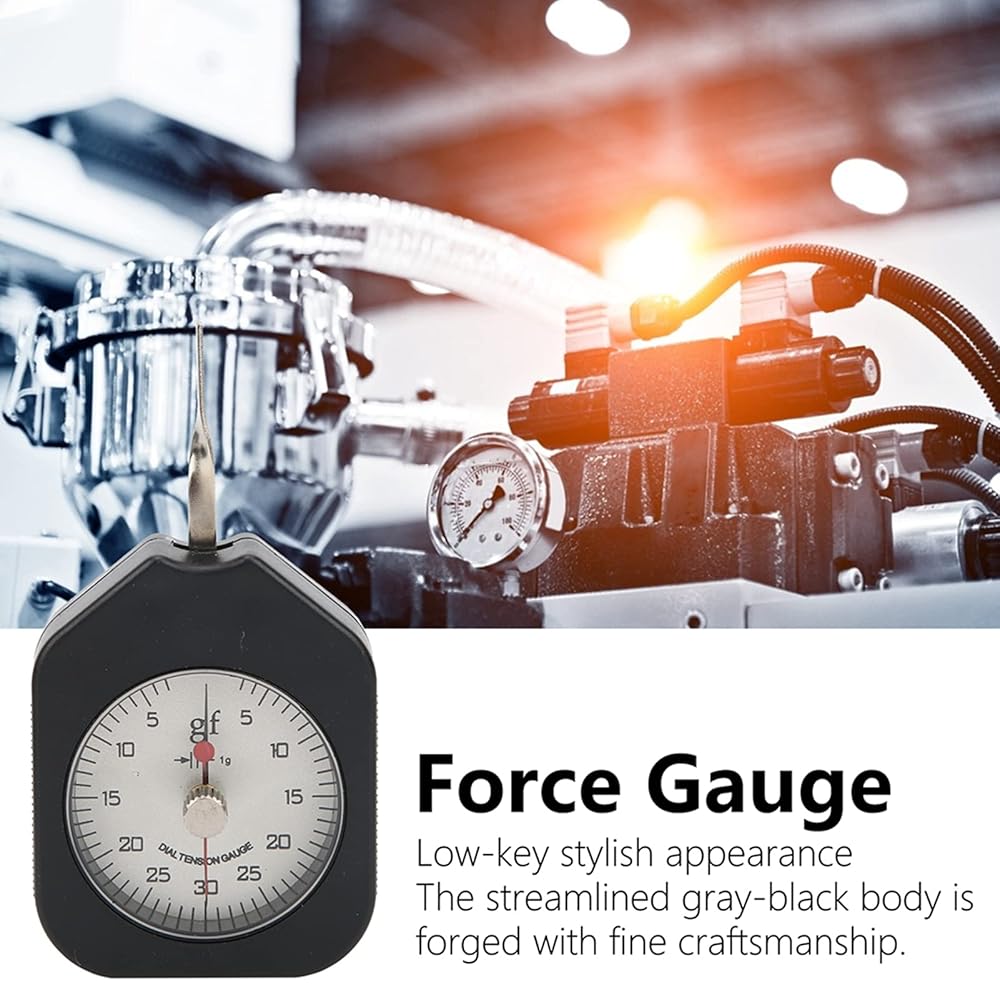

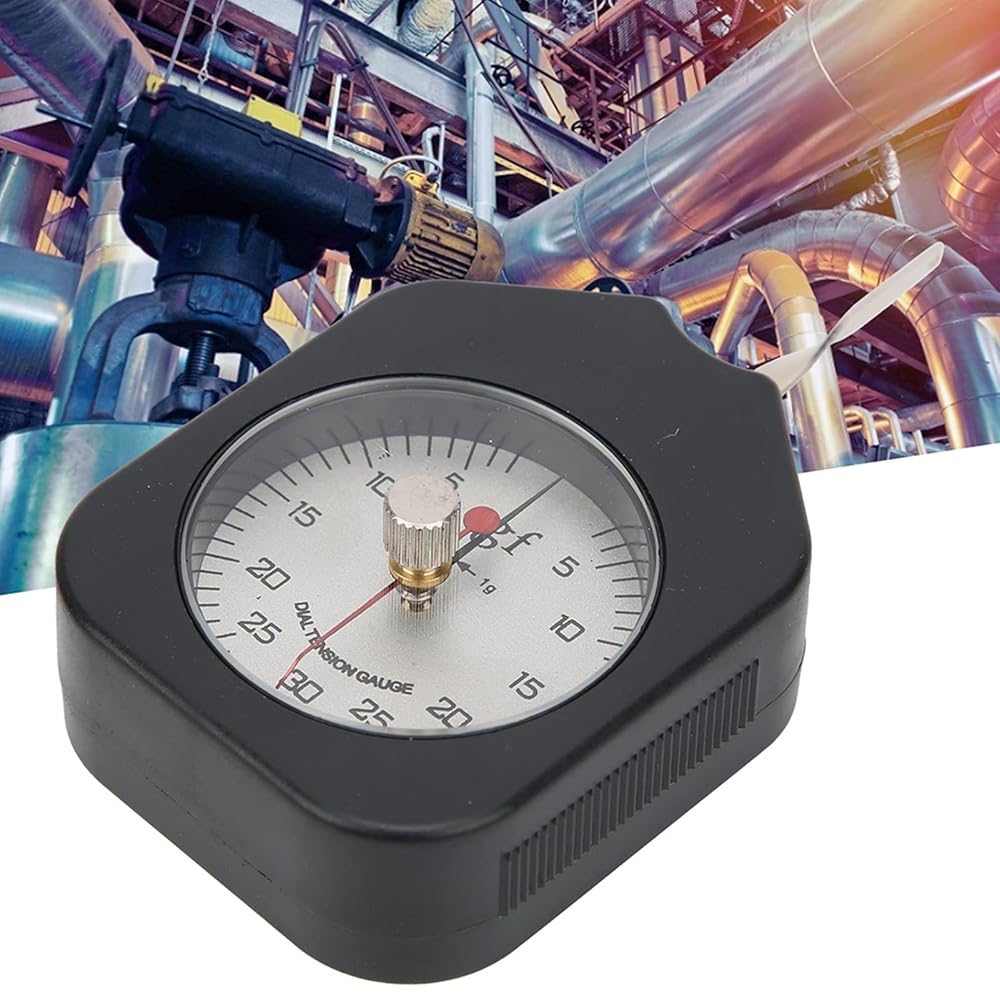

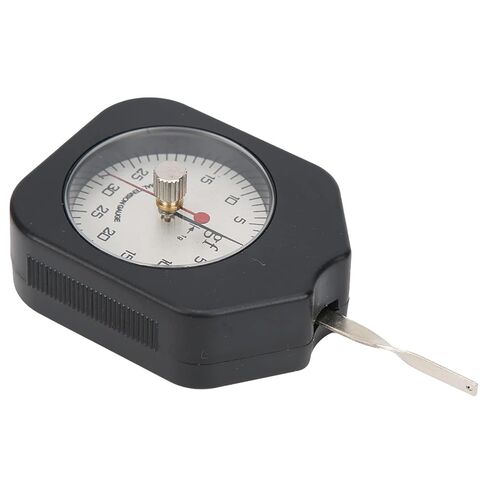

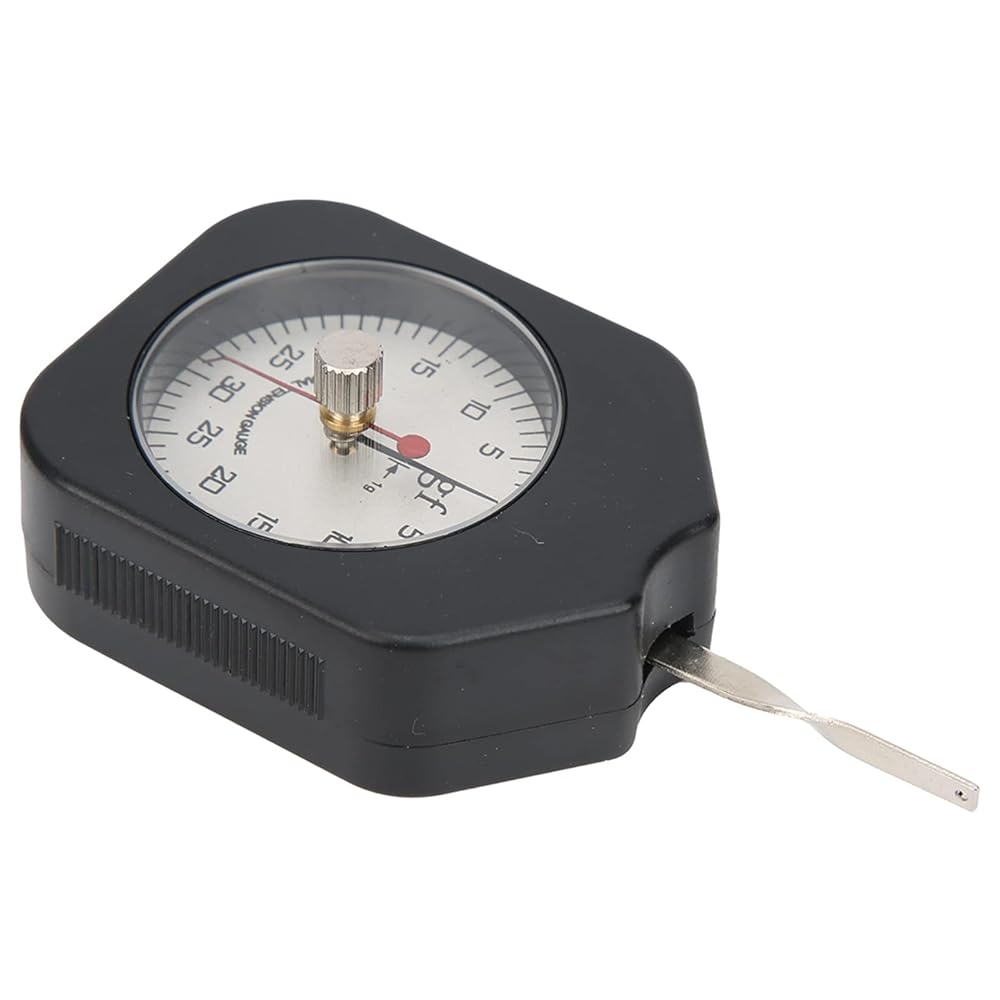

Spec:

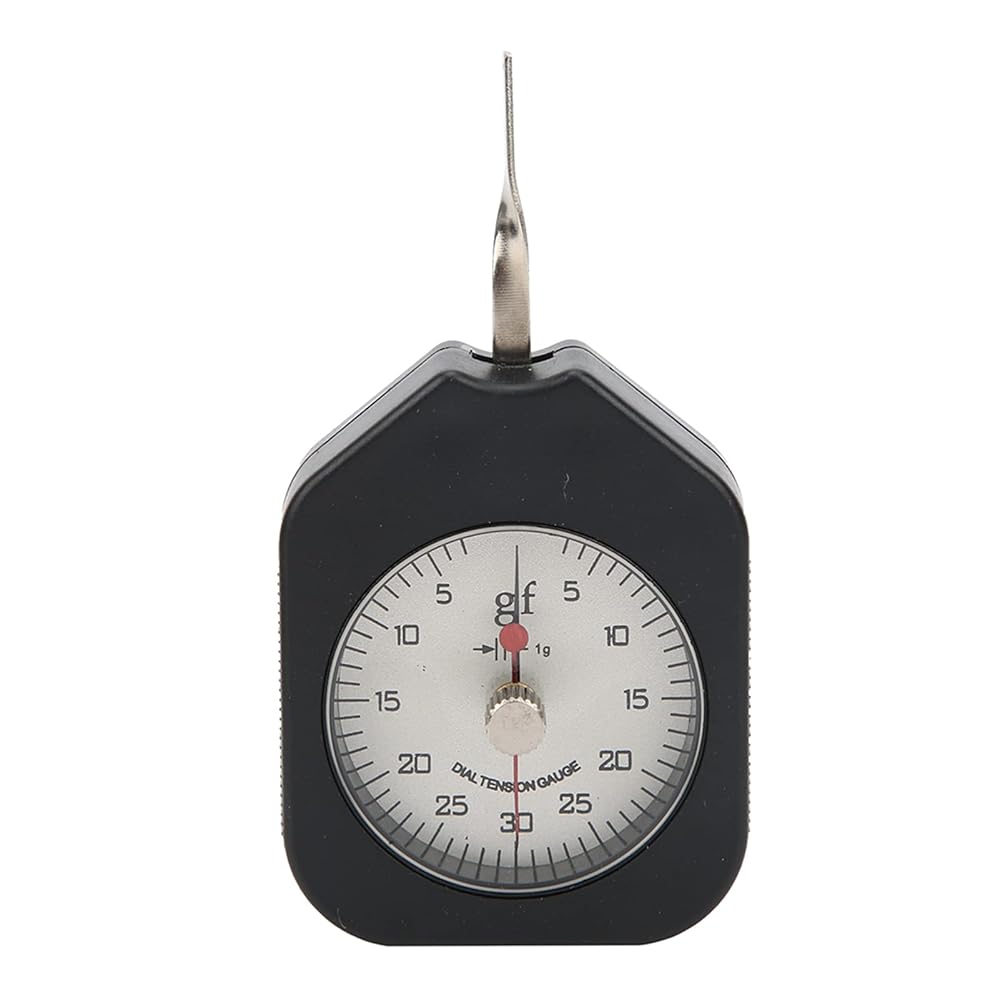

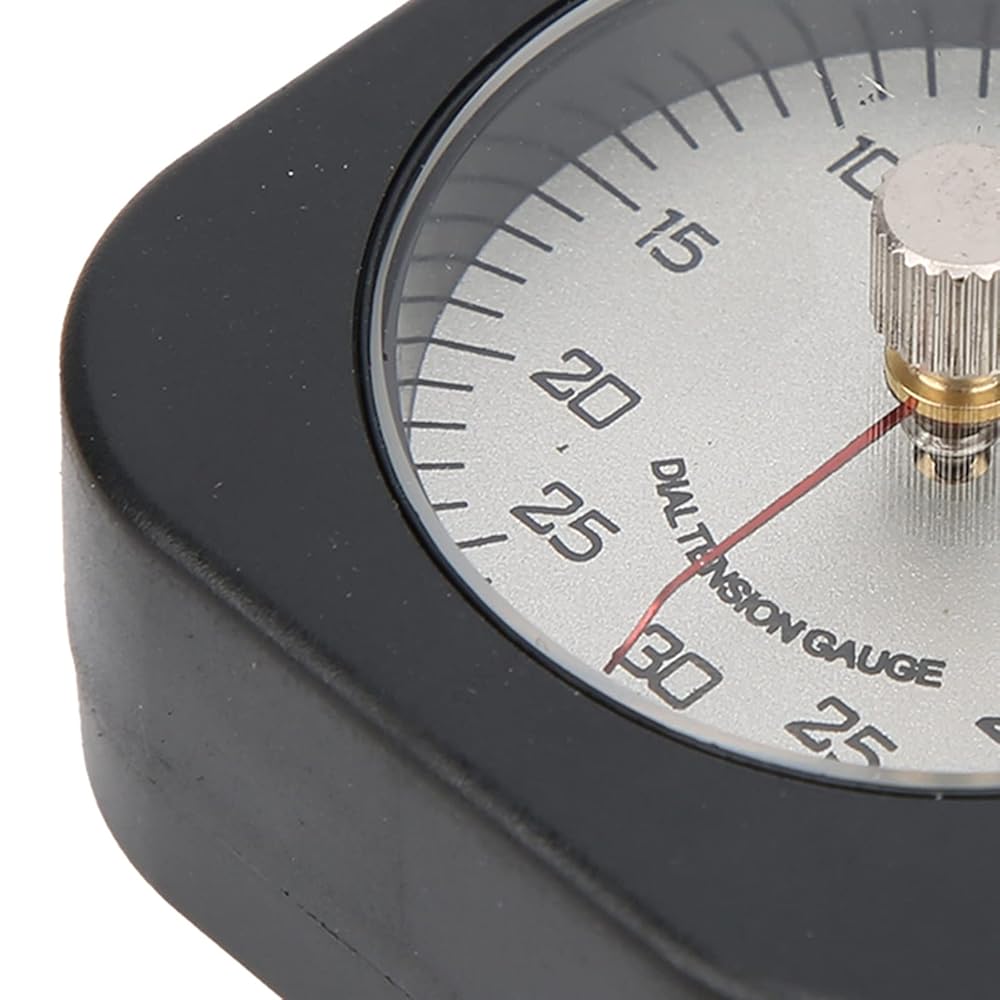

Item Type: Tensiometer
Material: ABS+Alloy
Model Specification: SEG-30-2

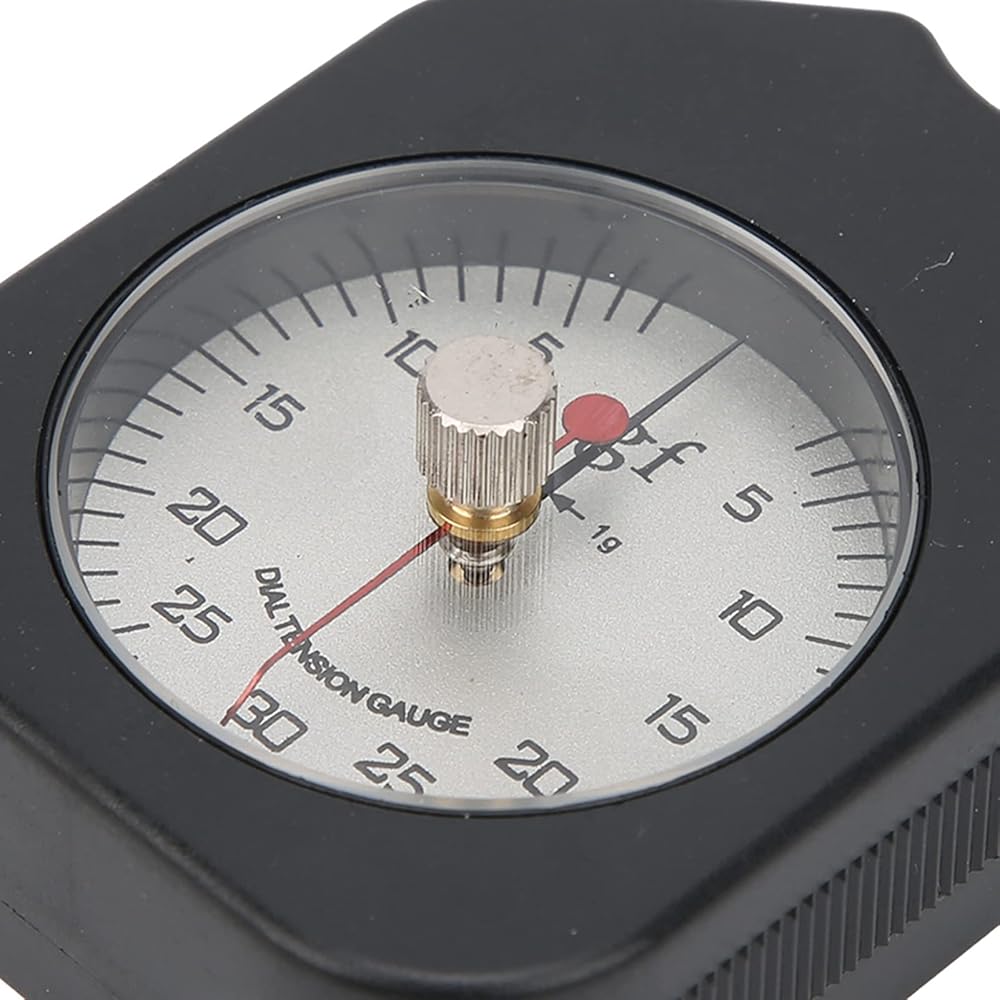

Pointer: Double Needle
Measurement Value: 30g
Graduation Value: 1g
Scale Style: 5-30-5
Accuracy: ±0.5
Product Use: Tensiometer (in grams) is suitable for mechanical pressure such as relay pressure, electronic switch, micro switch, valve, spring tension, dial measuring instrument spindle pressure, automatic telephone equipment and armature pressure, tape recorder buffer Device pressure and other point pressure, and other precise pressure and tensile tests.
How to use:
When testing, just pull the object to be tested with the stylus to move it from the static state to the required position. Tensiometers can be tested either clockwise or counterclockwise, but the stylus arm must always be perpendicular to the direction of the push-pull force; tensiometer is divided into single and double needles. The single-needle tensiometer measures and reads immediately. After the double-needle tensiometer measures the highest value, the slave needle stops moving, which is convenient for the tester to read the test value.

Package List:

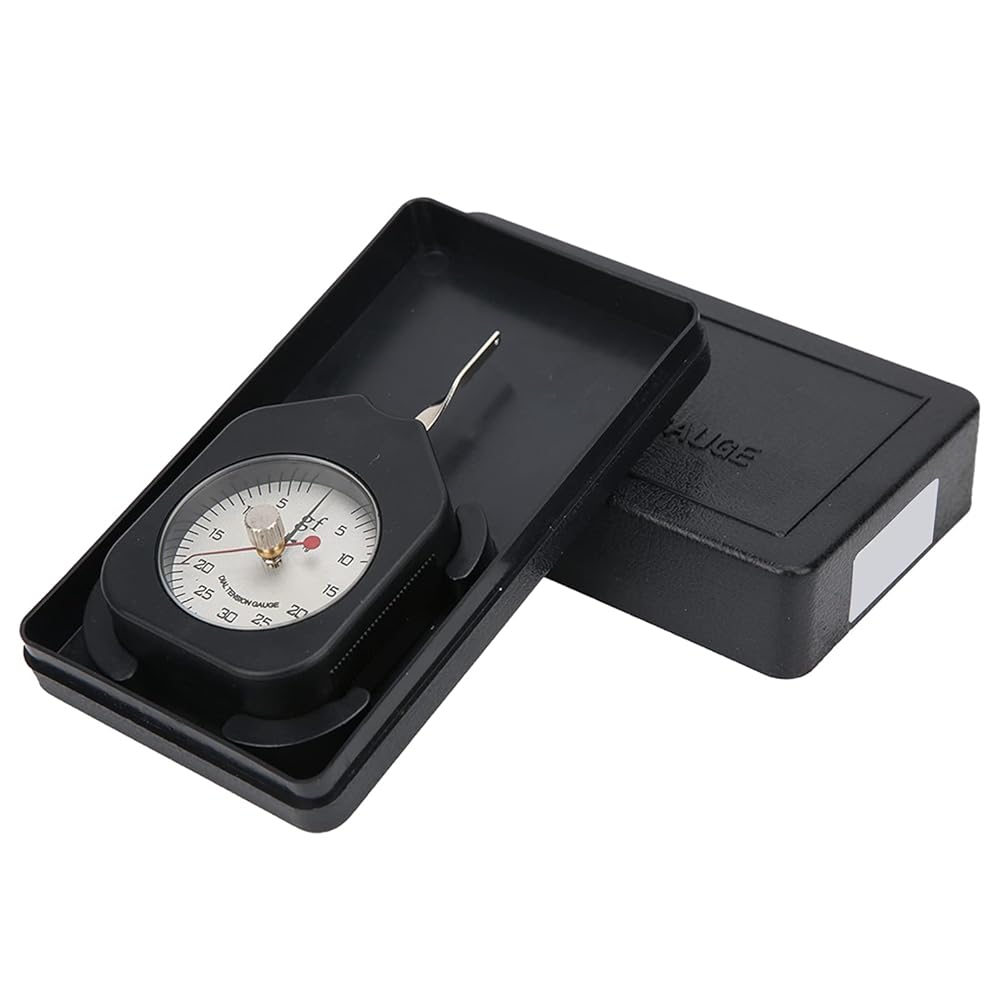

1 x Tensiometer

Note:
1.Do not drop the product randomly,
2.Do not bend the measuring alloy probe,
3.When the product cannot be calibrated, you can open the back cover for calibration. It is not recommended to open the back cover for calibration frequently.
