Plug Valves

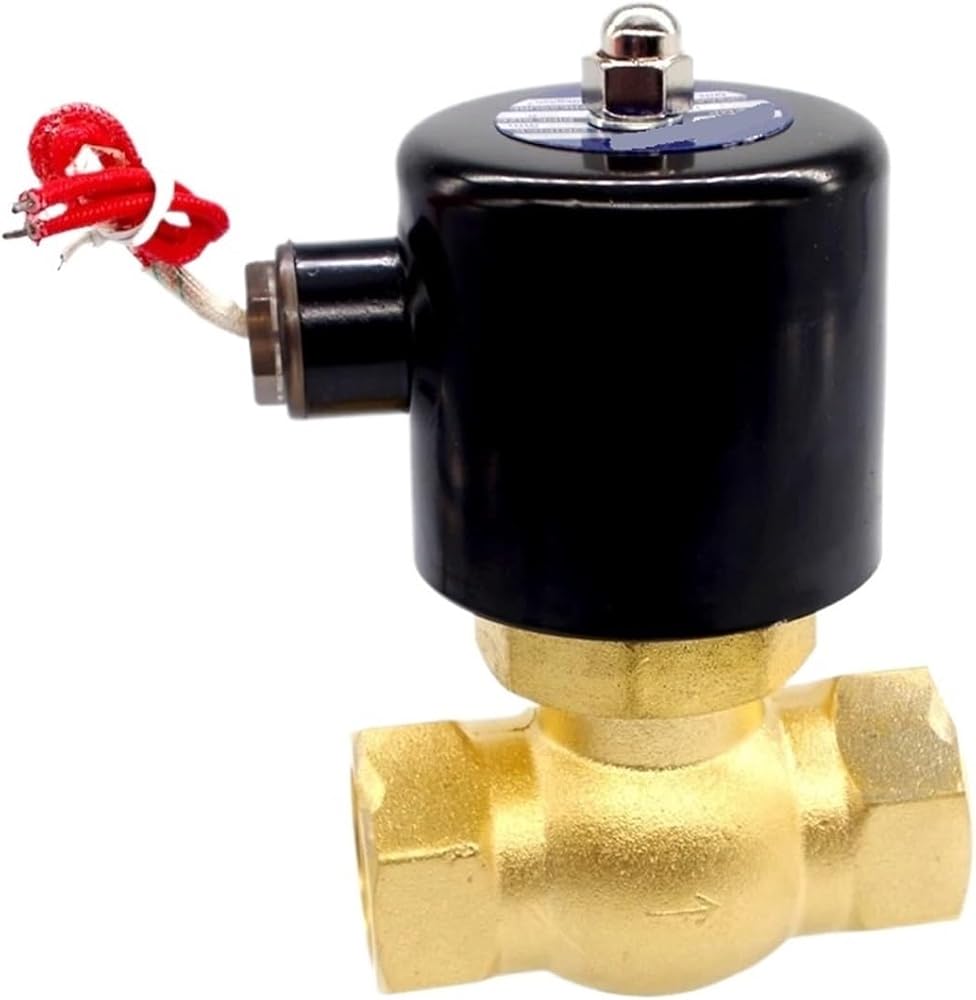

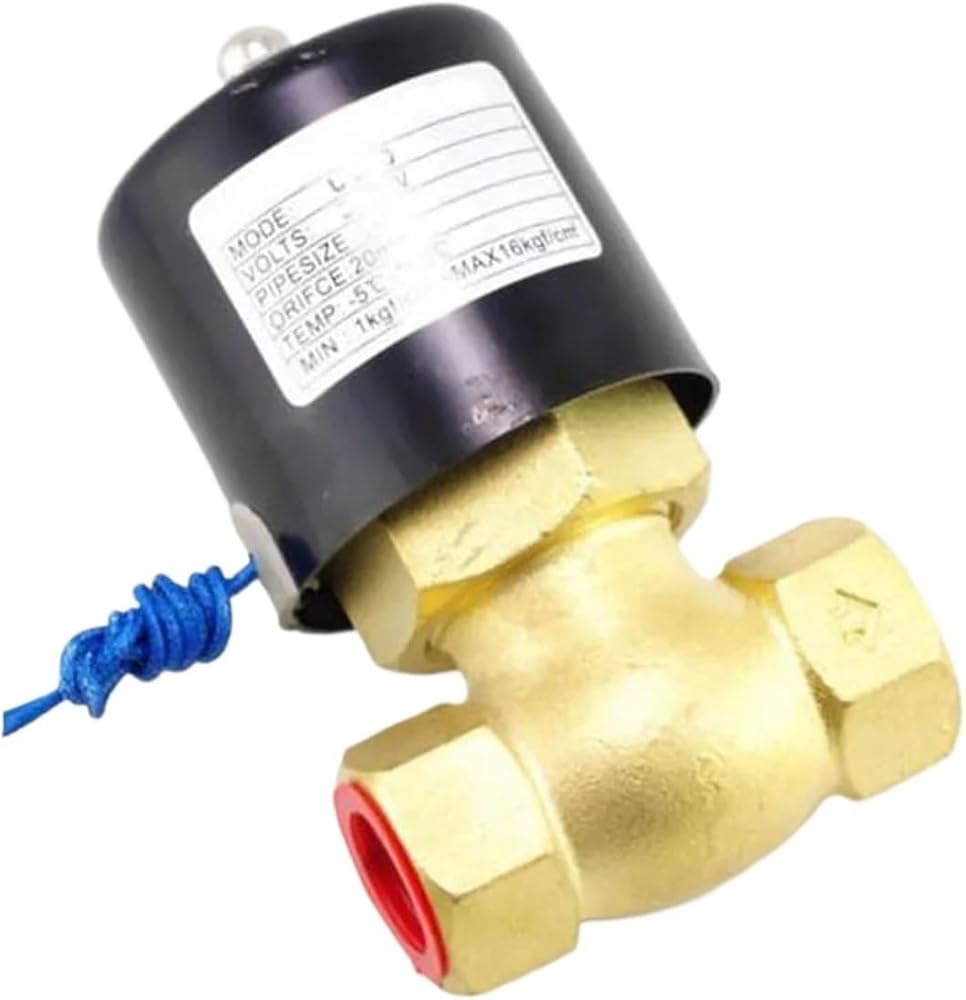

Technical parameters----Steam solenoid valve
Dimensions: 1 inch (DN25)
End connection: G thread ( thread)
maximum. Working pressure: 1.6Mpa
Working pressure range: 0.2-1.6Mpa
Medium temperature: 180
Operation mode: type
Voltage: AC380V 220V 36V/50Hz DC: 24V
Insulation level: Class B
Power supply range: -15%~+10%
Power: 36W
Response time: 2 seconds to turn on, 3 seconds to turn off
Installation method: The direction of media flow is consistent with the direction of the upward arrow. The coil is vertically upward, and the working medium is clean and of particle impurities.
