Pulse Generators

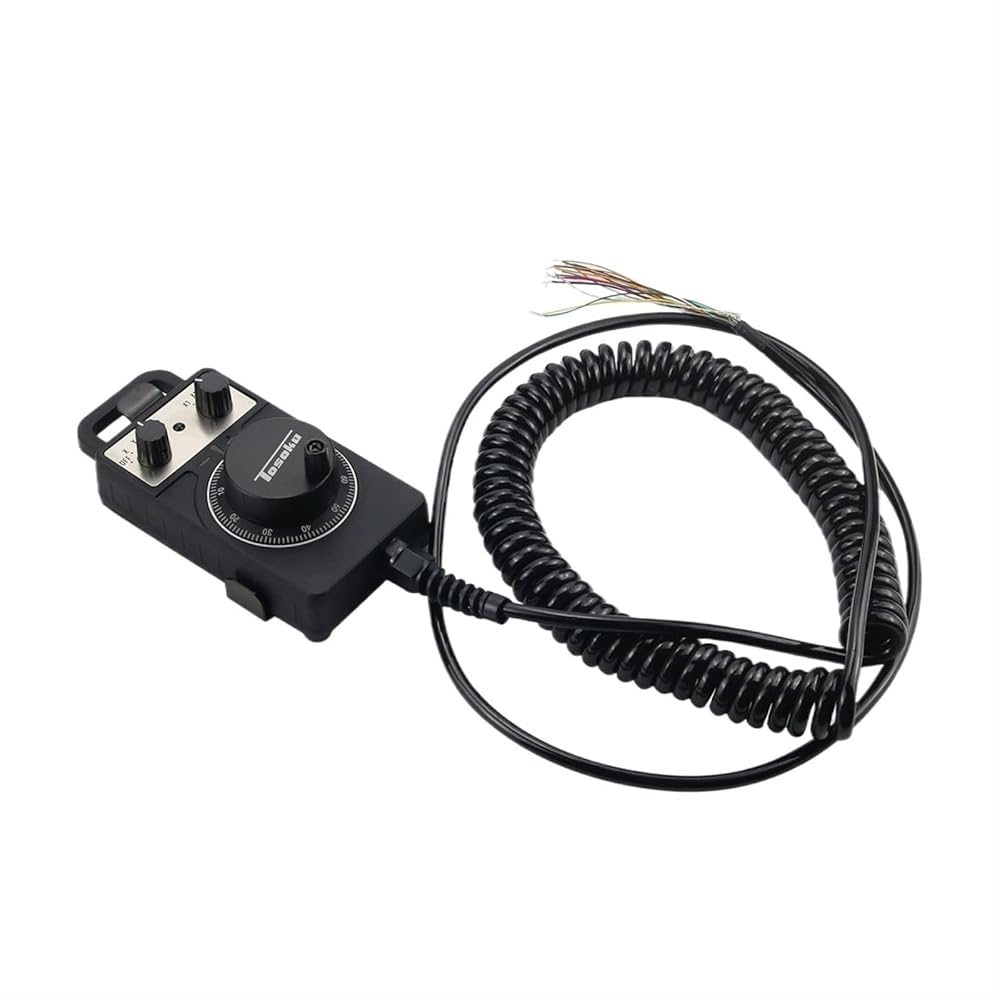

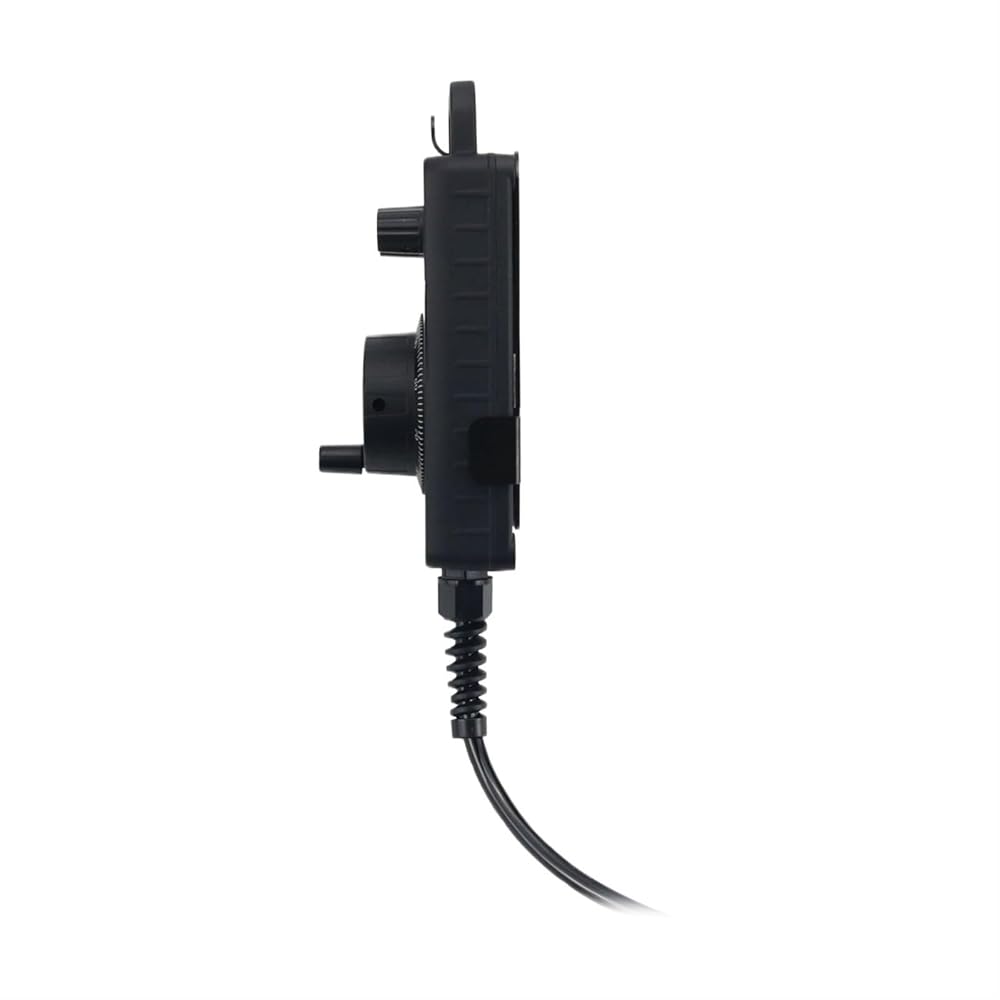

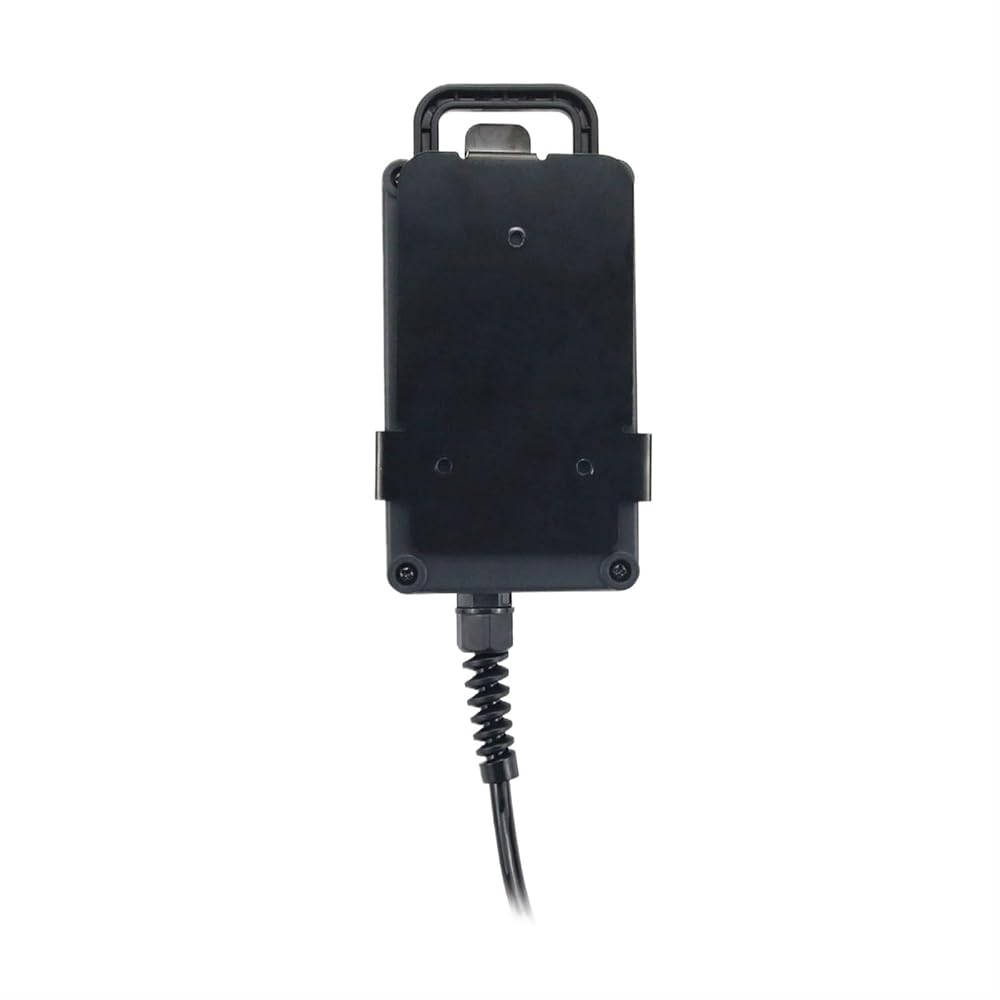

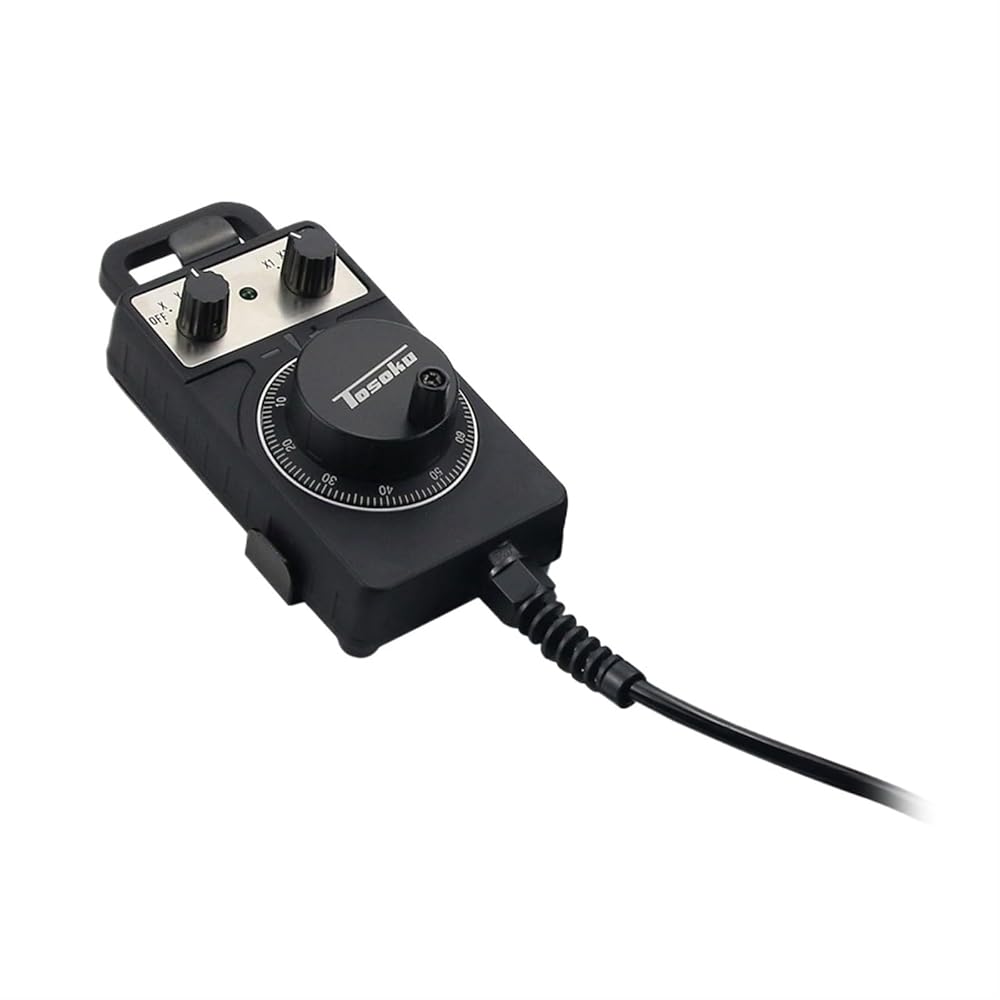

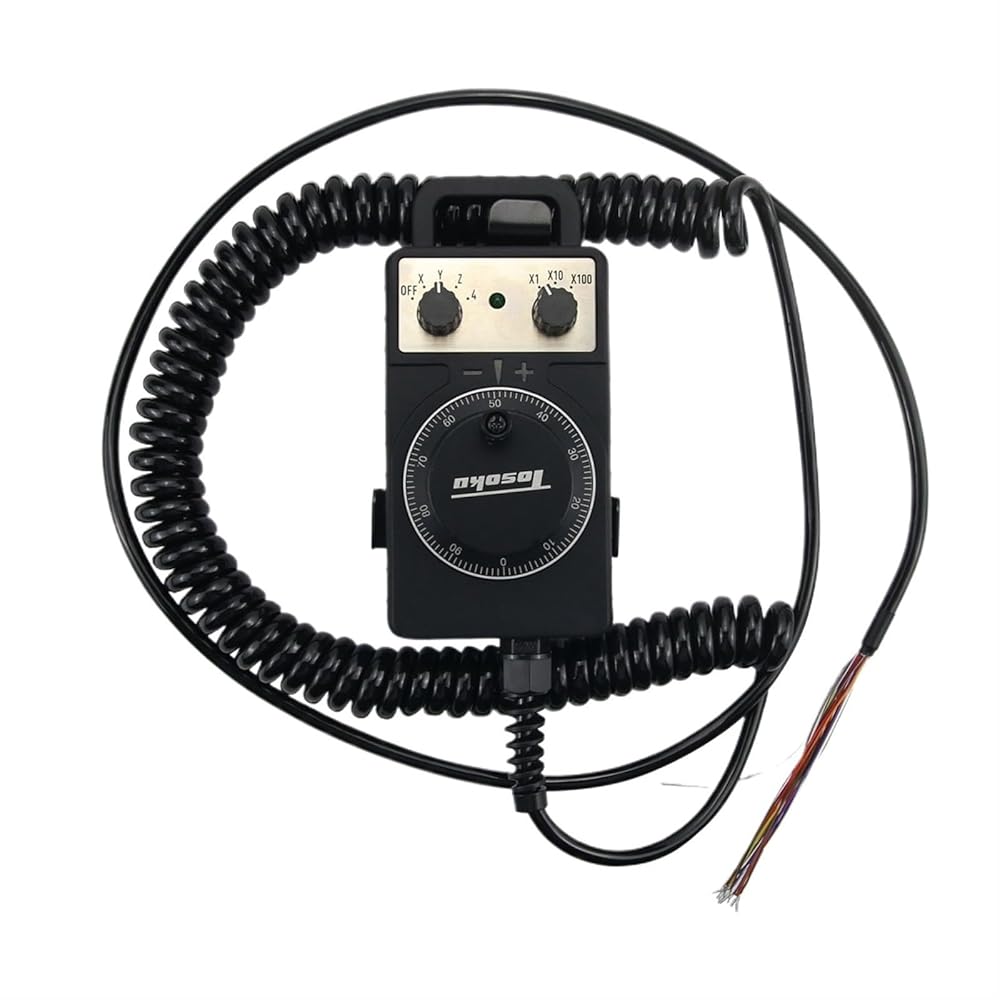

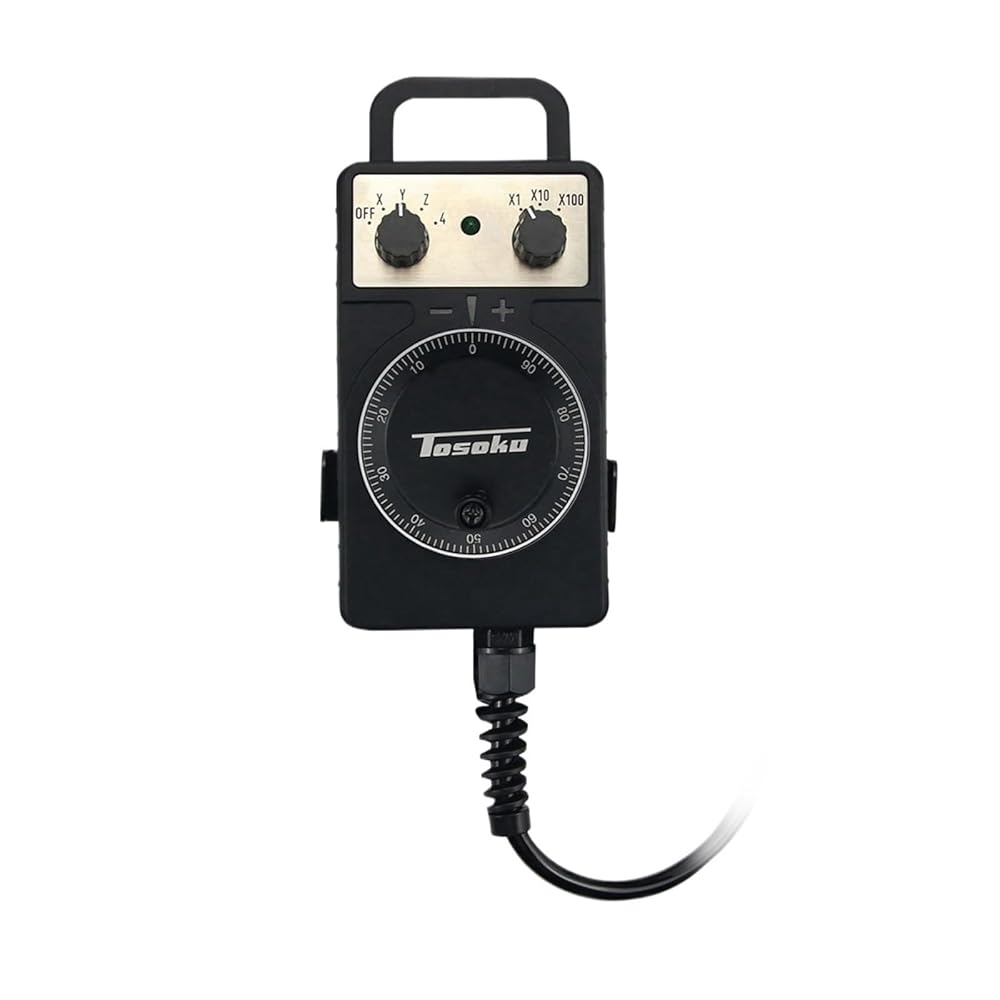

Electronic Handwheel Engraving Machine Hand Wheel Handle Pulse Generator
HC115
Descriptions:- Compact, thin-line and lightweight (26mm)
- Axis/Multiplication selection can be set according to customers' requirement
- Sealed structured box
- compliant (box/cord)
- Exclusive easy-to-attach holder as a standard accessory
- Rubber magnet for option
Specifications:General:- For and other system
- Model: HC115 HC121
- Voltage: 5V
- Output resolution 100
- A, B Phase output
Body:- Dimension: 124x73x26mm
- LED Visible Indicator: DC24V Green
- Noise Immunity EN50082-2 compliant
Environmental Specifications:- Operating temperature: -10 to +60; 14 to 140
- Storage temperature: -40 to +70; 40 to 158
Curl Cord:- 21 core cable
Package Included:- 1 x MPG
Note:
- It is not the one for .
HC121
Features:- The most compact model of all our MPG series, developed for usage in numerous industrial areas.
- Compact, thin-line and lightweight (26mm)
- Axis/Multiplication selection can be set according to customers' requirement
- Sealed structured box
- compliant (box/cord)
- Exclusive easy-to-attach holder as a standard accessory
- Rubber magnet for option
Body:- Dimension :124×73×26(mm)*
- LED Visible Indicator: DC24V Green
- Noise Immunity EN50082-2 compliant
Curl Cord:- 19/25-conductor shielded cable
- 19-conductor: select from 2m/6.6ft, 3m/9.8ft, 4m/13.1ft, 5m/16.4ft
- 25-conductor: select from 3m/9.8ft, 5m/16.4ft
- (We will select either 19 or 25-conductor in accordance with required functions)
Specifications:- Model: HC121
- For and other system
- Voltage: DC12V
- Output resolution: 25PPm
- A, B Phase output
Package Included:- 1 x Set of MPG
Note:
- It is not an one. Please make sure that you don't mind before purchasing. Thank you!
