Filters
Pressure RangeThe pressure range is easily adjustable within 0-240 PSI.Temperature Range: 23-140 (-5-60)

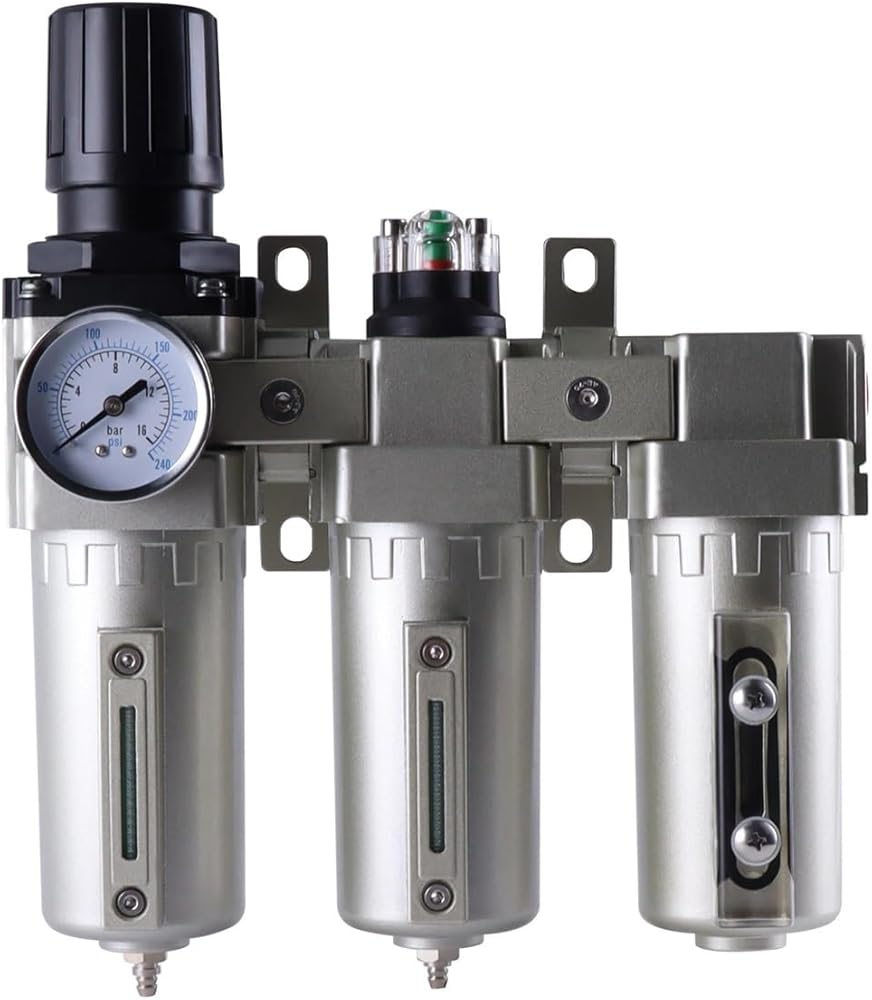

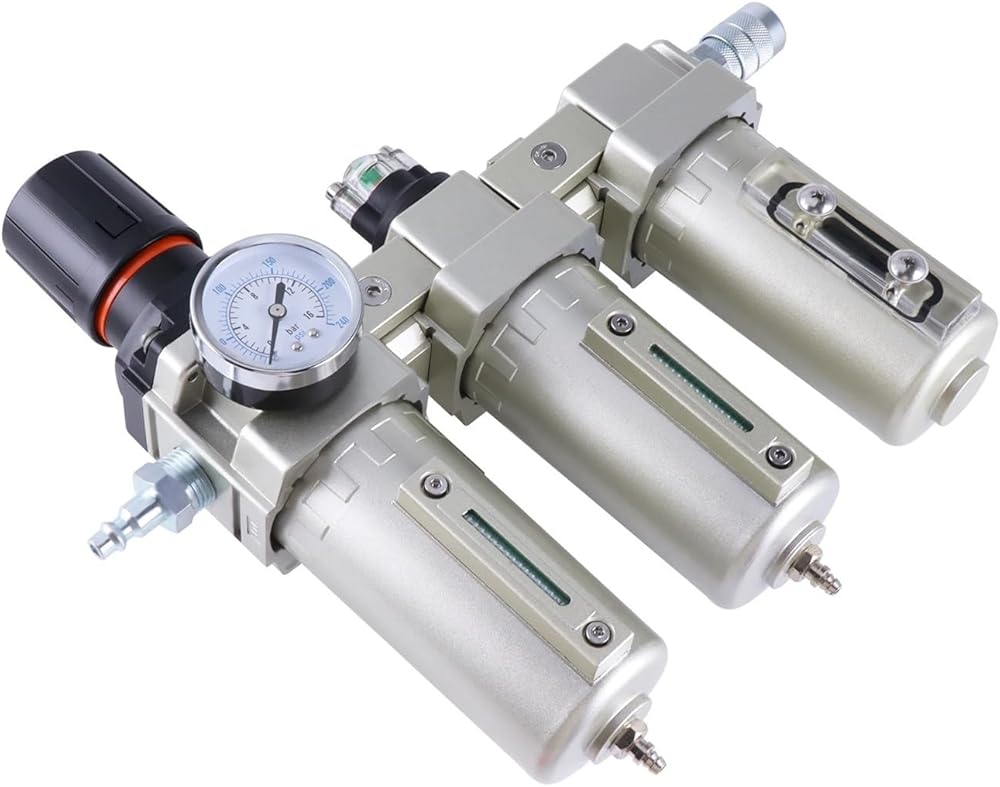

Stage 1 Regulator/FilterThe adjusting knob can precisely control the air pressure within the range of 0-240 psi. The knob will be locked when pressed to ensure safety during use. Equipped with a 5-micron element, it can filter out up to 95% of particles and moisture in the air.

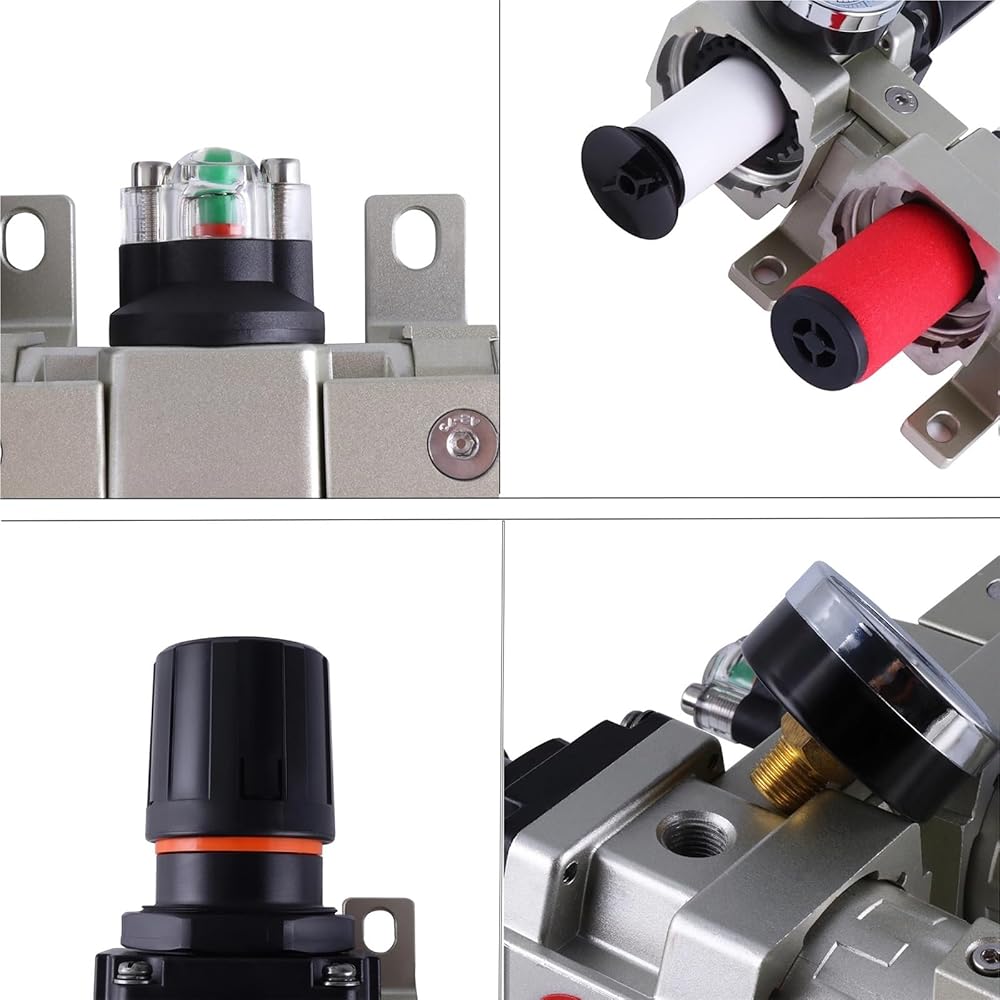

Stage 2 Coalescing FilterThe coalescing filter is equipped with a 0.3-micron element that can remove 99.98% of moisture and impurities from the air line. A red indicator on the top window will pop out when the filter element needs to be replaced.
Stage 3 Desiccant Air DryerThe air will pass through a metal bowl filled with desiccant, which can thoroughly dry and clean the moisture and impurities in the air, and finally output to downstream pneumatic tools. When the desiccant needs to be replaced, the beads will change from blue to pink.

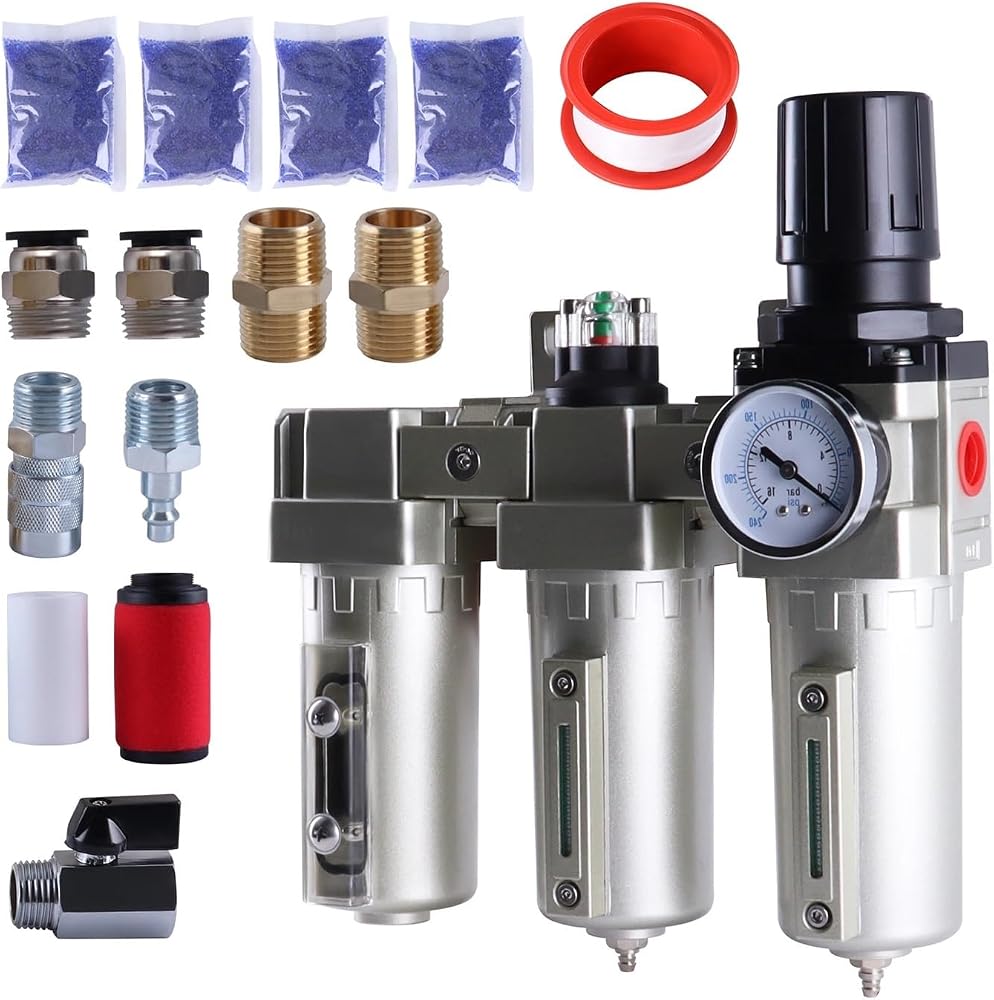

Package included
Semi-Auto Drain 1l2 / Automatic Drain 1l2:

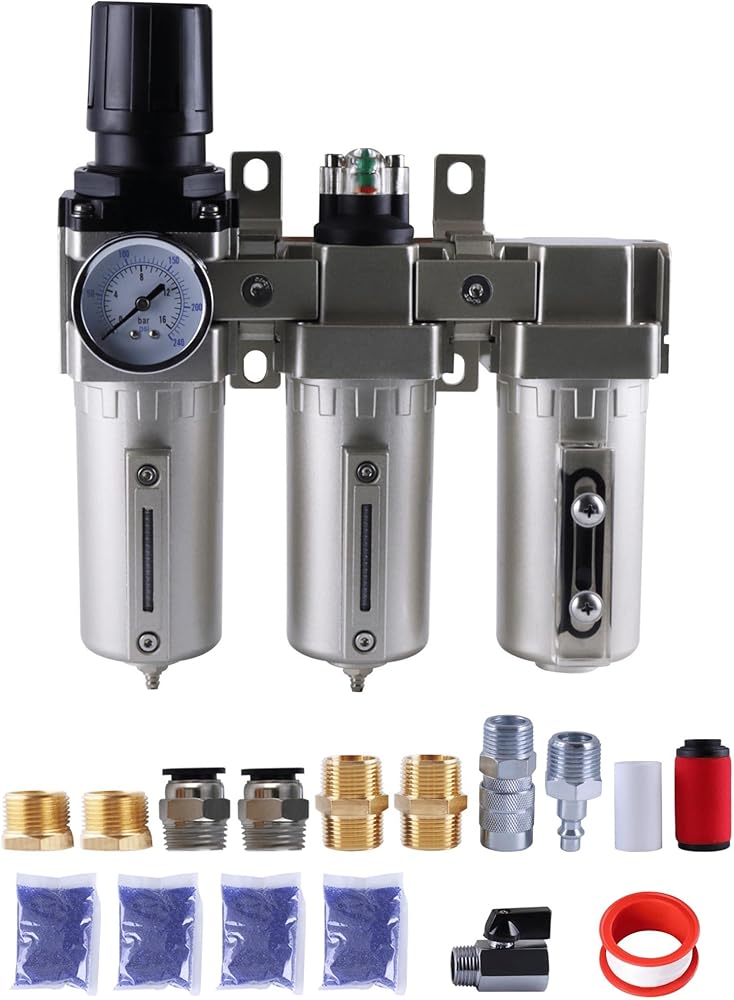

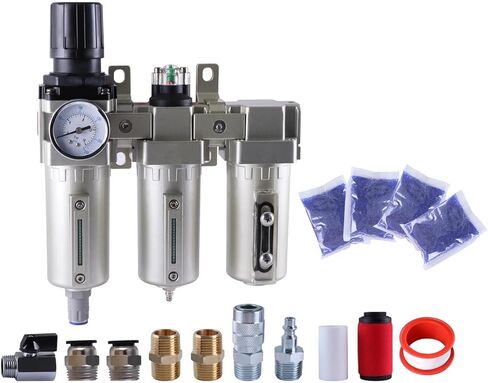

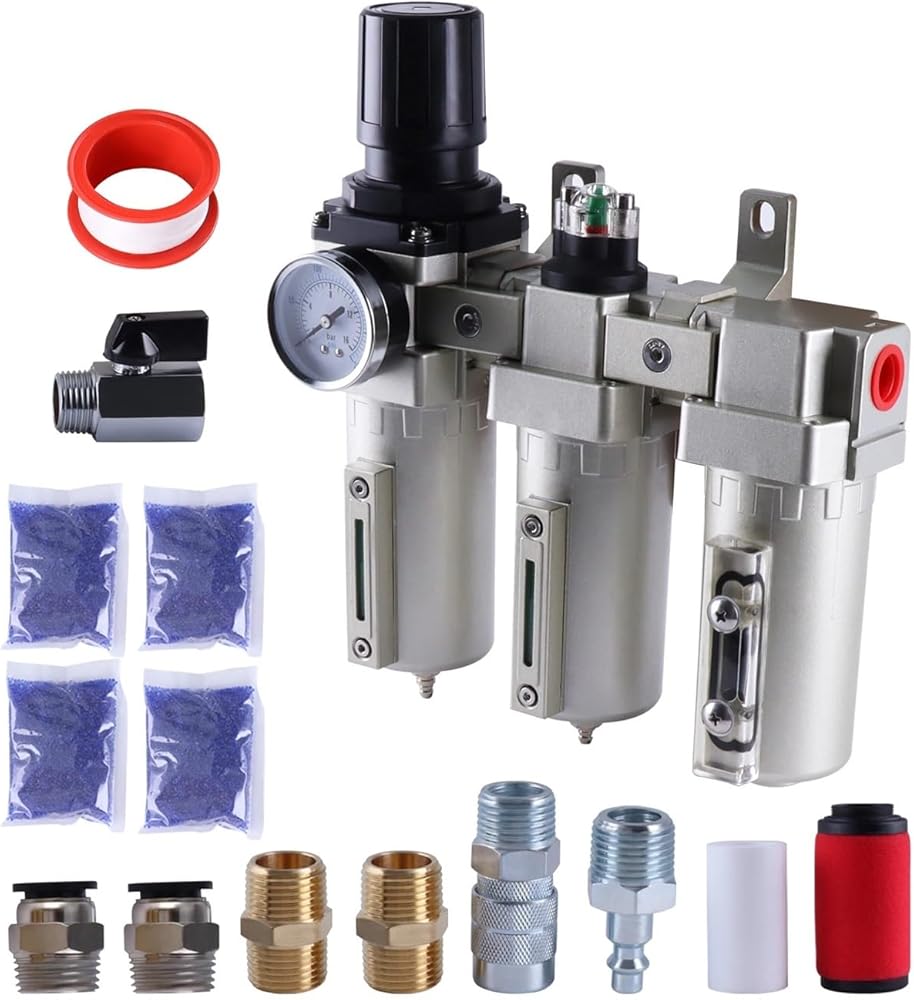

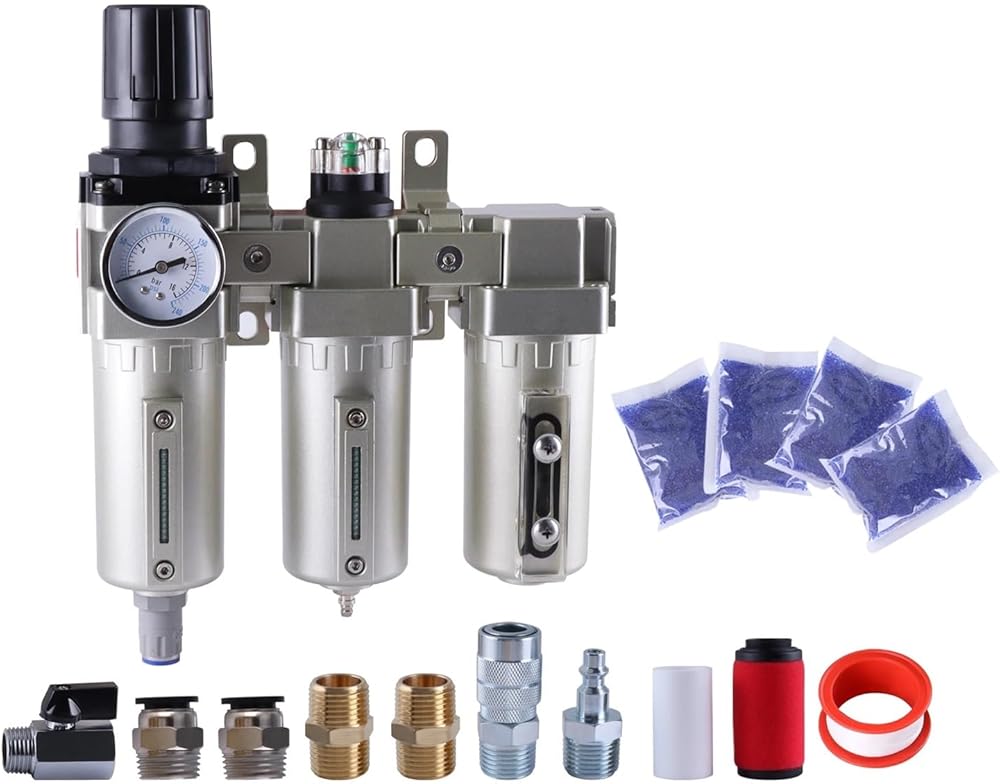

1x Three Stage Air Drying System,
1x Dial Gauge for the 1/4",
1x Nickel-plated Iron Air ,
1x Nickel-plated Iron Air Coupler,
2x 1/2" × 1/2" male brass equal hex nipples,
1x 1/2 "Mini Ball Valve,
2x PC-1/2-1/2NPT Male Connect Fitting,

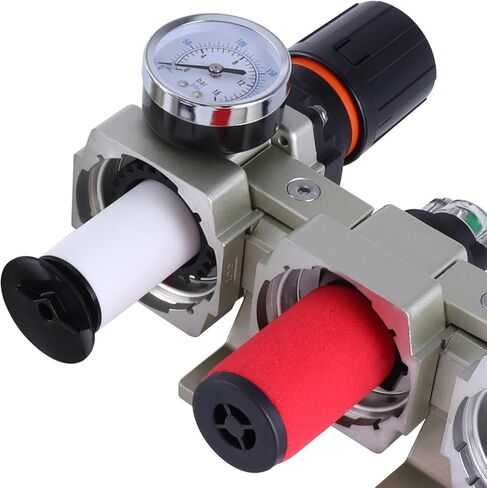

2x 5 Element & 03 ElementOne of Them is Installed in the Product
4x Desiccant Beads Bag
1x Teflon tape.
Semi-Auto Drain 3l4 / Automatic Drain 3l4 :
1x Three Stage Air Drying System
1x Dial Gauge for the 1/4"
1x Nickel-plated Iron Air
1x Nickel-plated Iron Air Coupler
2x 3/4 "x 3/4" male brass equal hex nipples
2x 3/4 "x 1/2" Brass Bushing
1x 1/2 "Mini Ball Valve
2x PC-1/2-1/2NPT Male Connect Fitting
2x 5 Element & 03 ElementOne of Them is Installed in the Product
4x Desiccant Beads Bag
1x Teflon tape
==========
Hign-concerned Chemical : None
Type : Treatment Unit
