1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
2. Stability enhancement, especially suitable for CNC machining centers.
3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
1. High strength, high force, high temperature resistance, uniform force, fine workmanship
2. Stainless steel material, stable screw head, good fastening effect
3. Exquisite craftsmanship, durable and wear-resistant, flange nuts are easy to conduct heat

وصف

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life
Specifications:
Model: SBR20+SFU2005
Guide rail width or diameter: 20mm

Description:
High transmission efficiency, high positioning accuracy, good repeatability of positioning accuracy, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light movement of the slider. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble Aluminum support rails with pre-drilled holes for easy installation.

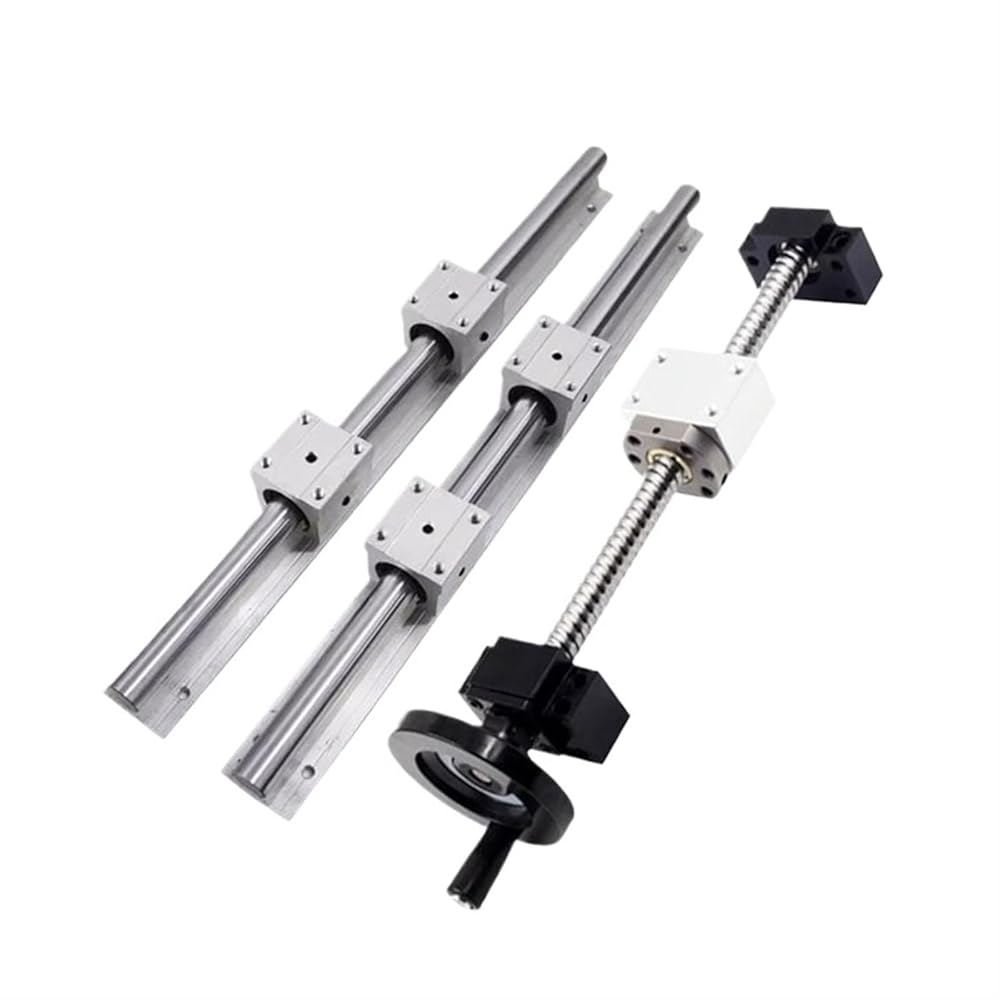

Packing list:

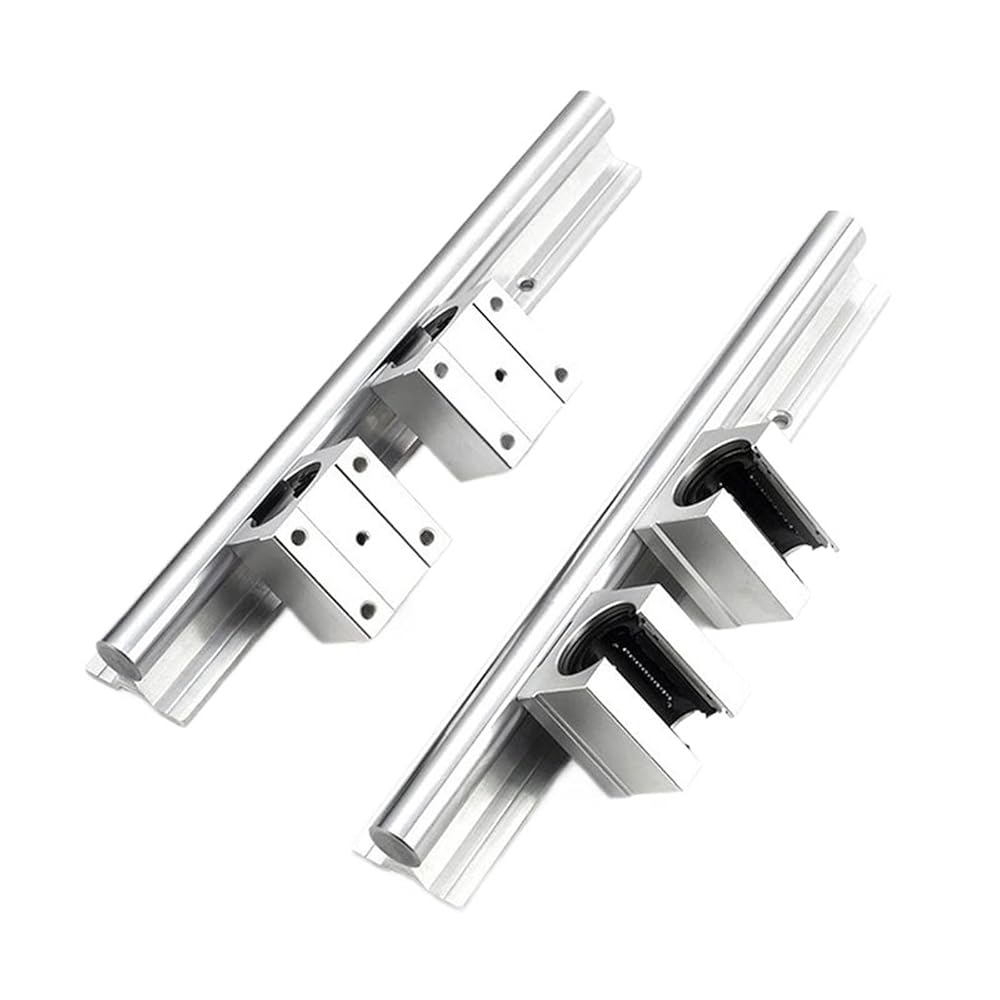

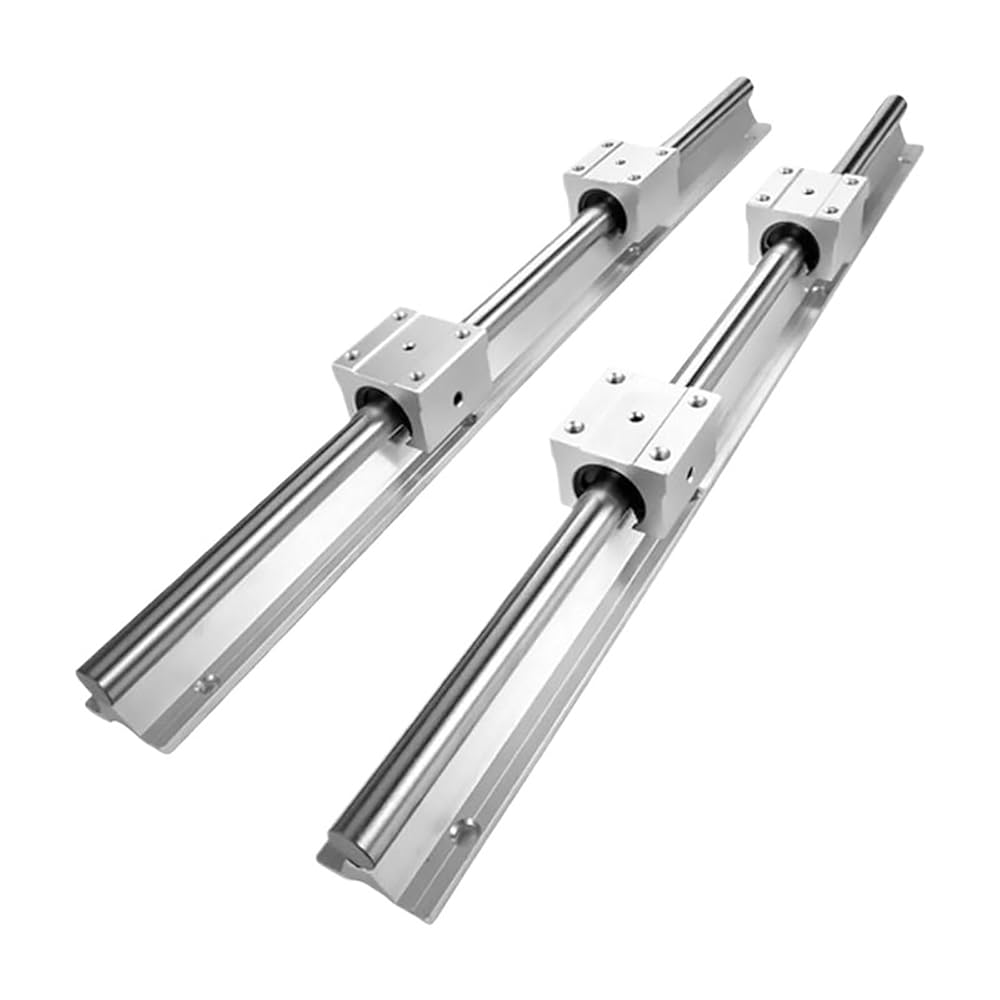

2pcs SBR20 linear guide + any length
4pcs SBR20UU slider
1pcs SFU2005 ball screw with ball nut and end processing + any length
1pcs DSG20H nut housing
1set BKBF15 end support
1pcs handwheel with outer diameter of 80mm and inner hole of 12mm
