1. Model: 69C17-A

3. Accuracy: 2.5

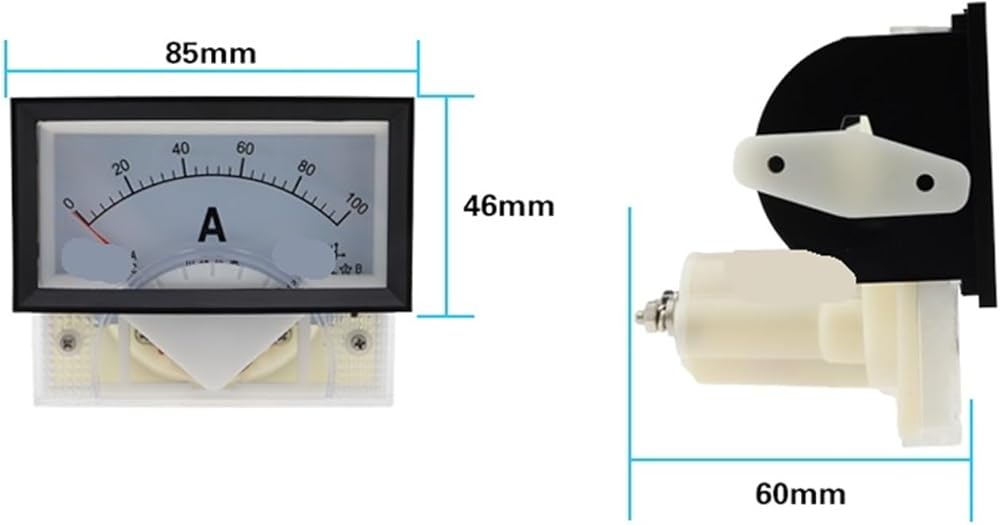

4. Dimensions: 85mm x46mm x 60 mm (length * height * width)
5.Package: 1*Analog voltage and current panel meter.

AC ammeter 0.5~50A (direct access)
5A~15KA (connected via current transformer, secondary current 5A)
AC voltmeter 5V~750V (direct access)
DC ammeter 50uA~10A (direct access)
15A~15KA (using external separation fixed value shunt)
DC voltmeter (direct access) (5V~600V)

1. Damping time is less than 4S.
2. Insulation strength: AC2000V (50HZ), 1 minute.

1. Working position: vertical.
2. The instrument should be installed firmly and must not be loose or tilted.
3. The current ratio of the external current transformer must match the calibration ratio of the instrument and the accuracy level must match.

Batteries Included: No
Size: 85X45MM
Operating temperature: -10 - +55 degrees
Supply voltage: DC
Accuracy class: 2.5
Model: 69C17
