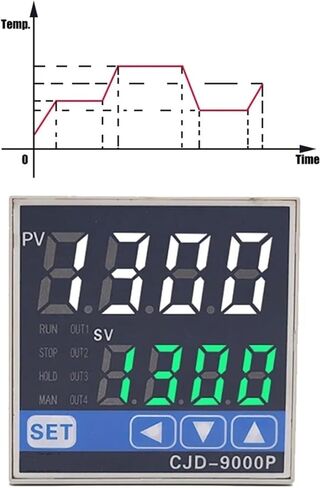

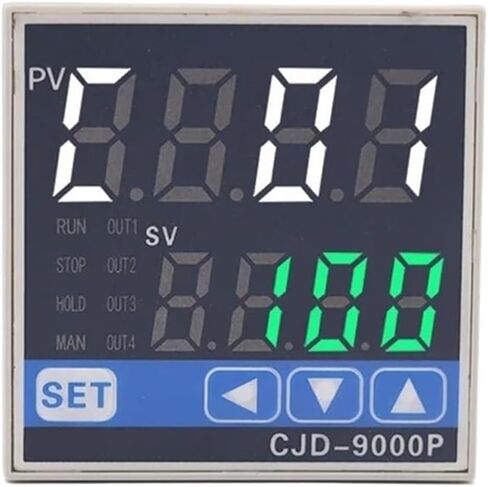

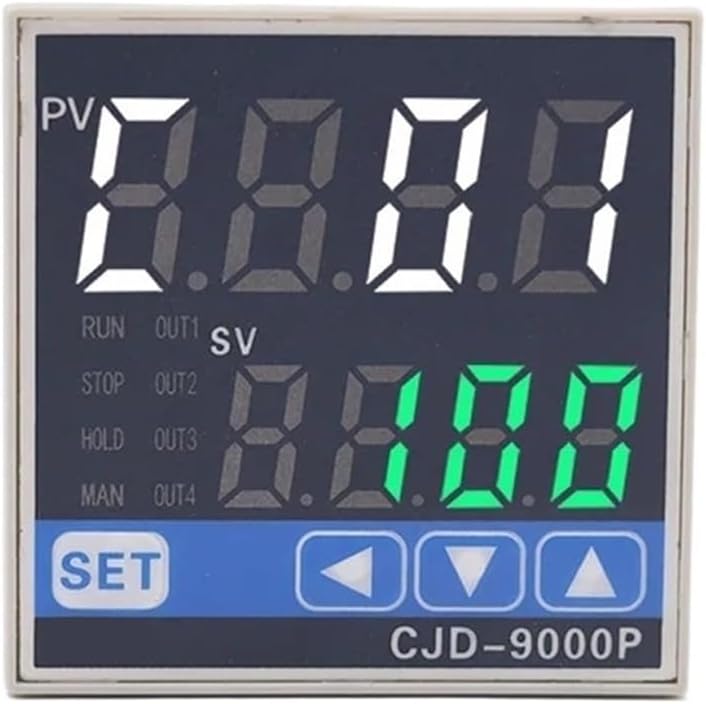

Temperature and timer 2 in 1 pid controller hold keep temperature for several minutes or hours temperature curve thermostat
Package will include:
1 pcs thermostat
1 pcs English manual
Features:
Power supply voltage: 80-260VAC.50/60Hz
Which thermocouple can be worked with this controller ?
Measure temperature range and input type default : K , 0-1300'C ( user can set measure temperature range inside)
Output: RELAY output or SSR output
Dimension of controller: 72*72*72mm
Time unit: minute / second (user can select inside)
Set time range: 0-9999
Storage curve function: User can store 4 curves at the most in controller . And can set 20 ramps at the most in one curve .
Self tuning function
Measurement value correction function
Decimal point setting function
Power-off memory function

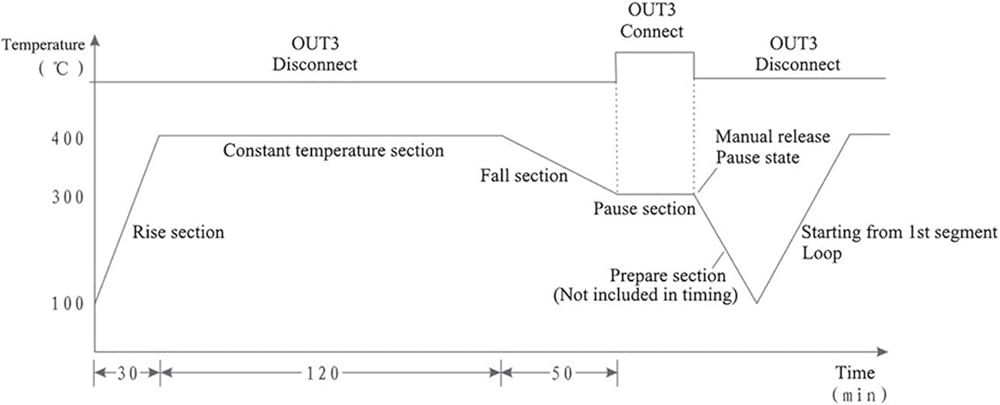

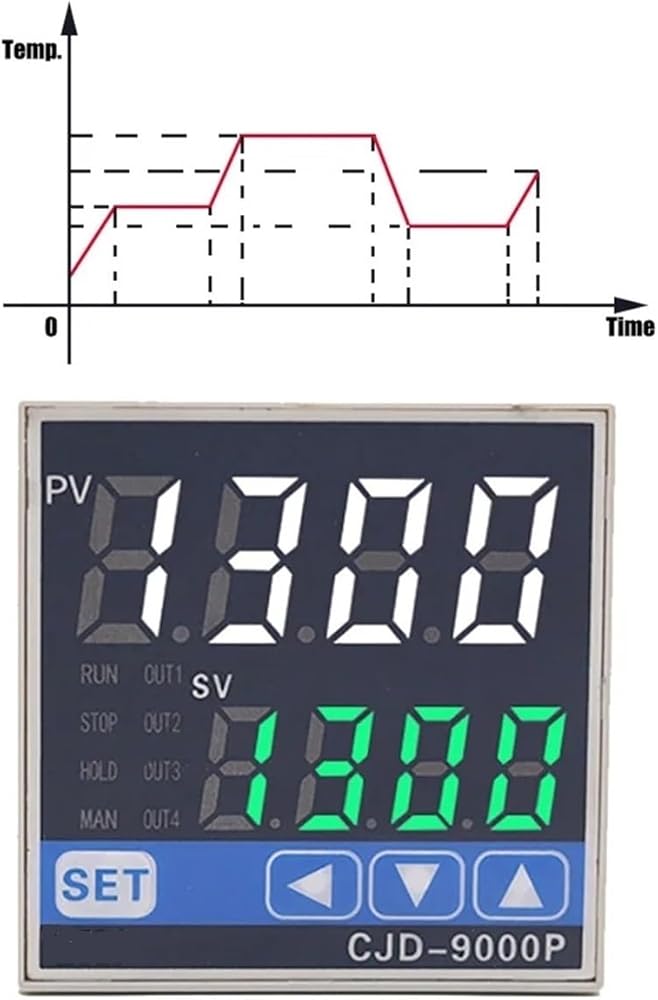

Function example:
1, Rise temperature from 100 degree to 400 degree during 30min.
2, Hold temperature on 400 degree for 120min.
3, Fall from 400 degree to 300 degree during 50min.
4, Pause , OUT3 relay action .
5, Manual release pause state
6, Prepare section
7,Start from 1st segment , loop.
How to set it ?
Segment 1 Set C 01=100 t 01=30; Linear heating starts from 100 and lasts for 30 minutes
Segment 2 Set C 02=400 t 02=120; Heat up to 400 with a heating slope of 10 /min. The constant temperature time is 120 minutes
Segment 3 Set C 03=400 t 03=50; Cooling stage, cooling time of 50 minutes, cooling slope of 2 /min
Segment 4 Set C 04=300 t 04= -200; Cool down to 300 , turn on switch OUT3 and enter pause mode
Segment 5 Set C 05=300 t 05= -501; The operator executes the operation and jumps to the first segment of operation, while closing OUT3
Wiring examples:

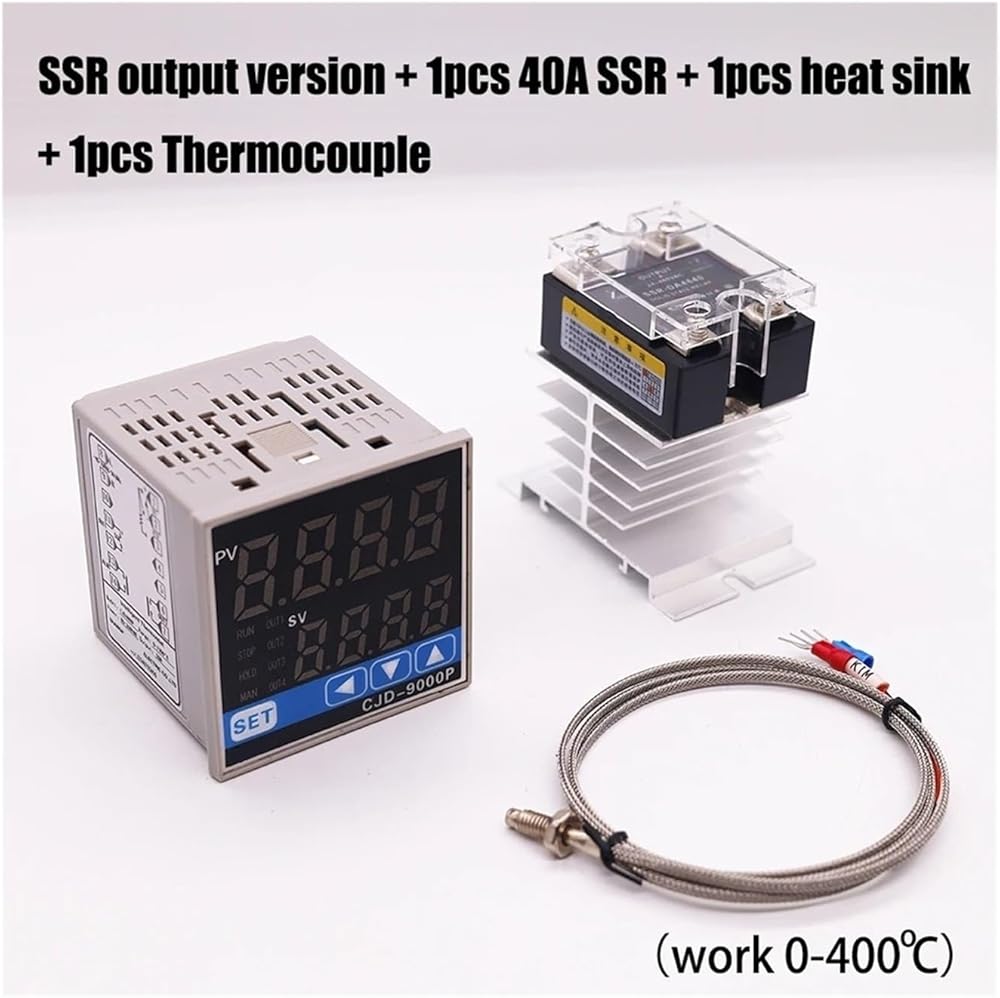

SSR output version should work with DC-AC SSR:
Wring example:
RELAY output version should work with Intermediate relay or AC contactor:

==========
Usage : Indoor
