45pcs 2.54mm 0.1 "Pitch Mini Mini Mount Mount Terminal Block Concector 2P 3P 4P 5P 6P 8P 8P 150V 6A متوافق 26-18AWG لمشاريع Arduino و Home Electronics in Kuwait 45pcs 2.54mm 0.1 "Pitch Mini Mini Mount Mount Terminal Block Concector 2P 3P 4P 5P 6P 8P 8P 150V 6A متوافق 26-18AWG لمشاريع Arduino و Home Electronics in Kuwait 45pcs 2.54mm 0.1 "Pitch Mini Mini Mount Mount Terminal Block Concector 2P 3P 4P 5P 6P 8P 8P 150V 6A متوافق 26-18AWG لمشاريع Arduino و Home Electronics in Kuwait 45pcs 2.54mm 0.1 "Pitch Mini Mini Mount Mount Terminal Block Concector 2P 3P 4P 5P 6P 8P 8P 150V 6A متوافق 26-18AWG لمشاريع Arduino و Home Electronics in Kuwait 45pcs 2.54mm 0.1 "Pitch Mini Mini Mount Mount Terminal Block Concector 2P 3P 4P 5P 6P 8P 8P 150V 6A متوافق 26-18AWG لمشاريع Arduino و Home Electronics in Kuwait

50

KWD 7
عدد العناصر50
– 1 +

مميزات خاصة

  • Save more space: The 2.54mm(0.1") pitch mini connector is ideal for standard breadboards because it takes up half as much space. 5mm pitch connectors waste sianificant space on breadboards/protoboards
  • Great addition for Electronics: Including 2P 3P 4P 5P 6P 8P, More types great addition to Electronics Laboratory Bench.
  • Quick Connection: Screw Terminal on header provide secure connection and quick disconnection.

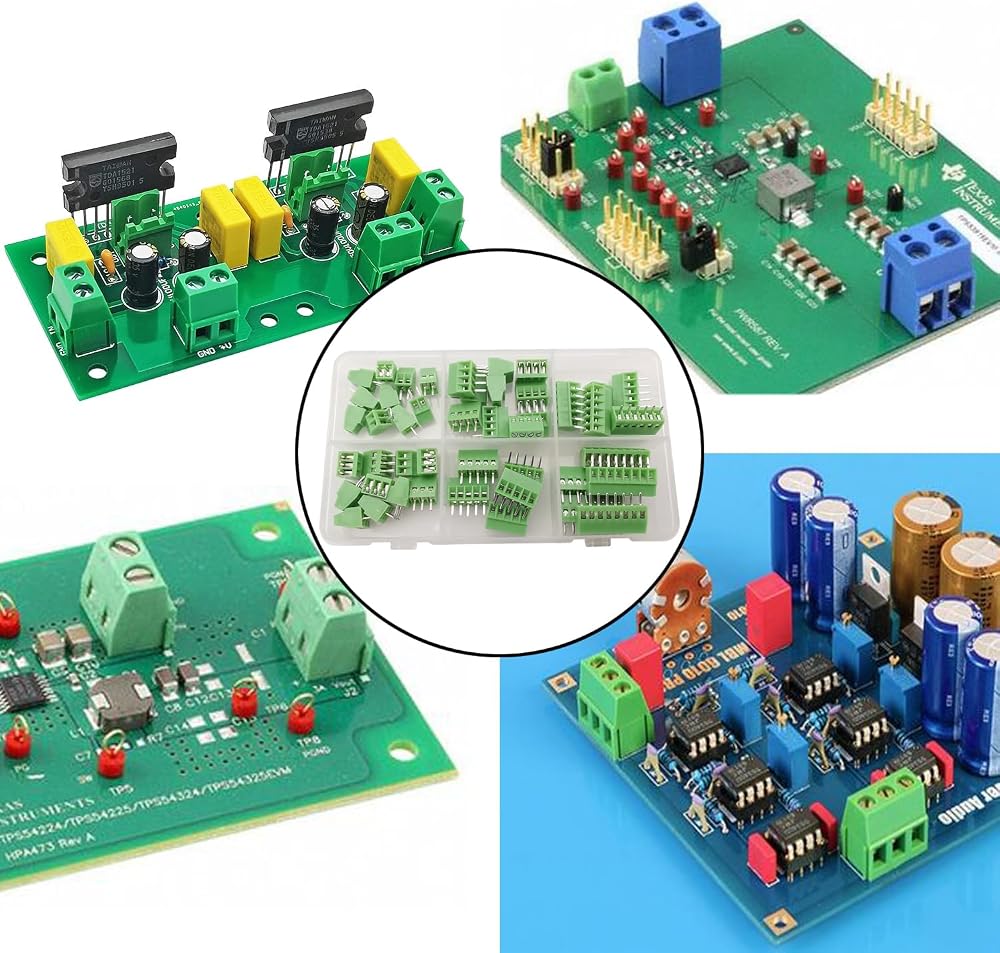

  • Applications: Suited for breadboards speakers and any other device that uses a 2.54mm/0.1in header connector.

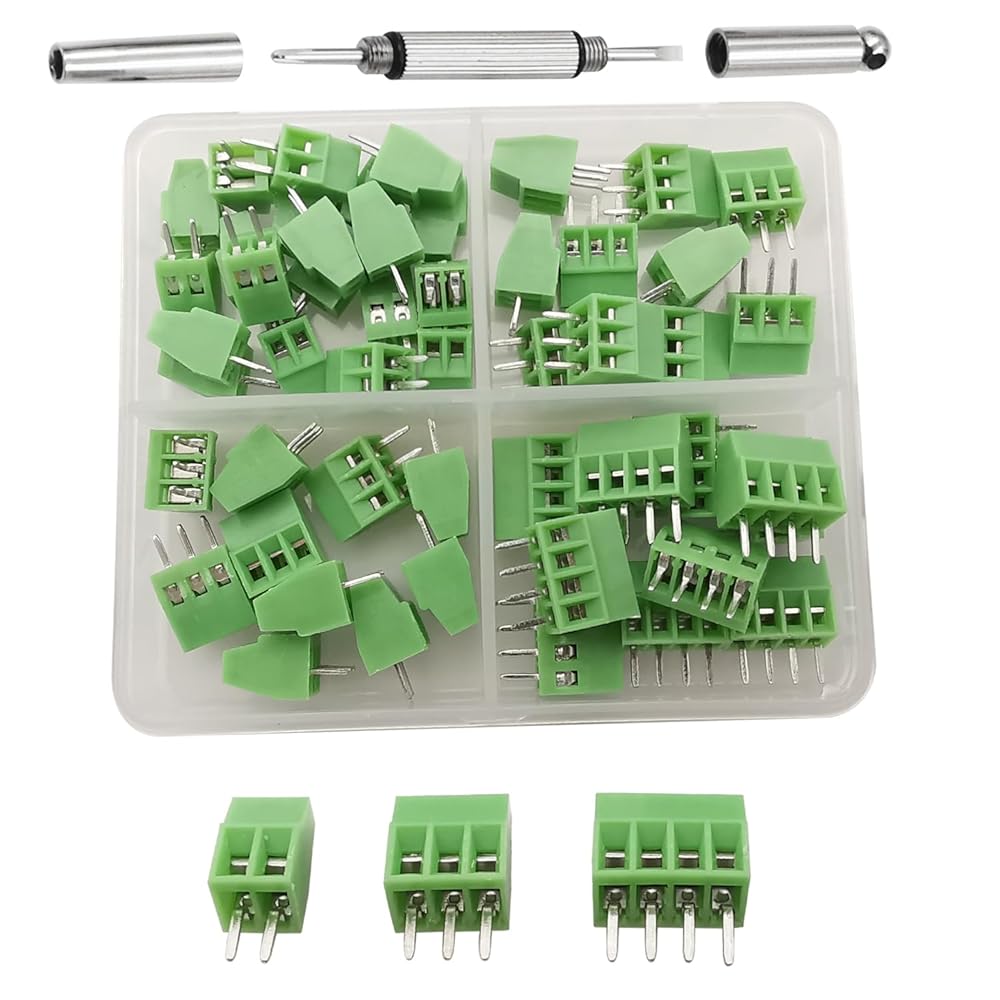

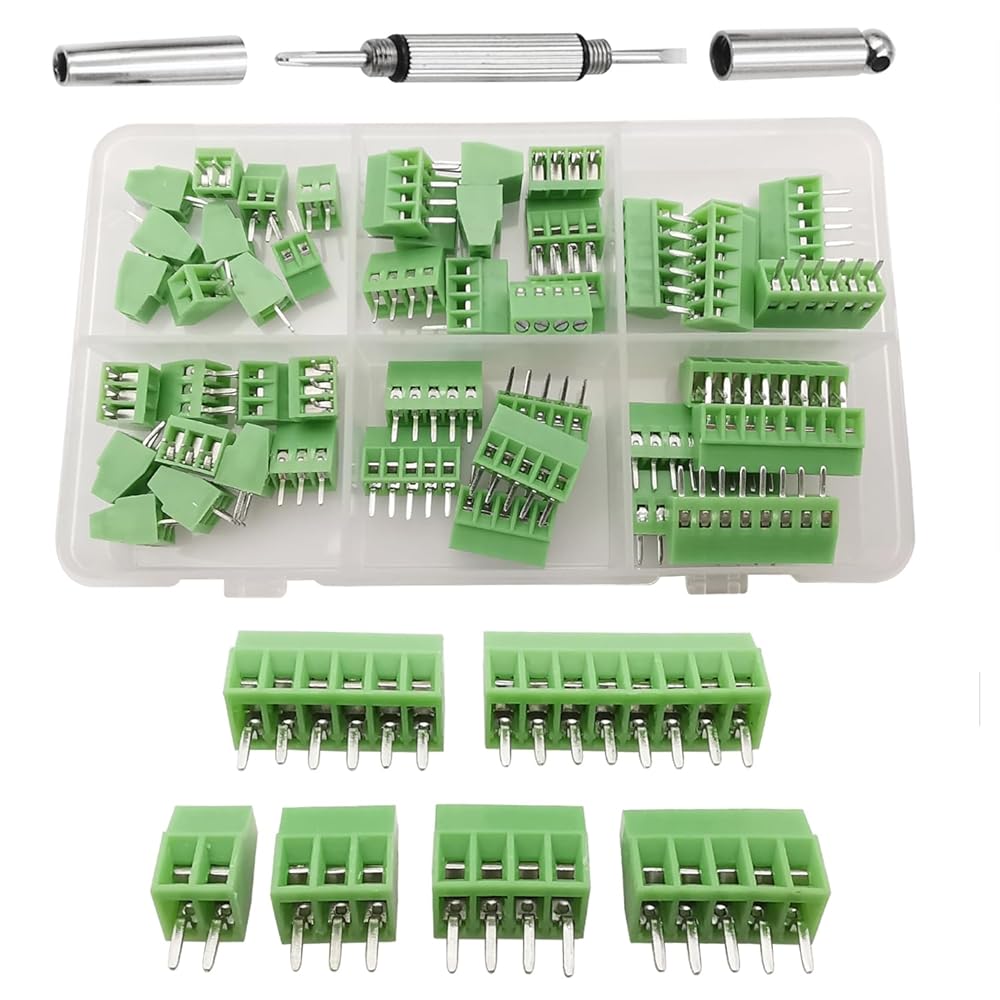

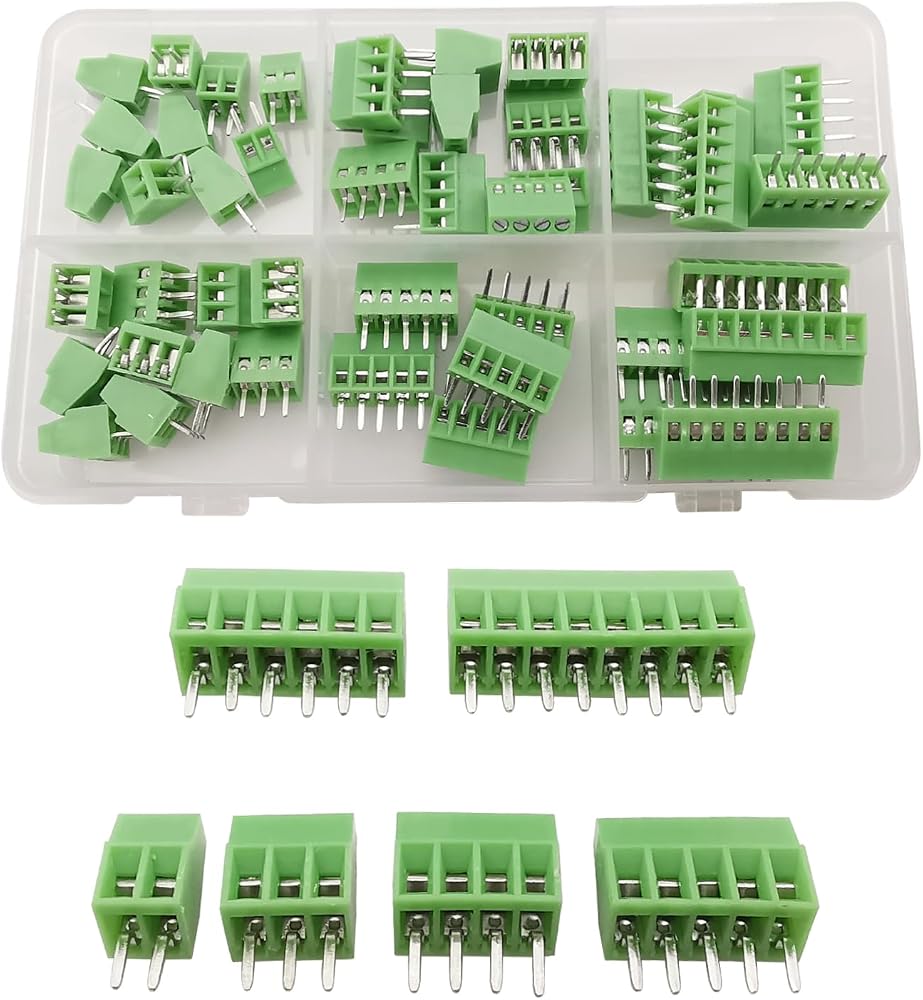

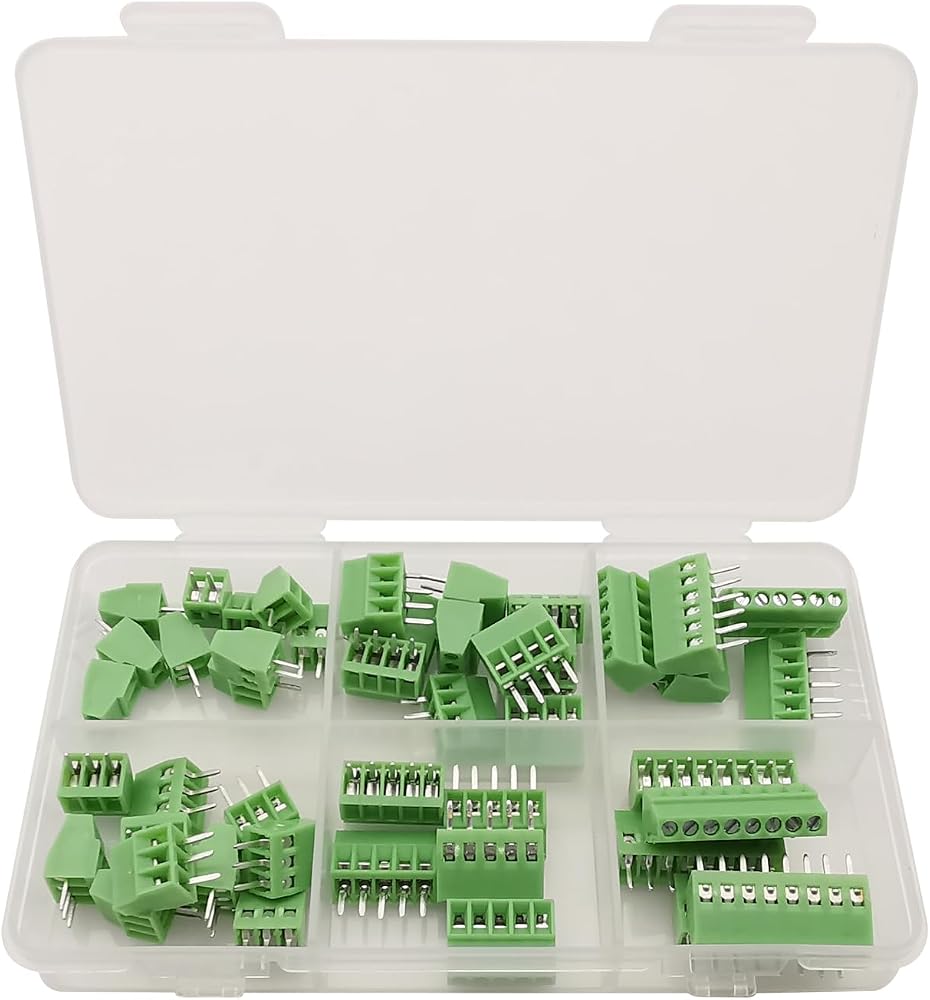

  • Package includes:45pcs 0.1" Pitch PCB Mount Screw Terminal Block Connector，2 Pins（10pcs） 3Pins（10pcs） 4Pins（10pcs） 5Pins（5pcs） 6Pin(5pcs) 8Pin(5pcs)

وصف

Specifications:
Pitch: 2.54mm/0.1”
PIN: 2P, 3P, 4P, 5P, 6P, 8P
Pin Header: Brass, Tin plated
Screw: M1.6, steel, tin plated
Clips: Stainless Steel
Housing: PA66, UL94V-0
Rated Voltage: 150V
Rated Current: 6A
Withstanding Voltage: AC 1250V/ 1Min
Wire Range: 26-18AWG(UL)
Wire Range: 1mm2(IEC)
Temperature Range: -40° ~ +105°
Stripping length: 5-6mm
Maximum tightening torque: 0.1Nm(0.88lb-in)

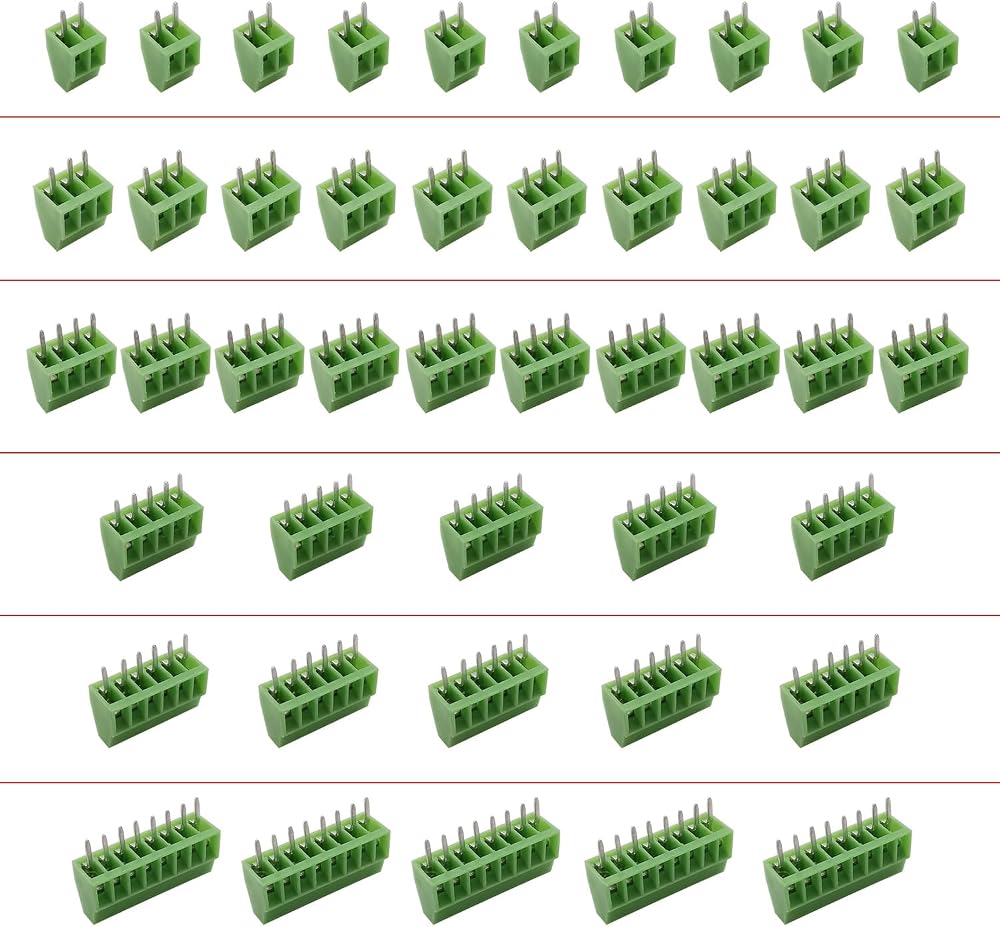

Package List:
10PCS 2P Terminal Block
10PCS 3P Terminal Block
10PCS 4P Terminal Block
5PCS 5P Terminal Block
5PCS 6P Terminal Block
5PCS 8P Terminal Block
1PCS plastic box
