YFYIQI Shot Blasting Sand Blasting Profile Meter Anchor Pattern Tester with Measuring Range 0 to 2000μm Accuracy ±2μm Metric/Inch Two Units Changeable

Overview:

The Surface Profile Gauge are generally refers to the instrument for detecting roughness. The instrument is simple to use and measures the height of the peak to the bottom of the sprayed surface. It can also measure the depth of c-o-r-r-o-s-i-o-n pits and cracks.

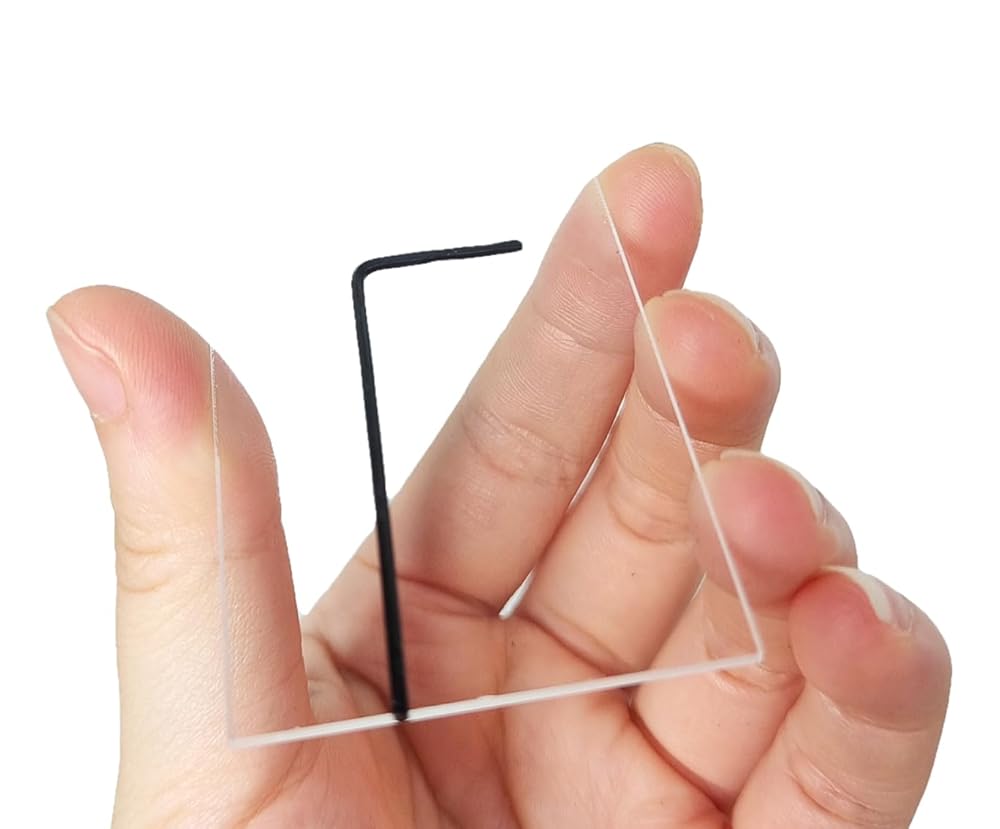

A zero calibration block is provided. The correct and effective pre-treatment of the surface of the substrate before coating is very important. If the roughness is too low, it will reduce the adhesion of the surface coating, and if it is too high the surface peaks will leave uncoated areas and cause rust, so measuring the roughness of the substrate becomes an indispensable part before pre-treatment the sample to ensure the correct roughness. The 0918 Surface Profile meter (sand blast meter) is used to assess whether the painting requirements are met. The first choice for this type of measurement supervision and acceptance.

Specification:

Comply with ISO8503, ASTMD4417-B, IMO MSC.215(82), SANS5772,US Navy NSI 009-32, US Navy PPI 63101-000 standard

Only need a very small measuring area

Range: 0～2000μm (0-6500μm adjustable)

Accuracy: ±2μm

Metric/Inch change freely

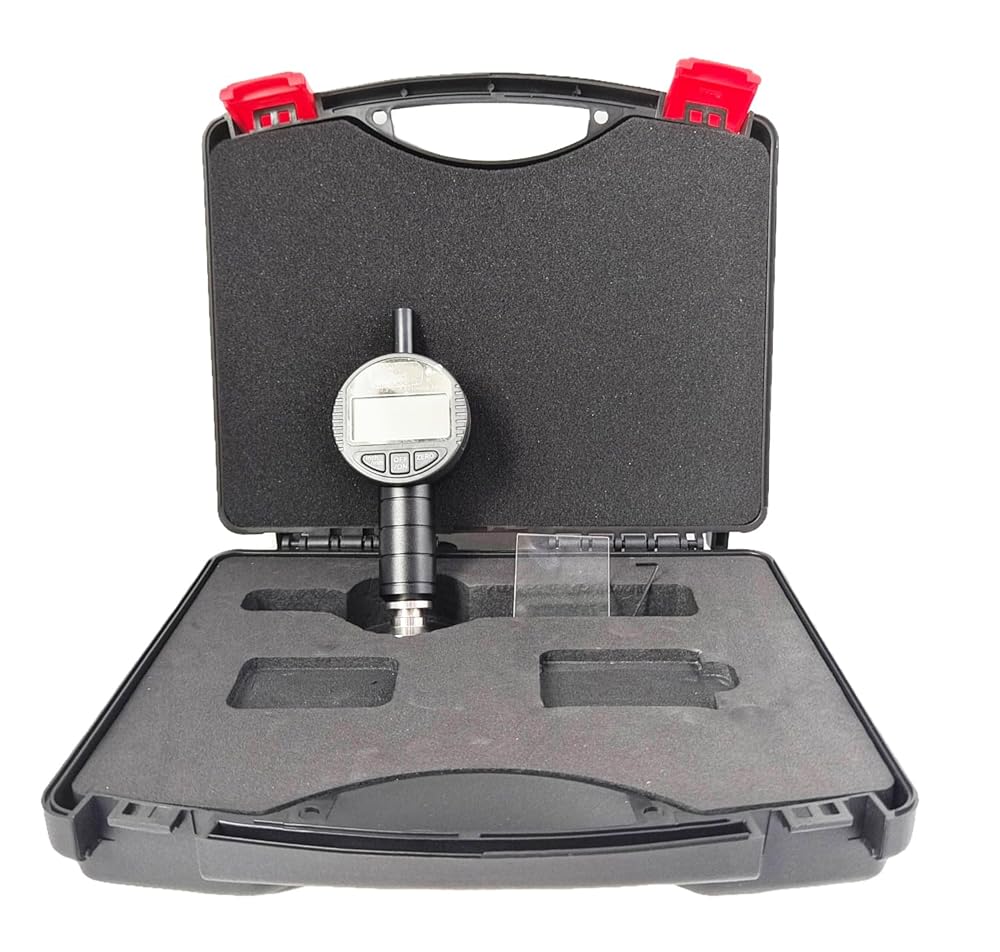

Standard Package:Host 1pc; Calibration piece 1pc; Allen wrench 1pc; Battery 2pc, Screwdriver 1pc, Packing box 1pc.
