1 قطعة 2 وحدة 15 أسنان اليسار التروس الحلزوني 45 درجة 45# فولاذ متداخلة العتاد متداخلة ثقب Keyway (14 مم Bore 5) in Kuwait 1 قطعة 2 وحدة 15 أسنان اليسار التروس الحلزوني 45 درجة 45# فولاذ متداخلة العتاد متداخلة ثقب Keyway (14 مم Bore 5) in Kuwait 1 قطعة 2 وحدة 15 أسنان اليسار التروس الحلزوني 45 درجة 45# فولاذ متداخلة العتاد متداخلة ثقب Keyway (14 مم Bore 5) in Kuwait 1 قطعة 2 وحدة 15 أسنان اليسار التروس الحلزوني 45 درجة 45# فولاذ متداخلة العتاد متداخلة ثقب Keyway (14 مم Bore 5) in Kuwait

12 مم keyway تتحمل 4 15 أسنان

KWD 9
ماركة
ZMYMXJC
وزن
251 g
اللون12 مم keyway تتحمل 4
مقاس15 أسنان
– 1 +

مميزات خاصة

  • Precision Engineered Helical Design Featuring a 2-module, 15-tooth configuration and a 45-degree left-hand helix angle, this gear features a staggered, staggered structure for smooth, efficient power transmission in non-parallel or crossed-axis setups. Its optimized tooth shape minimizes backlash and ensures stable motion transfer.
  • Heavy Duty 45# Steel Construction The gear is made of 45# carbon steel and is high frequency quenched for excellent hardness and wear resistance. The rugged material can withstand high torque and harsh industrial environments for long-term reliability.
  • Universal and easy-mount features a keyway bore that integrates seamlessly into standard shafts for quick installation.
  • Quiet, low-vibration performance The helical gear geometry reduces operating noise and vibration, making it ideal for noise-sensitive systems such as precision instruments and automated production lines. Its balanced design improves overall mechanical efficiency.
  • Various industrial applications Suitable for power transmission in industrial machinery, automotive systems, etc.

وصف

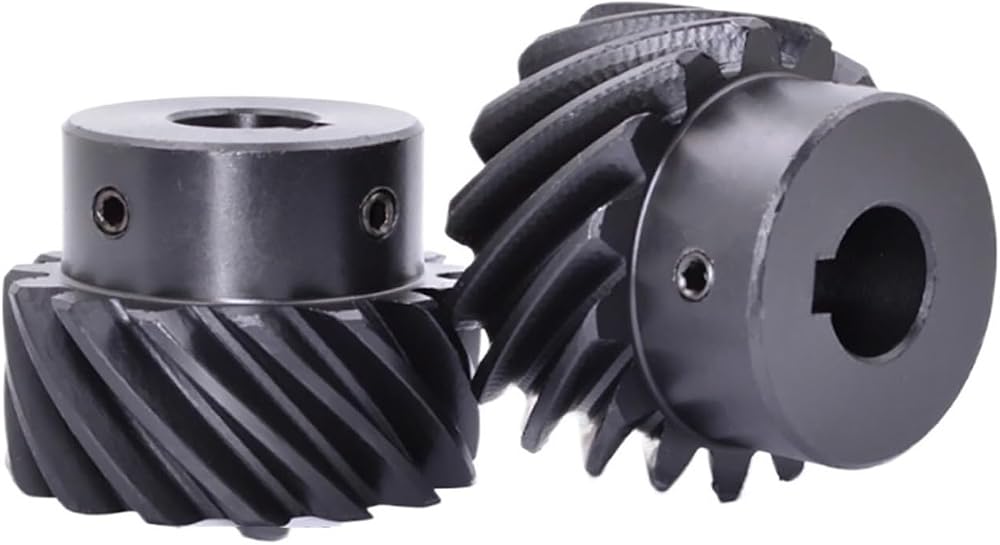

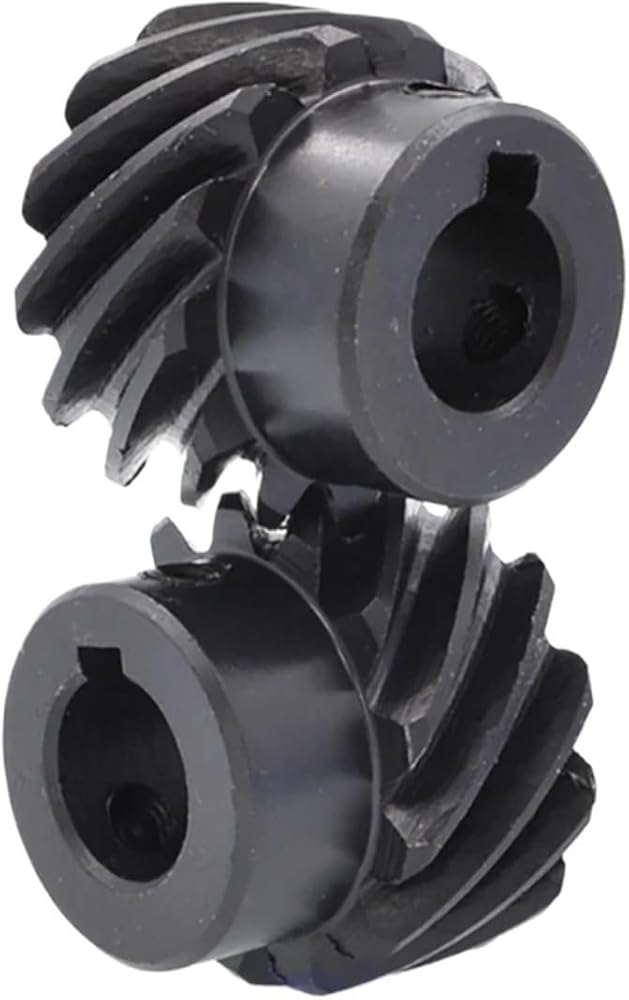

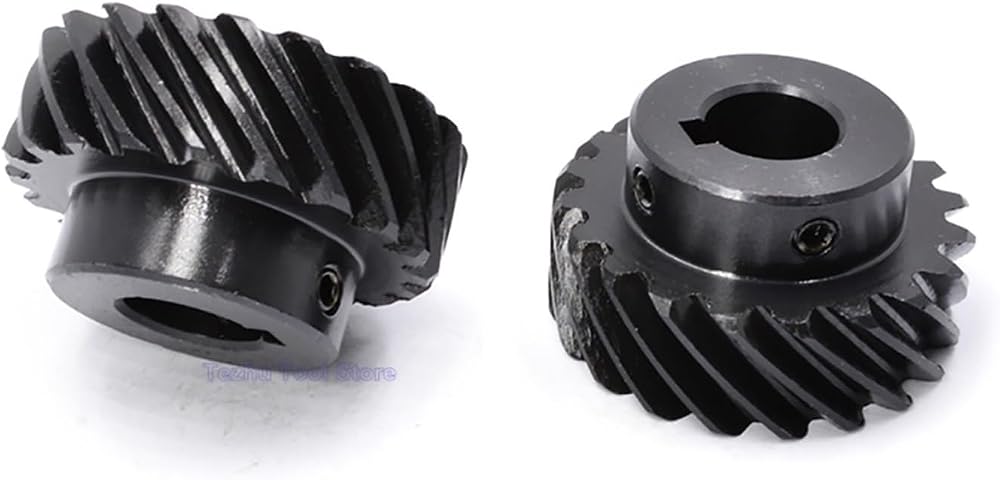

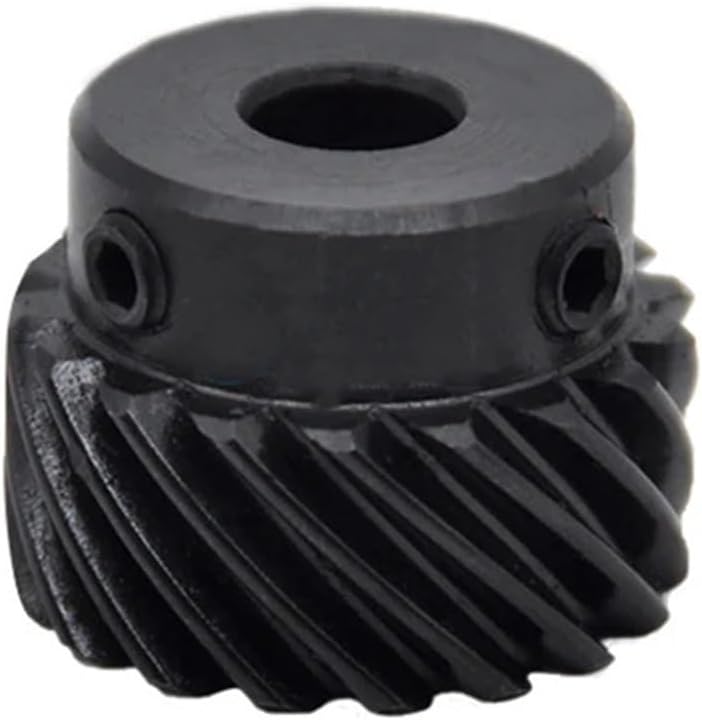

1 piece 2 module 15 teeth left helical gear 45 degrees 45# steel staggered staggered gear keyway hole
Name: Left-hand helical gear
Material: 45# steel
Model:2Module
Teeth: 15
Helix angle: 45 degrees
Aperture: Bore and keyway bore
For example: 19mm keyway hole 6, means hole diameter = 19mm, keyway hole diameter = 6mm.
Direction: Left hand
Processing method: gear hobbing
Model: 2M 15 teeth
Tooth shape: helical gear
Material: Steel
