مميزات خاصة

High Definition Resolution: The SPI serial screen display module comes with a 480x320 HD resolution and an ILI9488 driver for sharp visuals
Serial Interface Advantage: The module uses a serial peripheral interface needing only a few IO to light up the screen
Memory Card Slot: The TFT LCD screen has a memory card slot for easy experiment expansion and comes with many sample programs
Practical Functionality: The SPI serial LCD screen can perform other display functions via signal transmission lines
Energy Saving Design: The TFT LCD display module is compatible with 3.3 to 5V working voltage for low energy consumption

وصف

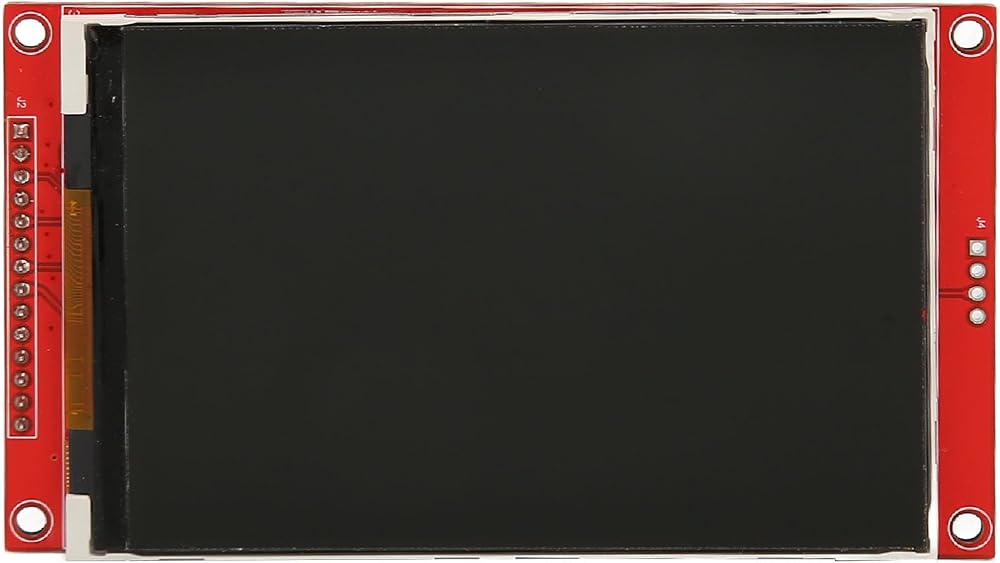

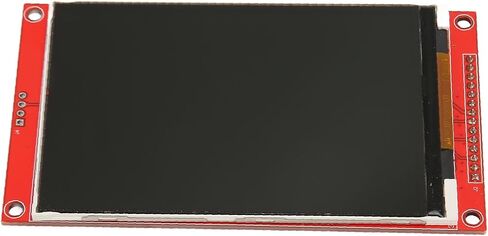

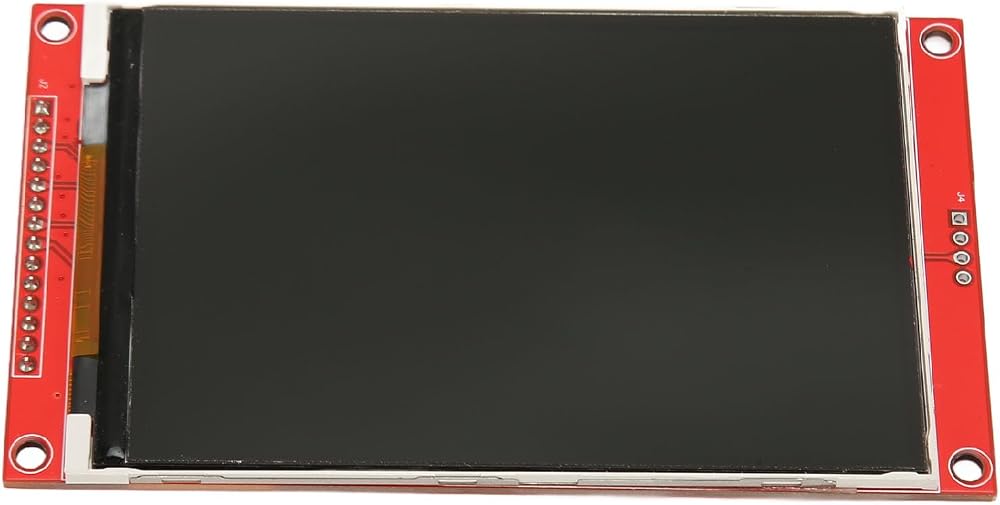

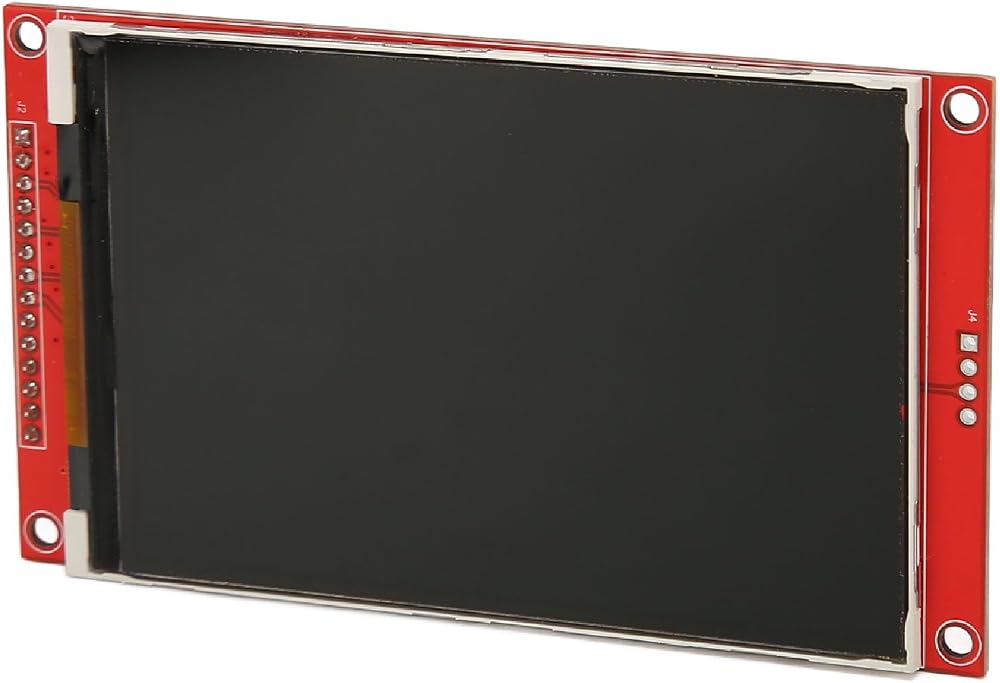

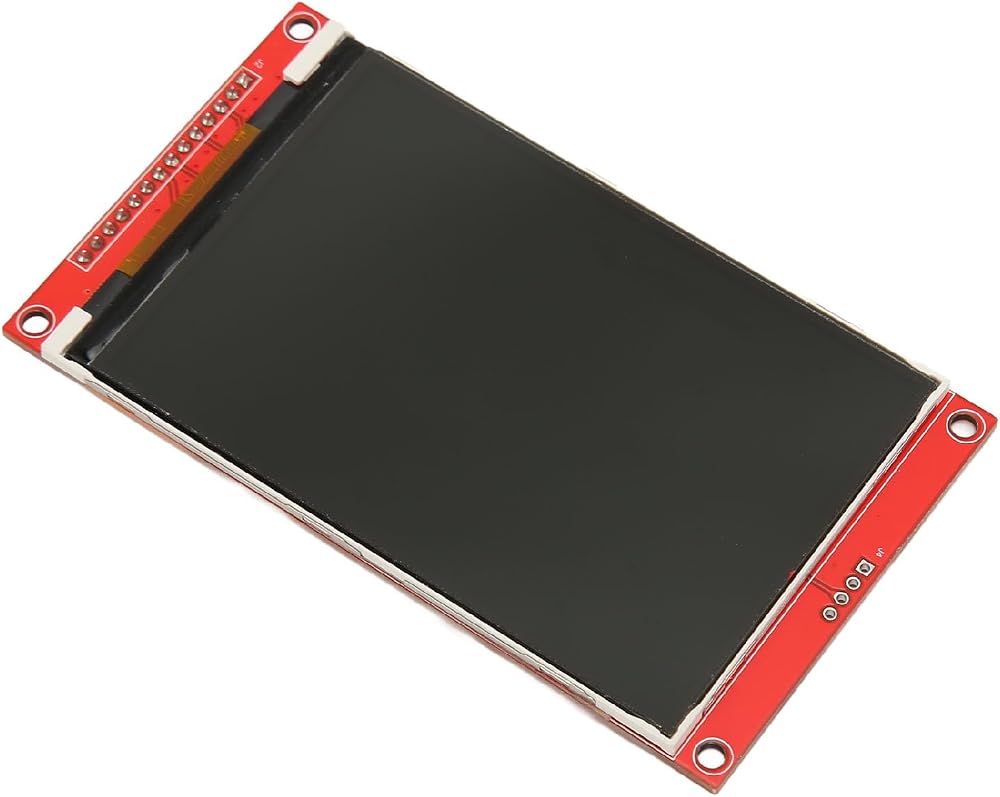

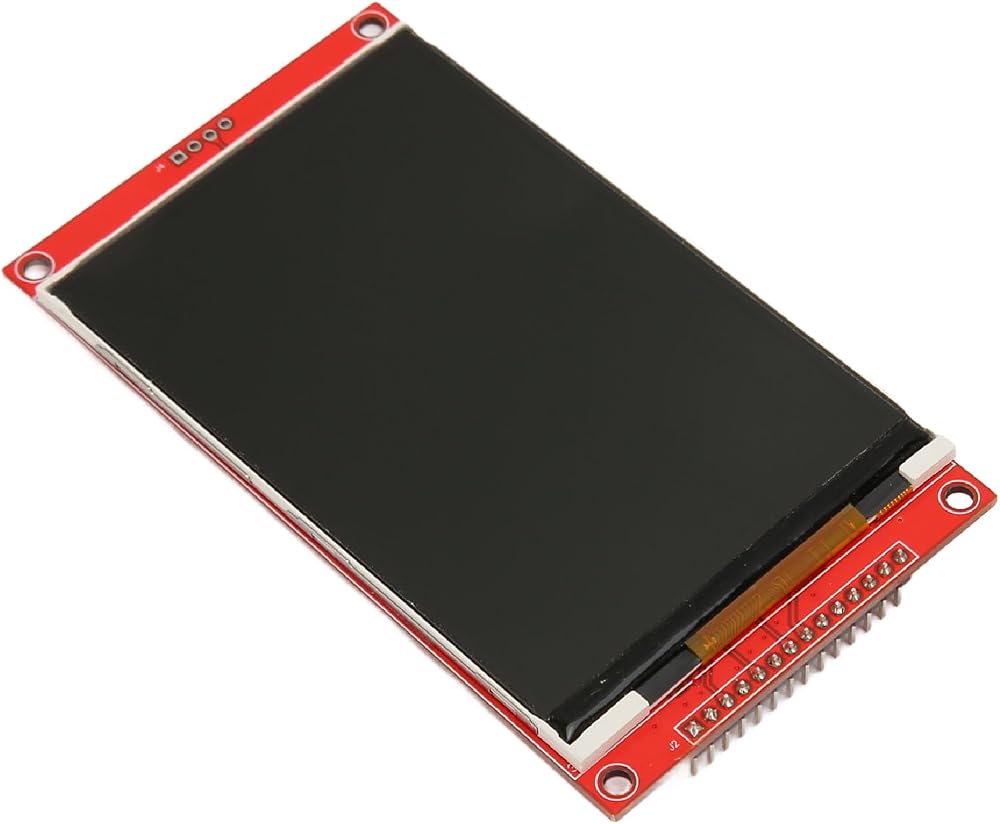

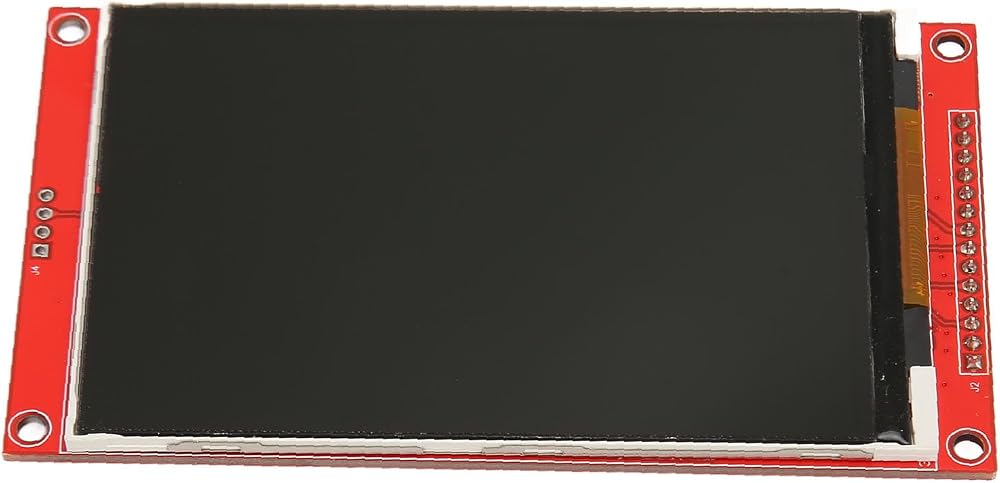

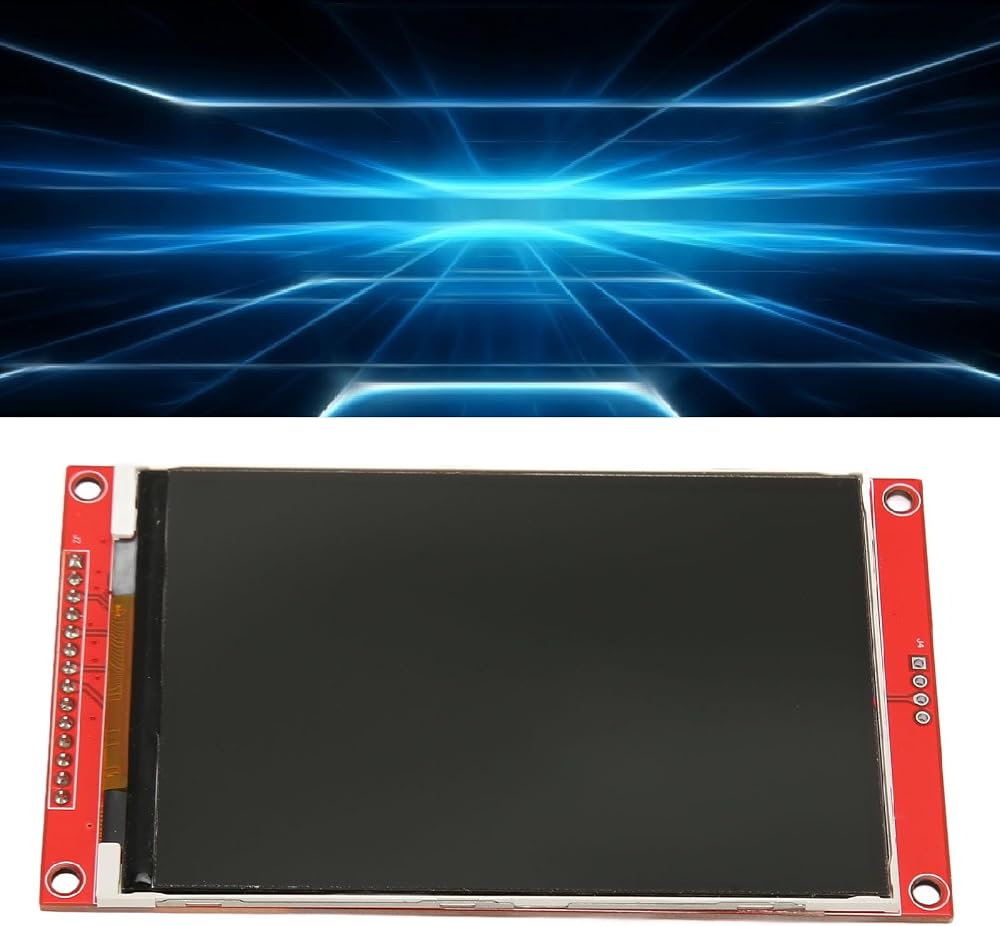

Item Type: 4 Inch SPI TFT LCD Display Module
Material: TFT
Resolution: 480x320

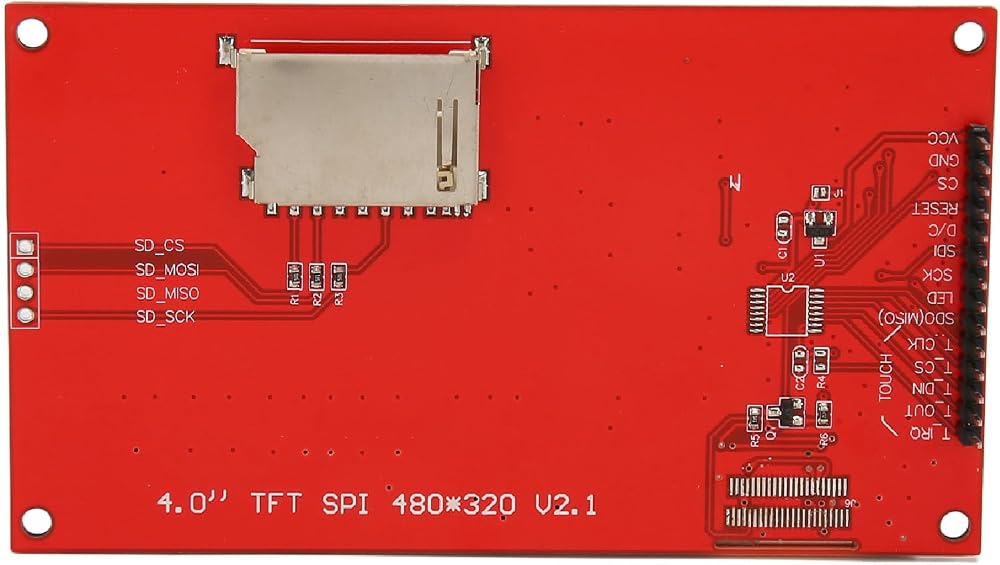

Marker:
VCC: Power Input (3.3V to 5V)
GND: Power Ground
CS: LCD Chip Select
RESET: LCD Reset
D/C: LCD Bus Command/Data Selection
SDI (MOSI): LCD SPI Display Bus Data Input
SCK: LCD SPI Display Bus Clock Signal
LED: LCD Backlight Command(High Level Light)
SDO(MISO): LCD SPI Display Bus Data Input and Output
T CLK: TSPI Bus Clock Signal
T CS: SPI Bus Chip Selection
T DIN: SPI Bus Data Input
T DO: SPI Bus Data Output
T IRQ: Interrupt IRQ Signal

Package List：
1 x

4 Inch SPI TFT LCD Display Module
