بيت / PHTJALIF / مهاوي
محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v) in Kuwait

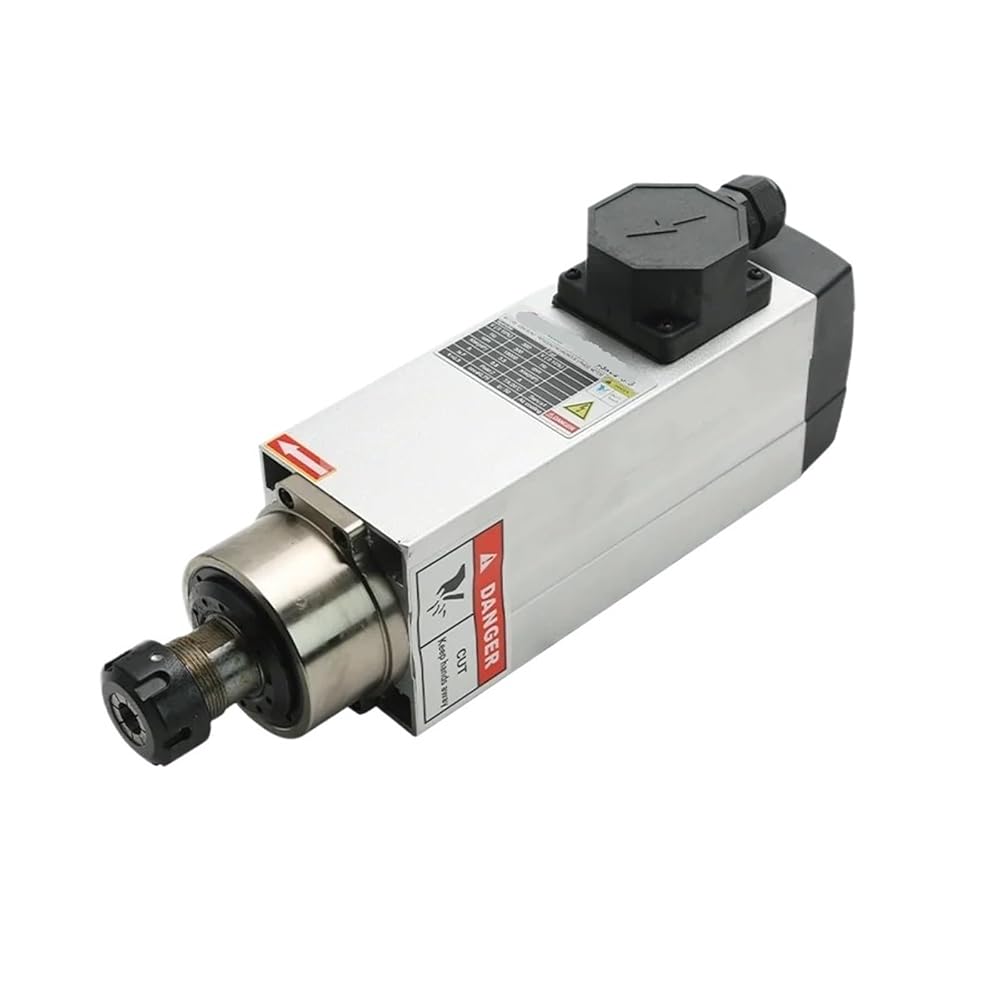

محرك المغزل المبرد بالهواء 3.5kw ER25 220V 380V (3.5kw 220v)

KWD 336.500
ماركة
PHTJALIF
فئة
مهاوي
وزن
162 g
مقاس3.5kw 220v
– 1 +

مميزات خاصة

  • Rotary Shafts

وصف

Rotary Shafts

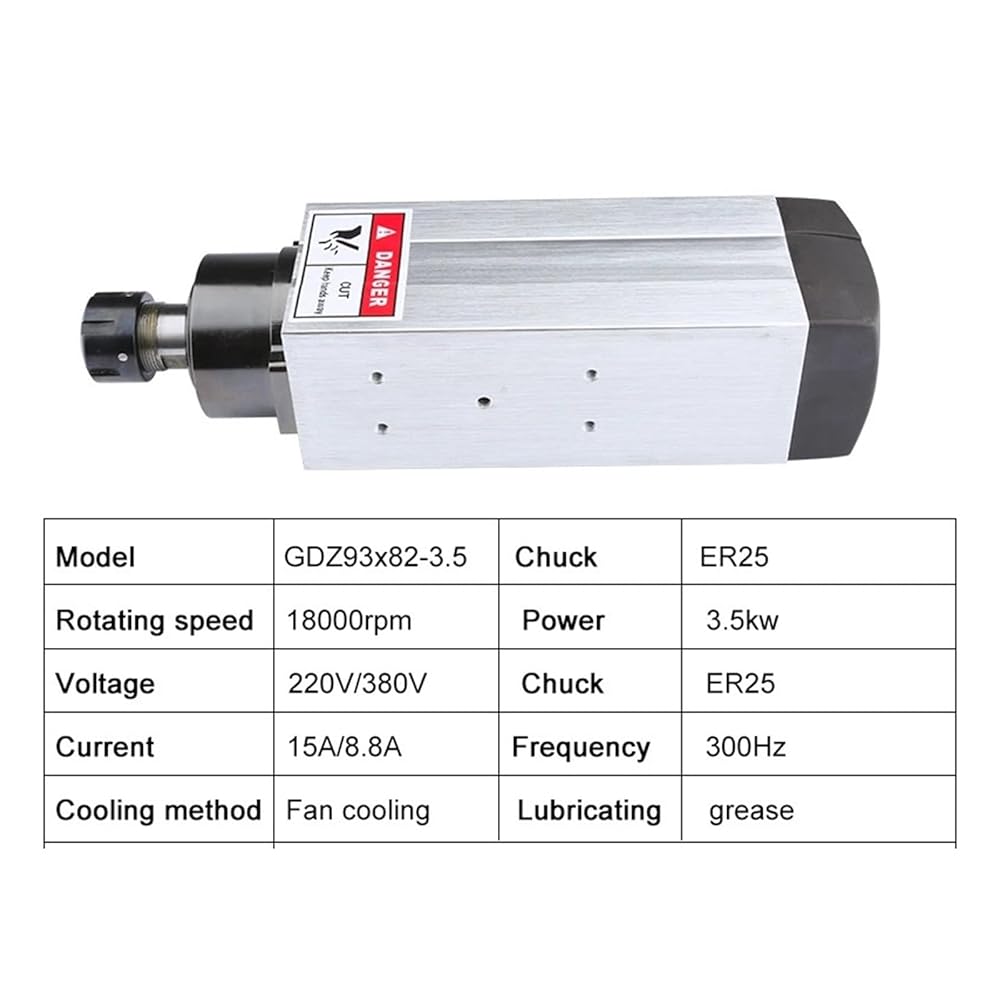

Model: GDZ93-82-3.5
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling

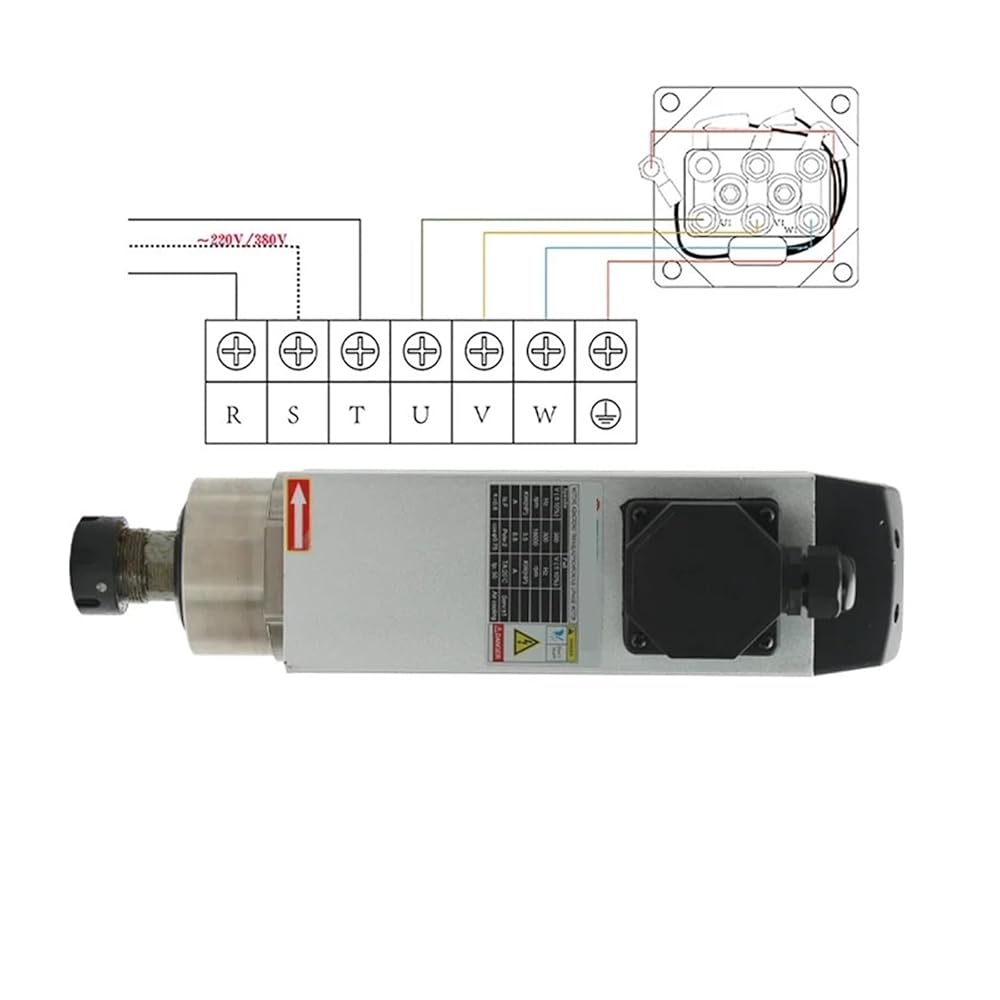

Power interface: An optional 5-pin waterproof aviation plug is available. The aviation plug is marked with "1," "2," "3," "4," "5," and "GND." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "GND" to the inverter ground.
Power: 3.5kw (1HP=0.735w)
Voltage: 220V/380V
Current: 15A/8.8A
Frequency: 300Hz
Speed: 18000rpm
Jump: less than 0.01mm
Shaft end connection: ER25
Bearing type: 2*7007C P4, 2*7002C P4 (4 ball bearings)
