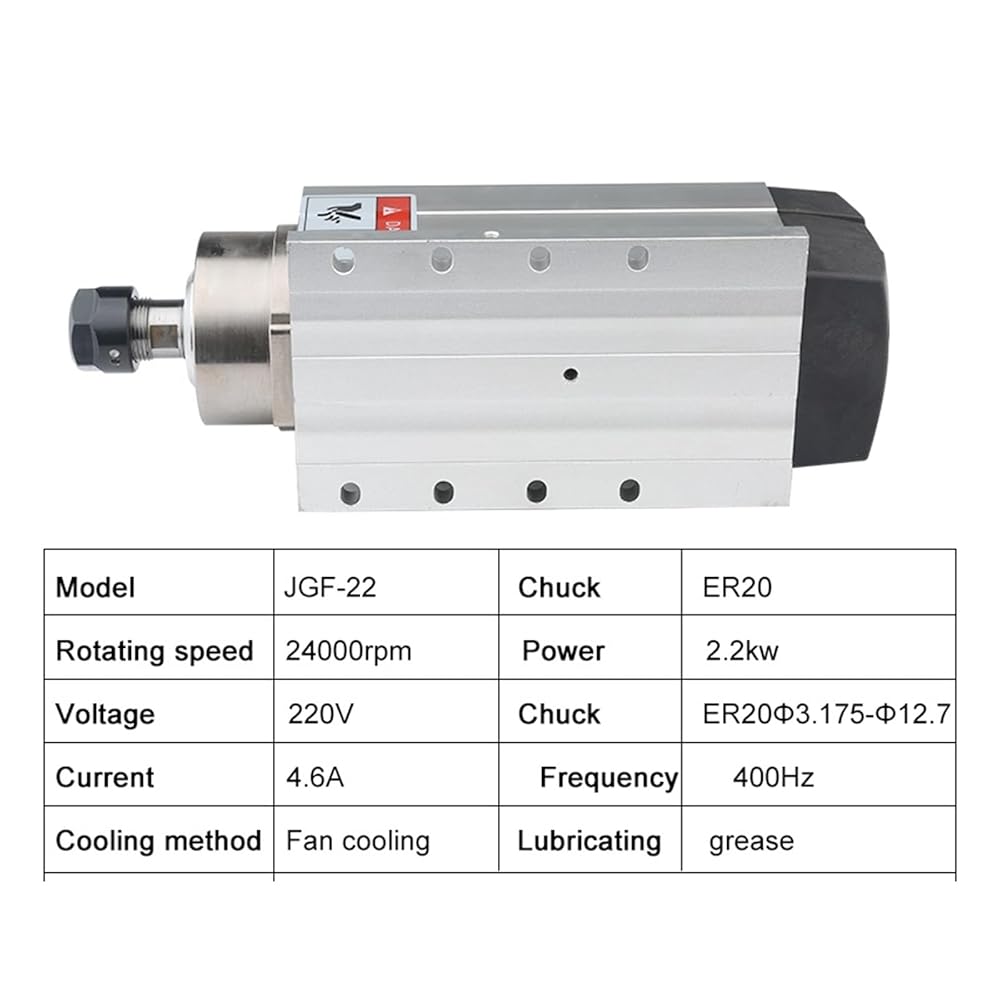

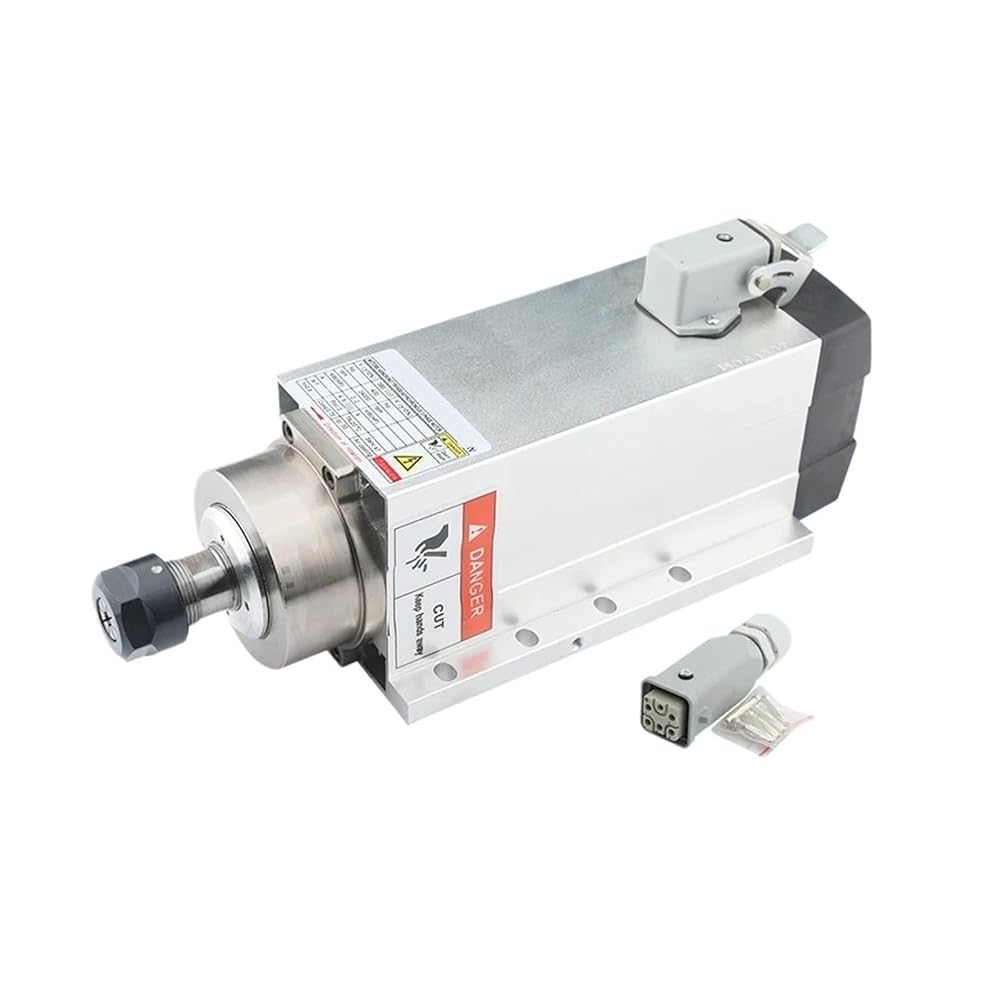

1PC 220v 2.2kw ER20 air-cooled spindle motor mounting flange 4 bearings

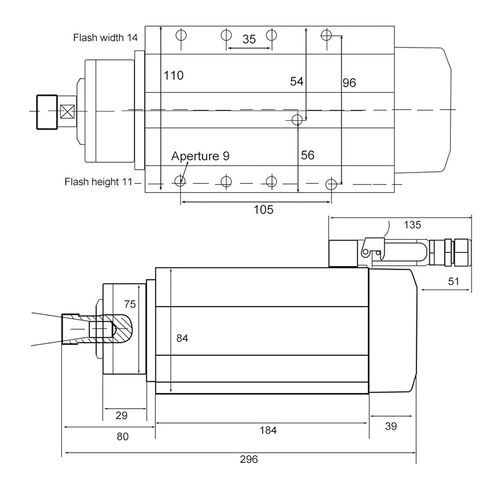

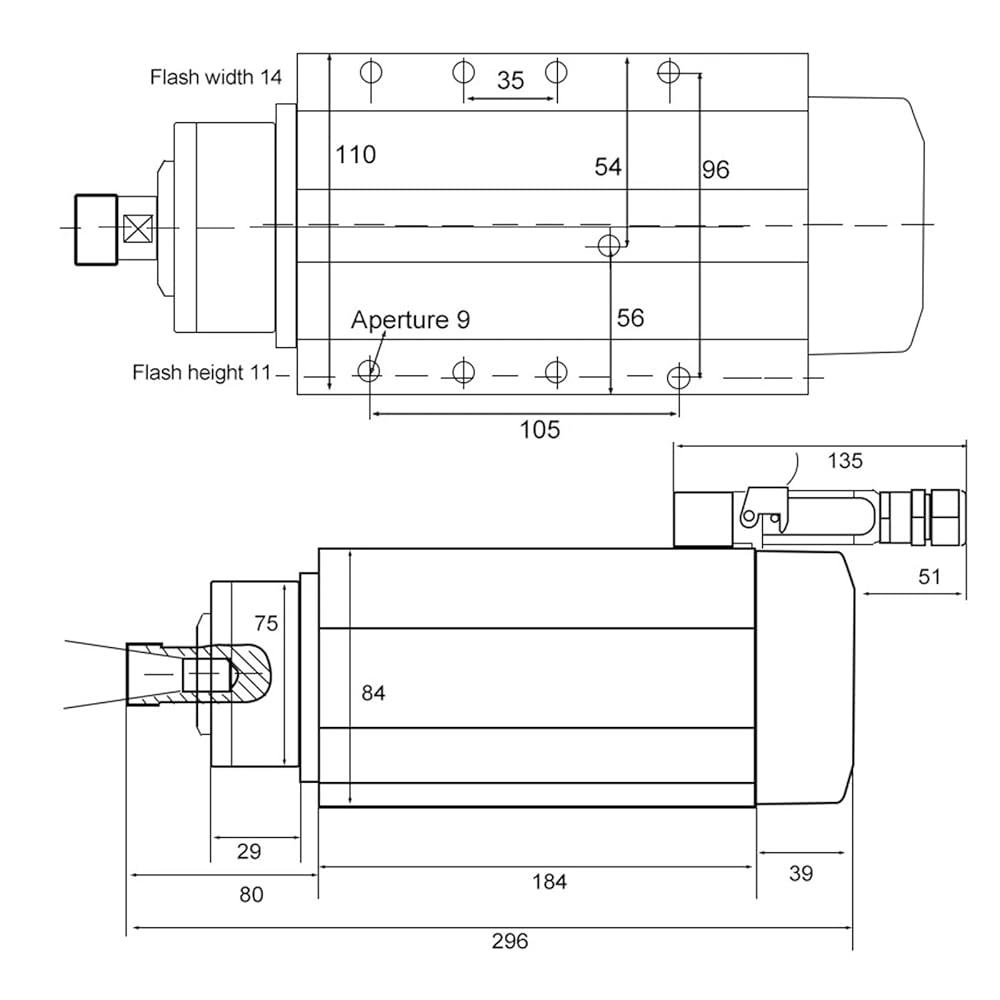

Dimensions: 184x84x82mm
Speed regulation method: Through the three-phase output inverter, adjust the frequency of the inverter to change the spindle speed.
Cooling method: air cooling

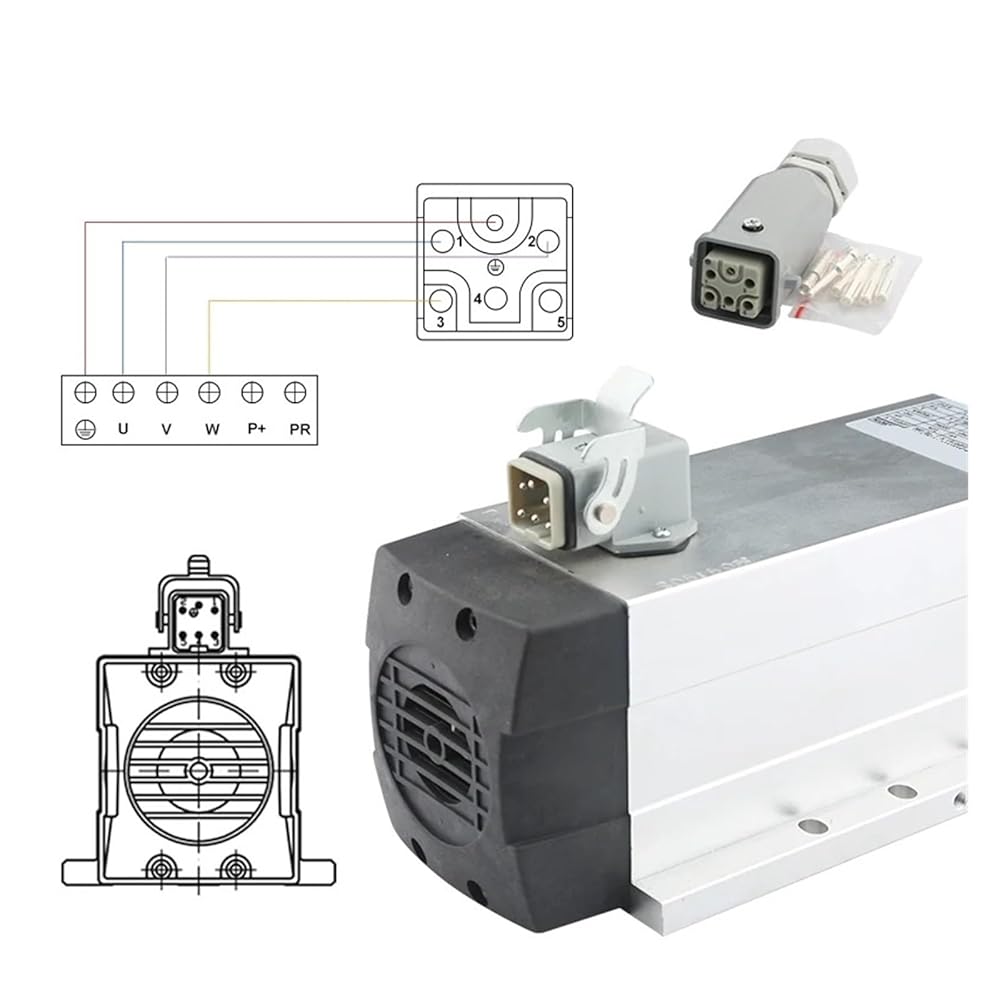

Power interface: An optional 5-pin waterproof aviation plug is available. The aviation plug is marked with "1," "2," "3," "4," "5," and "GND." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "GND" to the inverter ground.
Power: 2.2kw (1HP=0.735w)
Current: 4.6A
Frequency: 0-400Hz
Speed: 0-24000rpm
Jump: less than 0.01mm
Bearing type: 4 ball bearings
Chuck: ER20
Clamping tool diameter: 13mm, 12.7mm, 12mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3.0mm, 2.5mm, 2mm, 1.5mm, 1mm
