Power Supplies
15V 30V 60V 100V 150V 2A 3A 5A 10A adjustable switch laboratory power supply
Voltage: 0.1%+5mV
Electric current: 0.01%+3mA
Load effect
Voltage: 0.1%+5mV
Electric current: 0.01%+5-20mA
Ripple
Voltage: 10-20mVrms
Electric current: 10mArms
display resolution
Voltage: 10mV
Electric current: 10mA
Resolution of readback value
Voltage: 10mV
Electric current: 10mA
Operating environment
Indoor use
Elevation: 2000m
Ambient temperature: -10--40
Relative humidity: 80%
Storage environment
Ambient temperature: -20--80
Relative humidity: 80%
Power input: AC220V±10%,50/60Hz
Size

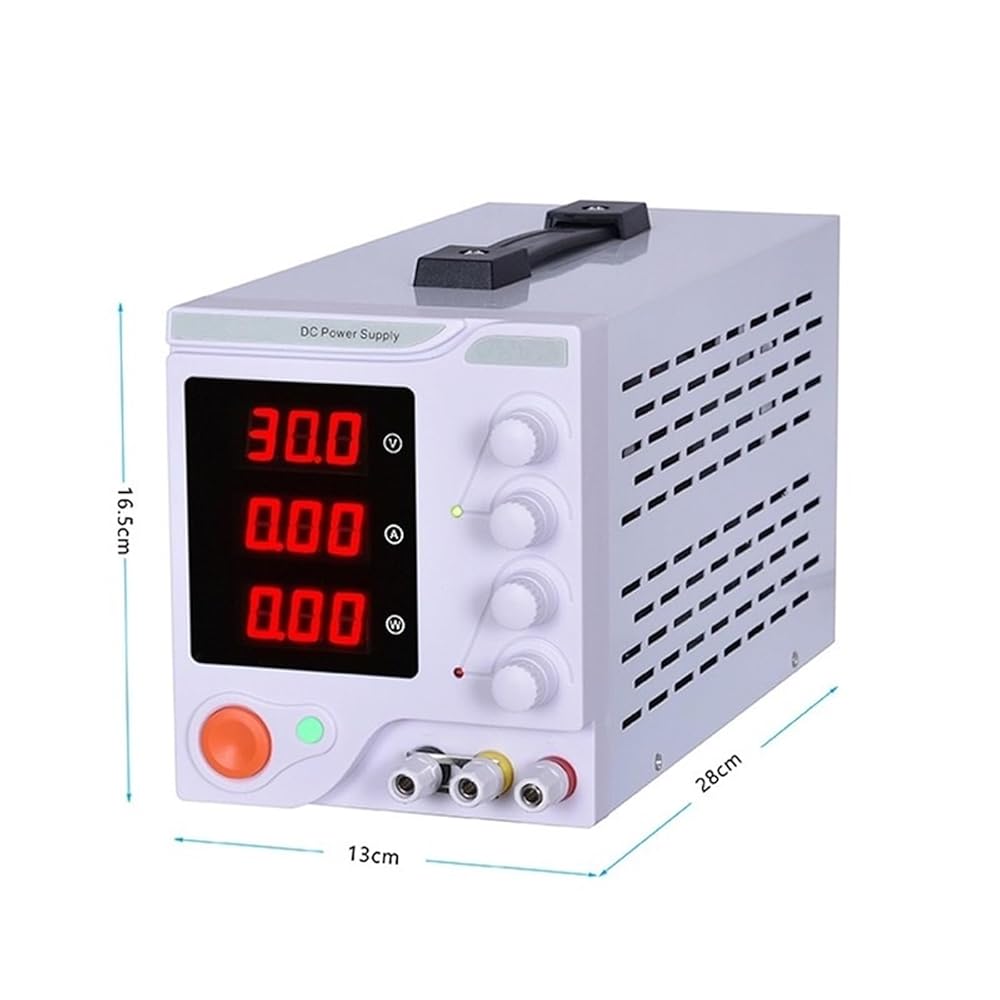

Size: 280(D)×130(W)×165(H)mm
Packing size: 355(D)×178(W)×210(H)mm
Note: When using this specification, please make sure to turn it on for more than 10 minutes
Features :
(1) Low noise and low ripple;
(2) Power display;
(3) ON/OFF unique switch;
(4) Automatic carry of the decimal point;
(5) Rear RS232/485/USB, upper computer software control (optional);
(6) Voltage, current and maximum power can be preset;
(7) over voltage, over current, over power, over temperature, short circuit five powerful protection function;
(8) long-term full load, short circuit ignition arc drawing machine;
(9) Dual frequency technology, energy saving and environmental protection (switching power supply);
(10) Intelligent temperature control fan.bench power supply,lab bench power supply,power supply 30v 5a
Product Description
==========
Hign-concerned Chemical : None
is_customized : Yes
Output Current : 0-10A
Output Frequency : 50/60hz
Output Type : SINGLE
Input Voltage : 220V±10%
Product Name : Variable Power Supply
Application : Testing Repairing
Protections : Over voltage, current, power, temperature, short circuit
Type : Regulated Power Supply
Color : White
Display Type : Digital Display
Name : Laboratory Bench Power Supply
Cooling : fan-cooling
