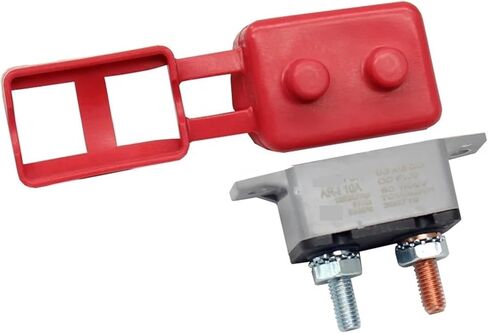

Product Description
Technical data
Current rating range 3-50A
Input voltage rating 12/24VDC:14/28VDC
compliances SAE J553.
Contact Endurance 125vac X150% of rated current >500 cycles
125vac X200% of rated current >200 cycles.
Insulation Resistance >100MOHM(DC 500V
Dielectric Strength >1500VAC/min.
Breakering Capacity 4 times rated current'
Automotive Type Auto-reset: 12/24VDC Automotive Type I
Automotive Type Modified- Reset: 12VDC Automotive Type II
Automotive Type Manual- Reset: 12VDC Automotive Type Ill
Materials UL 94V-0 Thermoplastic body, thermoset for Type Ill buttons
Mechanical/Environmental Data.
Operating Ambient Temperature: -10to +60
Storage Temperature Rating:40°Cto+100°C

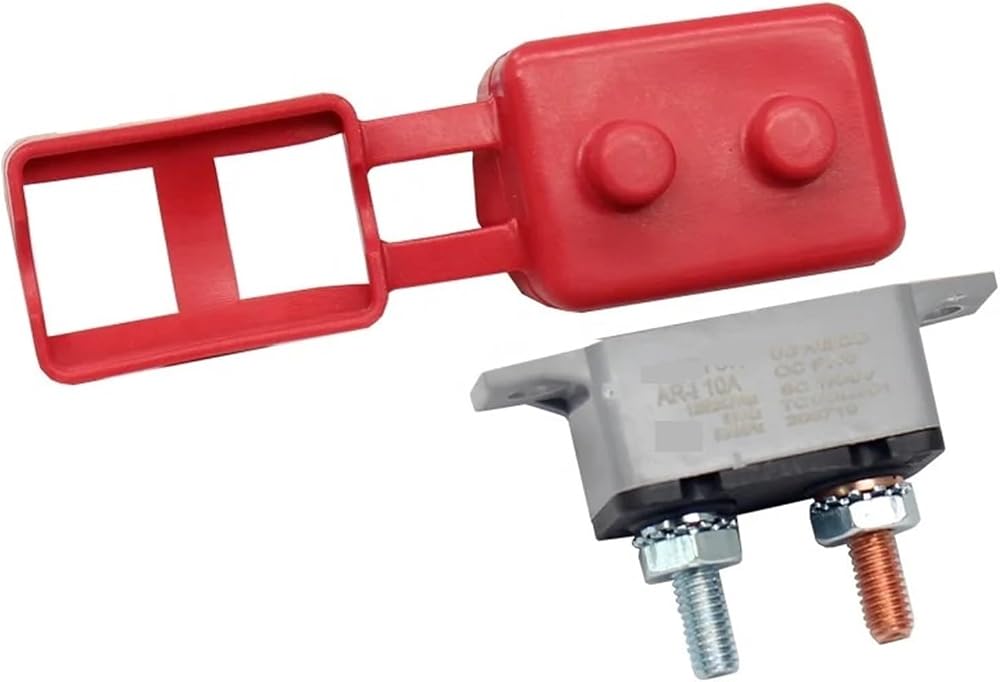

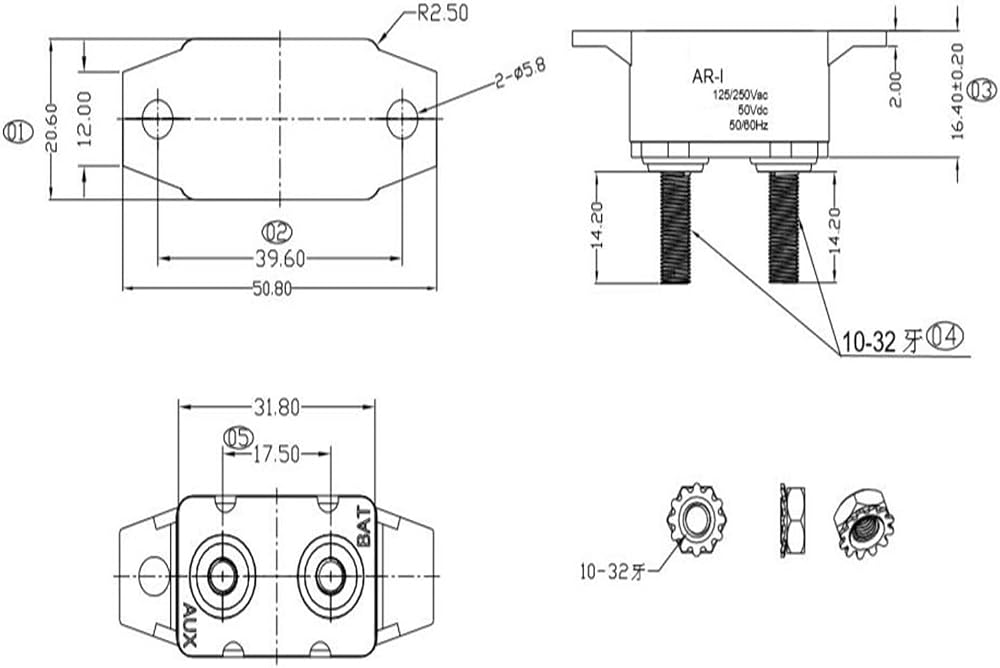

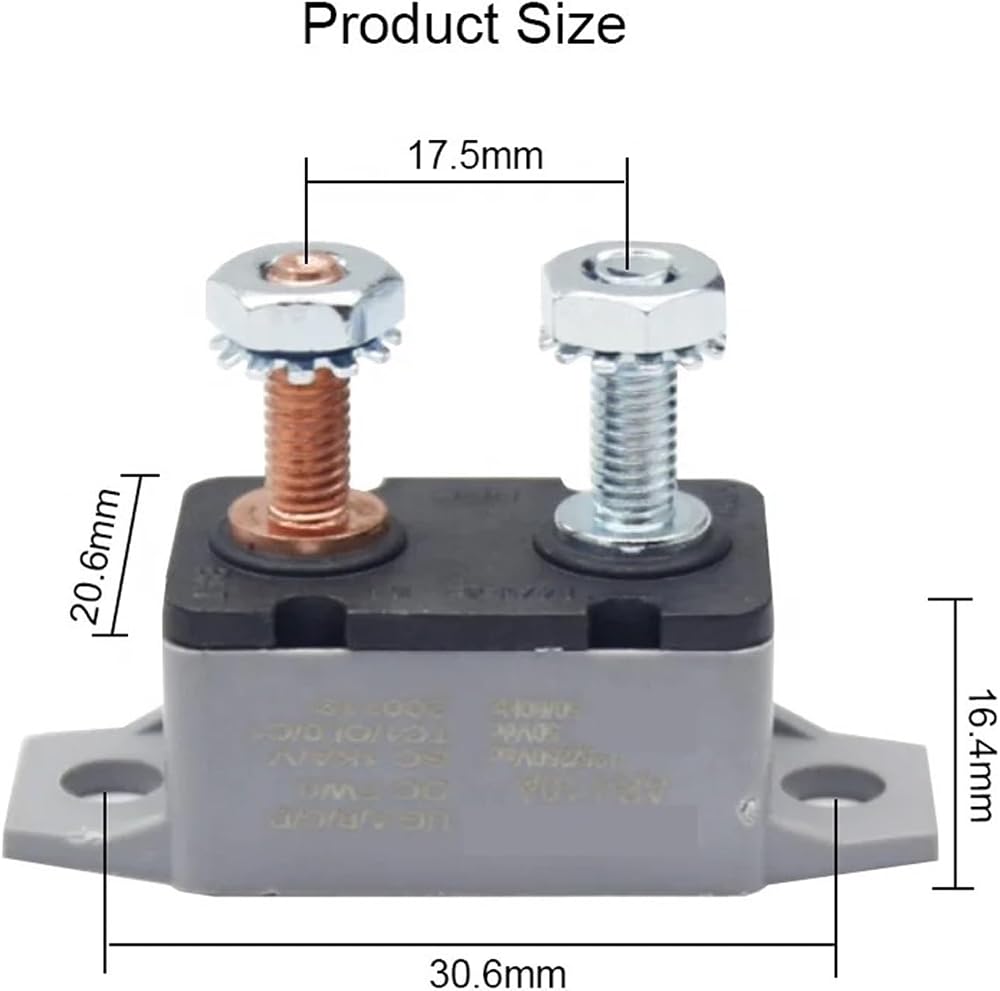

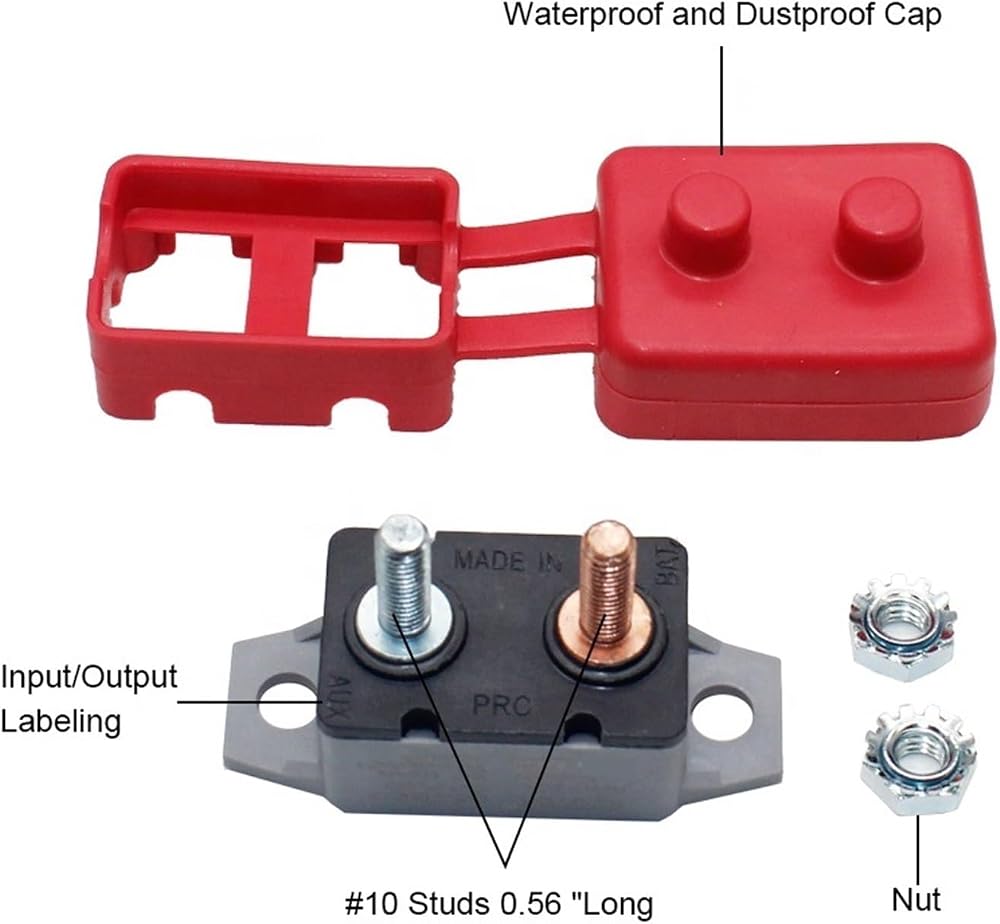

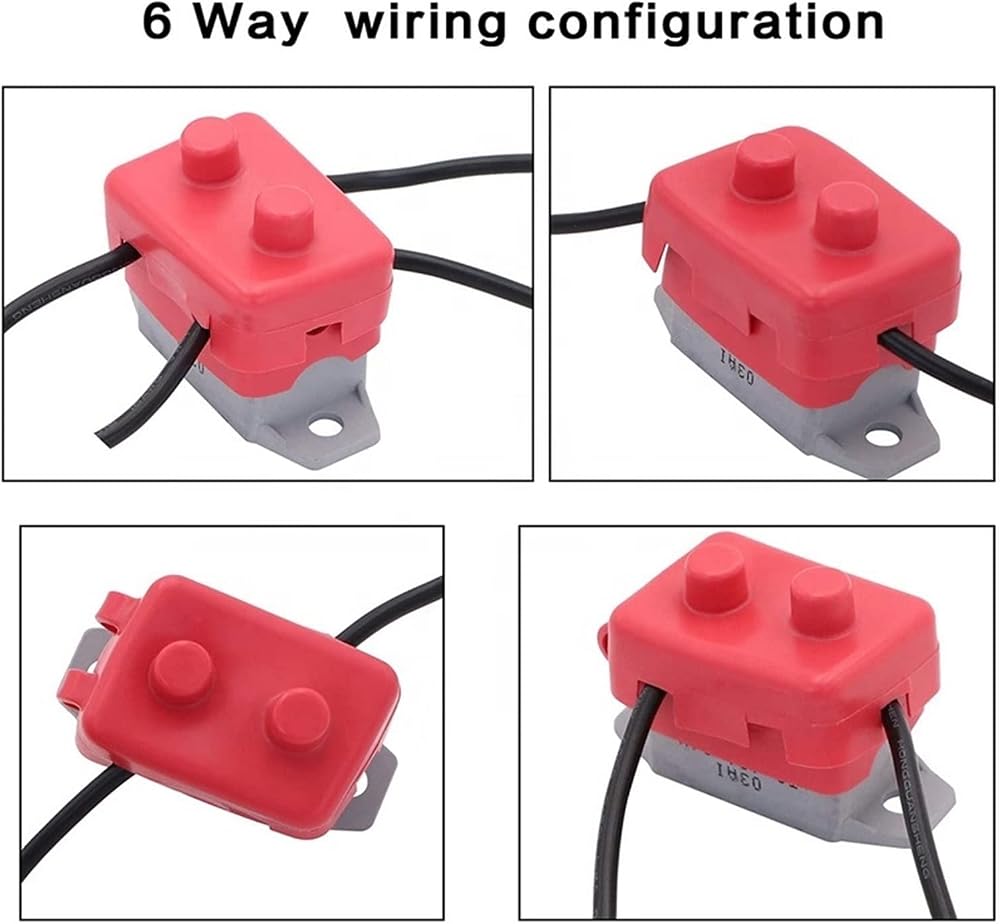

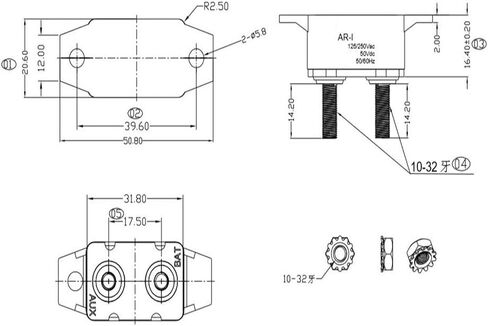

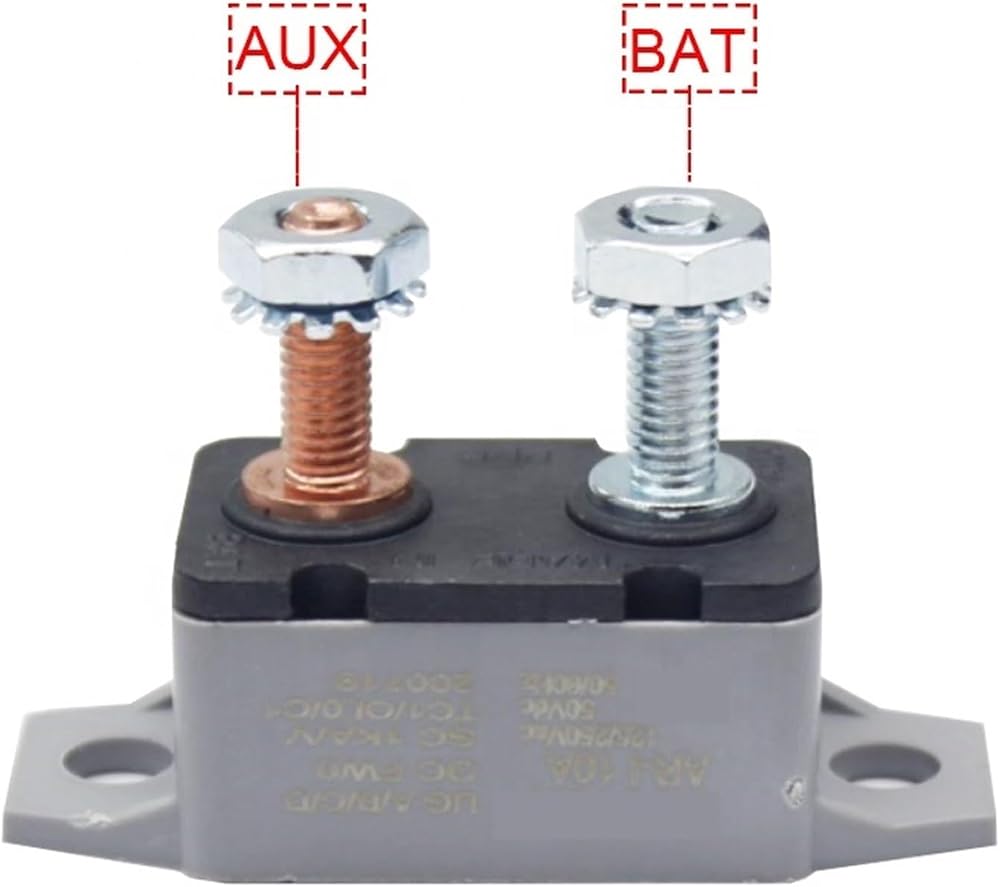

Terminal Type: #10-32 thread and 0.25 quick-connect options available
Typical applications
Trolling motors, Battery chargers, trucks, buses, RV'S
Approval
For Plastic Cover
Calibration(at25)
100 % of Rated Current: Hold, No Trip
150% of Rated Currentrip Within 1 Hour.
200% of Rated Current: 4.0-40.0 SEC Trip
300% of Rated Current1.2-12.0 SEC TrilP
==========
Hign-concerned Chemical : None
Type : Moulded Case
Model Number : AR-10A
Is Smarts Device : No
Origin : Mainland China
Current rating range : 3~50A
Input voltage rating : 12/24 VDC; 14/28VDC
Insulation Resistance : >100MOHM (DC 500V)
Dielectric Strength : > 1,500VAC/min.
Breakering Capacity : 4 times rated current
