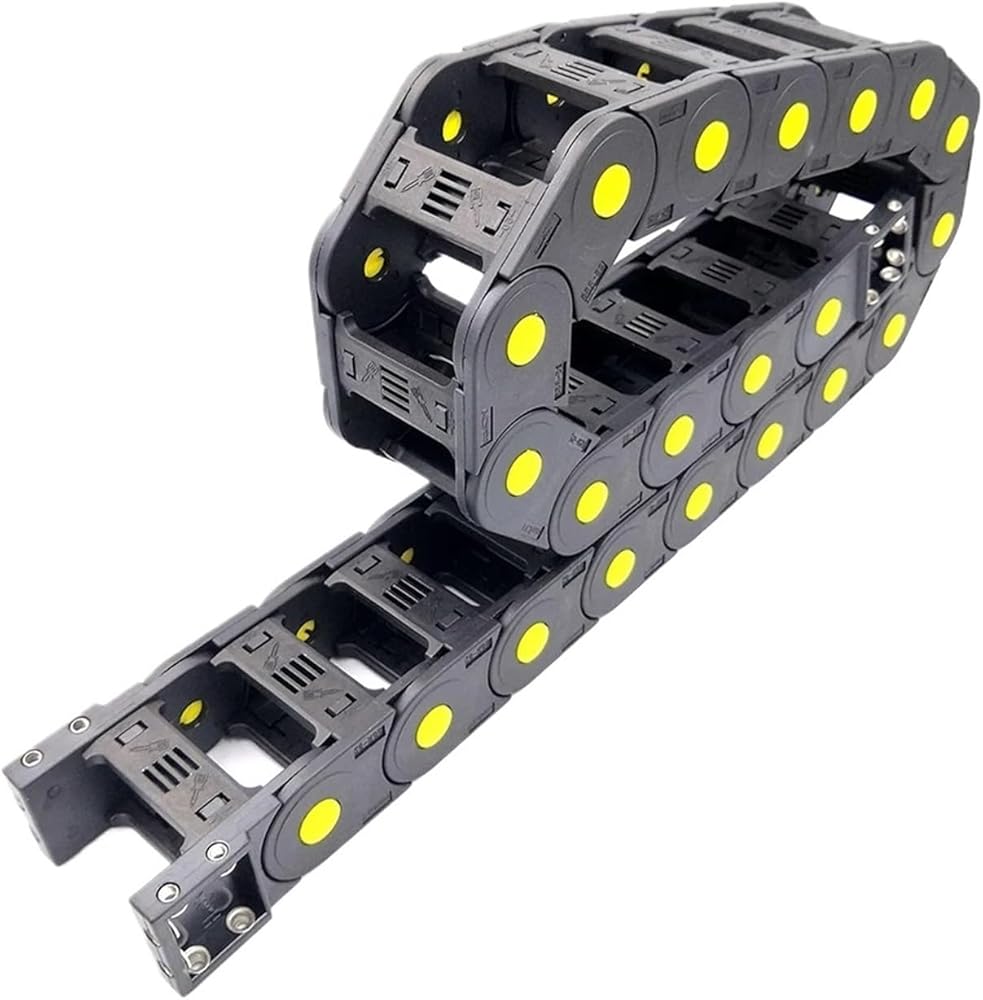

H25x57mm Enhanced Wire Carrier Cable Drag ChainBridge Type Open On Both SidesWith End Connectors TowlineFor CNC Router Machine ToolsEquipment Cable Protection
Plastic towline structure:
1) The towline shape like tanks chain, composed by a large number of unit links between therotating freely link.
2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.
3) Unit chain around the chain plate and the upper and lower cover composition, towline can openeach section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe,etc. into the towline after opening the cover.
4) Also available separators, the chain separated by space as needed.
Package includes:
1 Meter X Drag Chain (Length includes both end Connectors)
Quick selection of specifications:
25x25mm,25x38mm,25x50mm,25x57mm,
25x60mm,25x75mm,25x77mm,25x100mm,25x103mm.
Towline selection of main parameters:
Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.
Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.
Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.
Use towline length = R + 0.5R + stroke / 2
After bending towline total height = 2R + external high
Towline place principles:
Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in theradial direction of the towline does not produce tension. Larger diameter difference between thewire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.
==========
Hign-concerned Chemical : None
Item Type : Mechanical Kit/Hardware Parts
Inner Size : 25X57mm
Outer Size : 40x74mm
Max outer diameter of cable : 22mm
Pitch : 46mm
Link Per meter : 22
Material : Plastic

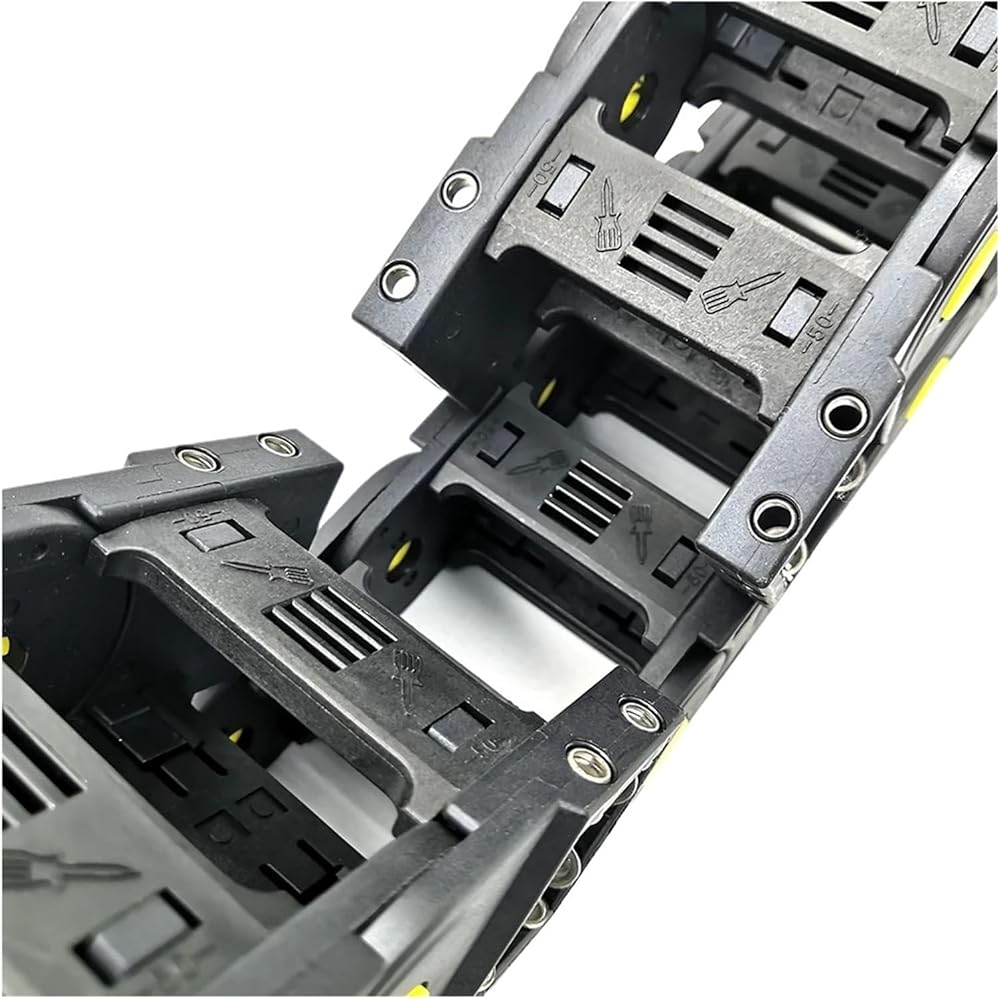

Structure : Bridge type and both sides can be opened

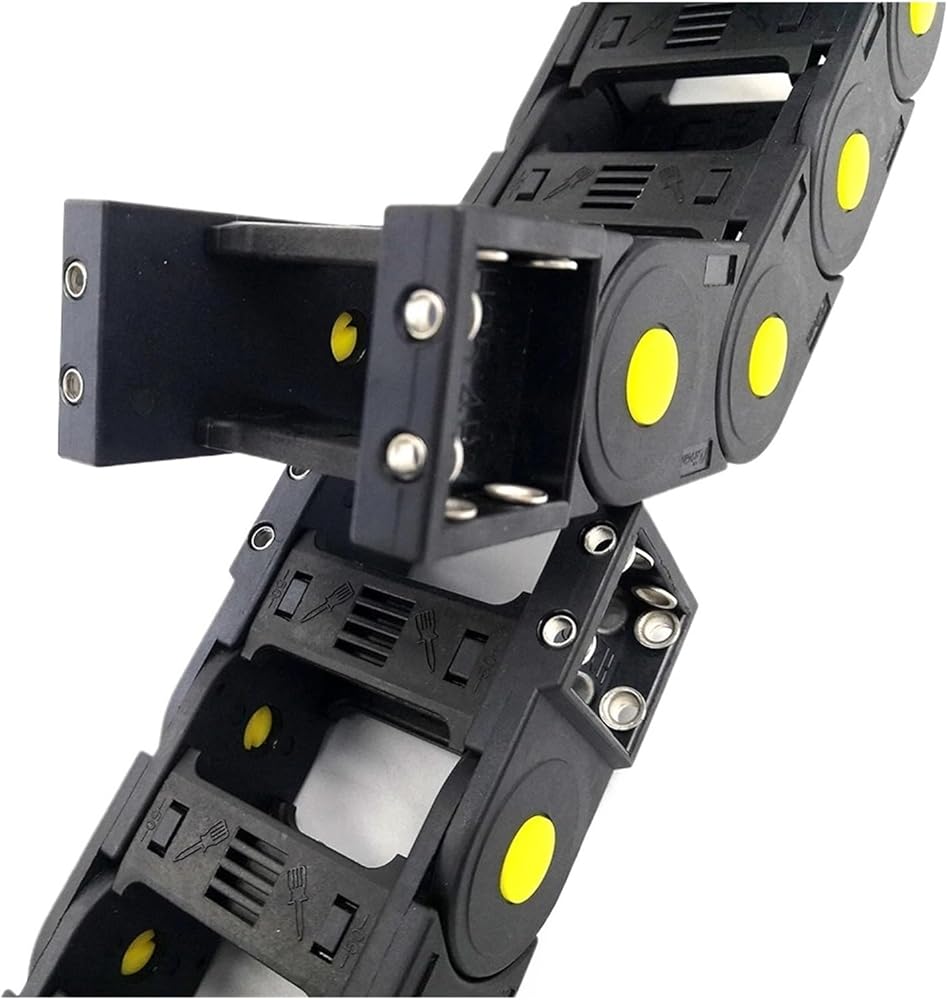

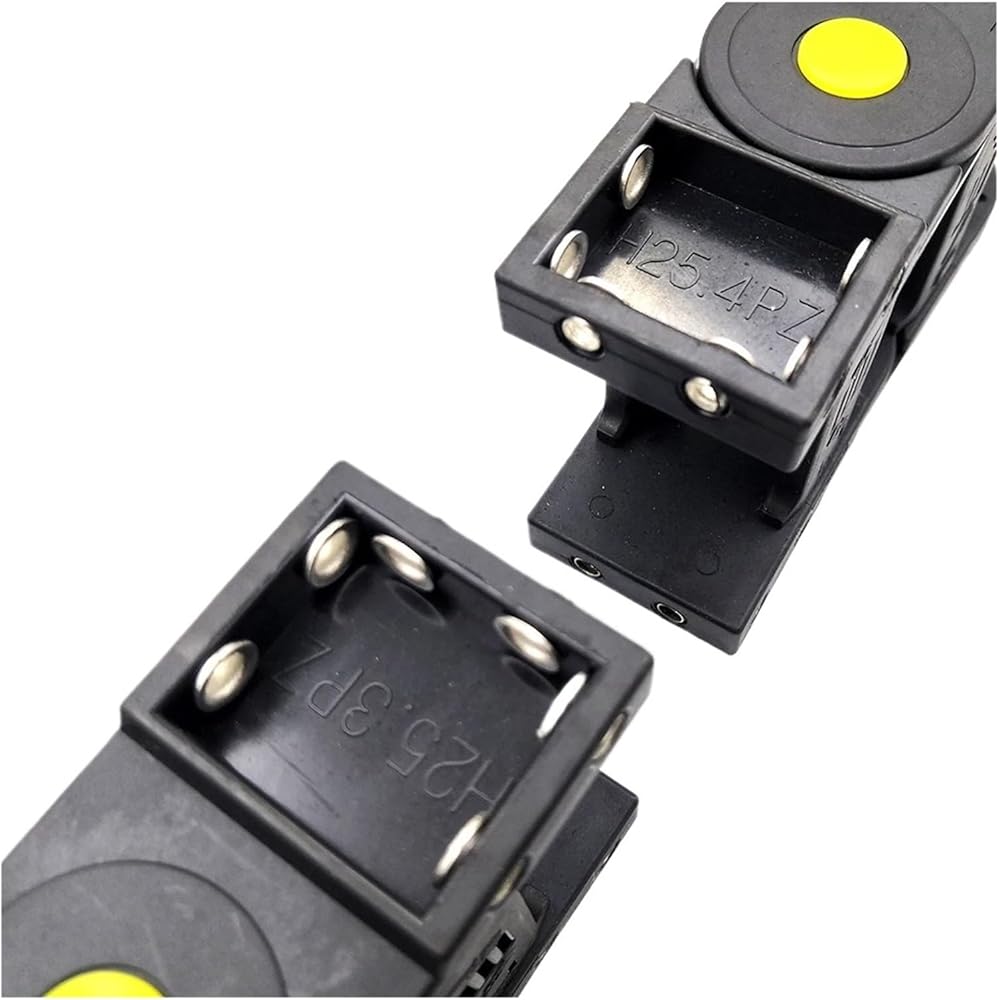

With Connector : Yes
Small mechanical equipment : 3D Printer
Equipment Cable Protection : Leaf Chain
Transmission chain : Machinery and equipment
Customized : Yes
